<h2>Overview</h2>

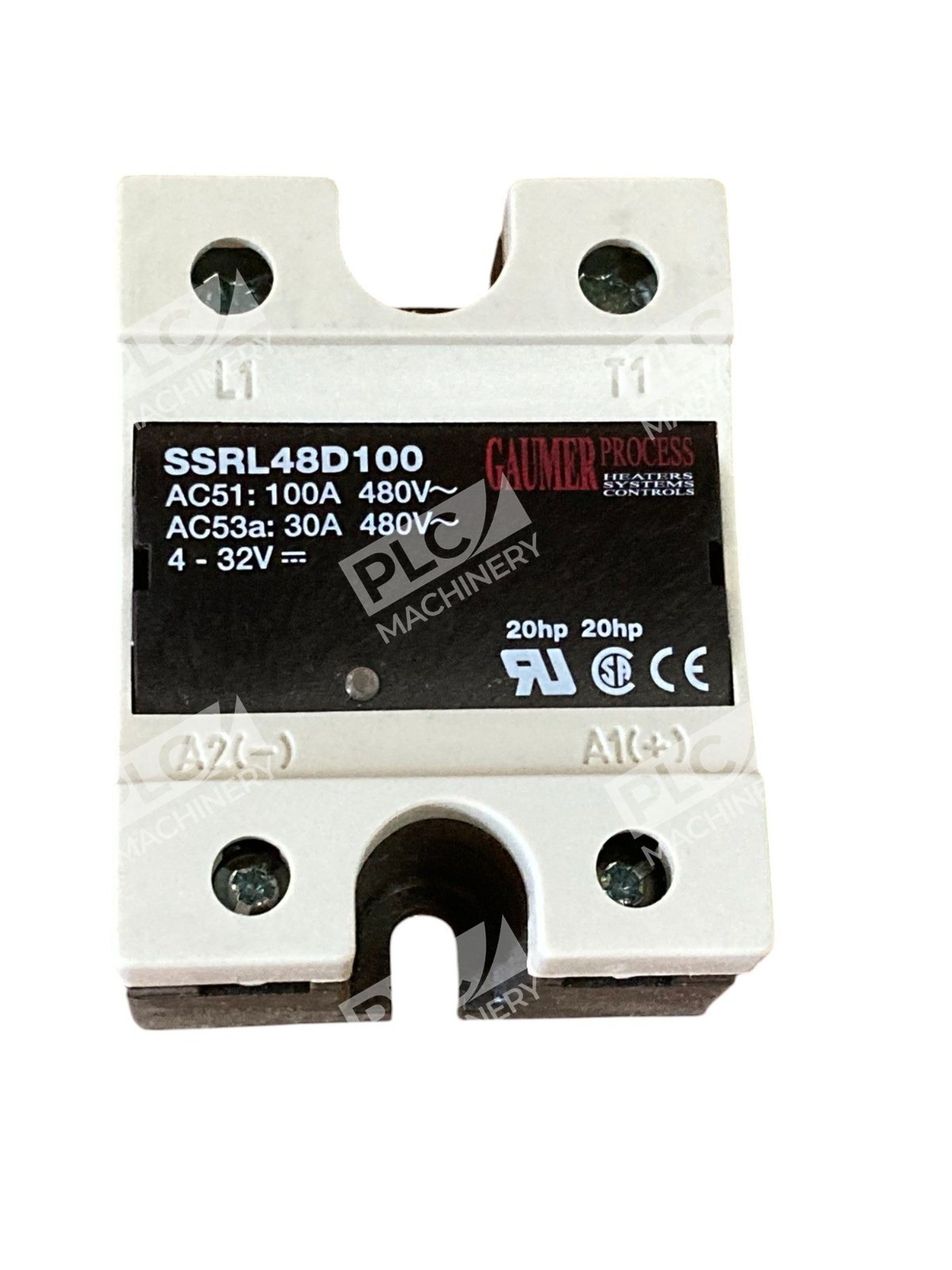

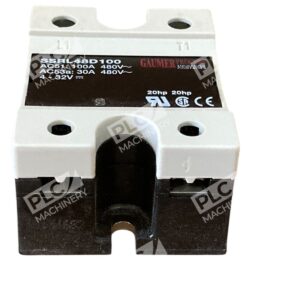

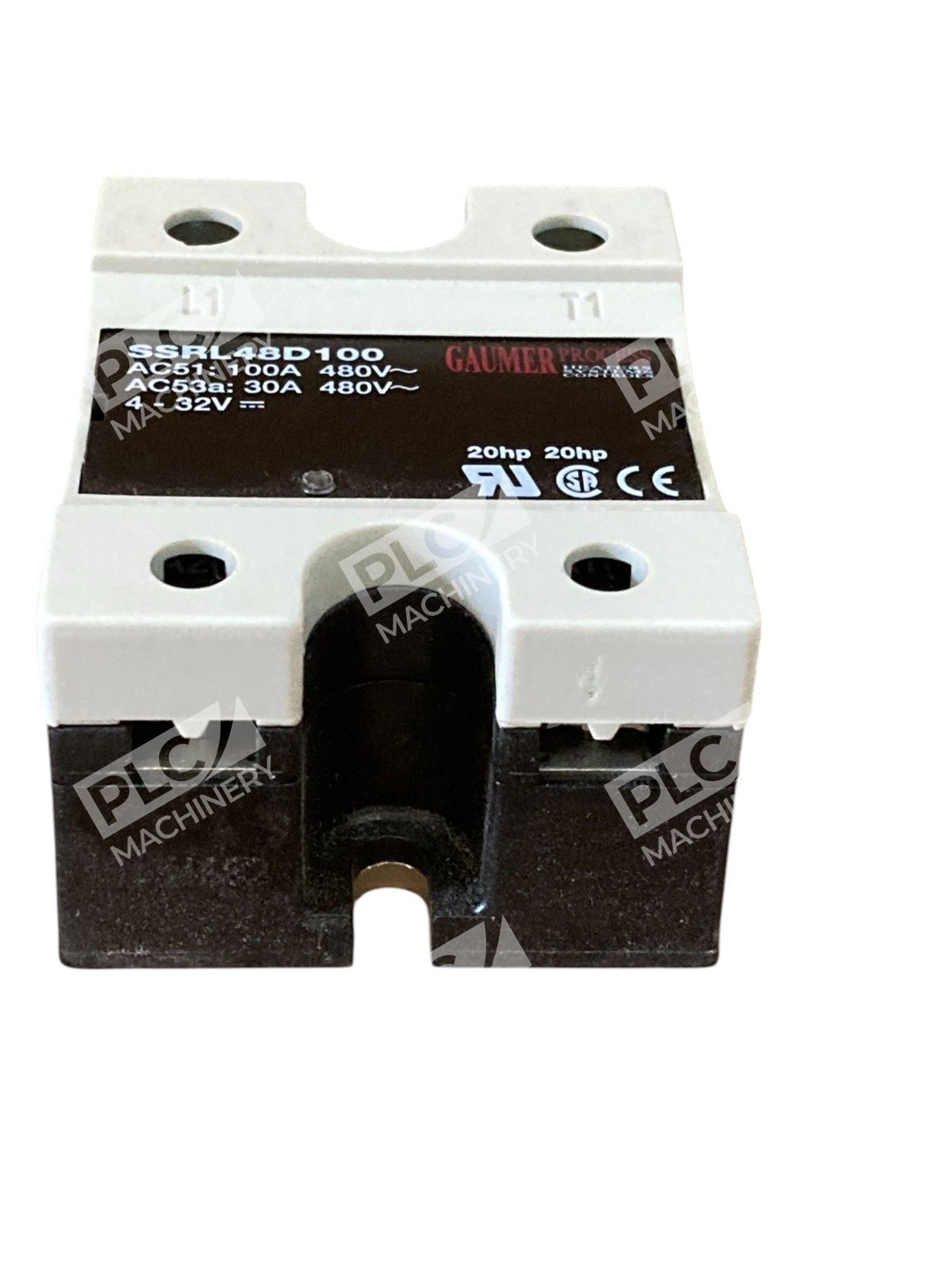

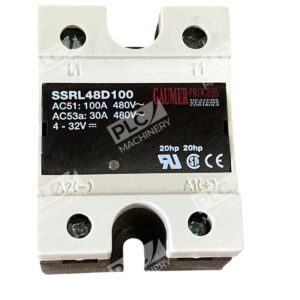

<p>The Gaumer Process SSRL48D100 is an industrial-grade solid state relay engineered for high-reliability DC-to-AC switching in process heating and electrical control systems. This relay accepts DC input control signals in the 4–32V range at 48A and switches 480V AC loads up to 100A continuous (AC51 rating) or 30A for more demanding AC-3a duty cycles. The compact IP-rated design integrates readily into panel-mounted and DIN-rail applications.</p>
<h2>Key Features</h2>
<ul>
<li>480V AC output rated at 100A (AC51) / 30A (AC53a) continuous</li>
<li>DC input control: 4–32V, 48A logic level</li>
<li>Solid state design eliminates moving contacts for extended service life</li>
<li>20 HP power rating suitable for large industrial heating loads</li>
<li>IP protection rating for panel and field deployment</li>
<li>Compact form factor for space-constrained installations</li>
</ul>
<h2>Technical Specifications</h2>
<ul>
<li><strong>Output Voltage:</strong> 480V AC</li>
<li><strong>Output Current (AC51):</strong> 100A continuous</li>
<li><strong>Output Current (AC53a):</strong> 30A continuous</li>
<li><strong>Input Voltage:</strong> 4–32V DC</li>
<li><strong>Input Current:</strong> 48A logic level</li>
<li><strong>Power Rating:</strong> 20 HP</li>
<li><strong>Switching Type:</strong> Solid State (semiconductor)</li>
<li><strong>Protection:</strong> IP-rated</li>
<li><strong>Poles:</strong> Single Pole (1P)</li>
</ul>
<h2>Typical Applications</h2>
<p>The SSRL48D100 is commonly deployed in:</p>
<ul>
<li>Industrial process heating systems and resistive heating control</li>
<li>Tank heater and circulation heater switching</li>
<li>Large horsepower motor soft-start and load control</li>
<li>PLC and automation system relay replacements</li>
<li>Power distribution and thermal management circuits</li>
<li>Oil & gas, refining, and petrochemical heating applications</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>PLC control systems outputting 4–32V DC logic signals</li>
<li>Industrial automation and process control platforms</li>
<li>Standard DIN-rail and panel-mounted electrical enclosures</li>
<li>480V three-phase or single-phase AC distribution</li>
<li>Gaumer Process heater systems and thermal management controllers</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<p>Verify compatibility with your system integrator or controls engineer before ordering. The SSRL48D100 may replace other Gaumer or OEM solid state relays with matching DC input and 480V AC output specifications; consult your equipment manual or contact technical support for confirmation.</p>
<h3>Works With</h3>
<ul>
<li>Allen-Bradley CompactLogix, ControlLogix, and MicroLogix PLCs</li>
<li>Siemens S7-1200, S7-1500, and STEP 7 automation platforms</li>
<li>Mitsubishi FX and Q-series PLCs</li>
<li>Omron CP and NJ-series controllers</li>
<li>Schneider Electric Modicon and M340 systems</li>
<li>Any industrial control system with 4–32V DC relay output capability</li>
</ul>
