Overview

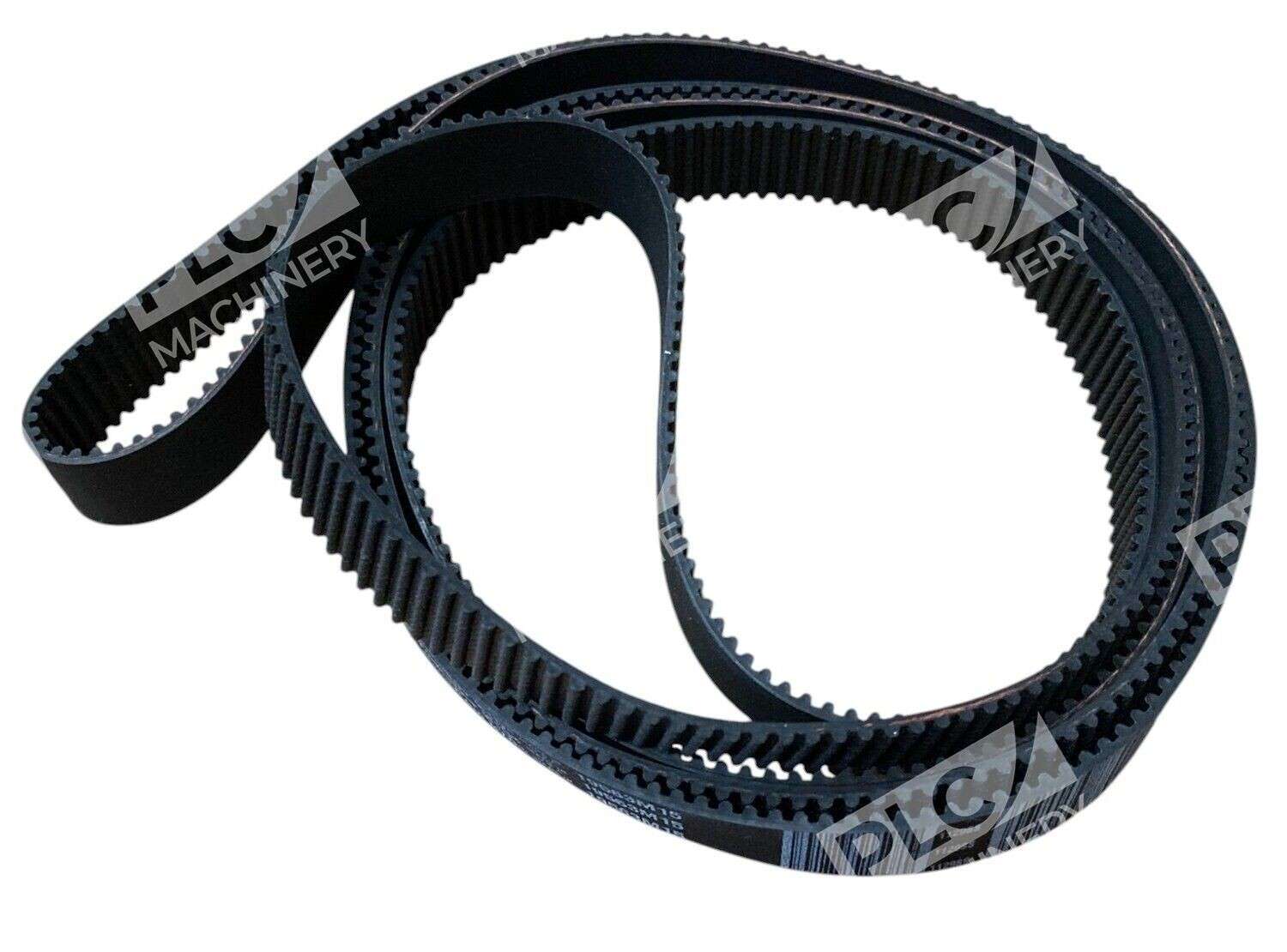

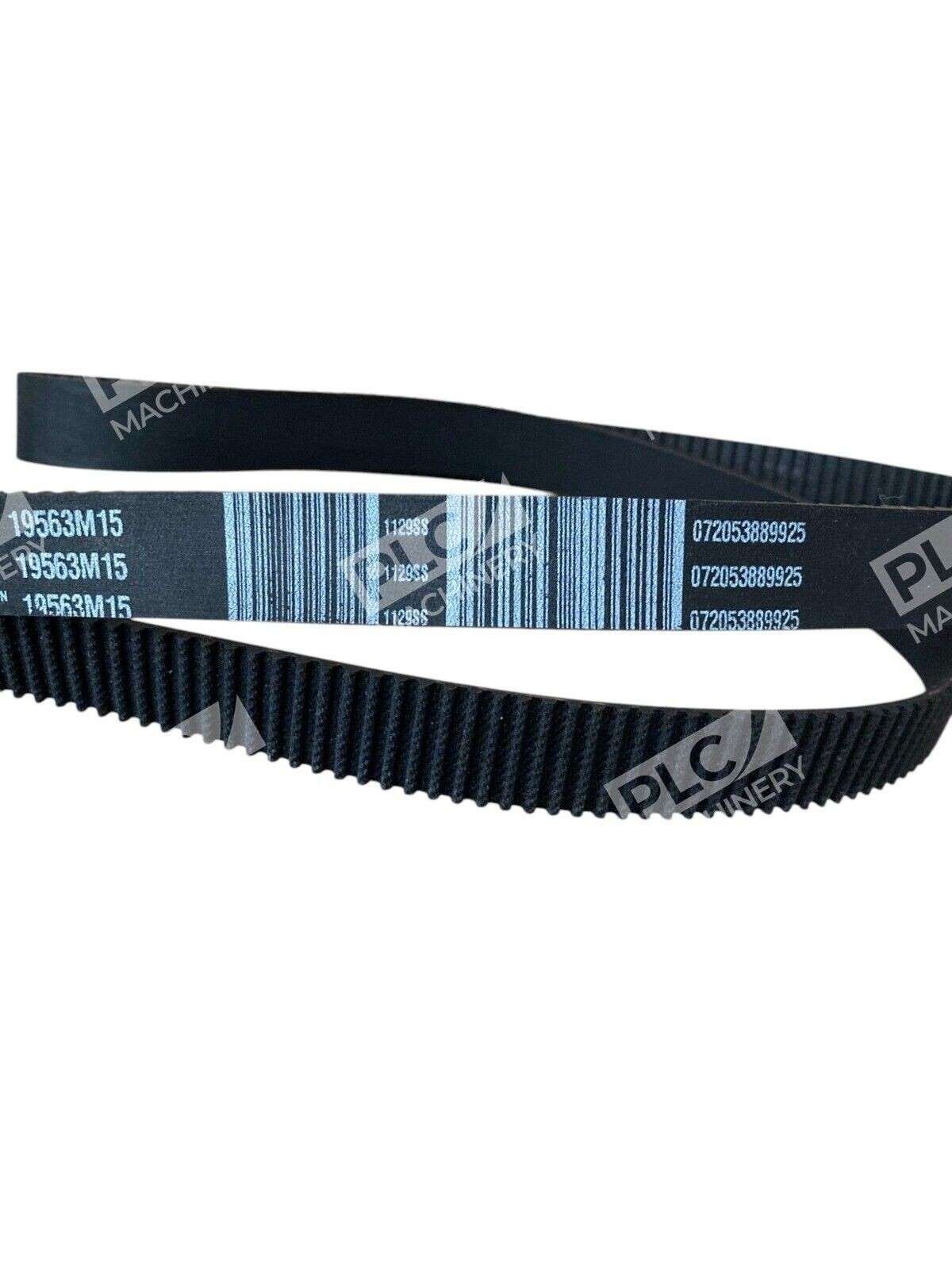

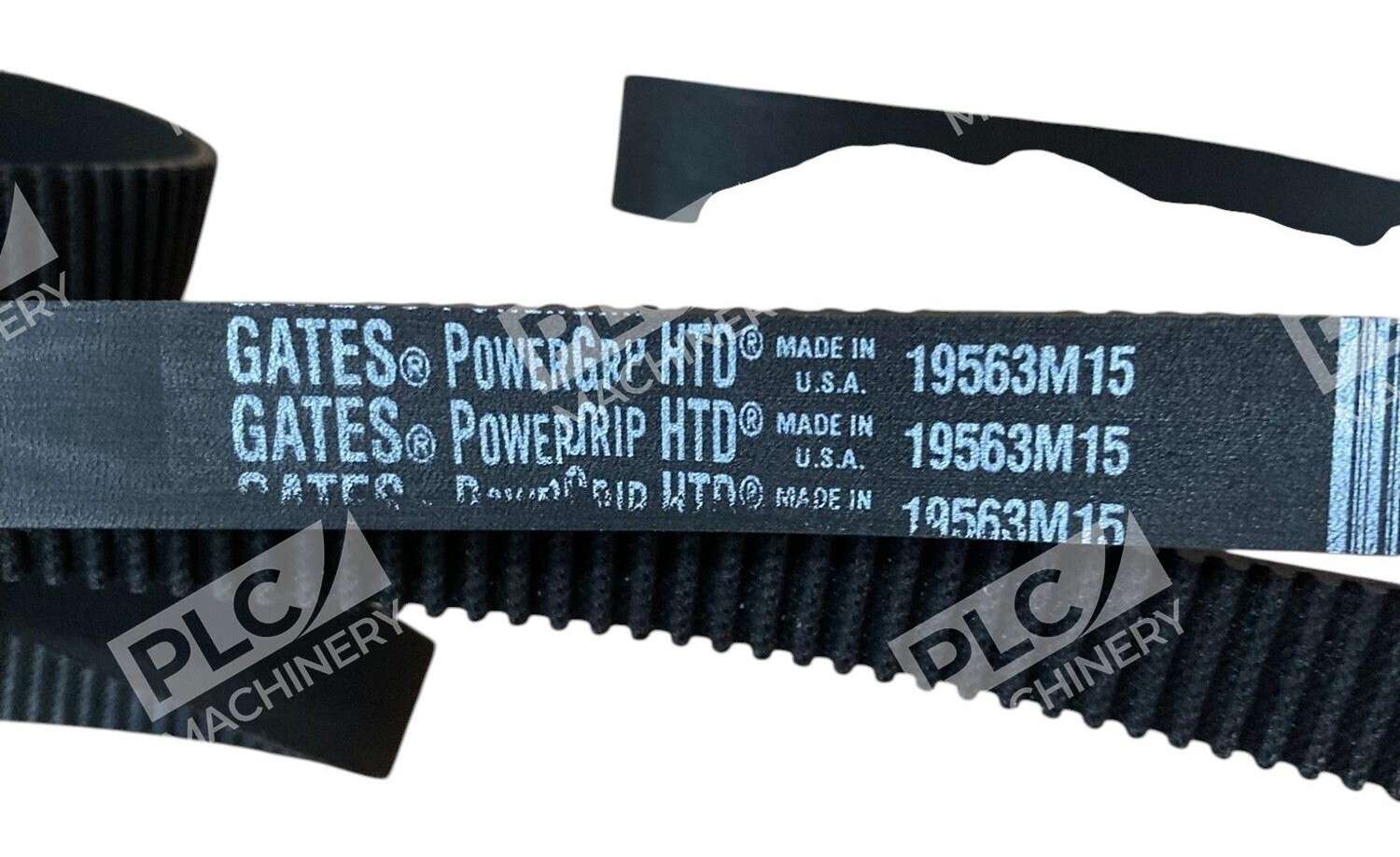

The Gates 1129SS 19563M15 is a premium PowerGrip HTD timing belt engineered for high-performance synchronous drive applications. The PowerGrip™ HTD™ synchronous belt curvilinear tooth form ensures an optimized load distribution leading to high power transmission in low speed and high torque applications. This belt combines precision tooth spacing with durable elastomeric construction, making it an ideal drop-in replacement or upgrade component for industrial machinery requiring reliable timing and minimal downtime.
Key Features
- Unique curvilinear tooth geometry that optimises load distribution and eliminates stress concentration at tooth roots, enabling higher power capacity and extended service life
- Larger, more robust curvilinear tooth profile for increased capacity, as compared to other timing belts
- Maintenance-free, clean solution for roller chain drive conversion. No lubrication or retensioning required.
- Fiberglass tensile cord provides high strength, excellent flex life and high resistance to elongation
- Neoprene body provides protection against grime, grease, oil and moisture. Nylon tooth facing provides a durable wear surface for long service life.
Technical Specifications
- Pitch Designation: HTD 15M
- Belt Length: 195 mm (6311 mm pitch length)
- Belt Width: 63 mm
- Tooth Profile: Curvilinear HTD
- Temperature Range: -30°C to +100°C (-22°F to +212°F)
- Body Material: Neoprene (Polychloroprene)
- Tooth Facing: Nylon
- Core Material: Fiberglass tensile cord
- Conforms to ISO 13050 standards
Typical Applications
8M, 14M and 20M belts are used in high-performance drives in the machine tool, paper and textile industries where durability and low maintenance are required. The Gates 1129SS 19563M15 is also well-suited for:
- Industrial automation and machinery control systems
- Precision positioning and synchronization equipment
- Heavy-duty chain-to-belt drive conversions
- Food processing and packaging equipment
- Power transmission in controlled-environment applications
Compatibility & Replacements
Compatible With
- HTD profile pulleys (15mm pitch spacing)
- Standard timing belt drive systems using HTD synchronous belts
- Industrial machinery with M15 belt designations
- Chain drive replacement applications
Replaces / Drop-In Replacement For
The Gates 1129SS 19563M15 is a direct replacement for Gates PowerGrip HTD 15M timing belts with equivalent pitch length and width specifications. Verify compatibility with your system integrator before ordering to ensure proper fit and performance.
Works With
- HTD synchronous belt drive systems
- Timing belt tension control mechanisms
- Industrial PLC-based automation systems requiring synchronized mechanical drives
- Conveyor and positioning systems using toothed-belt transmission
