Overview
The FYH SBPFL205-16 is a stamped steel oval 2-bolt flange-mounted bearing unit with a 1-inch cylindrical bore and set-screw locking. This compact, cost-effective bearing solution is ideal for machinery requiring perpendicular shaft-to-surface mounting. The pressed steel housing design reduces weight while maintaining robust performance in moderate-load applications across agricultural, conveyor, and light industrial equipment.
Key Features
- Pressed steel stamped oval flange housing for reduced weight and cost
- 1-inch (25.4 mm) cylindrical bore with set-screw shaft locking
- Two 5/16-inch mounting bolt holes for secure two-point fastening
- Self-aligning insert bearing for compensation of minor shaft and housing misalignment
- Compact design suitable for tight mounting spaces
- New in Box condition—ready for immediate installation
Technical Specifications
- Bore Diameter: 1 inch (25.4 mm)
- Housing Type: Pressed steel oval flange
- Flange Style: 2-bolt diamond flange
- Mounting Bolt Size: 5/16 inch
- Dynamic Load Rating (Cr): 14 kN
- Static Load Rating (Cor): 7.85 kN
- Locking Method: Set screw
- Weight: 0.620 lb (0.28 kg)
- Bearing Series: SB205 (interchangeable insert)
- Condition: New in Box
Typical Applications
The FYH SBPFL205-16 is commonly used in:
- Agricultural machinery and grain handling equipment
- Conveyor systems and belt-driven applications
- Pump shafts and fan motor mounts
- Light industrial power transmission equipment
- Rotating shaft support in moderate-speed, moderate-load environments
Compatibility & Replacements
Compatible With
- Any equipment using standard 1-inch bore flanged bearing units
- Shafts requiring 5/16-inch bolt mounting patterns
- SB205 series insert bearings and equivalent pillow block assemblies
- Industrial machinery designed for two-bolt flange mounting
Replaces / Drop-In Replacement For

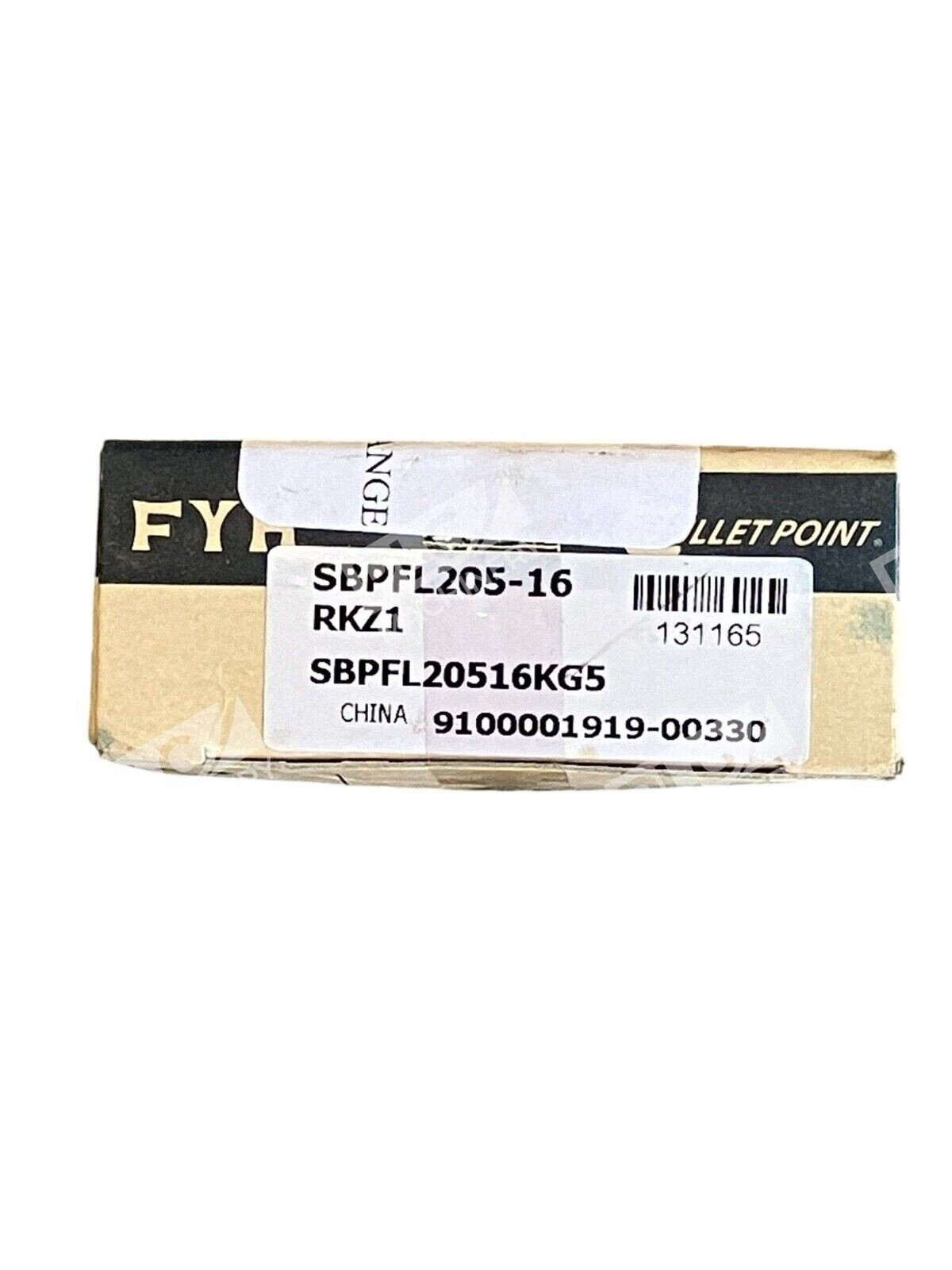

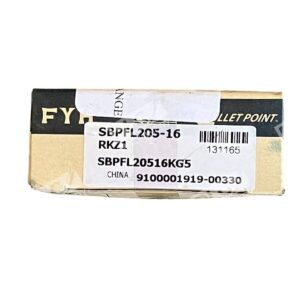

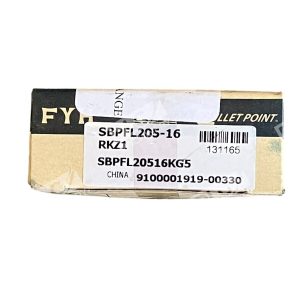

- FYH SBPFL205-16 RKZ1 SBPFL20516KG5 (variant designation)
- Other OEM equivalents using SB205-16 insert bearings
- Standard 1-inch 2-bolt flange bearing units from compatible manufacturers
Works With
- SB205-16 insert bearing assemblies
- Pressed steel and cast iron flange housings with two-bolt patterns
- Set-screw locking collar systems
- Industrial-grade mechanical power transmission systems
