Overview

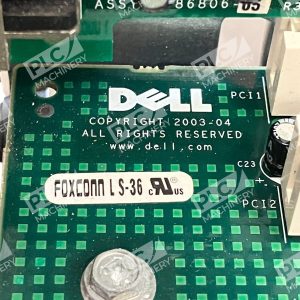

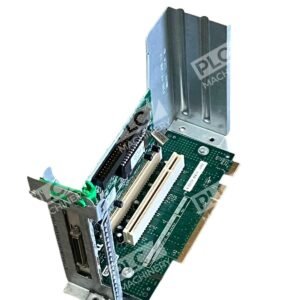

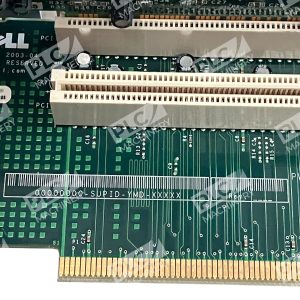

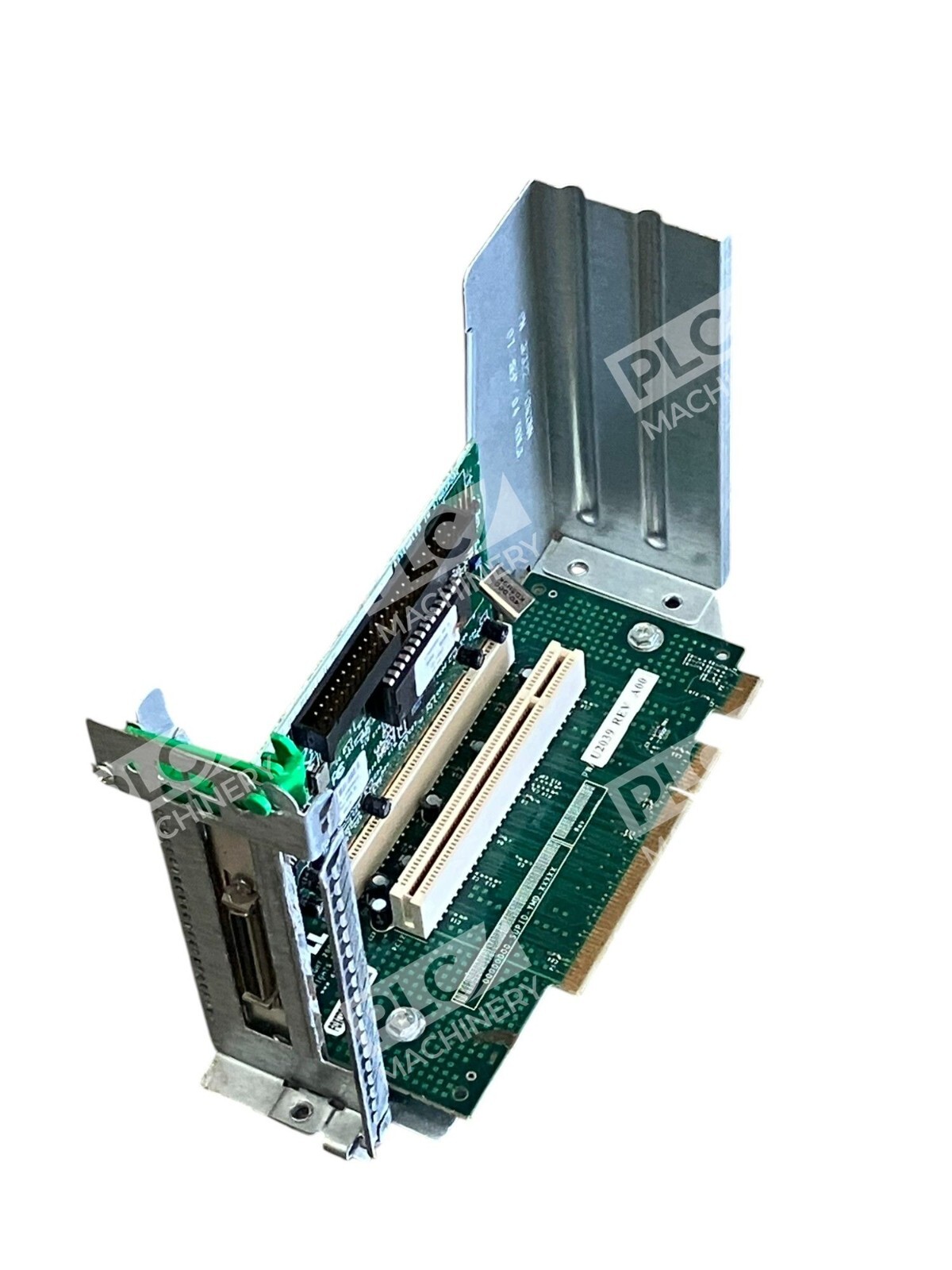

The Foxconn 3F322 is a PCI card riser assembly designed for Dell OptiPlex GX desktop computers. This riser bracket secures expansion cards such as the Adaptec AHA-2930CU SCSI controller in vintage Dell systems. The 3F322 provides mechanical support and proper card alignment within the case, maintaining correct clearances for multi-card configurations.
Key Features
- OEM Foxconn manufactured bracket for Dell OptiPlex GX series
- Designed to support PCI expansion cards including SCSI controllers
- Provides secure mechanical mounting and alignment
- Vintage component for legacy computer restoration and repair

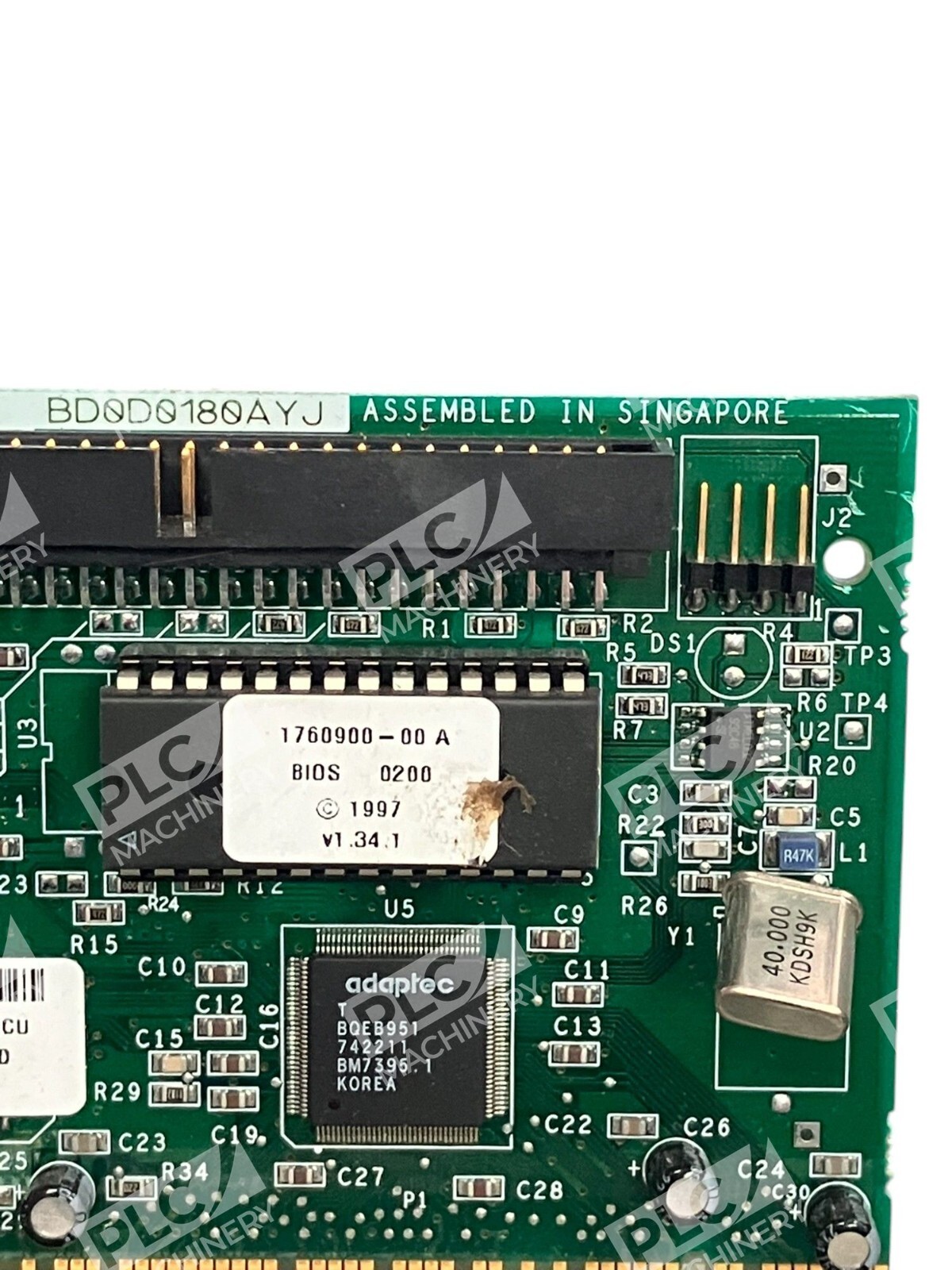

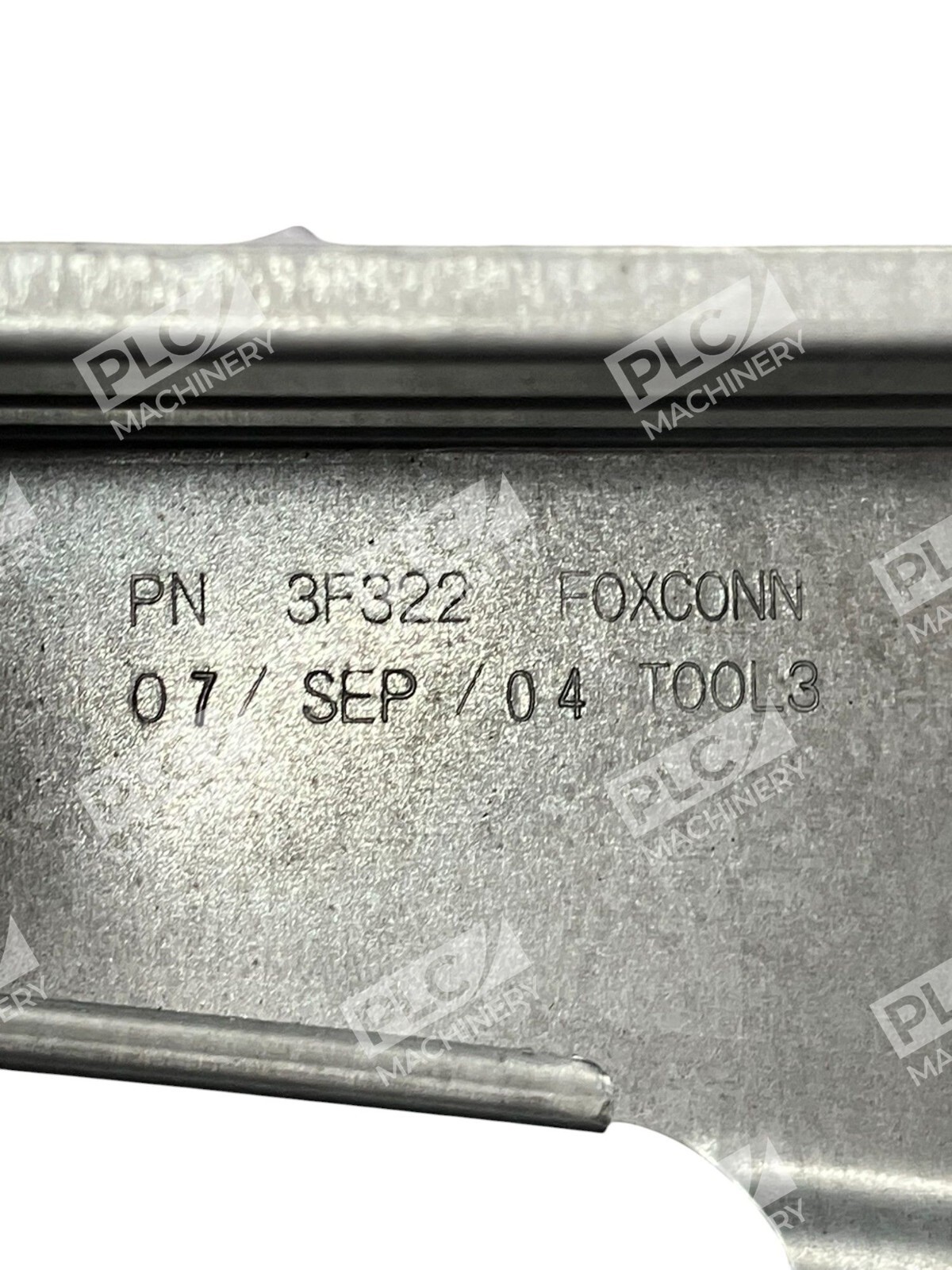

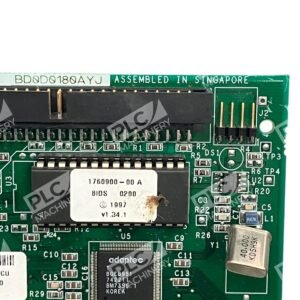

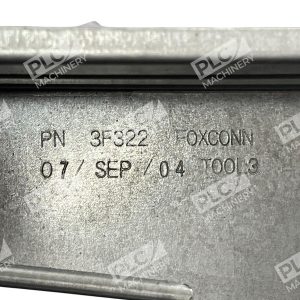

- Part number 3F322 with associated reference codes 1686806-05 and BD0D0180AYJ
Technical Specifications
- Mounting Type: PCI riser/bracket assembly
- Compatible System: Dell OptiPlex GX

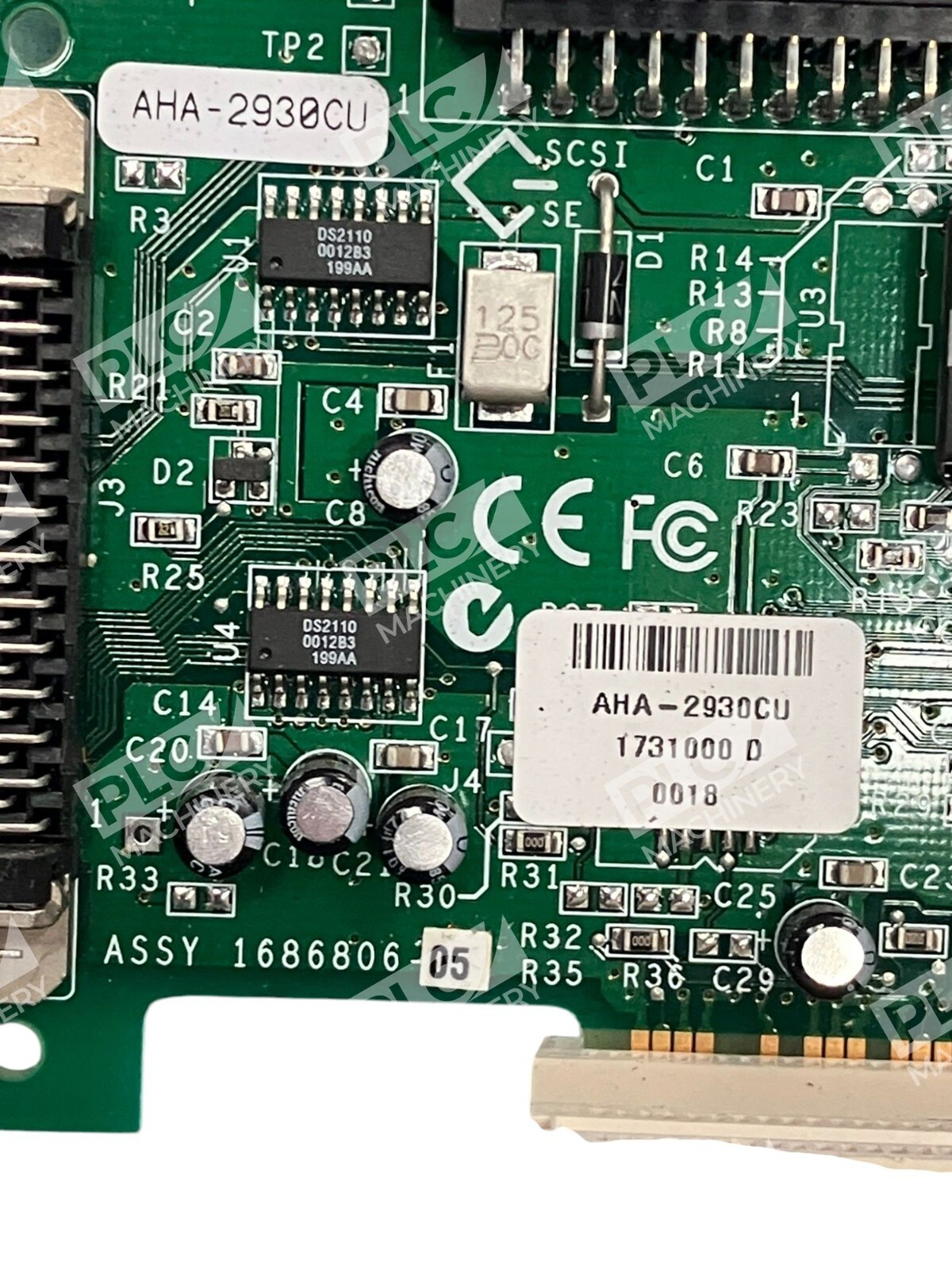

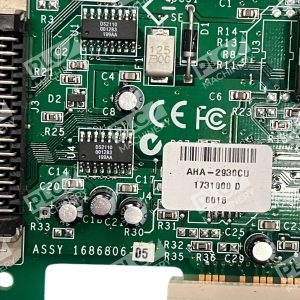

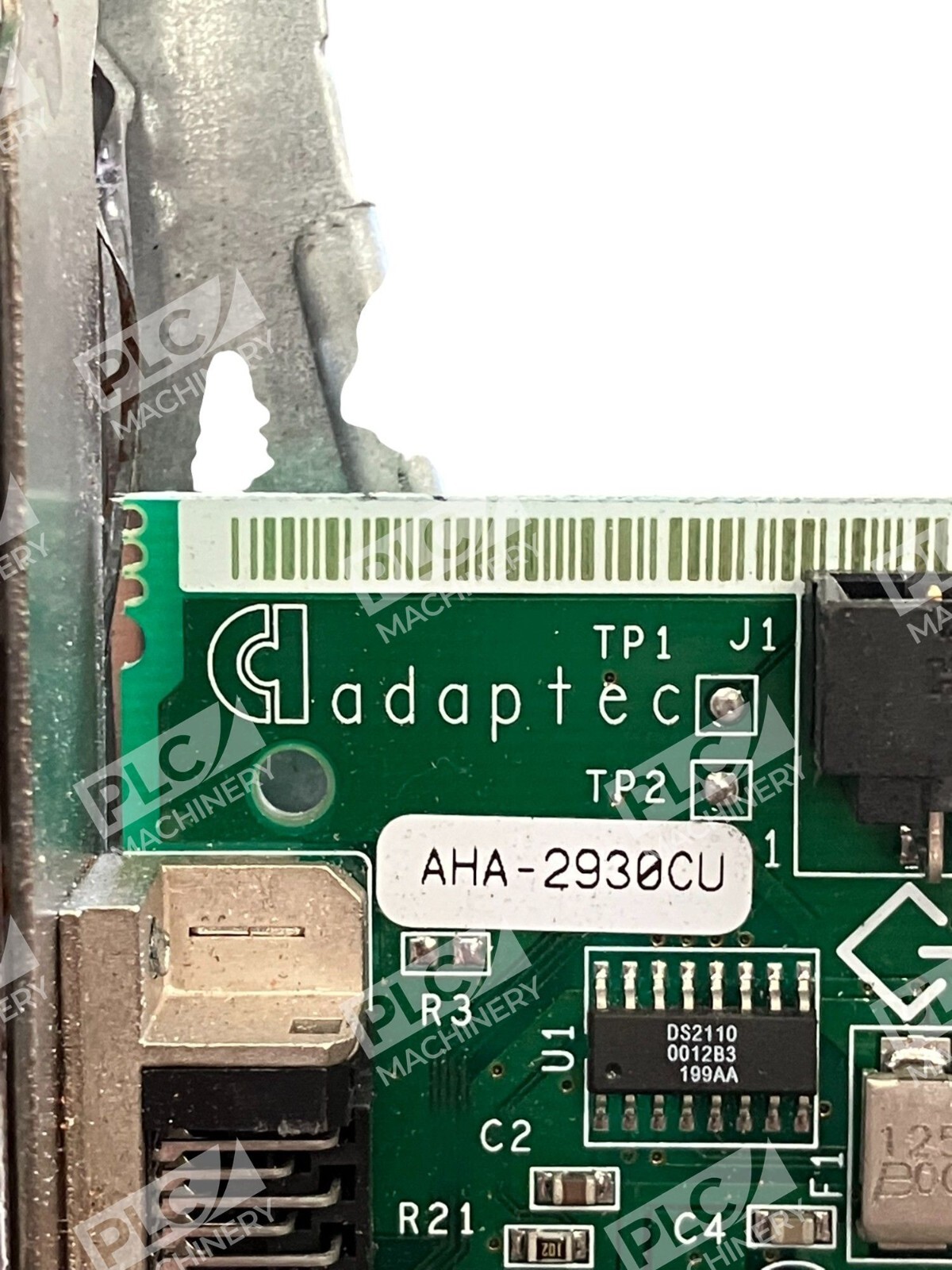

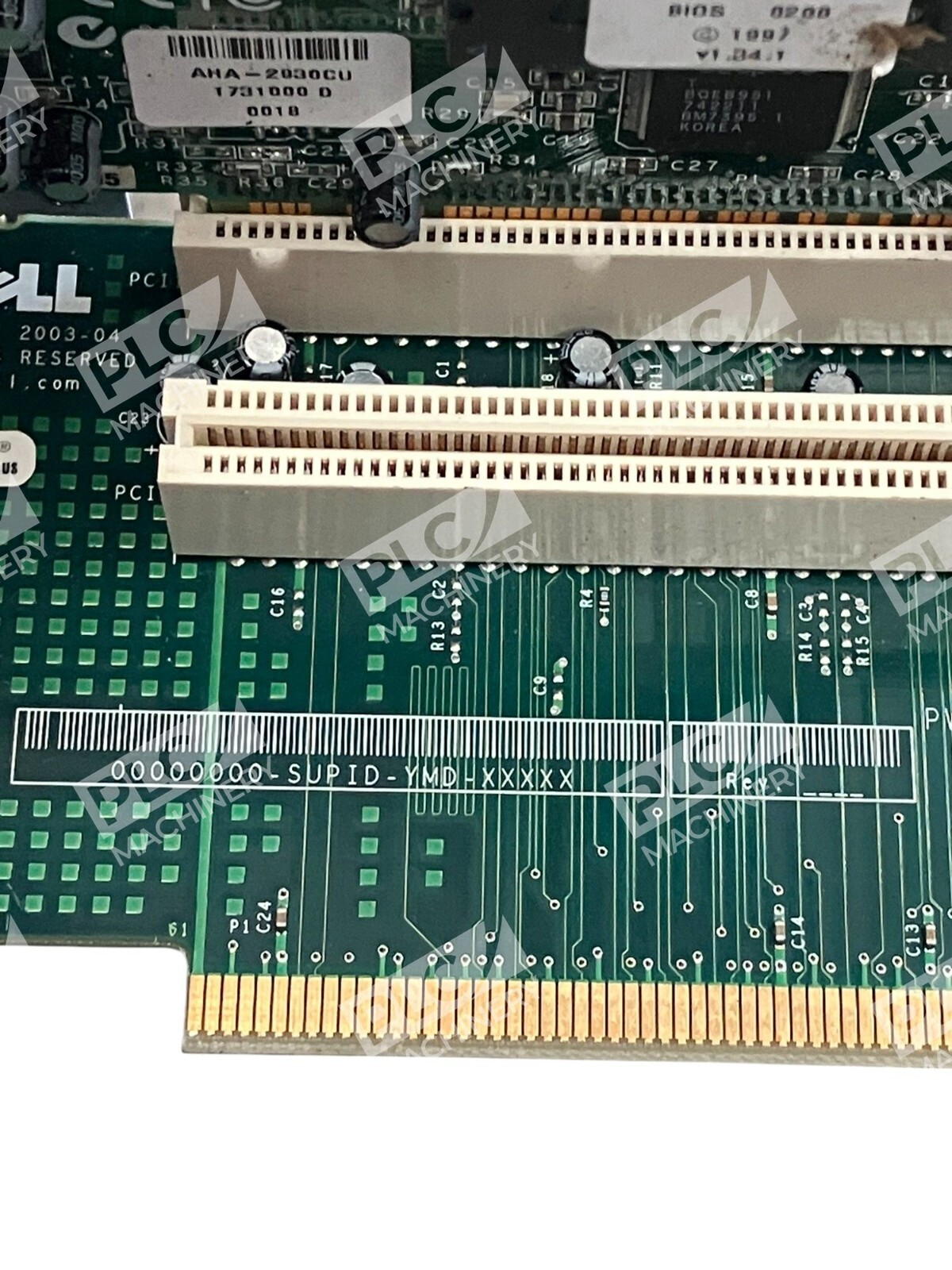

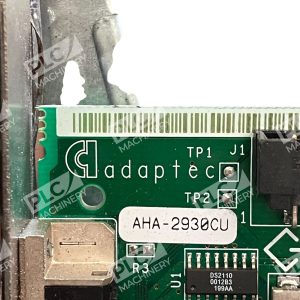

- Designed For: Adaptec AHA-2930CU and similar PCI cards
- Card Interface: 32-bit PCI 5V
- Supported Connector Types: 50-pin High-Density SCSI-2 (external), 50-pin standard SCSI (internal)
- SCSI Data Transfer: Up to 20 MB/sec
- Condition: Used, vintage

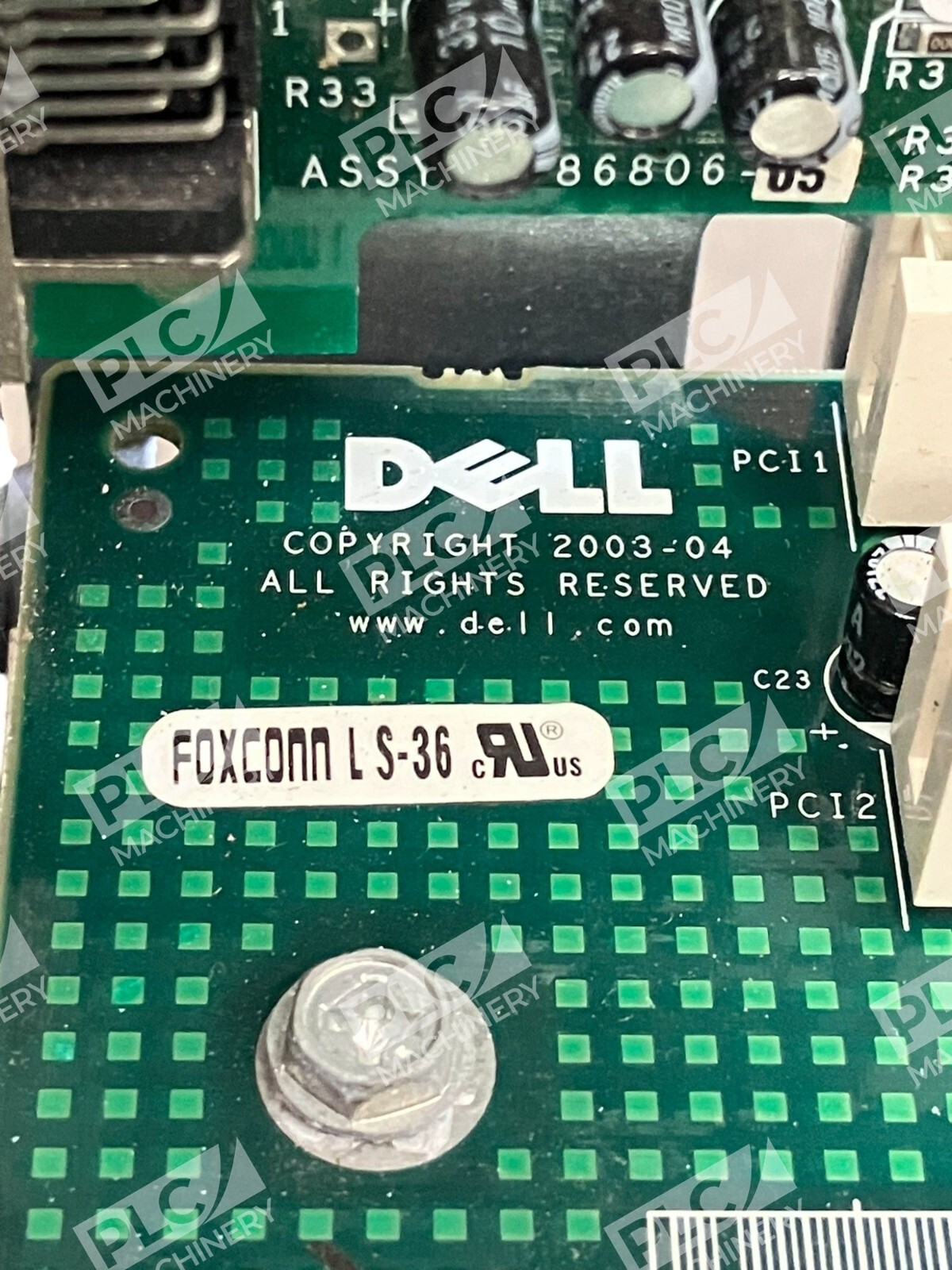

- Manufacturer: Foxconn, Singapore
Typical Applications
- Legacy Dell OptiPlex GX workstation repairs and upgrades
- Vintage computer restoration projects requiring SCSI expansion capability
- Systems requiring secondary PCI card support beyond primary slots
- Collectors and enthusiasts maintaining classic Dell desktop configurations
Compatibility & Replacements
Compatible With
- Dell OptiPlex GX series desktop computers
- Adaptec AHA-2930CU PCI SCSI controller cards
- 32-bit PCI 5V expansion cards
- Systems supporting 50-pin SCSI-2 external connectors
Replaces / Drop-In Replacement For
- Original Dell 583XT OptiPlex GX PCI Riser Assembly with 3F322 Foxconn bracket
- Verify exact chassis model compatibility with your system integrator before ordering
Works With
- Dell OptiPlex GX BIOS and firmware versions supporting PCI expansion risers
- Legacy SCSI device drivers for Adaptec AHA-2930CU controllers
- Windows 9x, Windows NT 4.0, Windows 2000, and compatible operating systems with SCSI support
- Apple Macintosh systems with PCI support (AHA-2930CU Mac variants available)
