Overview

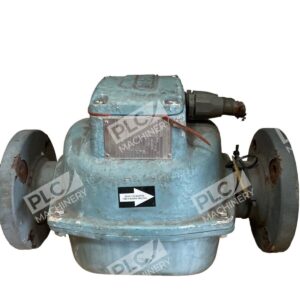

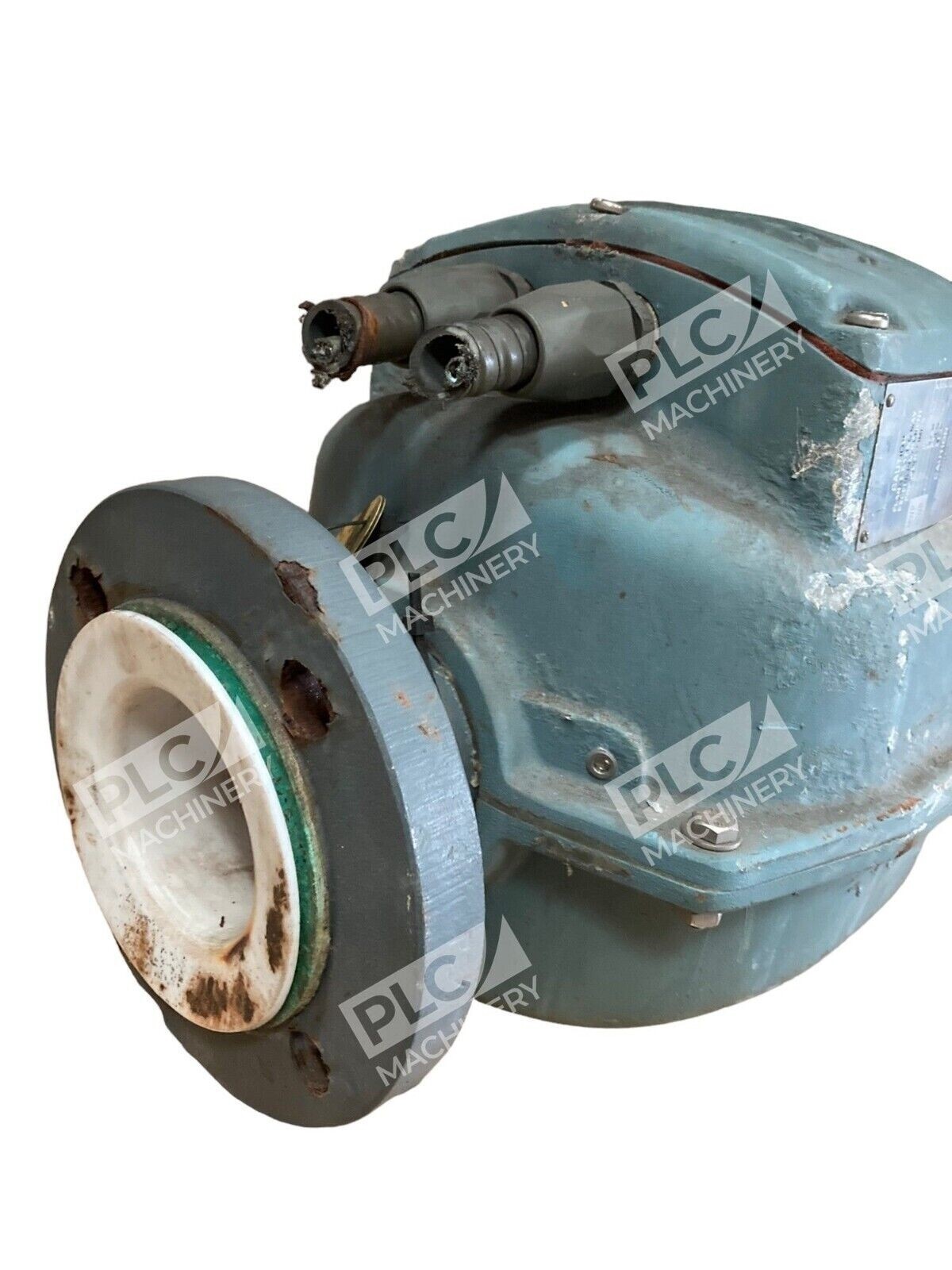

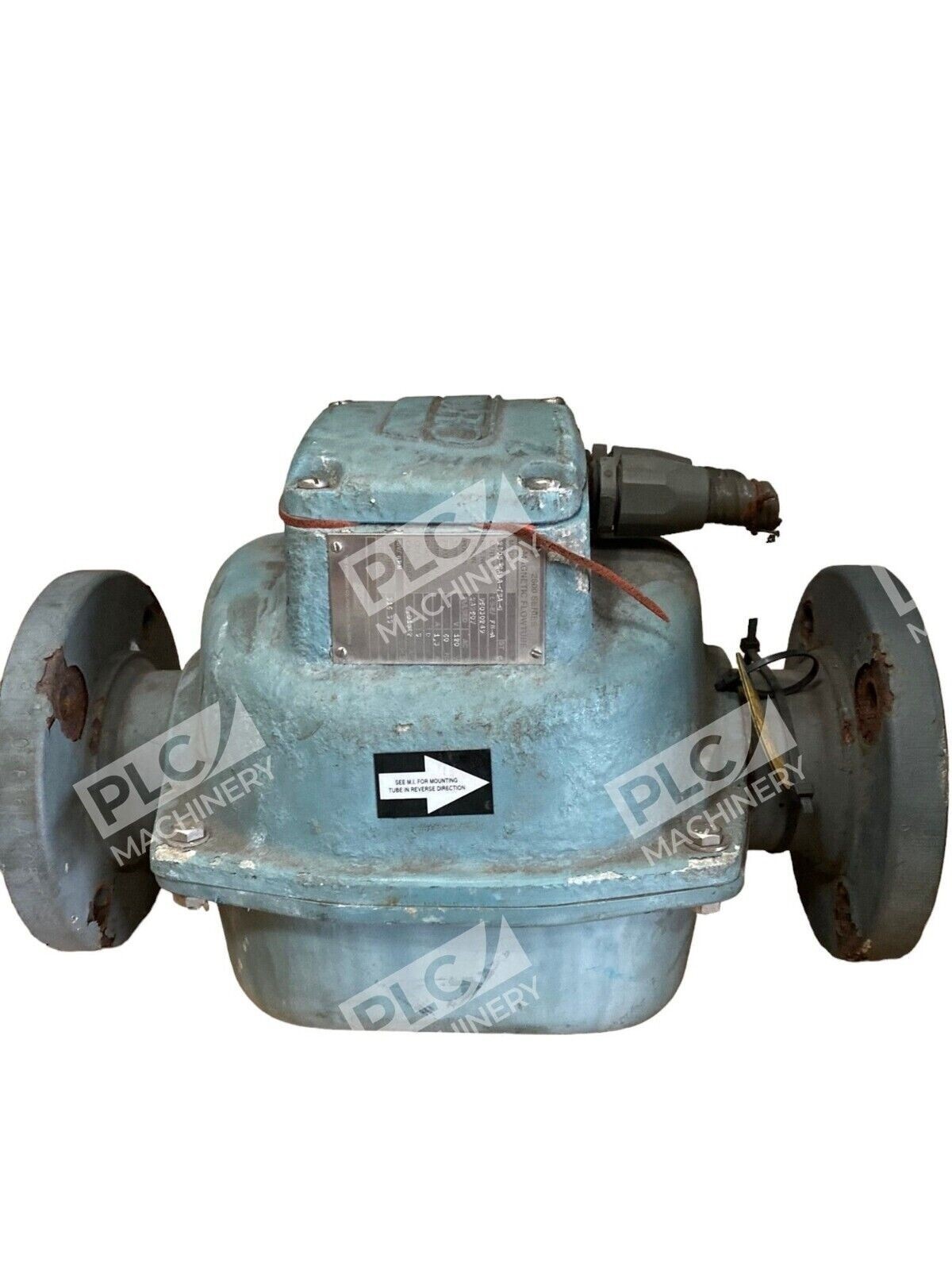

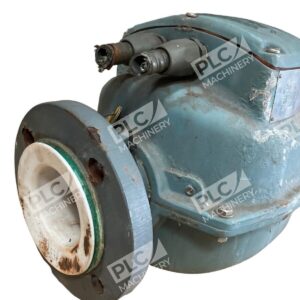

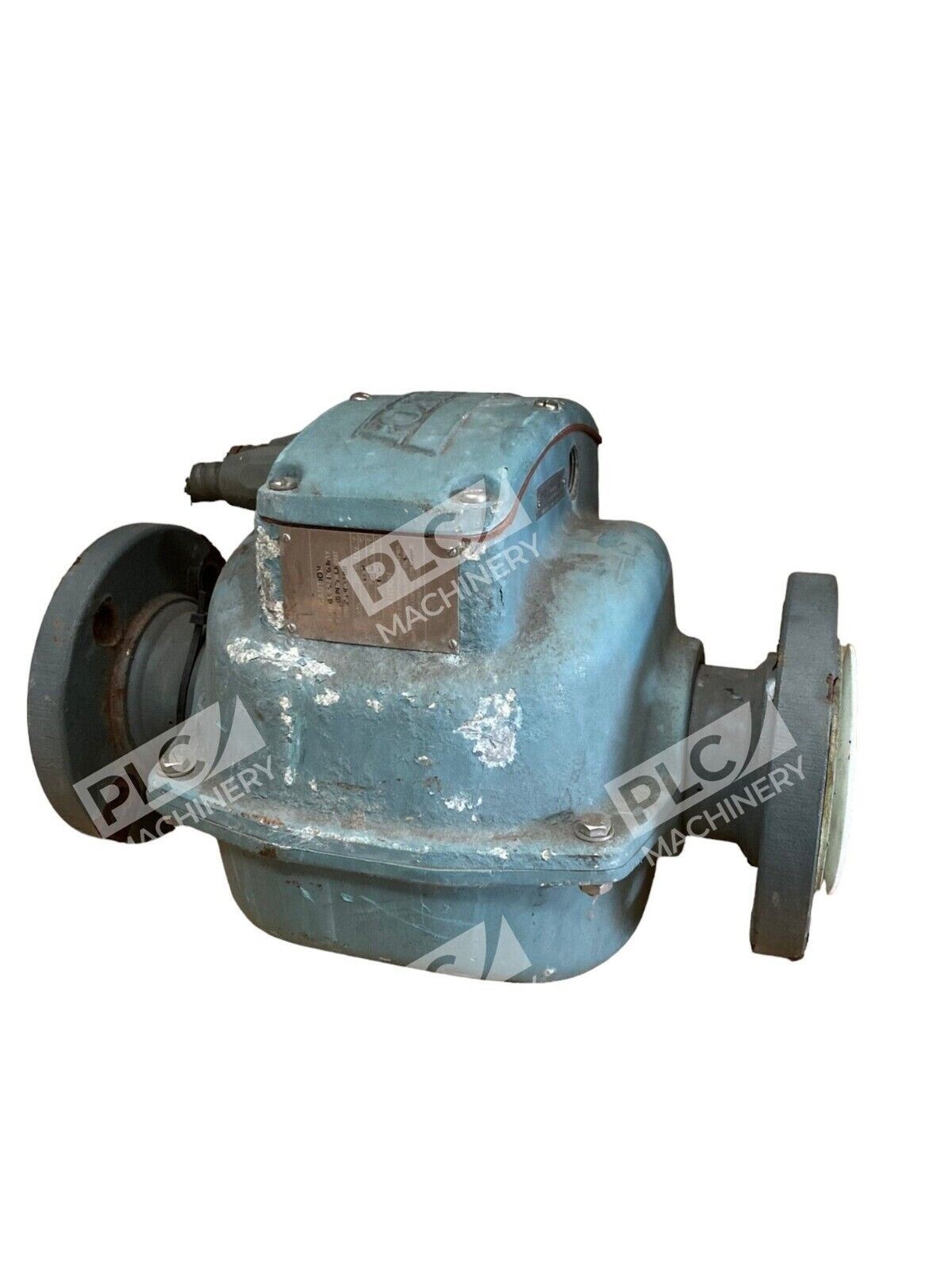

The Foxboro 2803-SABA-TSA-G /C is a 2800 Series magnetic flowtube engineered for process industries requiring precise flow measurement of conductive liquids. This flowtube is designed to operate in harsh outdoor or in-plant environments with weatherproof General Purpose housing. It operates with I/A Series MagEXPERT Intelligent Magnetic Flow Transmitters using eX-Pulse coil excitation and E96 Series Magnetic Flow Transmitters using ac coil excitation.
Key Features
- Measures the volumetric flow rate of virtually any conductive liquid
- Weatherproof General Purpose NEMA 4X housing suitable for remote-mounted transmitter installations
- Dual calibration for pulsed dc from 896 Transmitter or 120V 60Hz (E96) 1.2A capability
- Proven reliability with tens of thousands of successful installations since 1954
- Standard flange-type construction for easy installation and maintenance

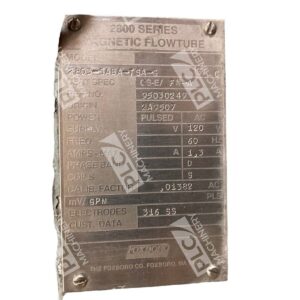

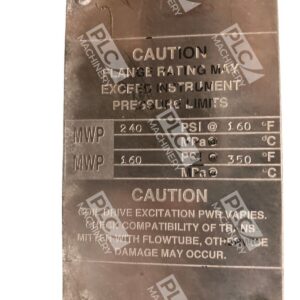

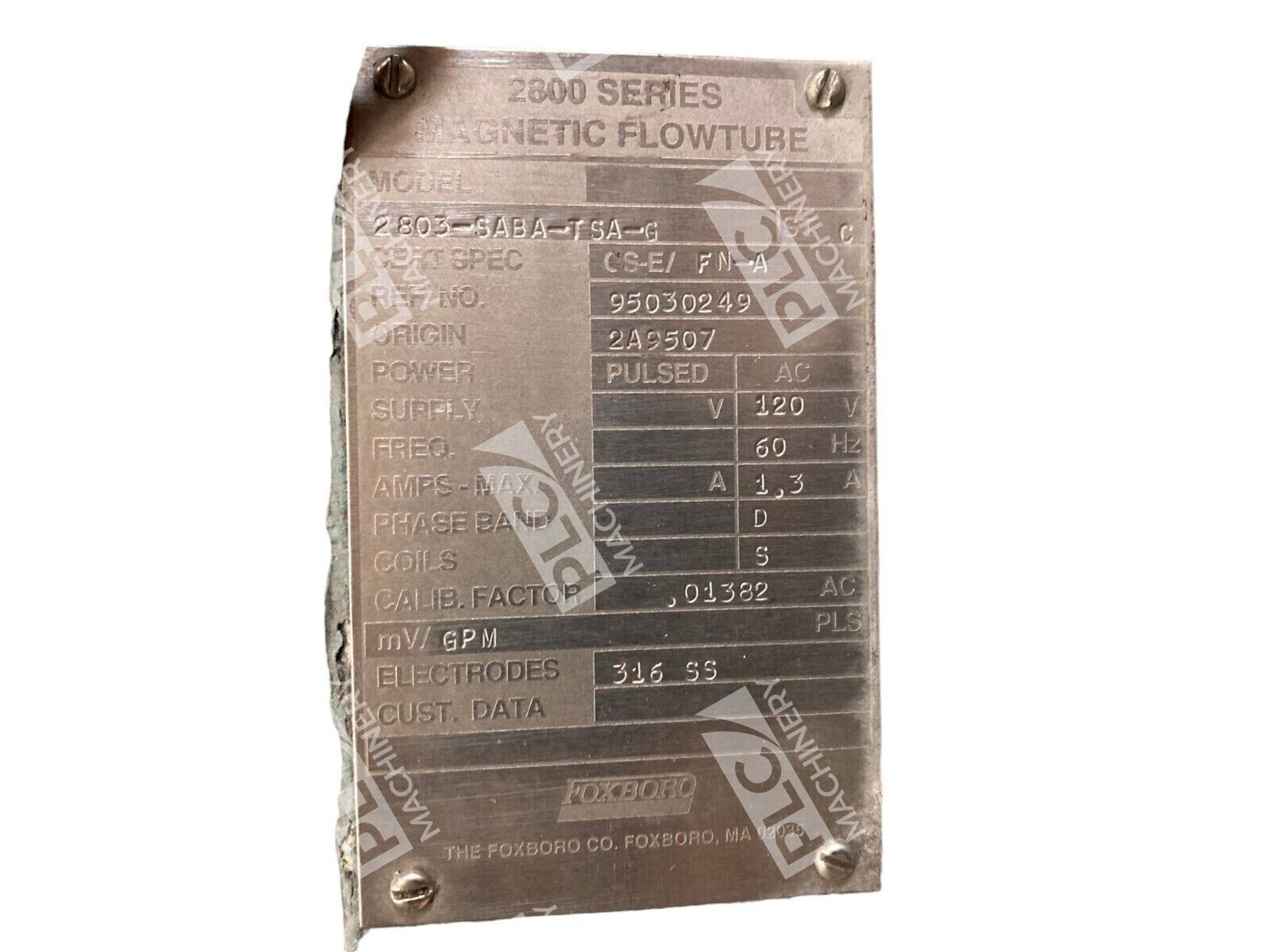

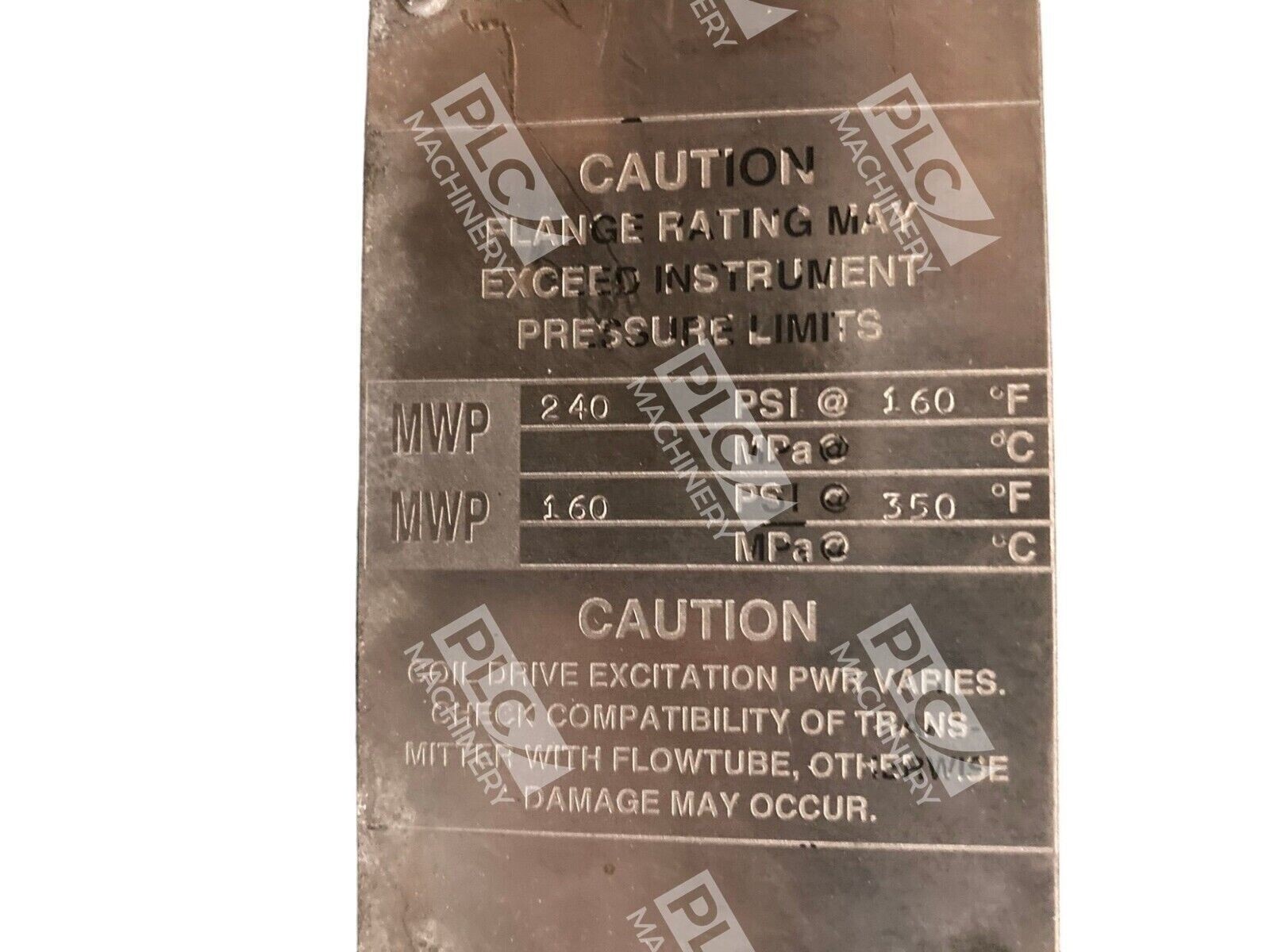

Technical Specifications
The following specifications are typical for the 2803-SABA-TSA-G model variant:
- Series: 2800 Magnetic Flowtube
- Supply Voltage: 120 V AC, 60 Hz (E96) or dual calibration pulsed dc (896)
- Current Rating: 1.2 A (120 V AC)
- Housing Code: General Purpose (NEMA 4X) – weatherproof, remote-mounted
- Coil Excitation: Compatible with eX-Pulse (MagEXPERT IMT96) or AC coil (E96)
- Connection Type: Flanged (SAB = 3-inch nominal, TS = tag stud flange)
- Lining Material: PTFE (standard)
- Electrode Material: Stainless steel (standard)
Typical Applications
- Chemical processing and refining operations
- Water treatment and wastewater flow monitoring
- Pulp and paper manufacturing
- Pharmaceutical and food processing facilities
- Thermal fluid and coolant flow metering
- Custody transfer and billing applications requiring accurate liquid flow data
Compatibility & Replacements
Compatible With
- Foxboro I/A Series MagEXPERT Intelligent Magnetic Flow Transmitters (IMT96)
- Foxboro E96 Series Magnetic Flow Transmitters
- Foxboro 896 Series Magnetic Flow Transmitters
- Foxboro IMT25 Magnetic Flow Transmitters (pulsed dc coil excitation)
- Standard 120 V AC, 60 Hz electrical supply systems
- NEMA 4X enclosure and remote-mount panel installations
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or OEM before ordering. Similar 2800 Series flowtubes (2802, 2804, 2806, 2808 models) may have different nominal sizes and pressure ratings; confirm your process requirements match this unit’s flange size, line size, and class rating.
Works With
- Foxboro DCS and I/A Series control systems
- Standard Modbus and industrial Ethernet network protocols (via compatible transmitter)
- Analog 4–20 mA signal transmission (via E96 or IMT96)
- Pulsed dc excitation systems (896 and IMT25 transmitter options)
