Overview

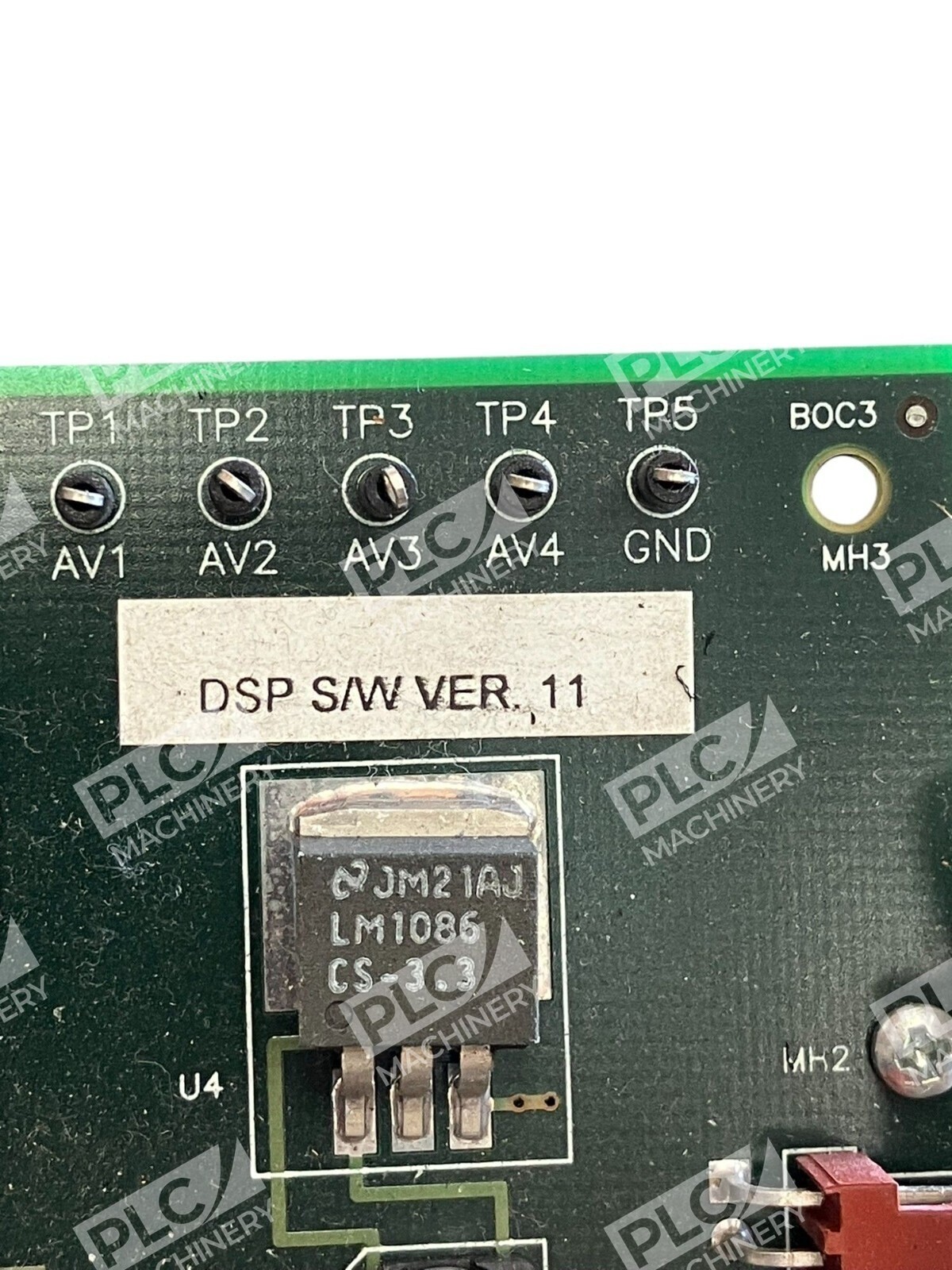

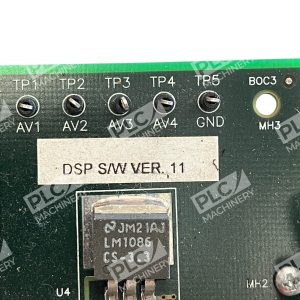

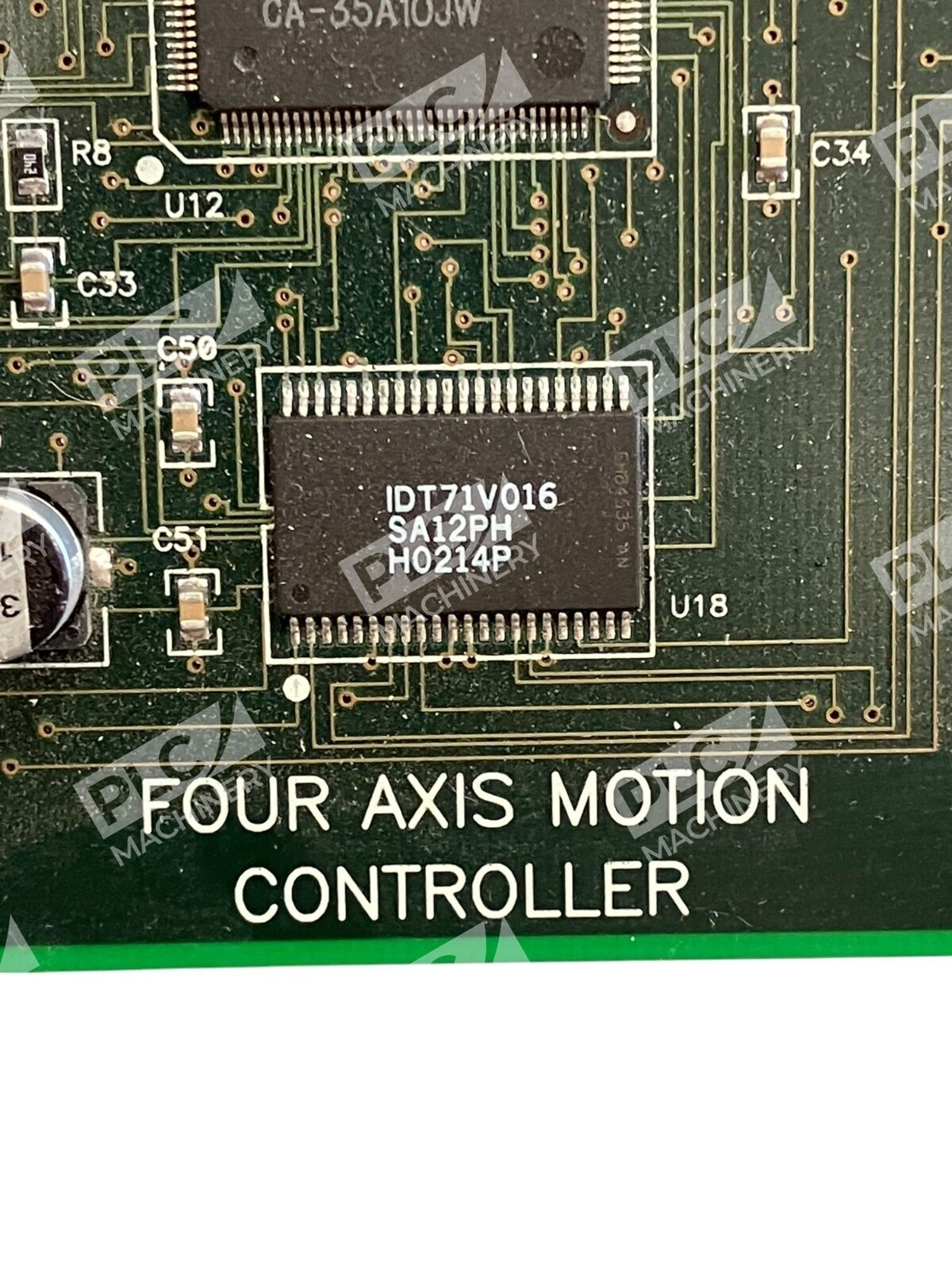

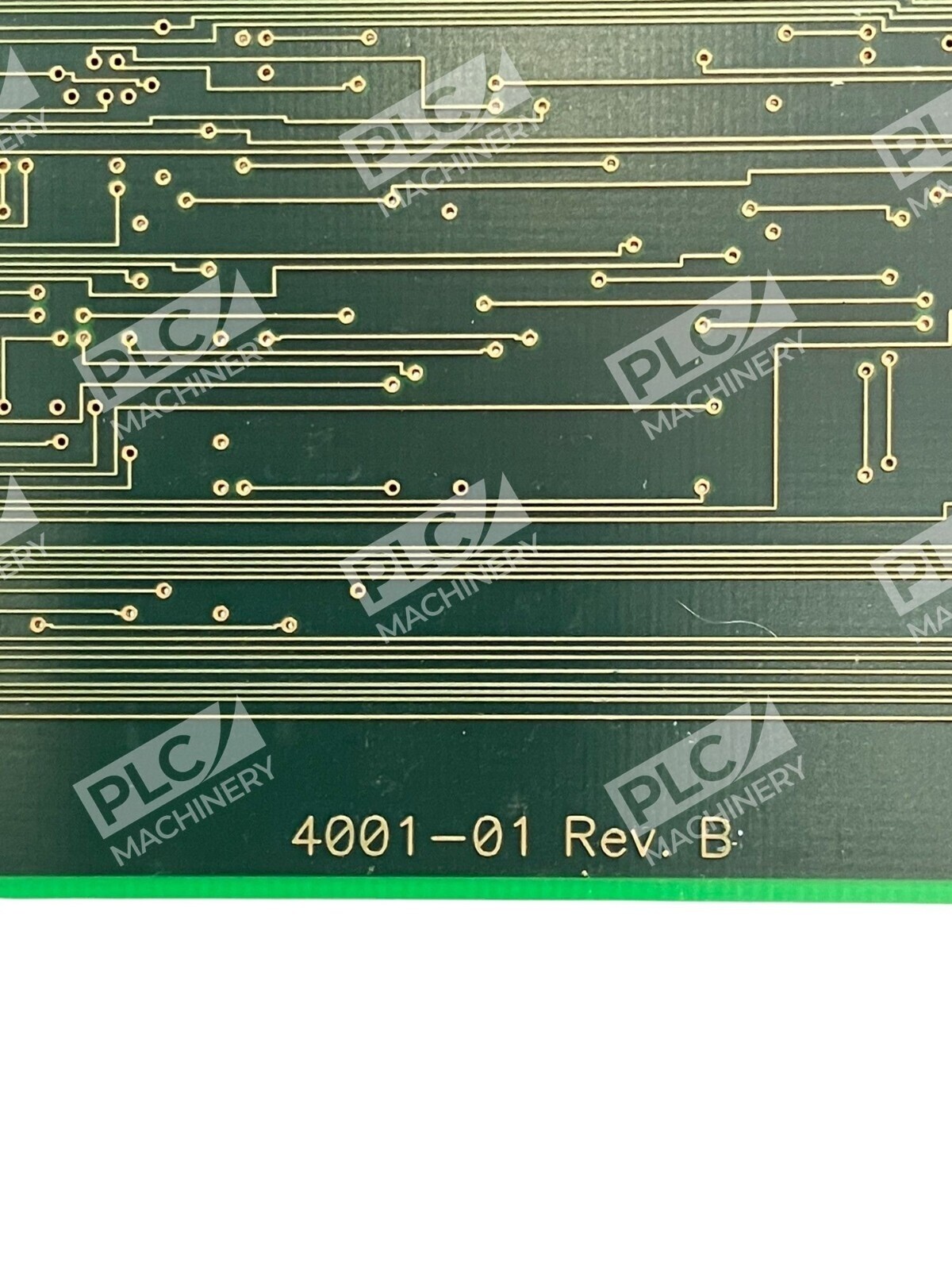

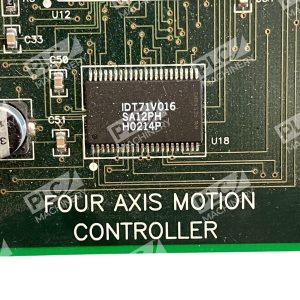

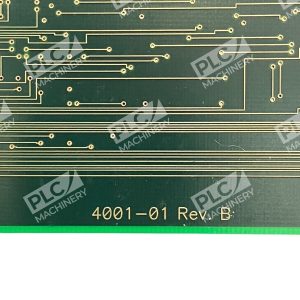

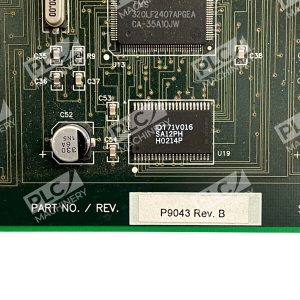

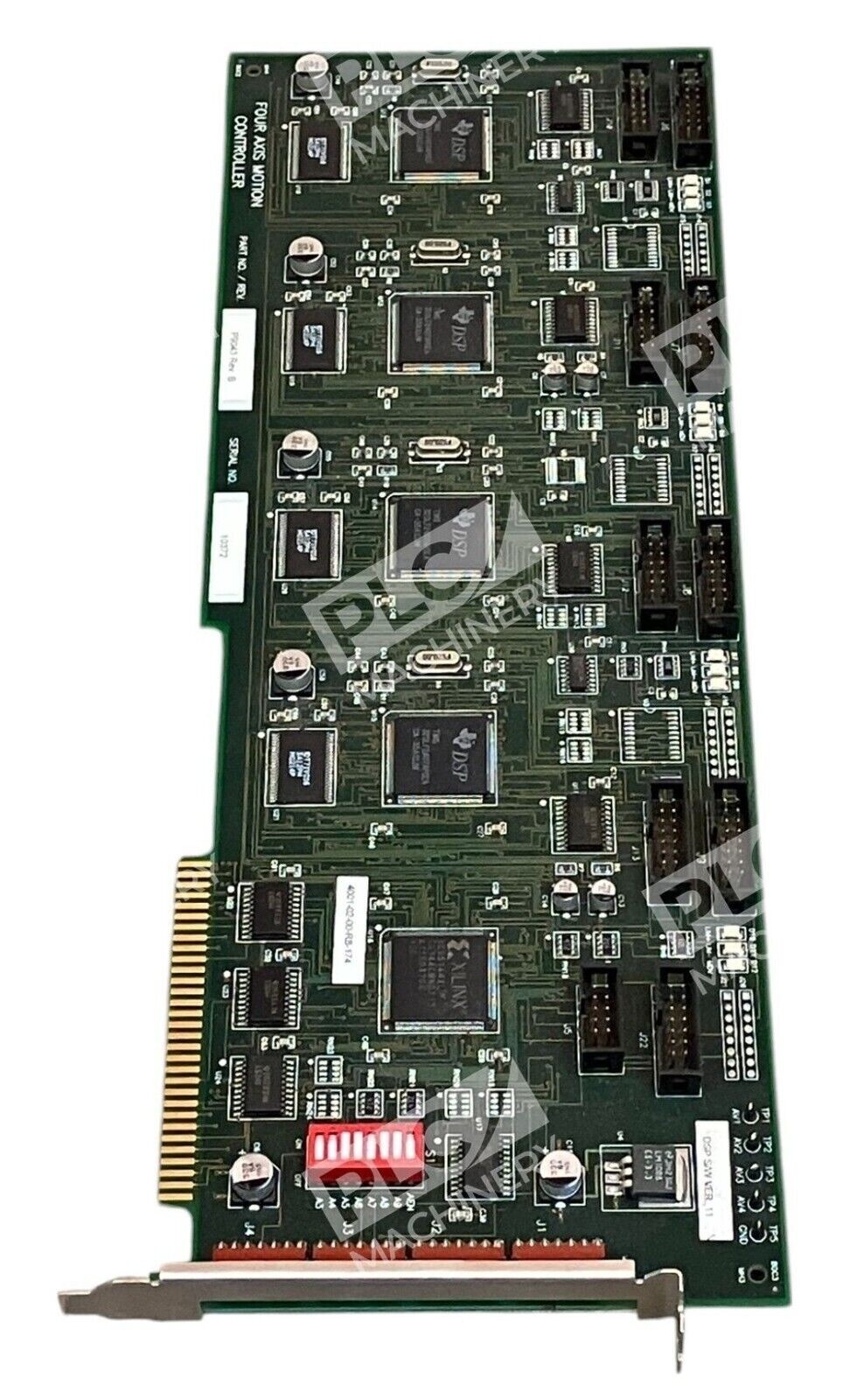

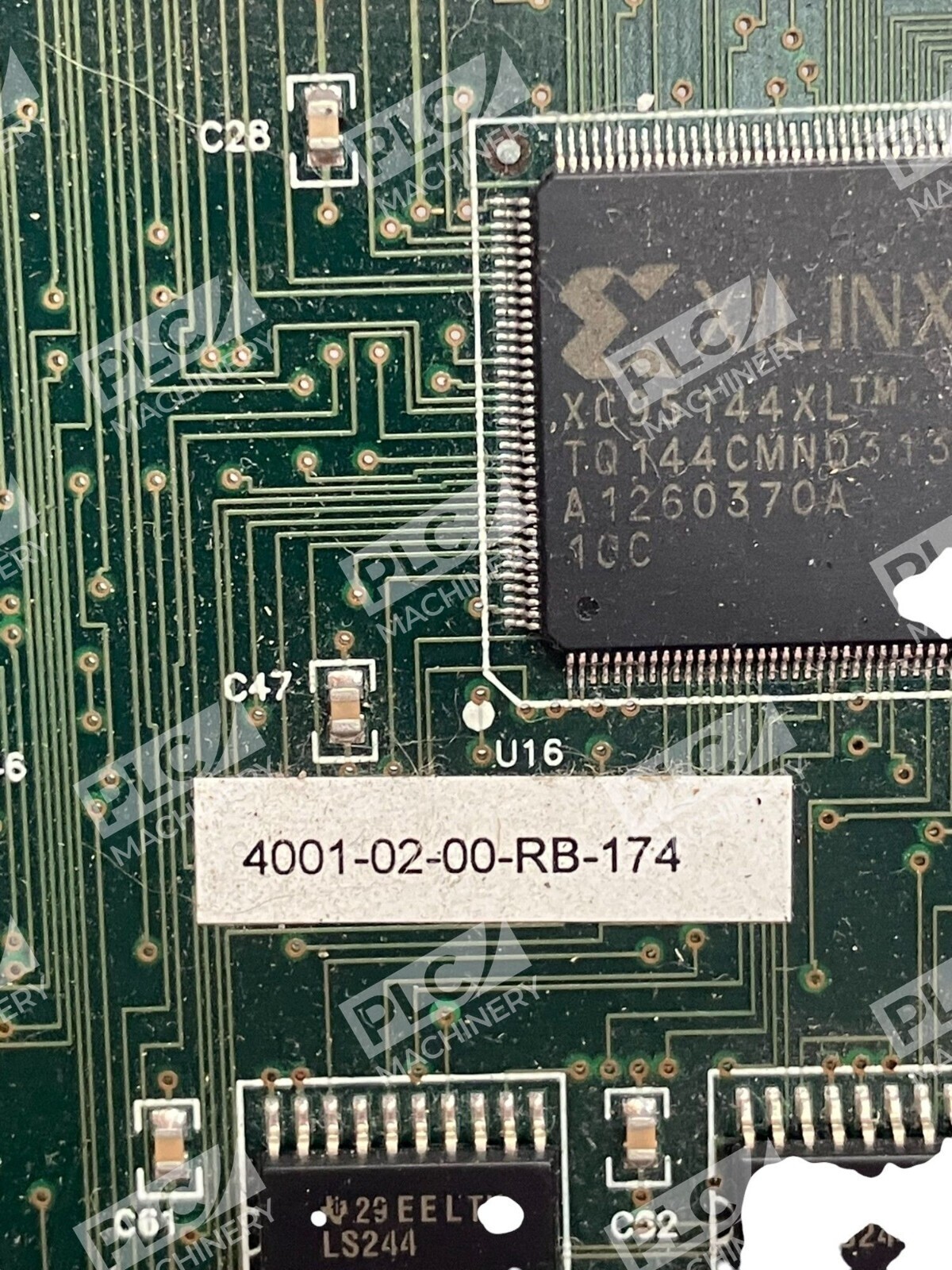

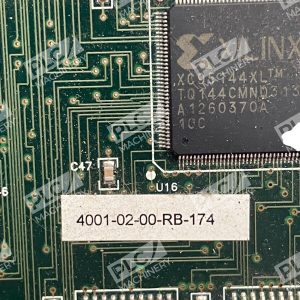

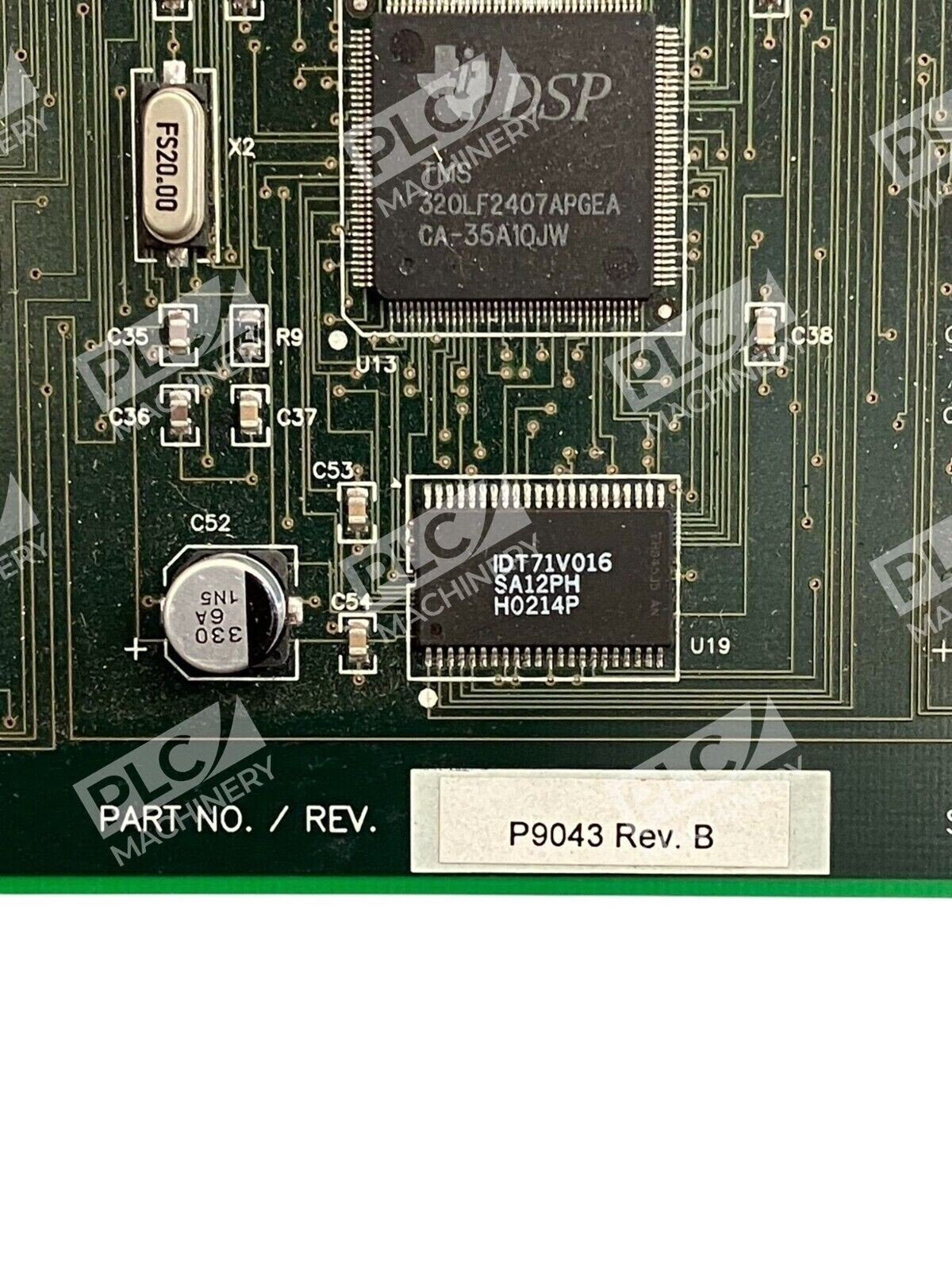

The Four Axis Motion Controller 4001-01 4001-02-00-RB-174 is a legacy motion control board engineered for four-axis servo or stepper motor coordination in industrial automation systems. The P9043 Rev B revision with DSP S/W Ver11 firmware provides dedicated signal processing for precision motion applications. This used unit has been tested and is offered as a drop-in solution for existing installations requiring four-axis motion control architecture.
Key Features
- Four-axis motion control architecture for coordinated multi-axis systems
- DSP-based signal processing (Software Ver11) for deterministic motion timing
- P9043 Rev B revision with proven industrial reliability
- Compatible with legacy automation systems and retrofits
- Designed for stepper motor or servo drive coordination
Technical Specifications
The following specifications are based on standard four-axis motion controller architecture. Verify exact electrical and mechanical parameters with supporting documentation before installation.
Typical Applications
- CNC machining centers requiring four-axis control
- Industrial automation systems with multi-axis motion requirements
- Precision manufacturing equipment retrofits
- Motion synchronization across servo or stepper motor drives
- Legacy system upgrades and replacements
Compatibility & Replacements
Compatible With
- Stepper motor drive systems (bipolar/unipolar)
- Servo motor drive systems with step/direction interface
- Legacy industrial motion control platforms
- Industrial automation PLC systems with motion extensions
Replaces / Drop-In Replacement For
This unit is designed as a direct replacement for original Four Axis Motion Controller 4001-01 and 4001-02-00-RB-174 applications. Verify compatibility with your system integrator before ordering to confirm pinout and firmware compatibility with your specific installation.
Works With
- Step/direction motor control interfaces
- Pulse-width modulation (PWM) servo commands
- Legacy motion control software platforms
- Industrial parallel port and discrete I/O networks
