Overview

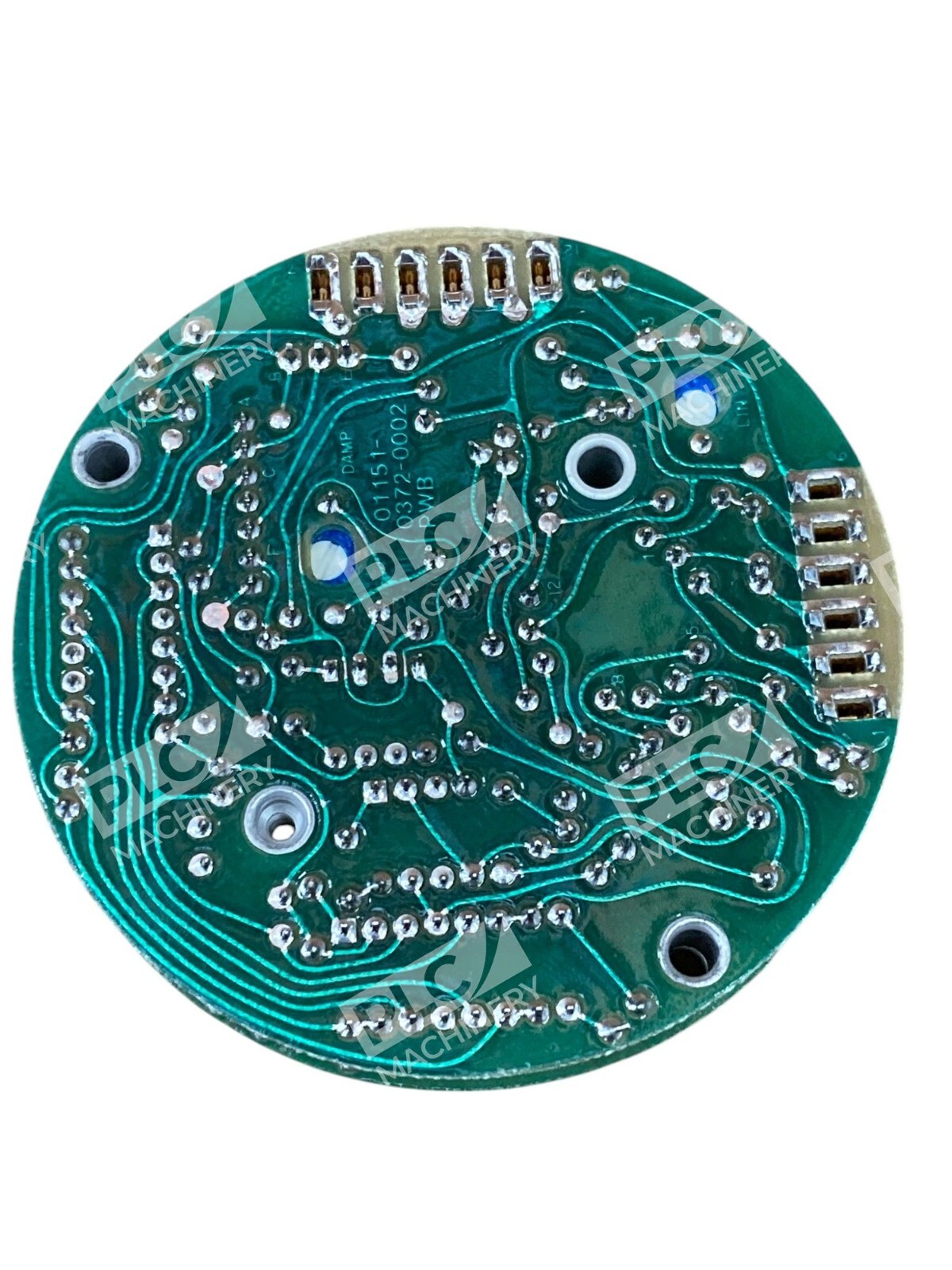

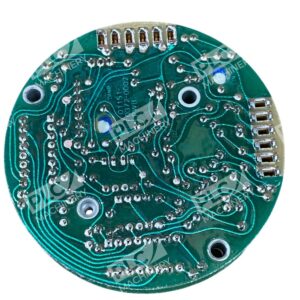

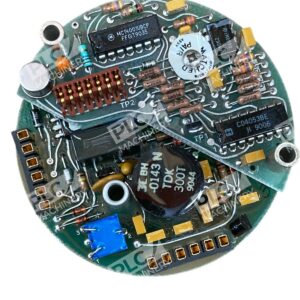

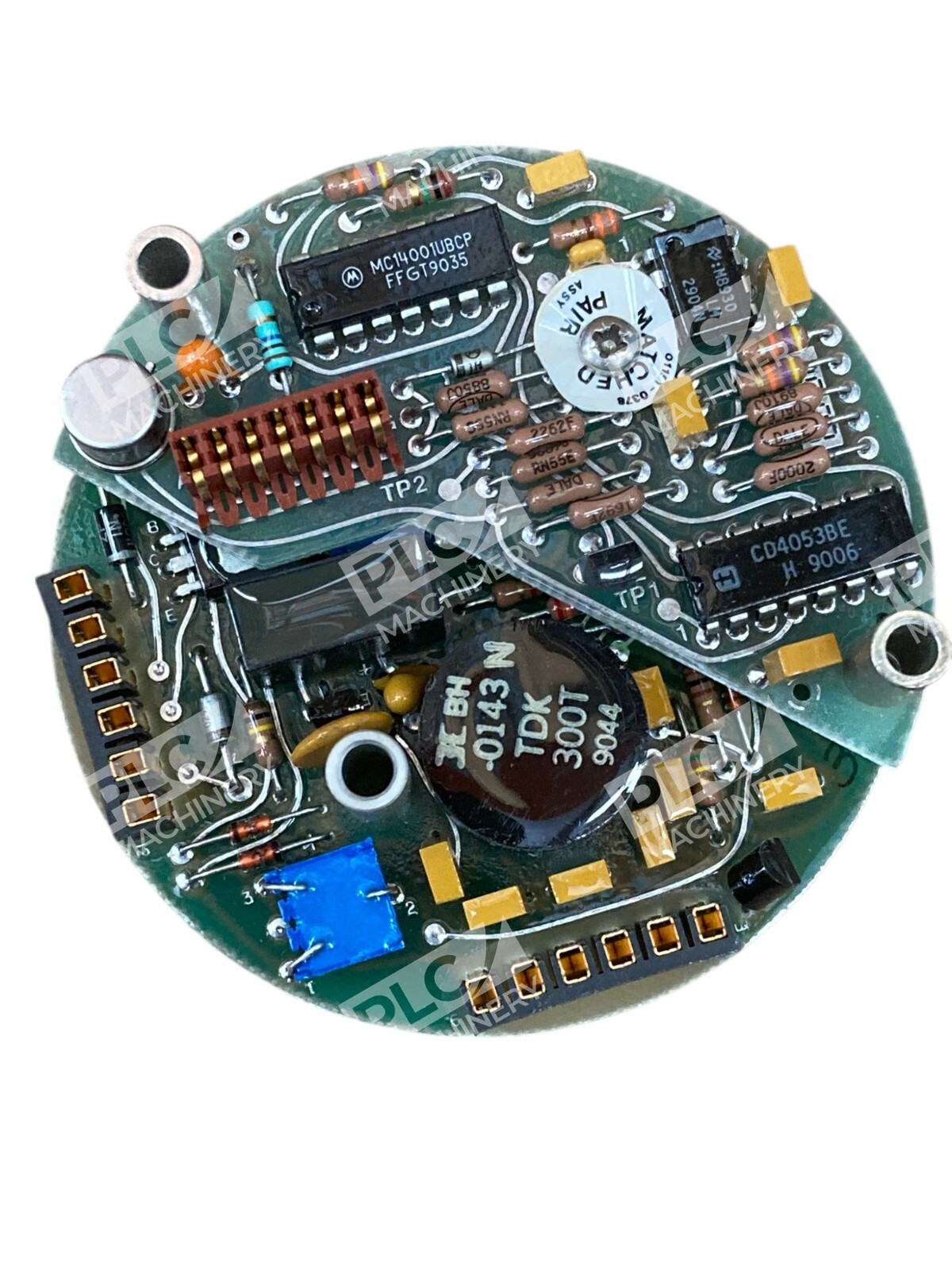

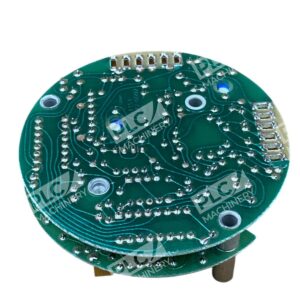

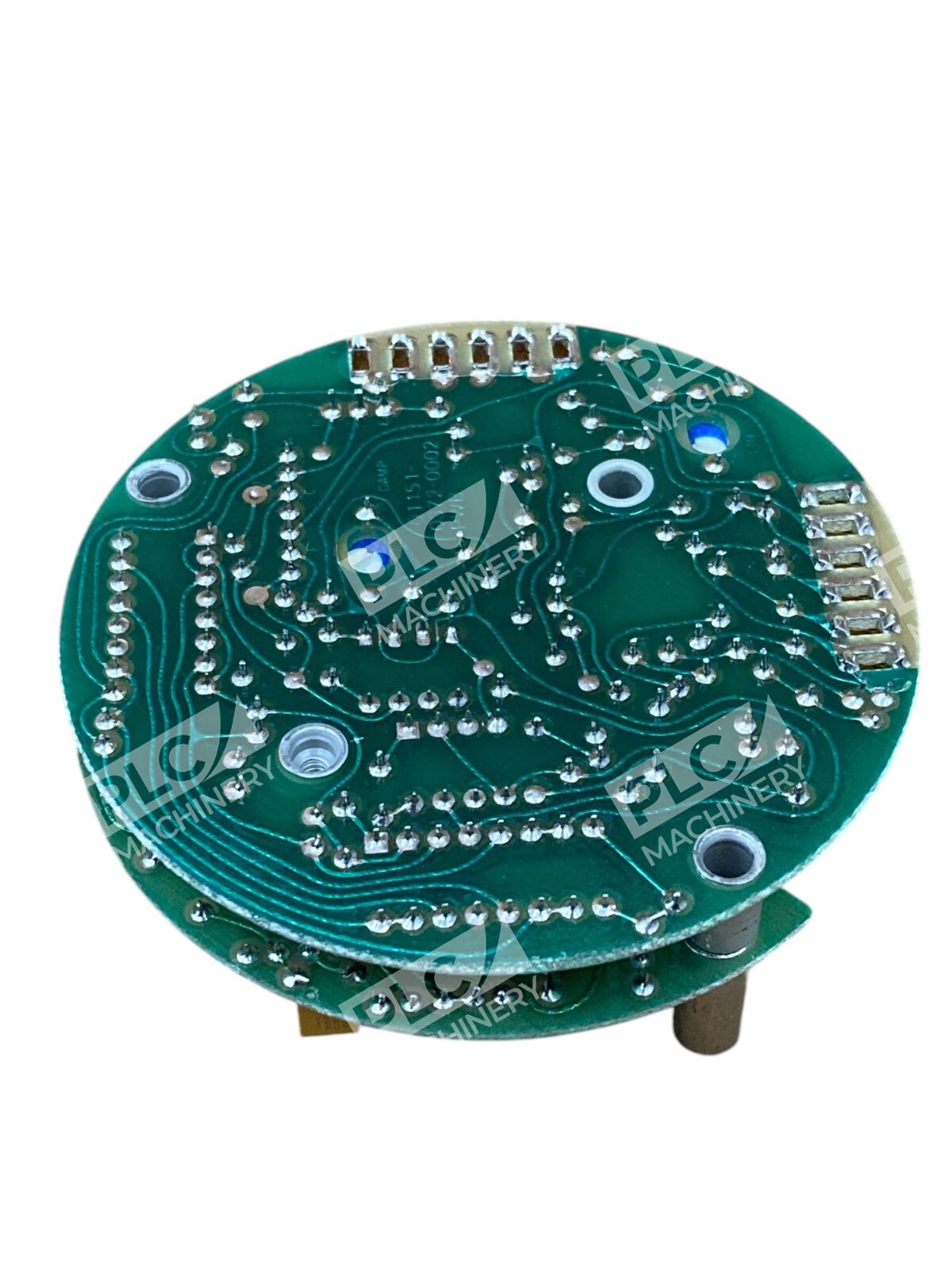

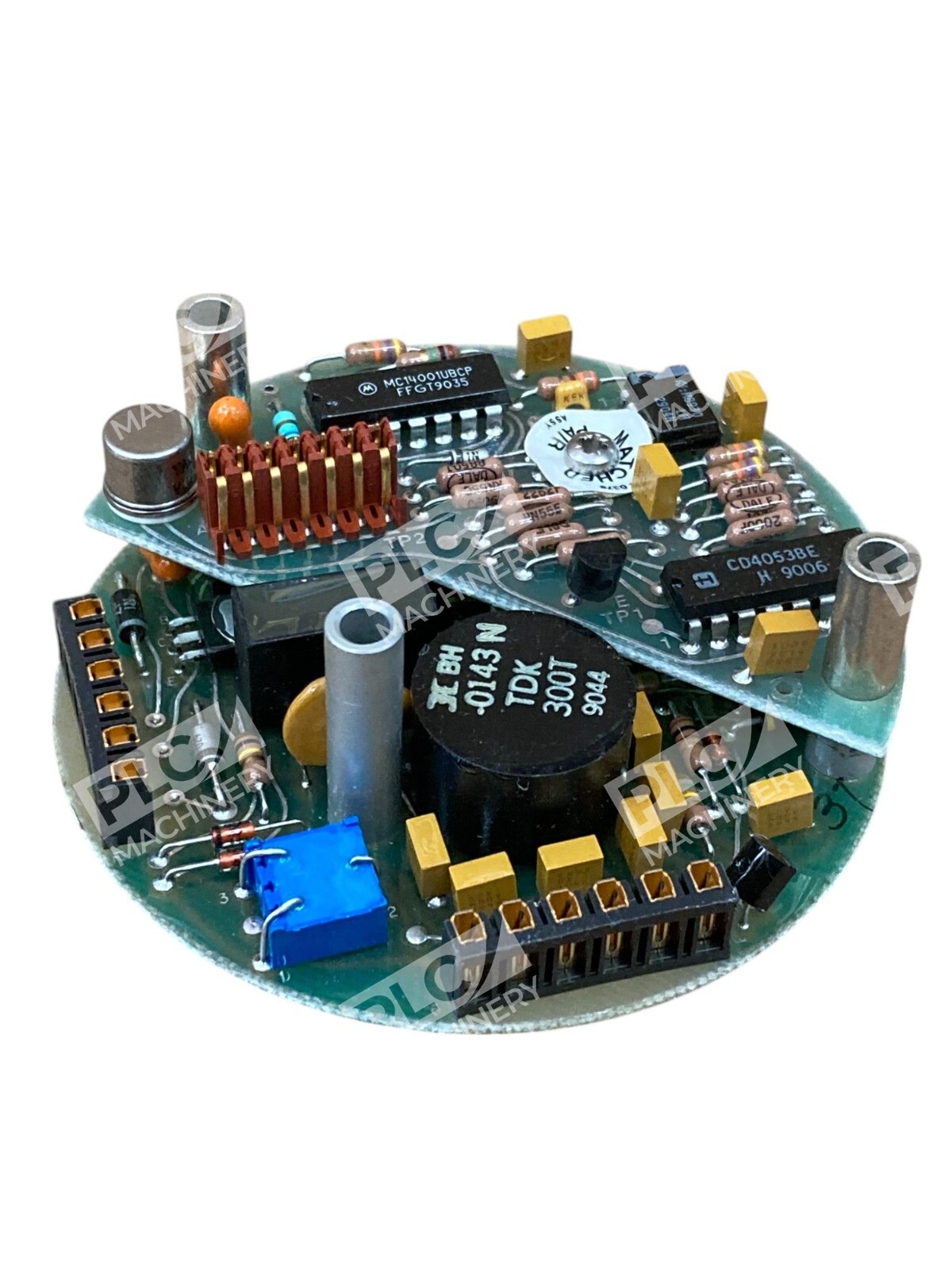

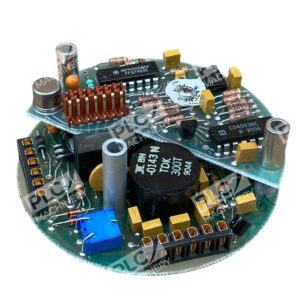

The Fisher Rosemount 01151-0372-0002 is a printed circuit board (PWB) for pressure transmitter applications. This 3″ diameter card integrates signal conditioning and analog/digital conversion for pressure measurement systems. As a genuine Rosemount component, it provides proven reliability in industrial and process automation environments where accurate pressure monitoring is critical.
Key Features
- Compact 3″ PCB form factor for space-constrained installations
- Designed for Rosemount 1151 series pressure transmitter electronics
- Analog signal conditioning and measurement processing
- Industrial-grade component construction
- Direct replacement for equivalent Rosemount control boards
- Used condition — fully functional unit
Technical Specifications
Specific electrical and functional specifications for this board are available through Rosemount technical documentation or consultation with your system integrator. Typical applications include pressure transmitters operating in the following ranges:
- Pressure measurement: 0 to 300+ PSI (configurable per application)
- Signal output: 4-20 mA DC with digital HART protocol capability (varies by paired transmitter)
- Supply voltage: 10.5 to 45 VDC (standard range for Rosemount pressure instruments)
- Operating temperature: -40°C to +85°C (typical industrial range)
Typical Applications
- Chemical processing plants requiring pressure monitoring
- Oil and gas production systems
- Pulp and paper manufacturing
- HVAC and pneumatic control systems
- Water treatment and utilities
- Maintenance replacements for Rosemount 1151 series transmitters
Compatibility & Replacements
Compatible With
- Rosemount 1151 series pressure transmitters
- Fisher pressure transmitter control systems
- Process automation and DCS systems using HART communication
- 4-20 mA analog input modules
- Industrial PLC and RTU networks
Replaces / Drop-In Replacement For
The Fisher Rosemount 01151-0372-0002 is a direct replacement for equivalent PWB models used in Rosemount 1151 pressure transmitter assemblies. For specific interchangeability with other model numbers, verify compatibility with your system integrator or Emerson technical support before ordering.
Works With
- HART communication protocol (where supported by paired transmitter)
- 4-20 mA analog instrumentation
- Rosemount pressure sensor and transducer modules
- Standard industrial measurement and control networks
