Overview

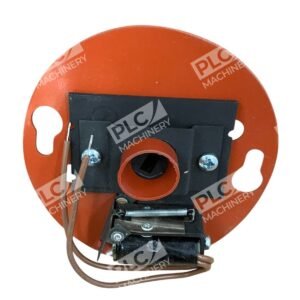

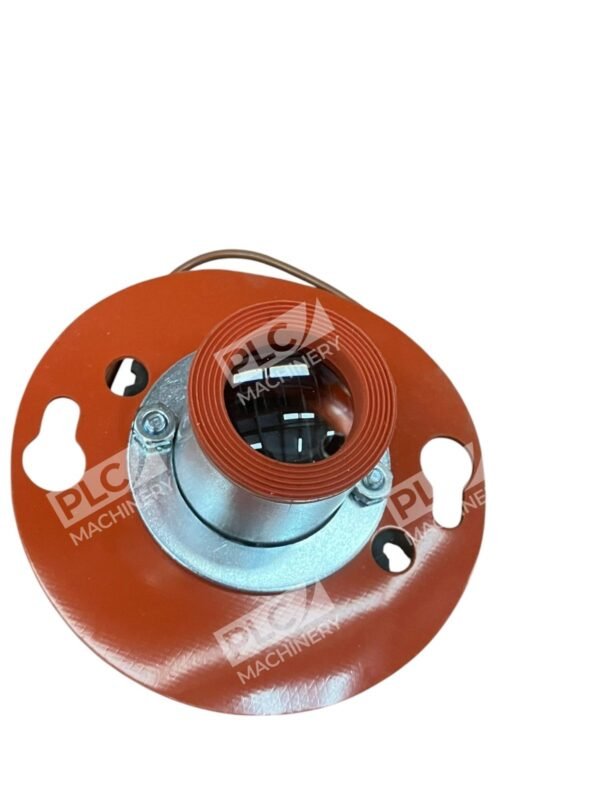

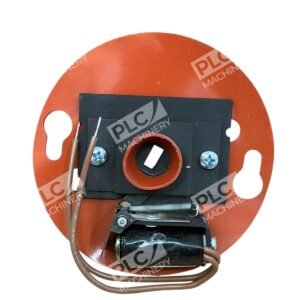

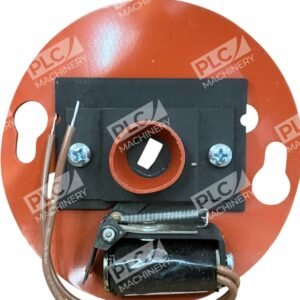

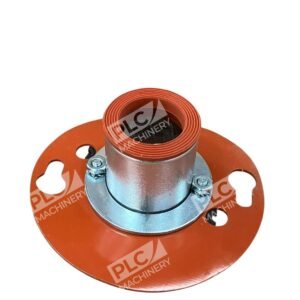

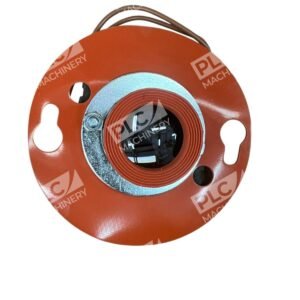

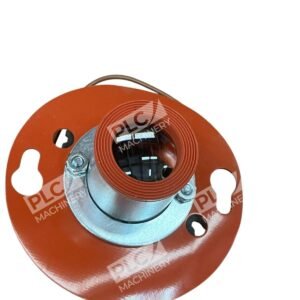

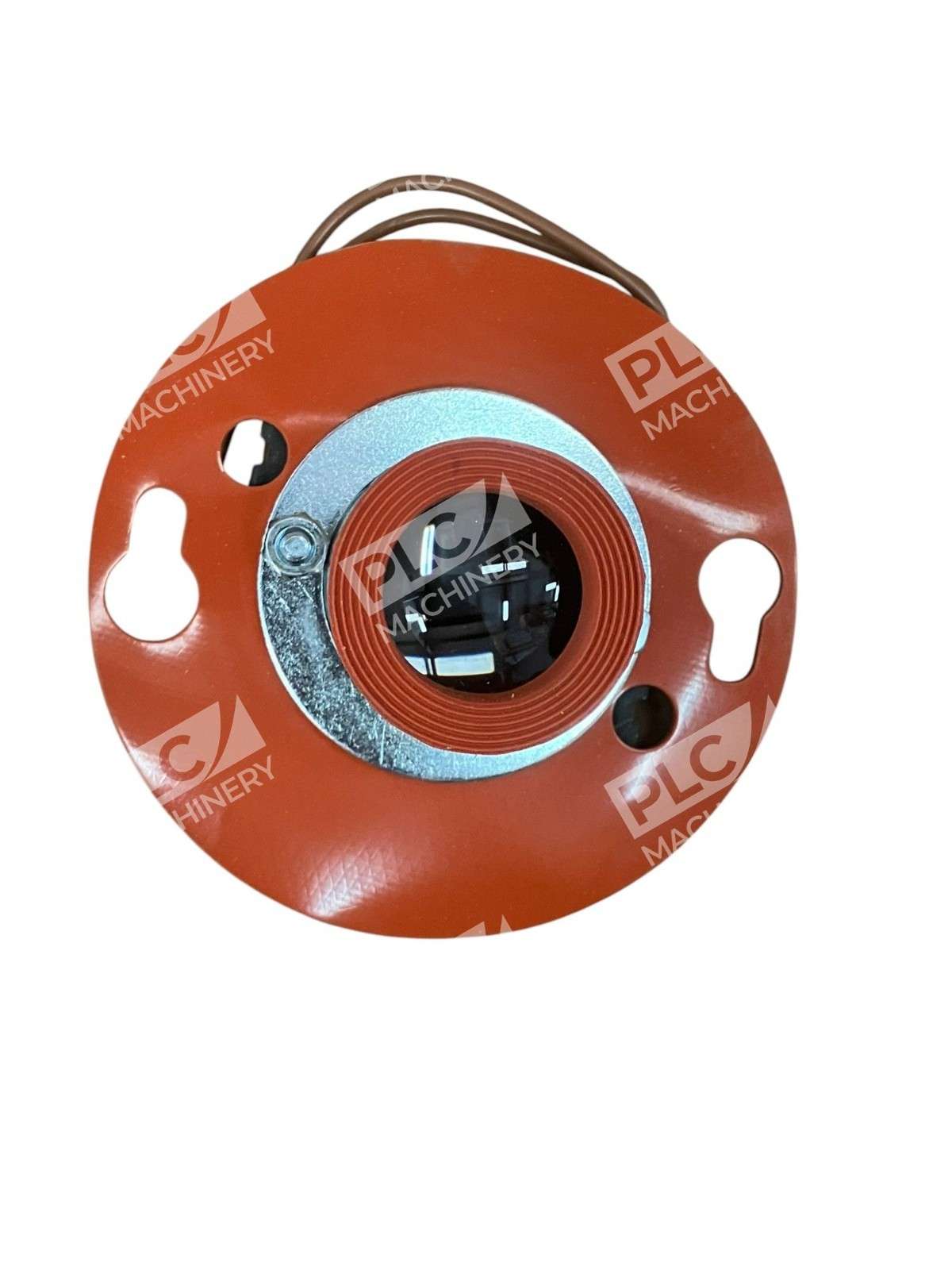

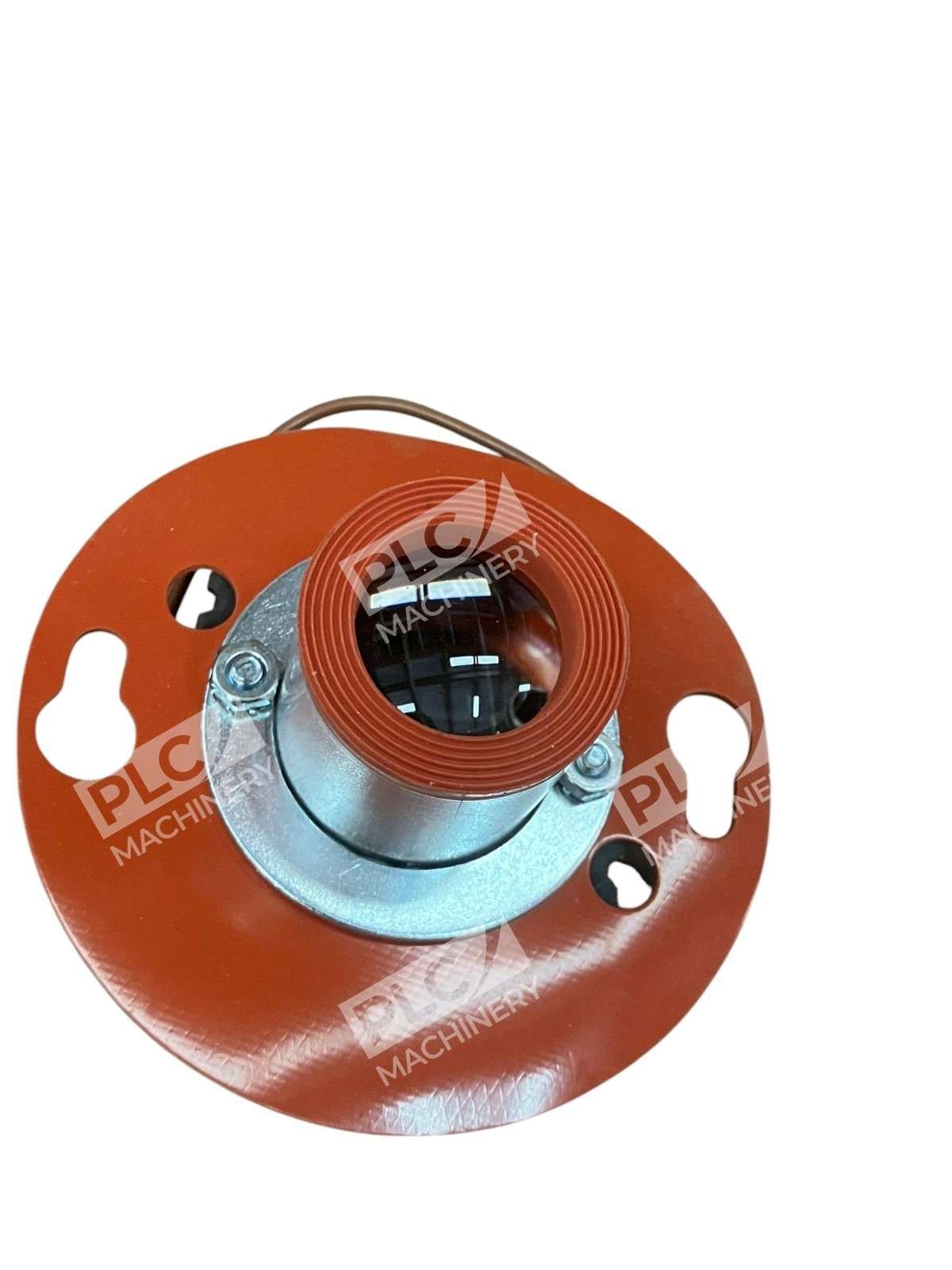

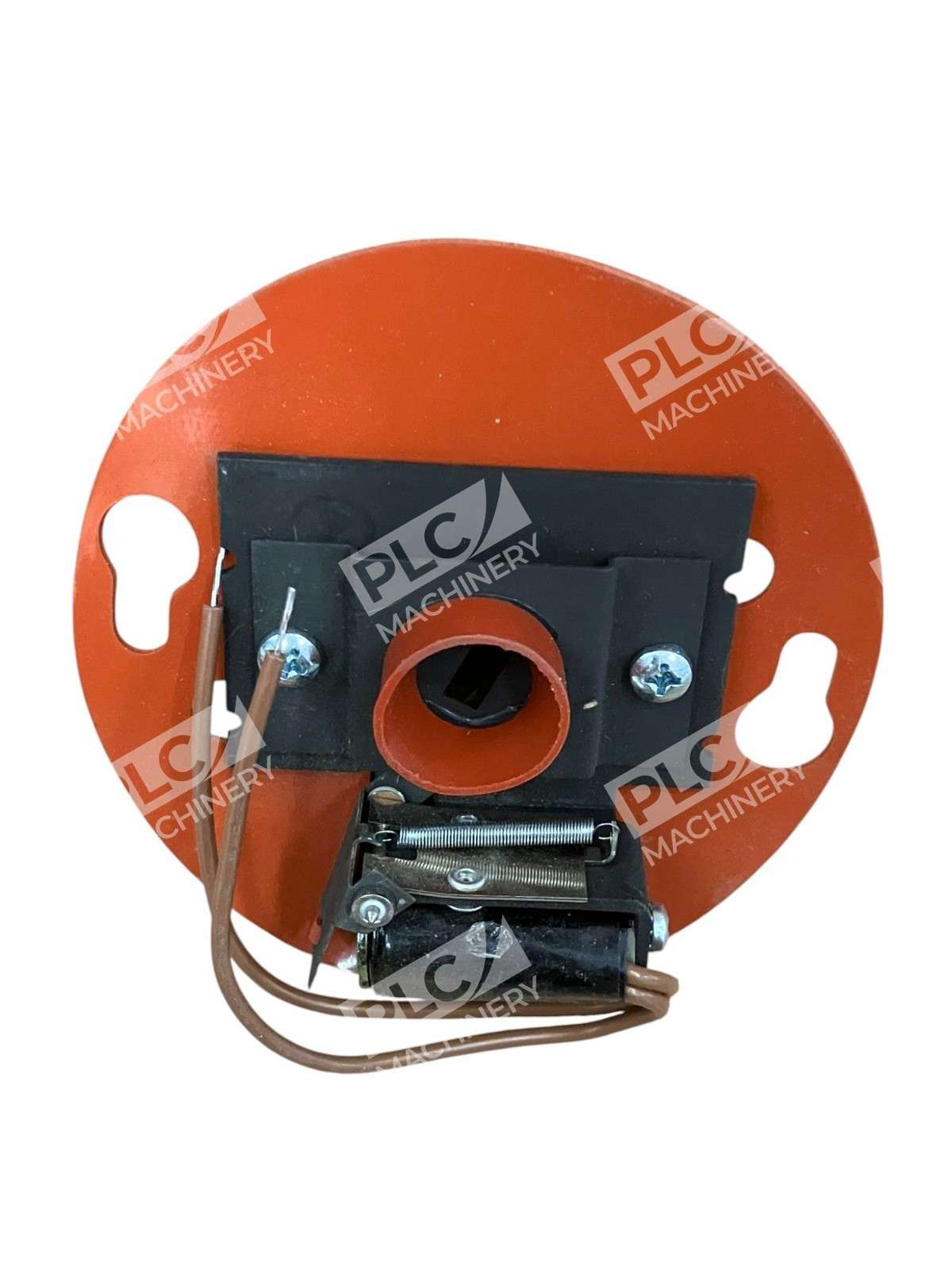

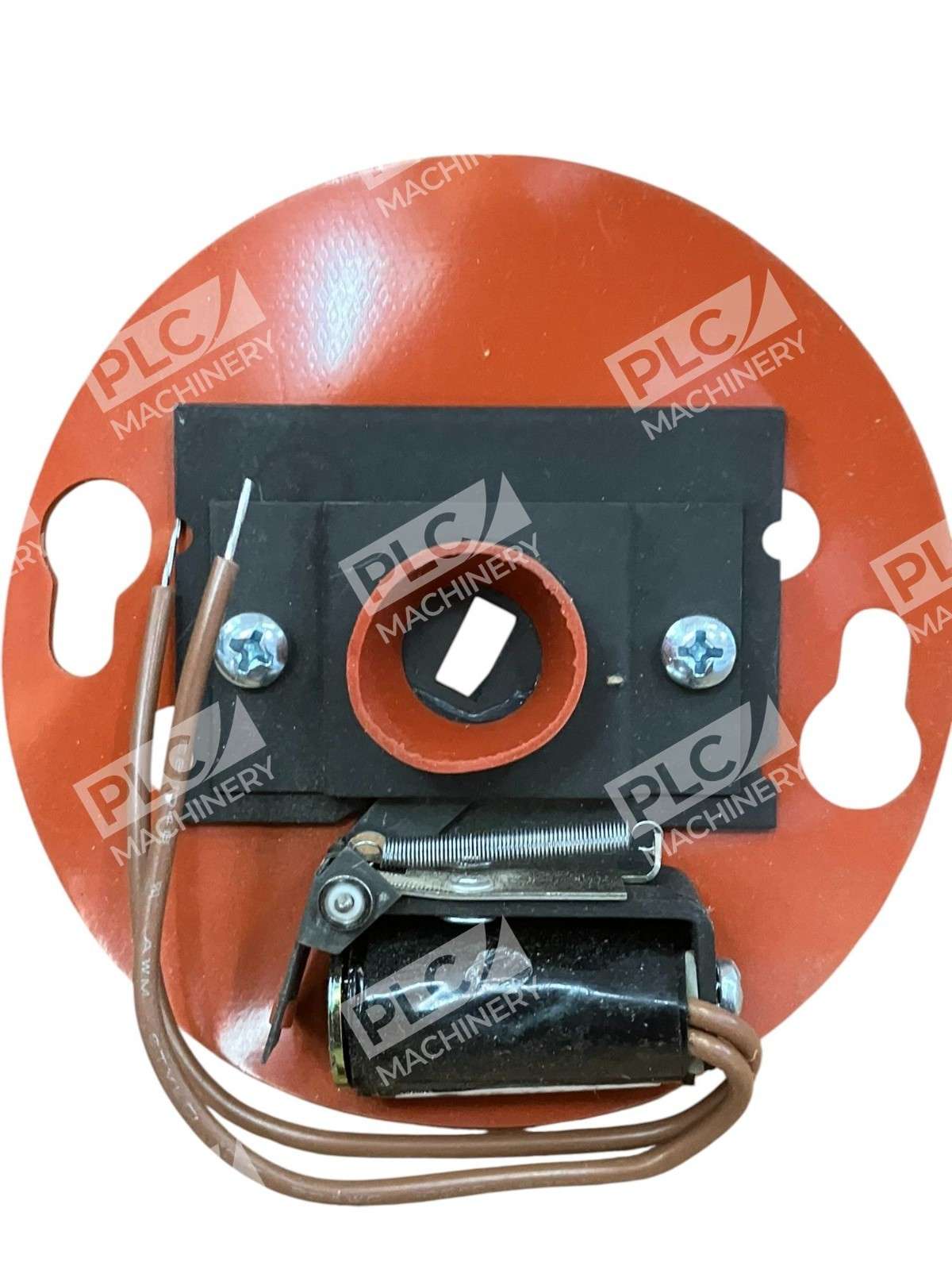

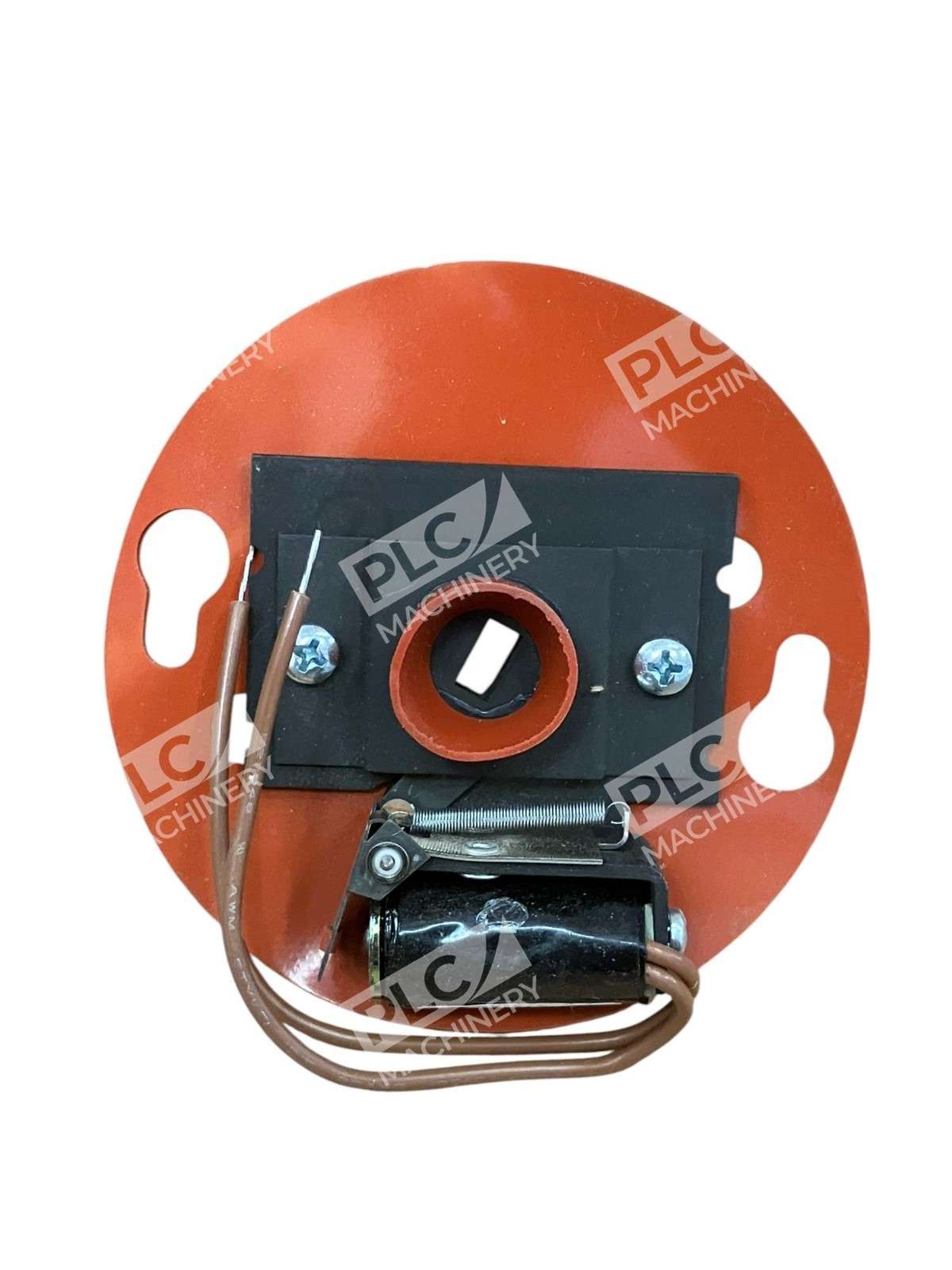

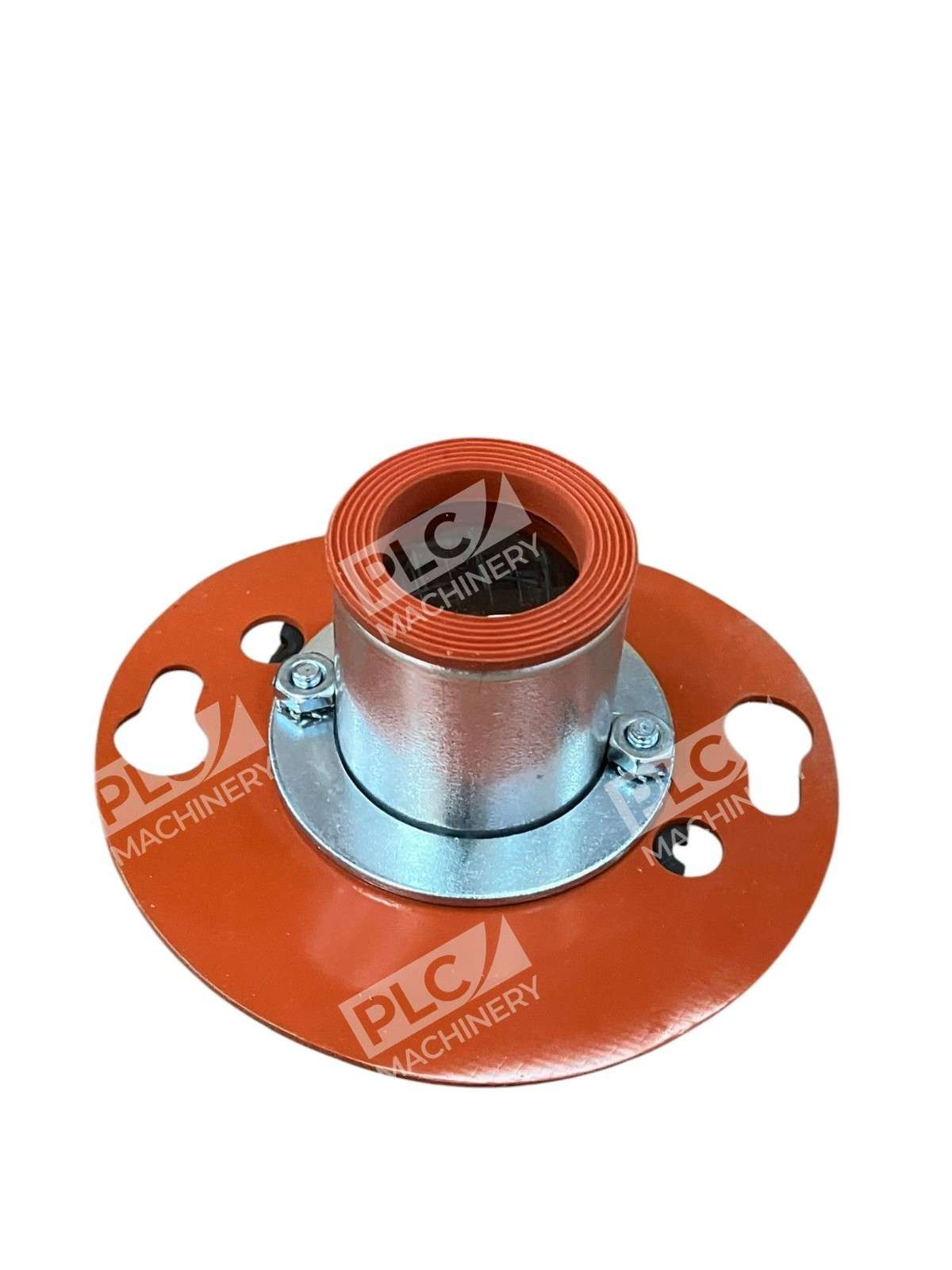

The Fireye 4-314-1 UV tube is a high-sensitivity ultraviolet sensing component designed for use in Fireye flame scanner assemblies. This tube detects ultraviolet radiation produced by an active flame and transmits a signal to associated scanner electronics in boiler burner controls, flame-monitoring systems, and heating equipment. Supplied as a discrete replacement component, the 4-314-1 is an internal sensing element—not a housing or complete assembly.
Key Features
- Ultraviolet flame detection for reliable burner ignition confirmation
- Direct replacement for compatible 45UV series Fireye scanners
- Compact design (2.95″ × 1.9″ × 1.75″) for internal scanner installation
- Optimized for Engineering Code 6 and higher scanner revisions
- Lightweight sensing tube (0.05 lb) for minimal system impact
Technical Specifications
- Manufacturer: Fireye
- Part Number: 4-314-1
- Product Type: UV Sensing Tube
- Dimensions: 2.95″ × 1.9″ × 1.75″
- Weight: 0.05 lb
- Application: Internal replacement component only (no housing included)
Typical Applications
- Oil and gas burner ignition verification in boiler systems
- Flame monitoring in commercial heating and HVAC equipment
- Industrial burner safety controls requiring UV flame detection
- Replacement sensing element in existing Fireye scanner housings
Compatibility & Replacements
Compatible With
- Fireye 45UV5-1005 through -1009 flame scanners
- Fireye 45UV2 and 45UV3 scanner assemblies
- Fireye 45UV5-1000, -1010, -1101 scanners with Engineering Code 6 or higher
- Fireye C-Series and D-Series flame-monitoring controls
- Standard Fireye Flame-Monitor controls
Replaces / Drop-In Replacement For
- Original equipment UV sensing tubes in compatible Fireye scanners
- End-of-life or deteriorated tubes in 45UV series assemblies
Works With
- Fireye scanner housings (45UV series)
- Boiler burner control systems using UV flame detection
- HVAC and commercial heating flame-monitoring equipment
- Legacy and modern Fireye control systems compatible with 4-314-1 tubes
