Overview

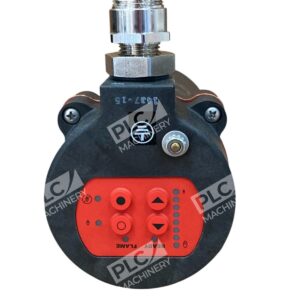

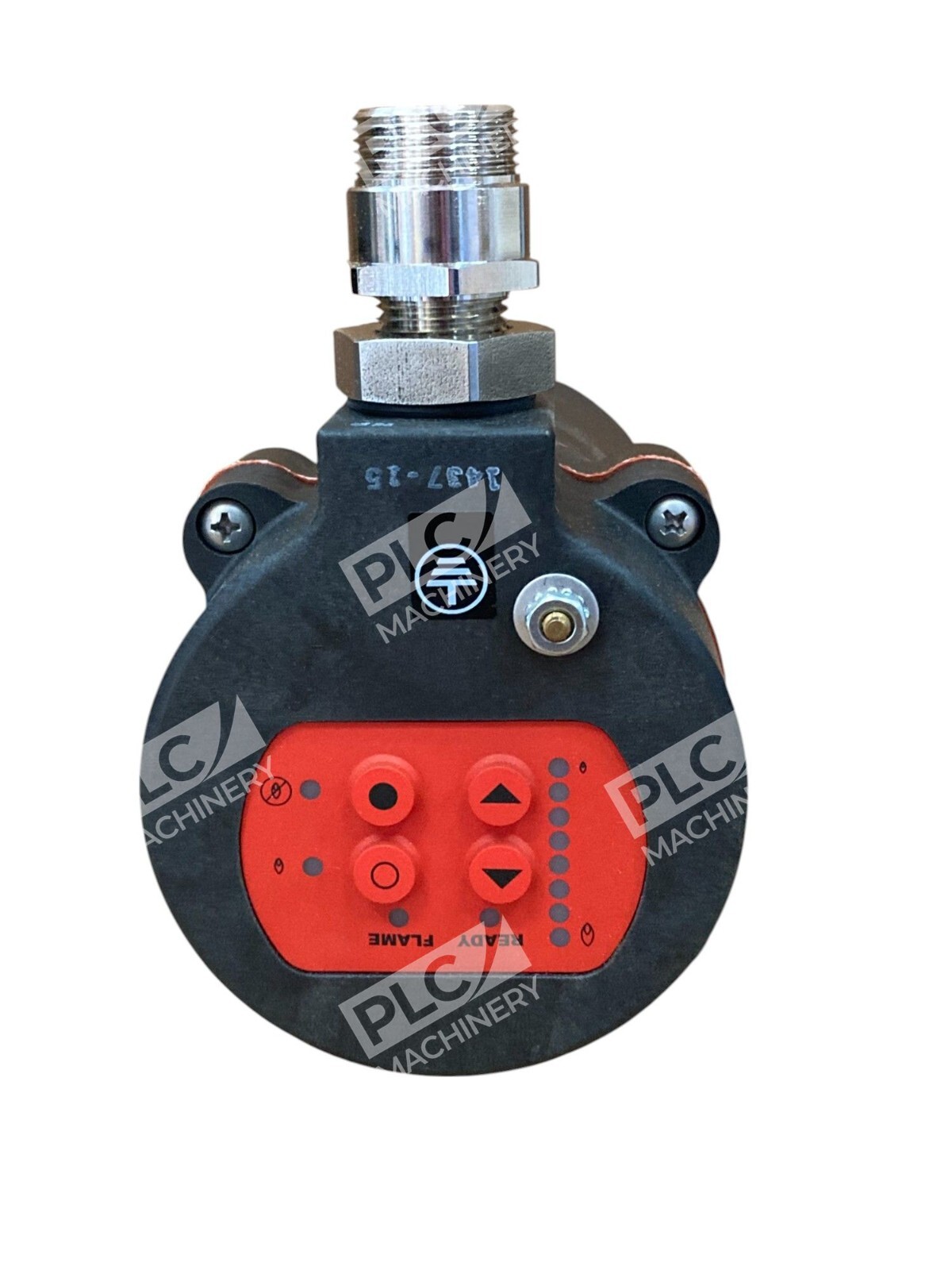

The Fireye 85UVF1-1QD is a microprocessor-based ultraviolet flame scanner engineered for precise flame detection in industrial burners, boilers, furnaces, and high-temperature combustion processes. This Phoenix Series II integrated scanner features a solid-state UV detection sensor and an internal flame relay with automatically configured ON/OFF thresholds, eliminating the need for a separate flame amplifier or dedicated flame switch. The quick disconnect cable connector simplifies field installation, maintenance, and sensor replacement while maintaining electrical safety.
Key Features
- UV Detection (295–340 nm): Senses ultraviolet emissions from flames; immune to false signals from hot refractory, incandescent lamps, or ambient light.
- Selectable FFRT: Configurable Flame Failure Response Time allows tuning to burner characteristics and safety requirements.
- Integral Relay: Built-in flame relay with pre-set thresholds delivers dry-contact SPST/SPDT output; no external amplifier needed.

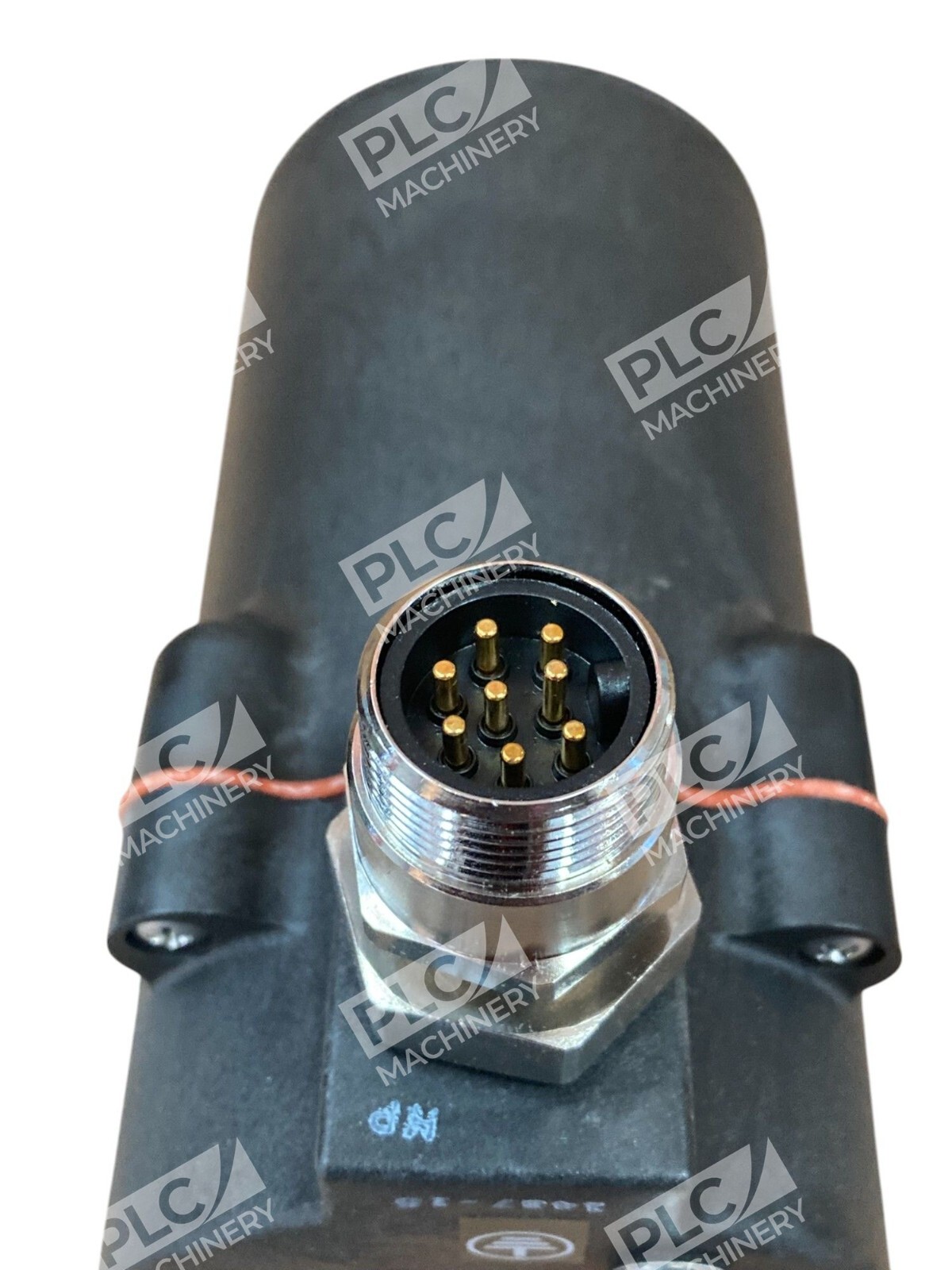

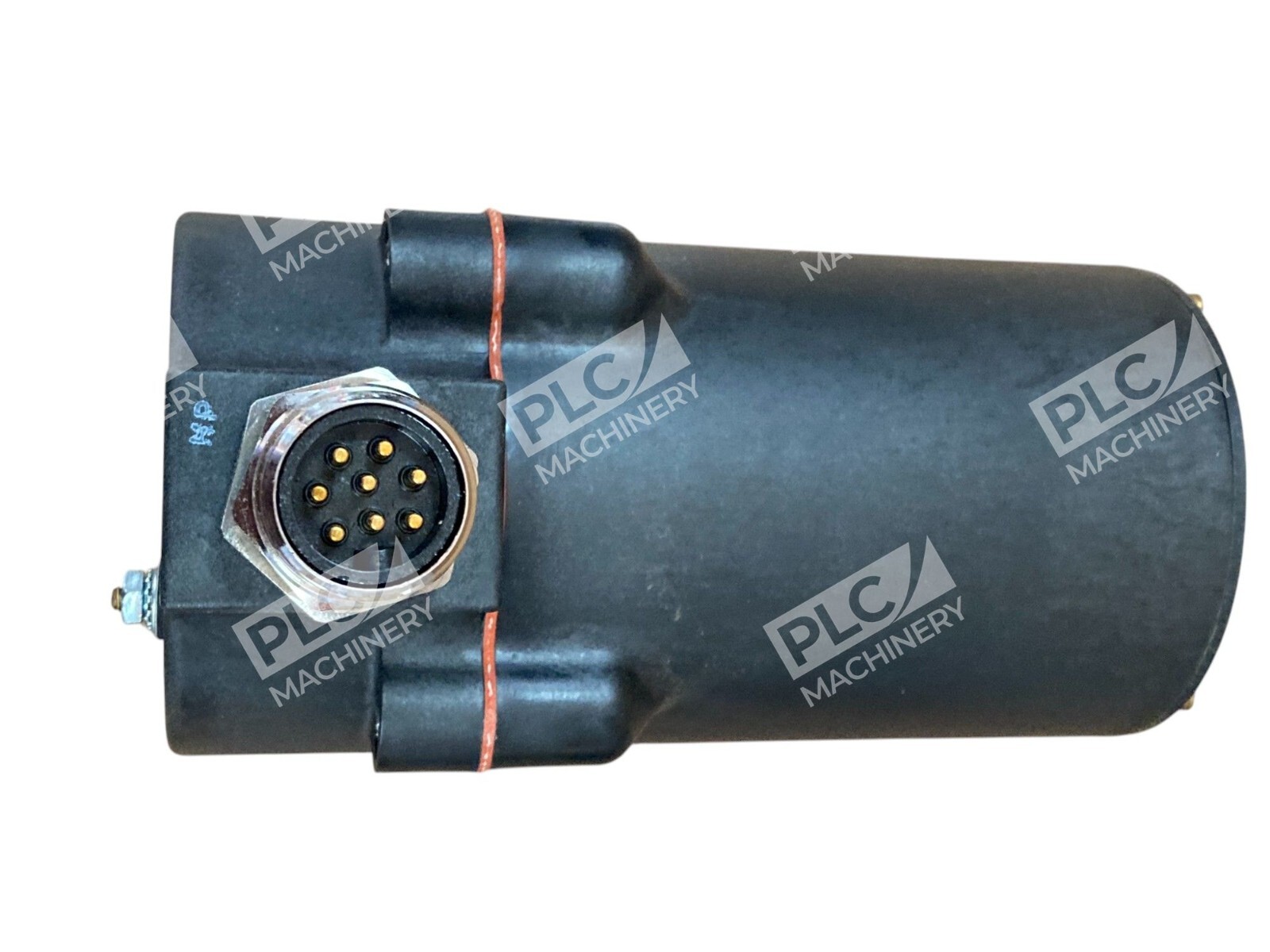

- Quick Disconnect (QD): Phoenix connector design enables rapid plug-pull cable connections for simplified commissioning and troubleshooting.

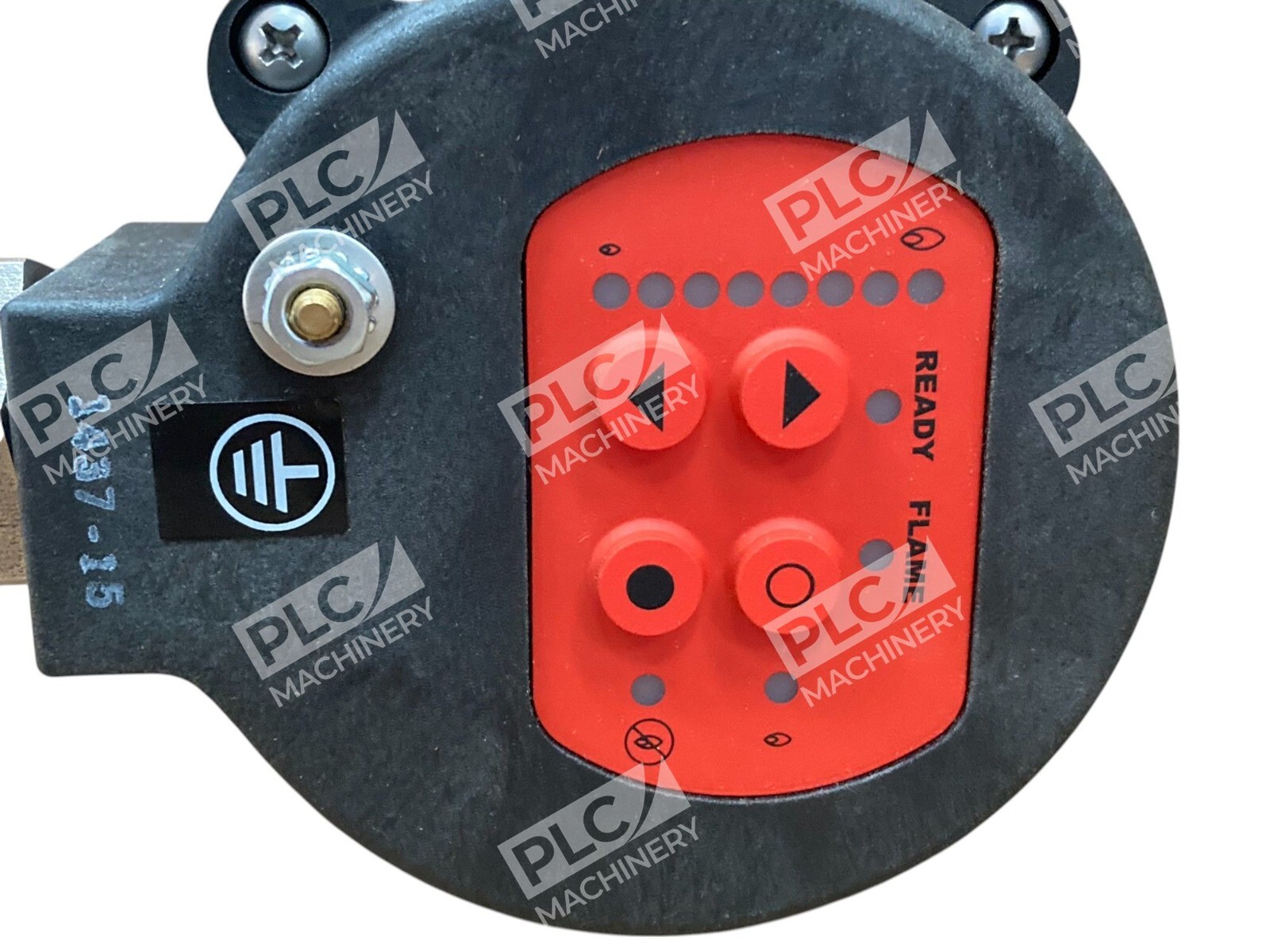

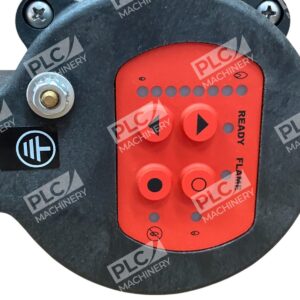

- Self-Diagnostics: Full on-board diagnostics and electronic self-checking provide continuous system health monitoring.
- Industrial Certifications: FM, UL/cUL, and CE approved for global compliance in burner management systems.

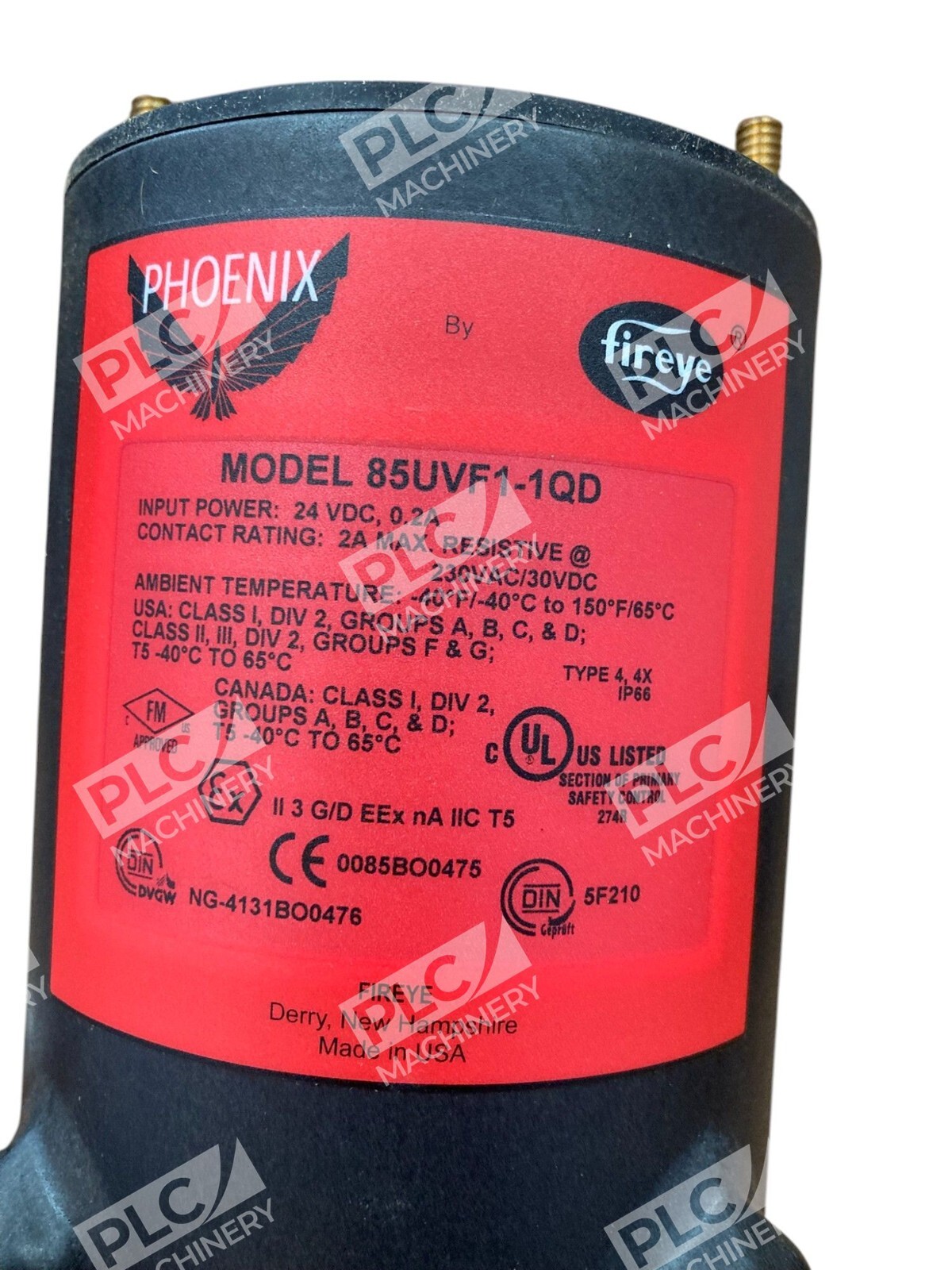

Technical Specifications
- Detection Method: Solid-state ultraviolet sensor, 295–340 nm spectral range
- Power Supply: 24 VDC
- Output Signal: SPST/SPDT dry contact relay (Flame ON/OFF)
- Housing: Cast aluminum with gray polyester powder coat
- Ingress Protection: IP66, 0.4 joule impact rating
- Weight: 5.90 lbs (2.69 kg)
- Dimensions: 4.5″ H × 2.0″ W × 4.8″ D (115 × 50 × 121 mm)
- Operating Temperature (Ambient): −40°F to +150°F (−40°C to +65°C)
- Operating Temperature (Internal): −40°F to +180°F (−40°C to +82°C)
- Humidity: 0–95% non-condensing relative humidity

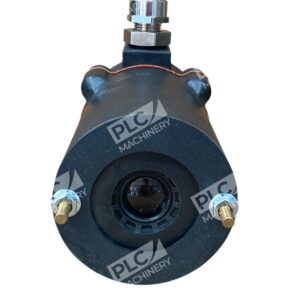

- Mounting: 1″ NPT female pipe flange; 3/8″ NPT female cooling air port
- Cooling Air Requirement: 4 SCFM (113 L/min) minimum clean, dry air

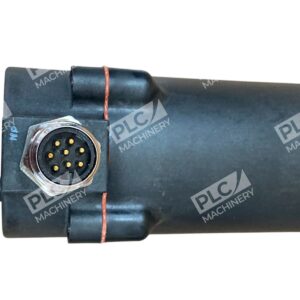

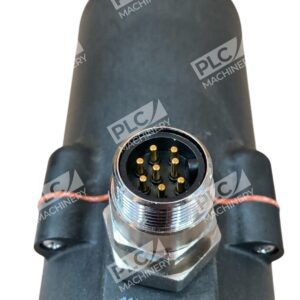

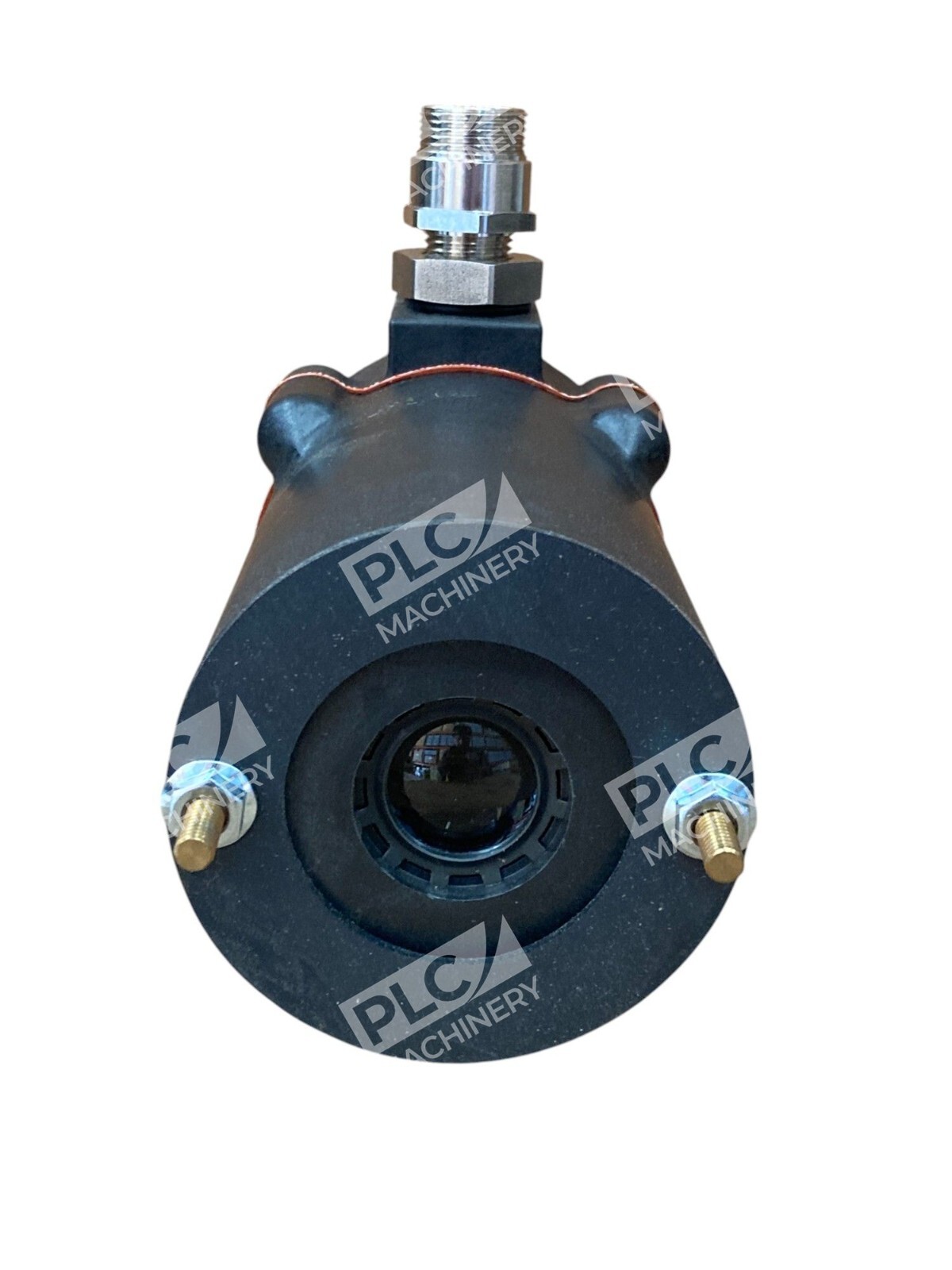

- Connector Type: Phoenix quick disconnect

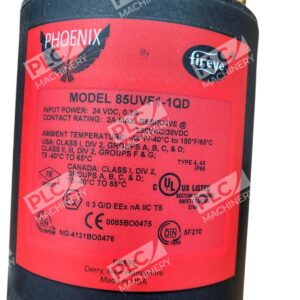

- Certifications: FM, UL/cUL, CE
- Series: Fireye Phoenix II (Type 85UVF)
Typical Applications
- Industrial gas burners on boilers, heaters, and furnaces
- Duct burners in gas turbine exhaust heat-recovery systems
- Low NOx burner installations in power generation and manufacturing
- Refinery and petrochemical process furnaces
- Waste oil and waste gas combustion units
- Incinerators and thermal oxidizers
- Packaged burner management systems requiring flame safeguard logic
Compatibility & Replacements
Compatible With
- Fireye Phoenix Series burner management systems and combustion controllers
- Standard 24 VDC burner safeguard control modules
- Industrial flame relay panels and programmable logic controllers (PLCs)
- Modulating and on/off burner control systems
- Boiler and furnace automation equipment requiring dry-contact flame input
Replaces / Drop-In Replacement For
- Earlier Fireye UV scanner models with equivalent NPT mounting and voltage rating (verify mounting flange compatibility)
- Generic UV flame scanner heads requiring 24 VDC input with SPST/SPDT relay output
Works With
- Fireye burner control modules (UV10, UV20 series, and equivalents)
- Industry-standard burner management system platforms
- Field-installed 59-546-series cable harnesses and interconnects
- Common relay logic, PLC, and SCADA systems via dry-contact interface
- Phoenix Contact connector ecosystem for modular control architecture
