Overview

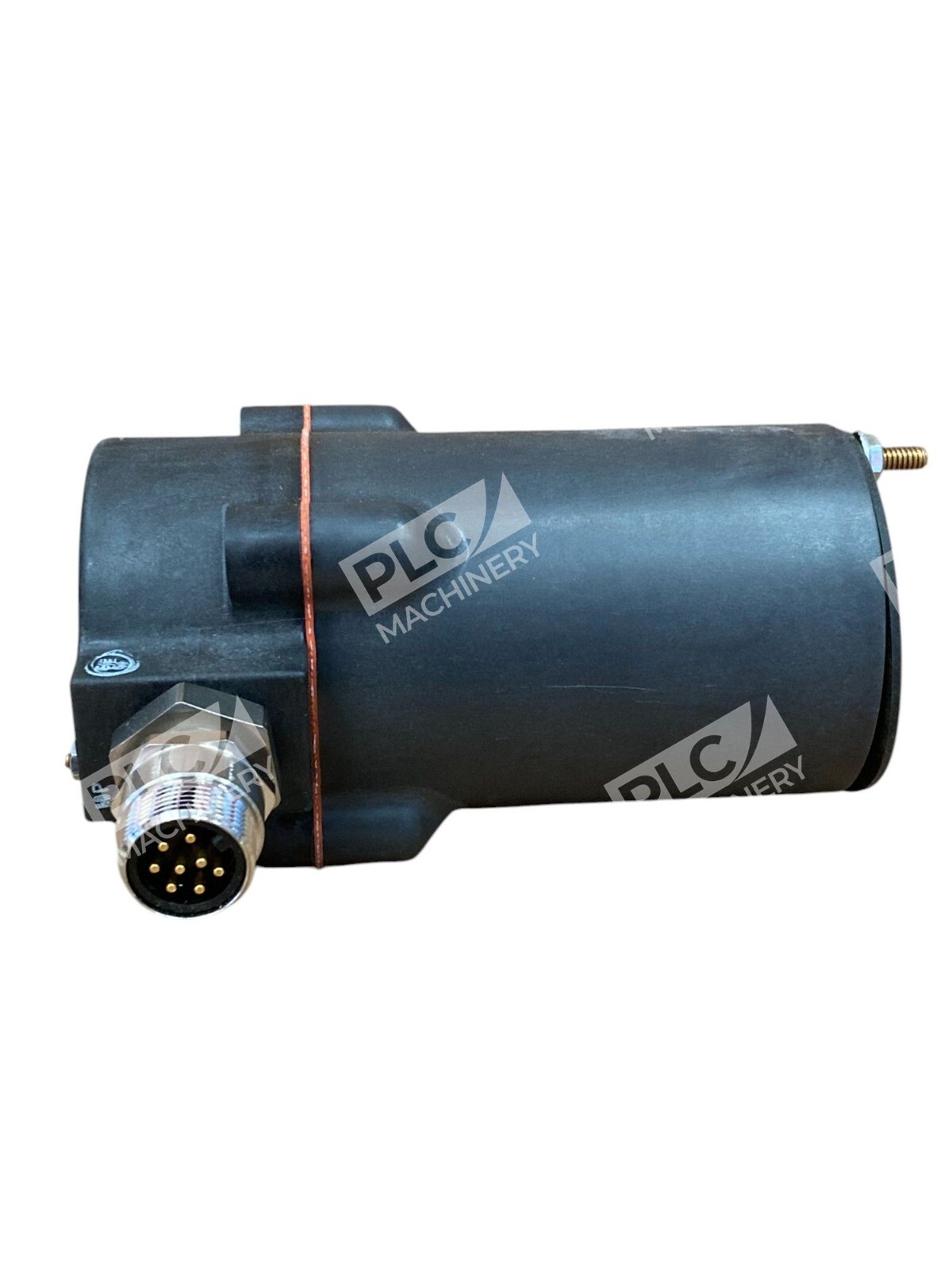

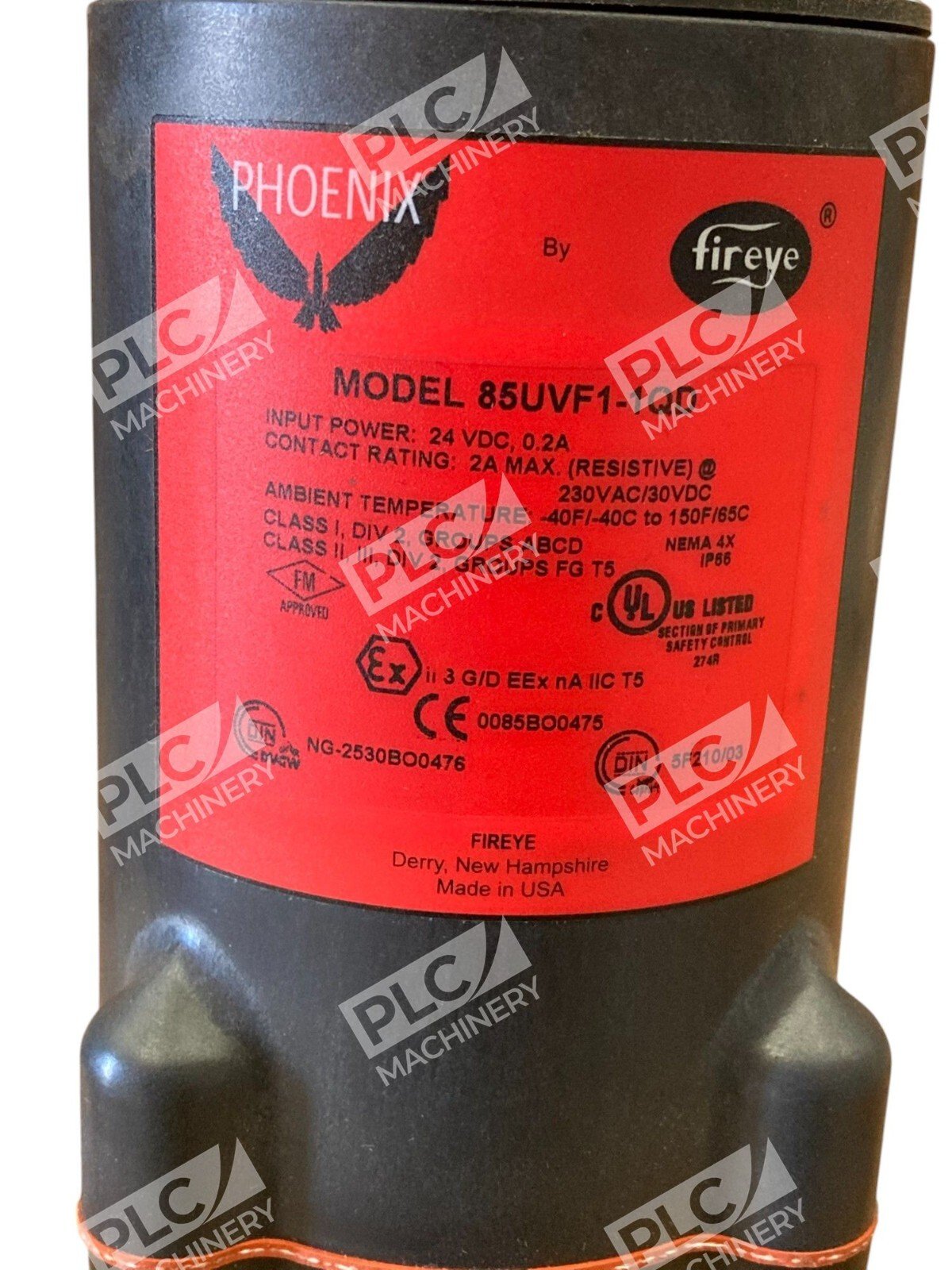

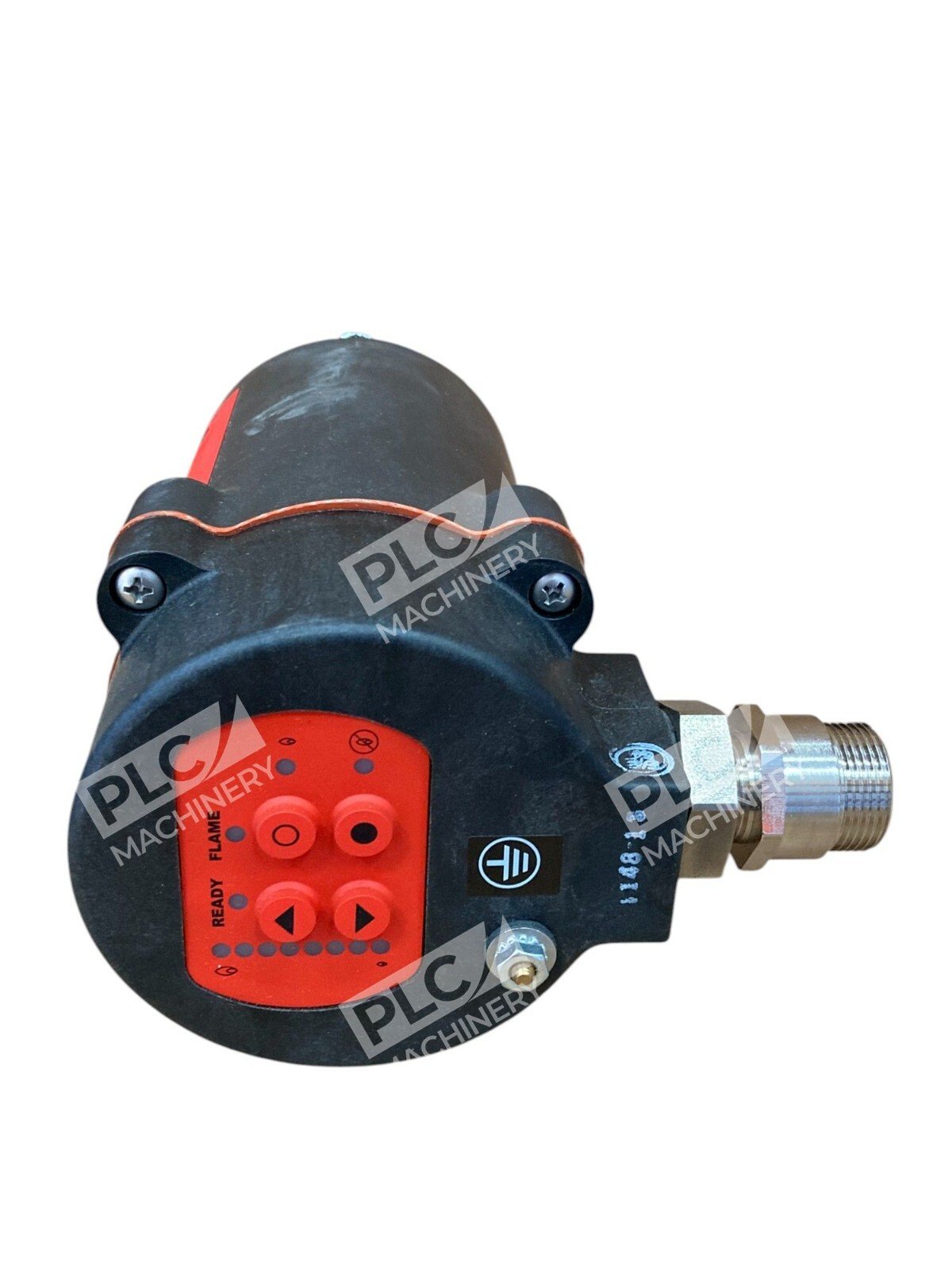

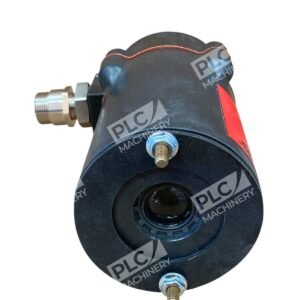

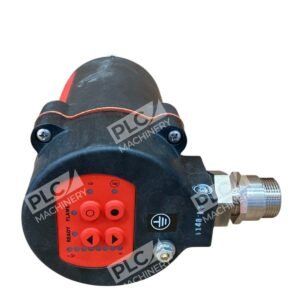

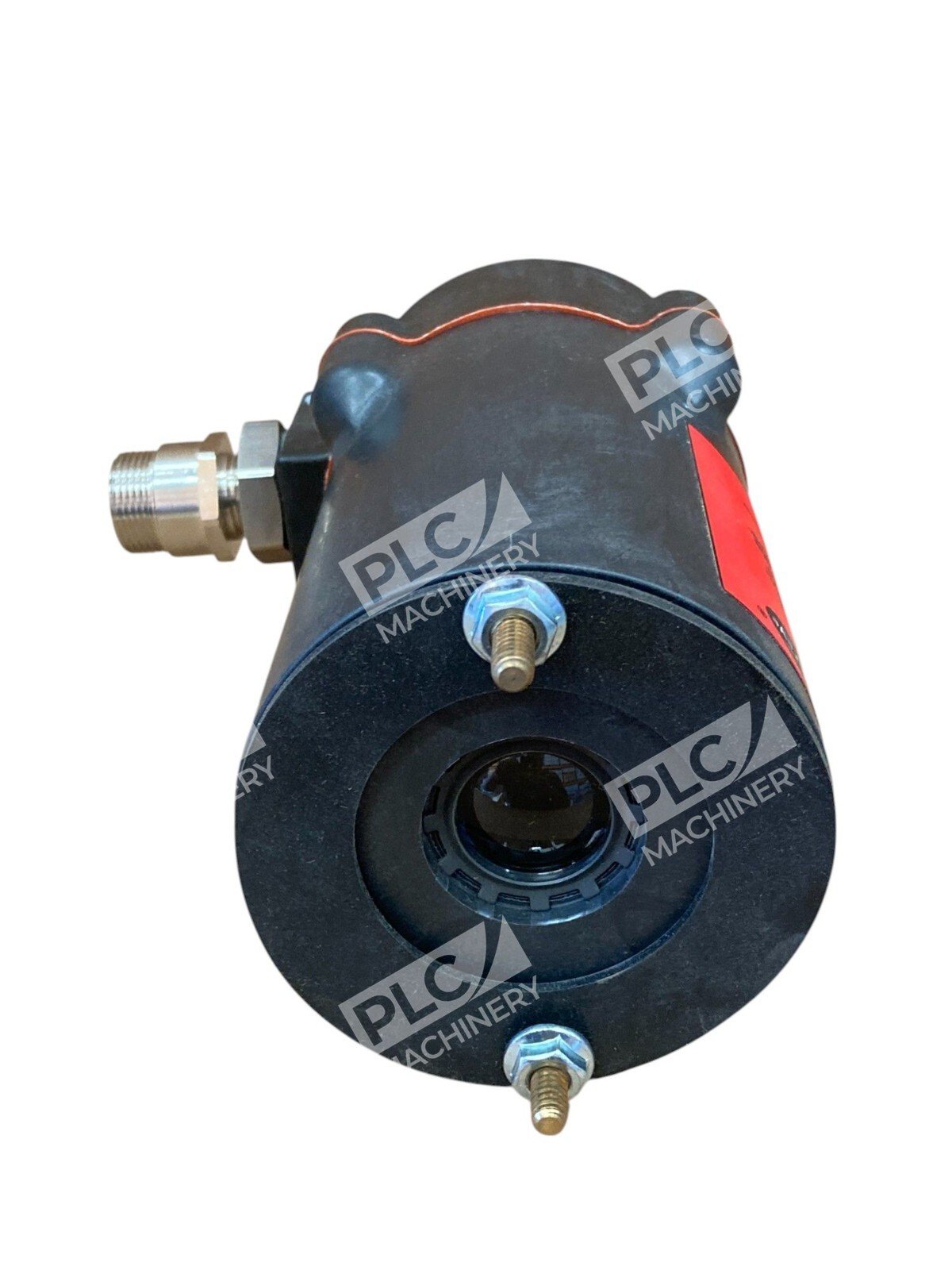

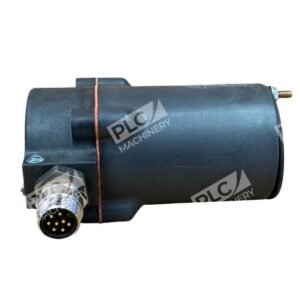

The Fireye 85UVF1-1QD is a microprocessor-based integrated flame scanner designed for reliable detection and monitoring in industrial combustion applications. Powered by 24 VDC and featuring an 8-pin electrical quick-disconnect (QD) connector, this UV scanner provides straightforward installation and maintenance. The scanner’s solid-state ultraviolet sensor operates within the 295–340 nanometer wavelength range, detecting flame amplitude modulations (“flicker”) across a wide frequency spectrum to ensure consistent, accurate performance.
Key Features
- Microprocessor-based design with automatic learning and self-diagnostics for operational integrity
- Integrated internal flame relay with automatically set ON/OFF thresholds—no external amplifier required
- 4–20 mA analog output for real-time flame strength monitoring and data logging

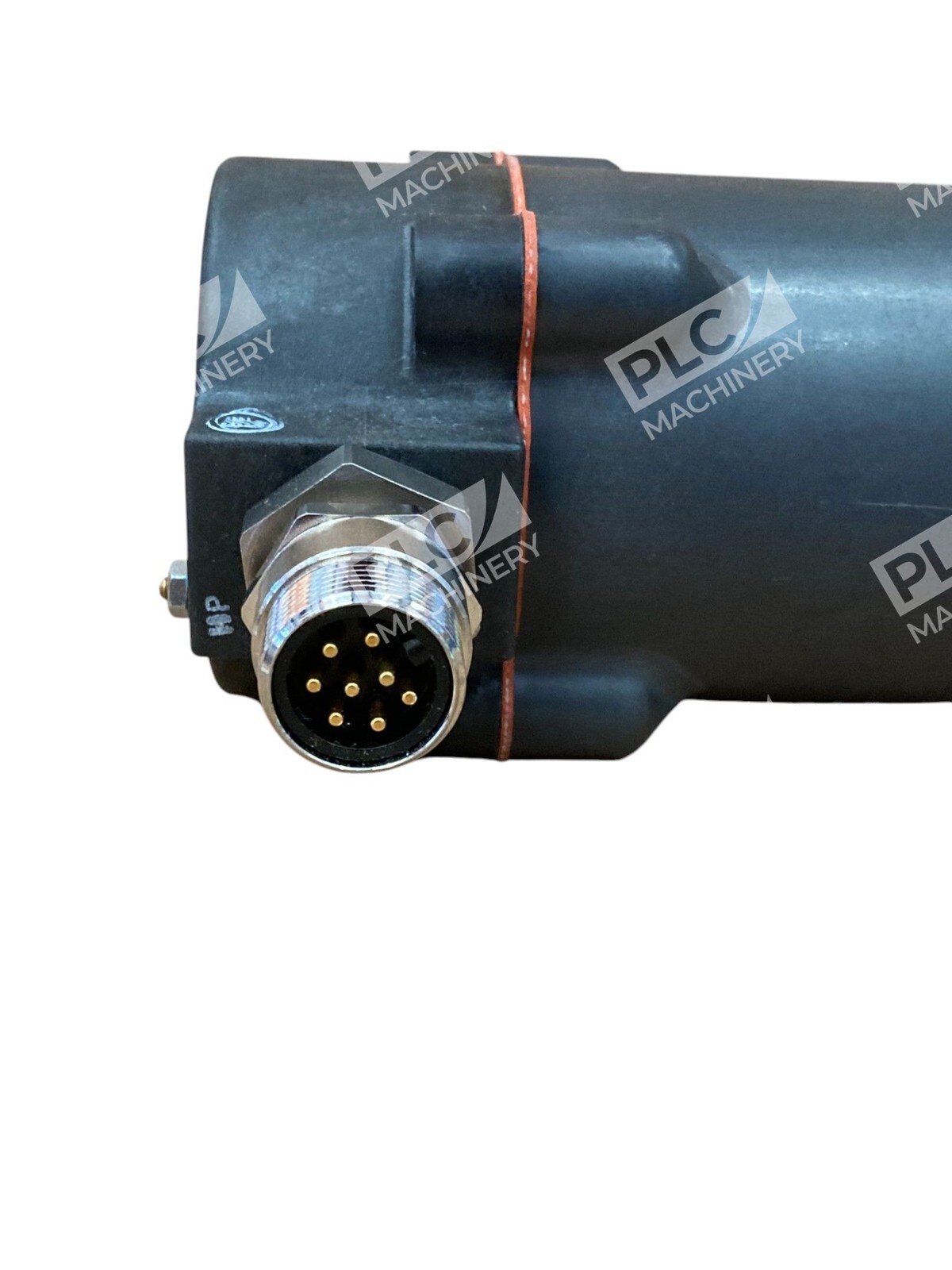

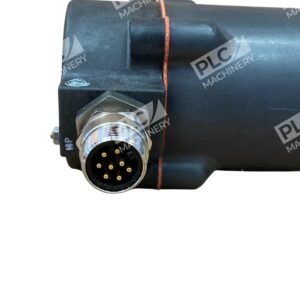

- 8-pin quick-disconnect (QD) electrical connector for simplified installation and rapid field replacement
- Solid-state UV sensor covering 295–340 nm spectral range for reliable ignition and flame monitoring
- Cast aluminum housing with gray polyester powder coat; IP66 ingress protection with 0.4-joule impact rating

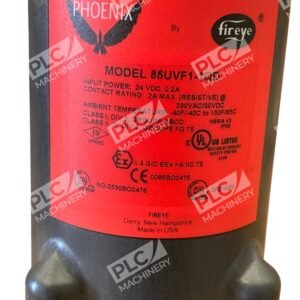

Technical Specifications
| Power Supply | 24 VDC |
| Output Signal | 4–20 mA analog (flame strength) |
| Sensor Type | Solid-state ultraviolet (UV) |
| Spectral Range | 295–340 nanometers |
| Electrical Connection | 8-pin quick-disconnect (QD) |
| Internal Relay | Yes—automatically set thresholds |
| Operating Temperature | −40°F to 150°F (−40°C to 65°C) ambient; −40°F to 180°F (−40°C to 82°C) internal |
| Humidity Range | 0–95% relative humidity, non-condensing |
| Ingress Protection | IP66; 0.4-joule impact rating |
| Housing Material | Cast aluminum with gray polyester powder coat |
| Scanner Weight | 5.9 lbs (2.69 kg) |
| Cooling Air Requirement | 4 SCFM (113 l/min) clean, dry, cool air at 3/8″ NPT threaded flange |
| Certifications | FM, UL/c, CE approved |
| Series | Fireye Phoenix (integrated) |
Typical Applications
The Fireye 85UVF1-1QD is deployed across a range of industrial combustion systems:
- Oil and gas burner flame detection and monitoring
- Furnace ignition and safety shutdown logic
- Boiler combustion control and flame supervision
- Industrial oven and kiln flame monitoring
- Incinerator and waste-fired combustion systems
- Emergency shutdown (ESD) circuits requiring flame presence confirmation
Compatibility & Replacements
Compatible With
- Fireye Phoenix Series II integrated flame scanner systems
- Burner management systems (BMS) utilizing 4–20 mA analog flame feedback
- Industrial PLC and logic controller combustion control modules
- Standard 24 VDC control power supplies and flame amplifiers
- Mounting flange part numbers 60-2692 and 60-2919
Replaces / Drop-In Replacement For
- Fireye 85UVF1A-1QD (Phoenix Series II equivalent with updated processor)
- Earlier Fireye UV scanner models with compatible 8-pin quick-disconnect interface
Works With
- Cable assemblies: 59-546-xx quick-disconnect cables
- Standard 4–20 mA analog signal conditioning and data acquisition systems
- SCADA and burner control software supporting flame strength analog input
- Combustion safety interlocks and flame failure response circuits
