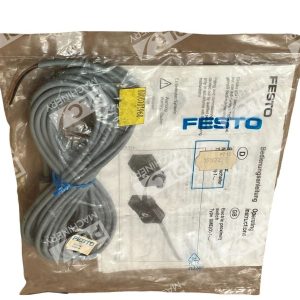

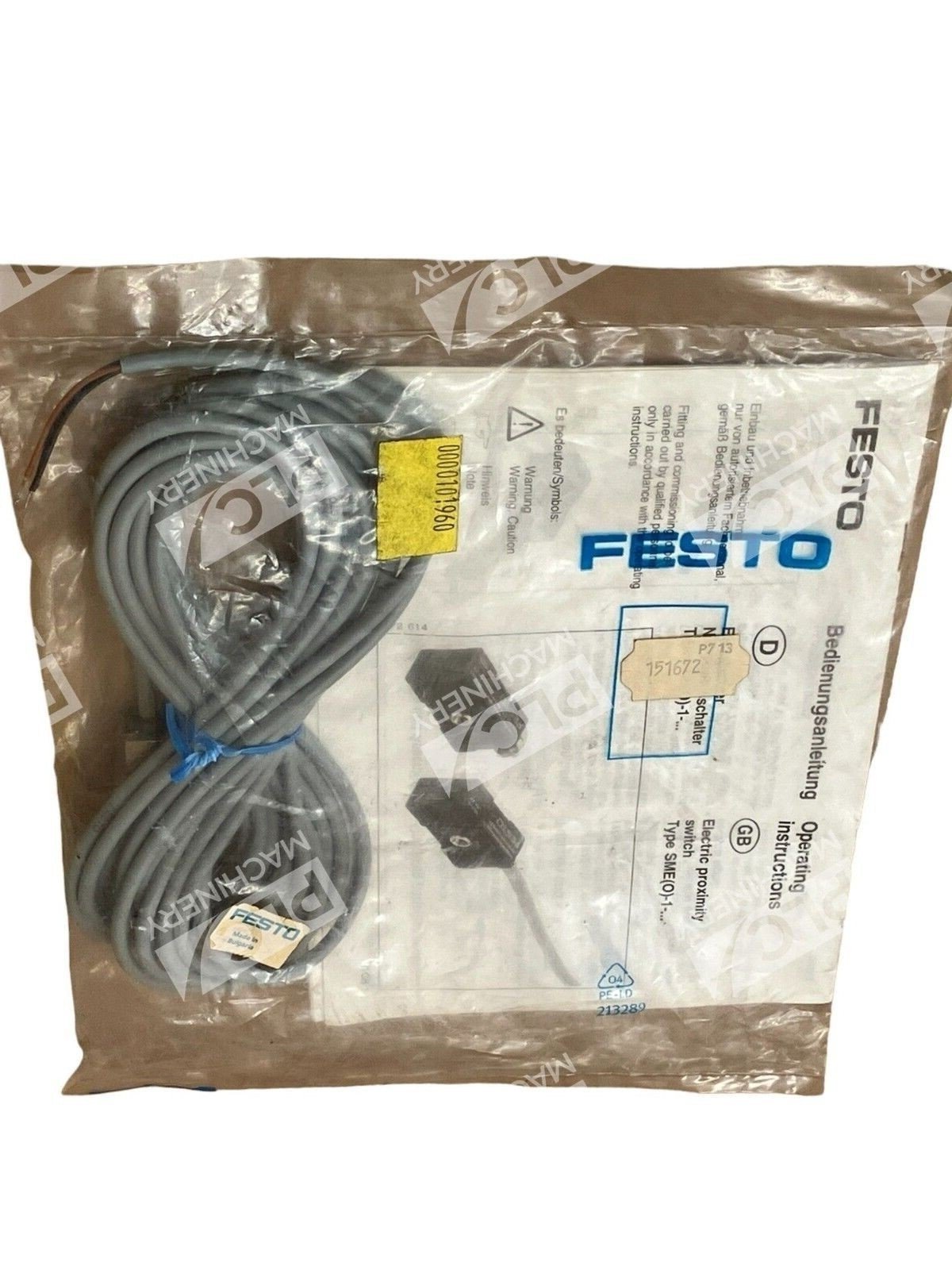

The Festo SMEO-1-LED-24-K5-B is a high-performance electric proximity switch designed for precise position detection in industrial automation systems.
Key Features
- Design: Compact block design for easy integration into various applications.
- Sensing Method: Utilizes magnetic reed technology for accurate and reliable position sensing.
- Output Type: Bipolar, contacting output with normally open (NO) contact configuration.
- Operating Voltage: Compatible with DC voltages ranging from 12 V to 27 V.
- Current Rating: Supports a maximum output current of 1 A.
- Switching Capacity: Handles up to 27 VA for AC and 27 W for DC applications.
- Switching Frequency: Capable of operating at frequencies up to 500 Hz.
- Repetition Accuracy: Offers a high repetition accuracy of ±0.1 mm.
- LED Indicator: Equipped with a yellow LED for clear switching status indication.
- Cable Length: Comes with a 5-meter, 3-core cable for flexible installation.
- Environmental Protection: Rated IP67, ensuring robust performance in harsh environments.
- Temperature Range: Operates efficiently within a temperature range of -20°C to +70°C.
- Housing Material: Constructed from durable die-cast zinc for enhanced longevity.
Applications
The Festo SMEO-1-LED-24-K5-B proximity switch is ideal for various industrial applications, including:
- Position monitoring in pneumatic and hydraulic systems.
- Detection of moving machine parts in automated manufacturing processes.
- Integration into systems requiring precise and reliable position feedback.
Its robust design and high accuracy make it a reliable choice for demanding industrial environments.
