Overview

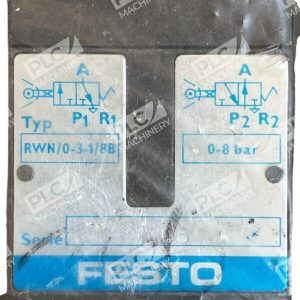

The Festo RWN/O-3-1/8-B (part number 9694) is a reliable pneumatic limit valve widely used in industrial control systems. This valve features a lever actuator and 3/2 monostable operation, suitable for air control up to 8 bar. The valve has a normal nominal flow rate of 120 L/min and uses a G1/8 pneumatic working port. It is designed for precise pressure sensing and directional switching in pneumatic circuits.
Key Features
- 3/2 Monostable Operation: Open/closed function with monostable return
- Lever Arm Actuator: Manual actuation with positive mechanical action
- High Flow Capacity: 120 L/min nominal flow rate
- Compact Design: Space-efficient G1/8 port configuration suitable for manifold integration
- Pressure Rated: Suitable for pneumatic systems up to 8 bar operating pressure
- Mechanical & Hand-Operated: No electrical components required for actuation
Technical Specifications
The Festo RWN/O-3-1/8-B valve is engineered for precise pneumatic control with the following key parameters:
- Valve Function: 3/2 open/closed, monostable
- Normal Flow Rate: 120 L/min (normalized to DIN 1343)
- Pneumatic Working Port: G1/8
- Maximum Operating Pressure: 8 bar (gage)
- Actuator Type: Lever arm, hand-operated
- Body Material: Aluminum (Festo standard)
- Mounting: Standard pneumatic valve cavity compatible
- Certifications: CE marked, ISO 1219-1 compliant
Typical Applications
The Festo RWN/O-3-1/8-B is commonly deployed in:
- Pneumatic press control and limiting systems
- Industrial automation and machinery actuation
- Pressure relief and safety circuits
- Manual pneumatic control panels
- Test stands and laboratory pneumatic benches
- Manual directional control in manifold assemblies
Compatibility & Replacements
Compatible With
- Festo standard pneumatic manifold cavities (cavity pattern compatibility)
- G1/8 pneumatic porting systems
- ISO 1219-1 directional valve circuits
- ISO 13849-1 safety-related control systems (with appropriate circuit design)
- DIN 1343 normalized pneumatic flow systems
Replaces / Drop-In Replacement For
- Festo RWN/O-3-1/8-B alternative part numbers (verify manifold cavity compatibility before ordering)
- Other manual 3/2 monostable limit valves with identical G1/8 porting—verify cavity dimensions and spool timing before substitution
Works With
- Festo pneumatic actuators and cylinders
- Standard ISO 1219-1 pneumatic schematic symbols
- Pneumatic circuit design software compliant with ISO 1219
- Manual control panels and push-button interfaces
- Pressure sensors and gauges (downstream monitoring)
- Manifold block systems with standard cavity mounting
