<h2>Overview</h2>

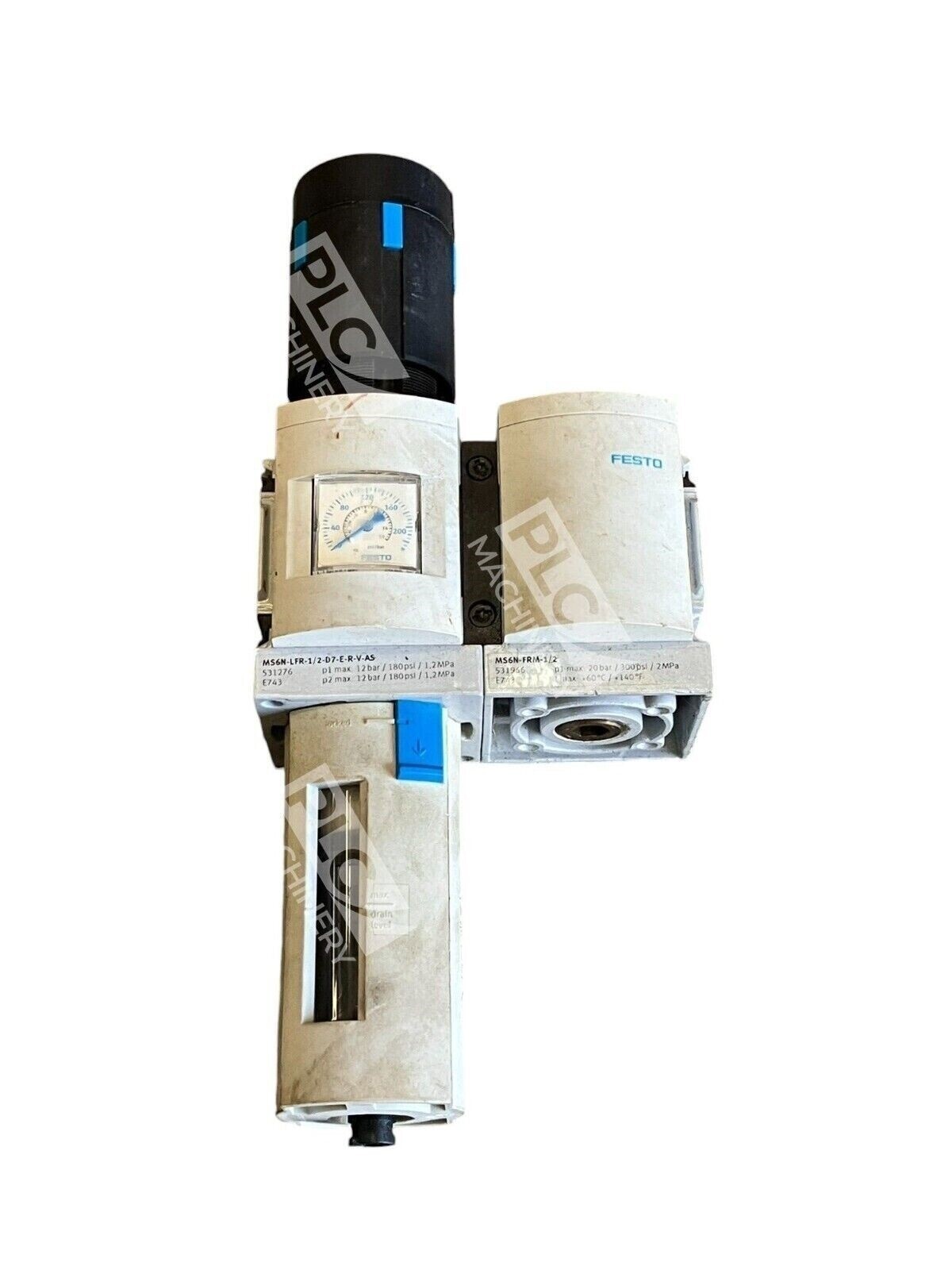

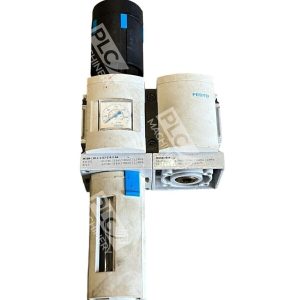

<p>The <strong>Festo MS6N-LFR-1/2-D7-ERV-AS</strong> is a size 6 pneumatic filter regulator designed for professional compressed air treatment. This directly actuated diaphragm regulator combines efficient filtration with pressure regulation in a single compact unit, making it ideal for industrial pneumatic systems where clean, dry air is critical for component longevity and system reliability.</p>
<h2>Key Features</h2>
<ul>
<li>40-micron filtration grade removes contaminants and extends downstream component life</li>
<li>Automatic condensate drain eliminates manual maintenance and prevents water accumulation</li>

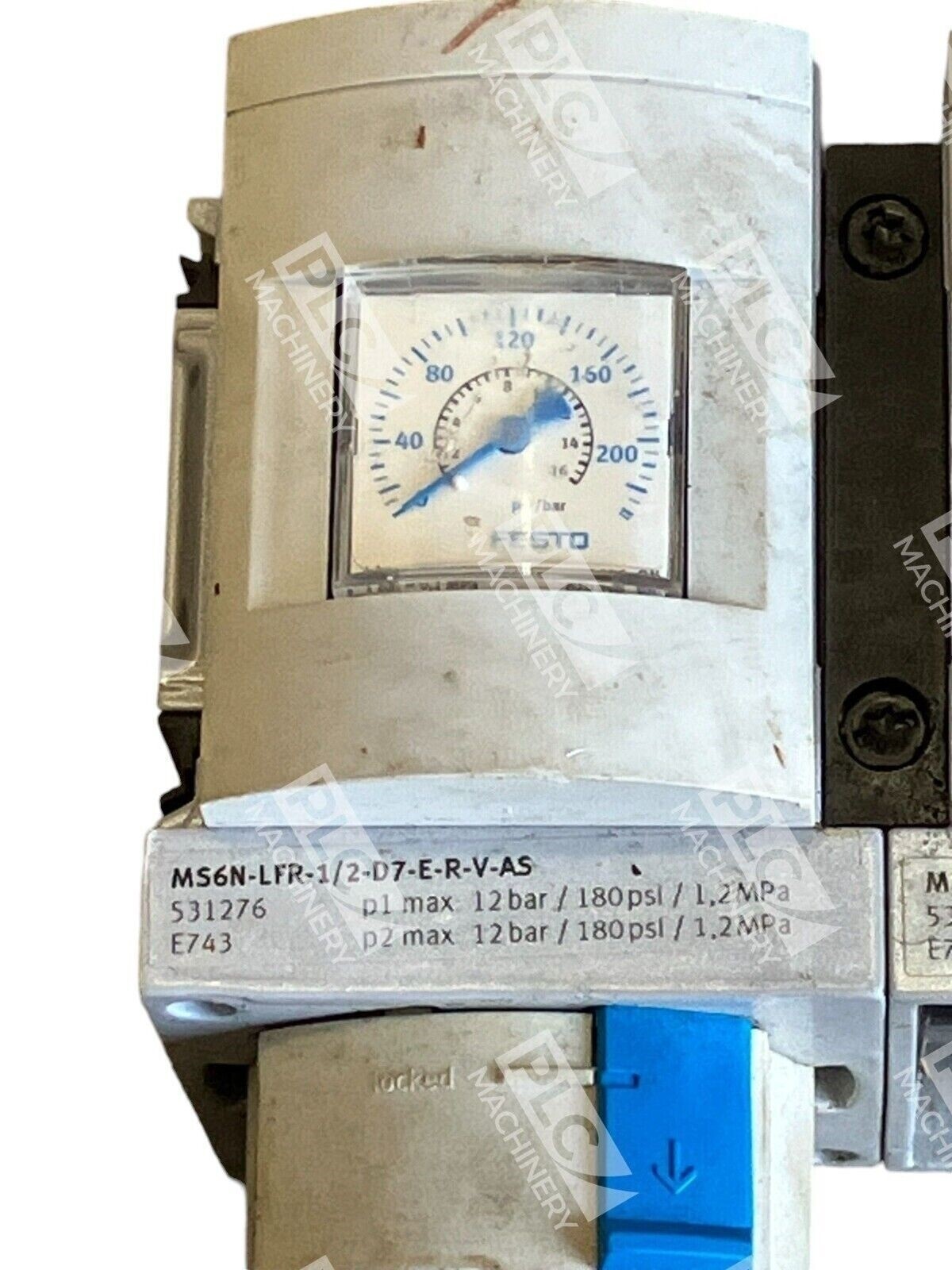

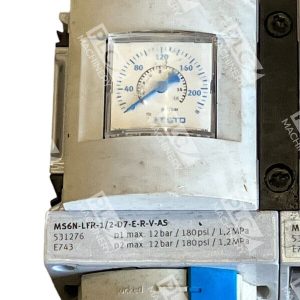

<li>Pressure gauge with bar scale for easy output pressure monitoring</li>
<li>Rotary knob actuator with detent lock prevents accidental adjustment</li>
<li>Die-cast aluminum housing provides durability in industrial environments</li>
<li>Rated for 4500 L/min maximum flow at 2–12 bar output pressure</li>
</ul>
<h2>Technical Specifications</h2>
<p>The MS6N-LFR-1/2-D7-ERV-AS delivers consistent pneumatic component protection with specifications tailored for mid-to-high flow applications:</p>
<ul>
<li><strong>Filtration Grade:</strong> 40 microns</li>
<li><strong>Maximum Flow Rate:</strong> 4500 L/min</li>
<li><strong>Pressure Regulation Range:</strong> 0.5–12 bar (for D7 cartridge)</li>
<li><strong>Operating Pressure:</strong> 2–12 bar outlet</li>
<li><strong>Port Connection:</strong> G1/2 (metric) / 1/2 NPT (alternative)</li>
<li><strong>Condensate Drain:</strong> Fully automatic</li>
<li><strong>Housing Material:</strong> Die-cast aluminum</li>
<li><strong>Operating Temperature Range:</strong> –5°C to +60°C</li>
<li><strong>Input Medium:</strong> Compressed air per ISO 8573-1/2010</li>
<li><strong>Bowl Guard:</strong> Plastic</li>
<li><strong>Weight:</strong> Approximately 875 g</li>
</ul>
<h2>Typical Applications</h2>
<p>The Festo MS6N-LFR-1/2-D7-ERV-AS is suited for:</p>
<ul>
<li>Pneumatic production machinery and assembly lines</li>
<li>Industrial automation systems requiring consistent air quality</li>
<li>Compressed air networks in manufacturing facilities</li>
<li>Process automation where moisture and particle contamination must be minimized</li>
<li>Retrofit and maintenance of existing pneumatic systems</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Industrial compressed air networks and manifold systems</li>
<li>Pneumatic actuators, cylinders, and motors</li>
<li>Pneumatic valves and solenoid valve stations</li>
<li>G1/2 and 1/2 NPT pneumatic tubing and fittings</li>
<li>Mobile and stationary compressed air preparation systems</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<ul>
<li>MS6-LFR-1/2-D7-ERV-AS (metric NPT variant)</li>
<li>Verify exact port thread type (G1/2 vs. 1/2 NPT) before ordering as replacements</li>
</ul>
<h3>Works With</h3>
<ul>
<li>Festo MS series filter and regulator components</li>
<li>Optional SPAU pressure transducers (IO-Link compatible)</li>
<li>Standard pneumatic tubing and manifold connections</li>
<li>Remote monitoring and control via pressure sensor accessories</li>
</ul>
