Overview

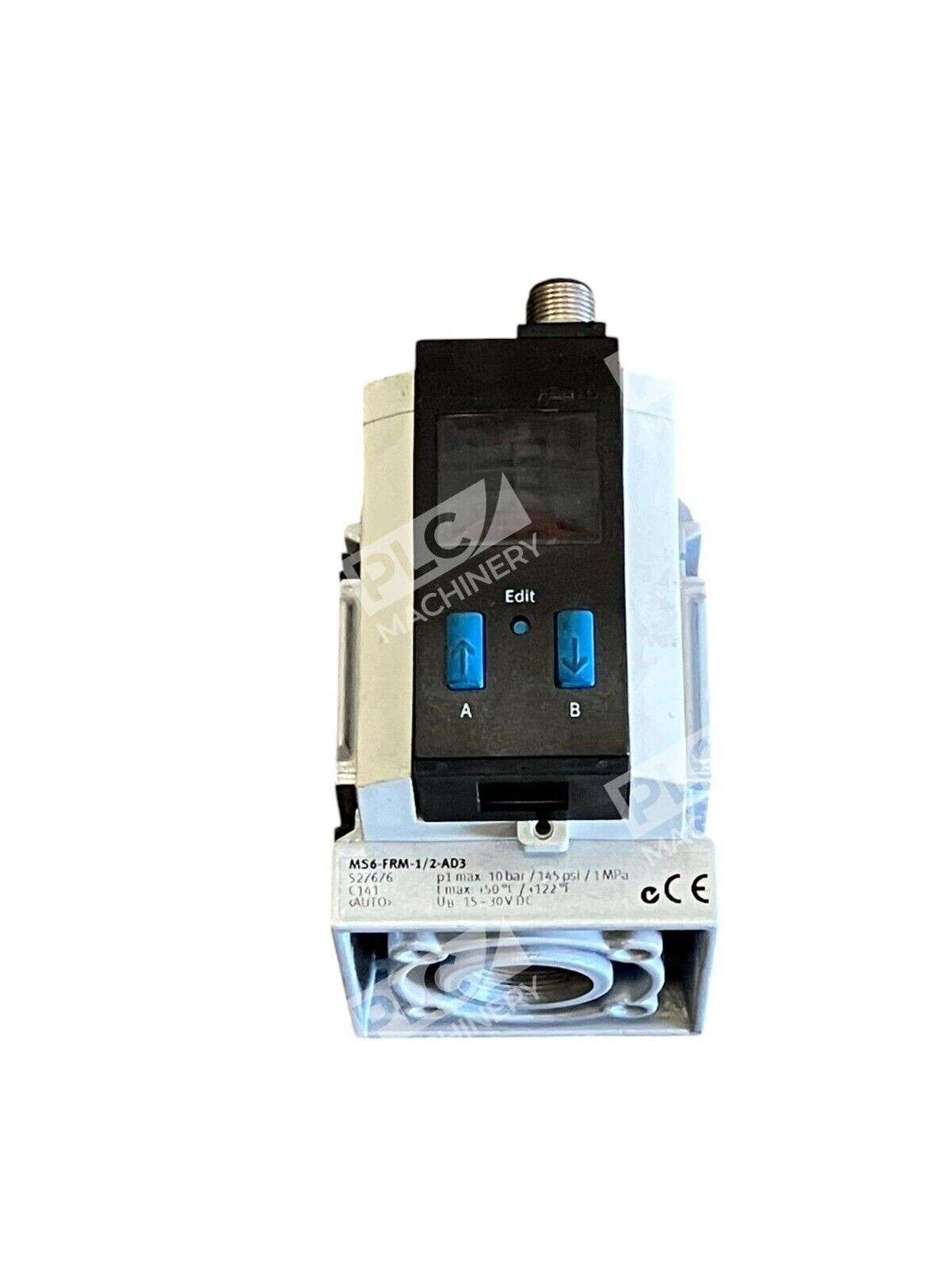

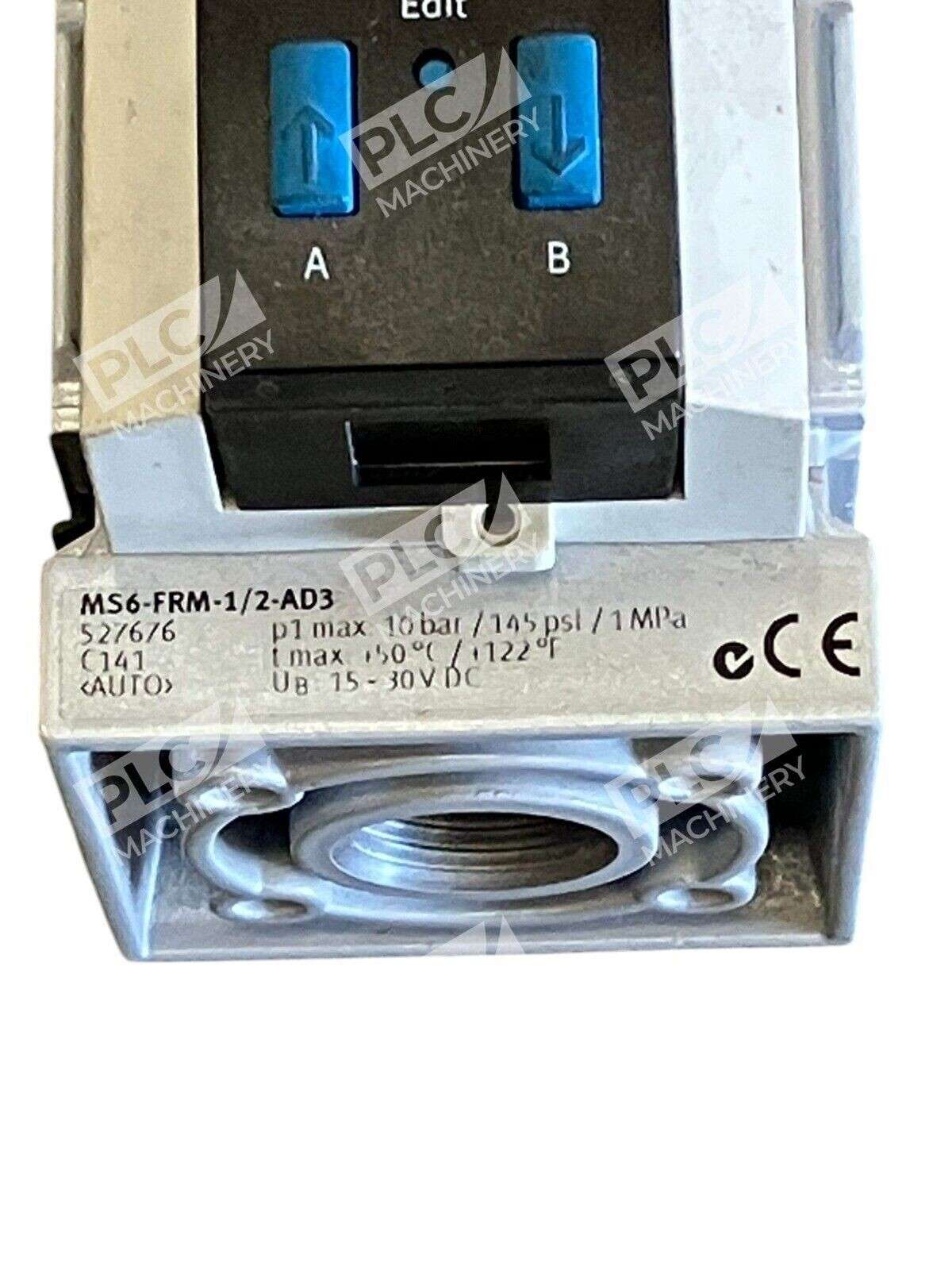

The Festo MS6-FRM-1/2 branching module is a modular pneumatic component designed for multi-directional air distribution with integrated pressure sensing. This Size 6 manifold uses die-cast aluminum construction and female G1/2 thread connections, making it ideal for machine controls, pneumatic circuits, and automated systems requiring simultaneous pressure monitoring and circuit branching.
Key Features
- Four-port branching design — Distributes compressed air to multiple circuits from a single inlet
- Integrated pressure capability — Optional pressure sensor or gauge variants for real-time monitoring
- Die-cast aluminum housing — Lightweight, corrosion-resistant, durable construction
- Modular configuration options — Available with or without non-return valves and various sensor electronics
- Stackable porting block — Grid dimension 62 mm allows integration into larger manifold assemblies
- Wide operating range — Handles ambient temperatures from -10 to +60°C
Technical Specifications
- Operating Pressure: 0–20 bar (0–290 psi / 2 MPa)
- Pneumatic Connection: G1/2 female thread (3 outlet ports + 1 inlet)
- Housing Material: Die-cast aluminum
- Maximum Flow Rate: Up to 14,700 L/min (3,881 GPM)
- Operating Temperature: -10 to +60°C (-14 to +140°F)
- Storage Temperature: -10 to +60°C
- Modular Size: Size 6, grid dimension 62 mm
- Optional Sensor/Gauge Variants: Available with LCD display, switching output, or analog sensors (AD1, AD3, AD7, AD8)
- Supply Voltage (sensor versions): 0–240 VAC / 0–125 VDC
Typical Applications
The MS6-FRM-1/2 is commonly deployed in:
- Industrial automation and process control systems
- Pneumatic circuit branching for multiple actuators and controls
- OEM machine assemblies requiring modular manifold stacks
- Pressure regulation and monitoring in compressed air lines
- Food, packaging, and manufacturing automation
- Test and measurement equipment requiring pressurized air distribution
Compatibility & Replacements
Compatible With
- Festo MS-series (MS4, MS6, MS8, MS10, MS12) manifold systems
- Standard G1/2 female thread pneumatic connections
- Festo SPAU pressure sensors and related M8 connectors
- Common industrial compressed air supplies (0–20 bar)
- ISO 1219 pneumatic circuit diagrams and standards
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The MS6-FRM-1/2 is a specific Size 6 module with G1/2 porting; earlier or variant models may require mechanical or pneumatic adaptation.
Works With
- Festo Pressure Gauge Adapters (A4, A8 variants)
- Festo SDE1 Pressure Sensors with LCD display and switching output
- Festo M8 electrical connectors (A-coded to EN 61076-2-104)
- Standard industrial compressed air (moisture and oil filters recommended)
- Festo NEBA connecting cables and tubing systems
