Overview

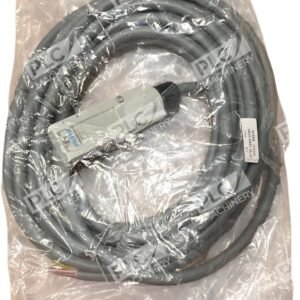

The Festo VMPA-KMS1-24-10 (manufacturer part 533194) is a factory-assembled connecting cable engineered for seamless integration with Festo MPA-S proportional valve manifolds. This cable delivers stable 24 VDC control signals to solenoid-operated directional control valves in automated fluid power systems. With 10 meters of reach, pre-assembled sub-D connectors, and IP65 ingress protection, it meets the durability demands of manufacturing lines, mobile equipment, and test rigs.
Key Features
- 10-meter cable length with pre-assembled sub-D plug socket
- 25-core wire (25 × 0.34 sq-mm) supports multi-solenoid valve terminals
- IP65 protection rating resists moisture, dust, and washdown environments
- PVC cable sheath and insulation rated 0–70°C for industrial temperature ranges
- Minimum bend radius of 171 mm enables routing through tight control cabinet spaces
- Direct compatibility with Festo MPA-S series valve terminal manifolds
Technical Specifications
- Part Number: VMPA-KMS1-24-10
- Manufacturer Part (MPN): 533194
- Cable Length: 10 m
- Rated Voltage: 24 VDC
- Wire Configuration: 25 × 0.34 sq-mm
- Cable Diameter: 11.4 mm
- Connector Type: Sub-D plug with cable outlet
- Protection Rating: IP65
- Cable Insulation: PVC
- Minimum Bend Radius: 171 mm
- Operating Temperature Range: 0°C to +70°C
- Cable Weight: 2,055 grams (approx. 2.1 kg)
- Assembly Status: Pre-assembled at one end
- Suitable for Energy Chains: Yes
Typical Applications
The VMPA-KMS1-24-10 cable is commonly deployed in:
- Injection molding machines and plastic processing equipment
- Metal-forming and machining centers with proportional valve control
- Hydraulic and pneumatic test systems requiring multi-solenoid switching
- Mobile equipment hydraulic steering and load-control manifolds
- Industrial robots and material handling systems with proportional actuation
- Energy-chain applications in automated assembly and packaging lines
Compatibility & Replacements
Compatible With
- Festo MPA-S series proportional valve manifolds
- Festo VMPA multi-pin connector systems
- 24 VDC proportional solenoid directional control valves
- Industrial control cabinets with standard 24 VDC pilot supply
- PLC and motion control systems using solenoid valve outputs
Replaces / Drop-In Replacement For
- VMPAKMS12410 (Festo equivalent variant)
- Other 25-core, 10-meter proportional valve cables with sub-D connectors—verify pin configuration before substitution
Works With
- Rockwell Automation PLC analog outputs (with appropriate control modules)
- Siemens S7 and TIA Portal proportional valve control programs
- Festo SMAKT flow-control products (when integrated into MPA-S modules)
- Industrial 24 VDC solenoid switching systems
- Proportional amplifier cards and servo modules for valve actuation
