Overview

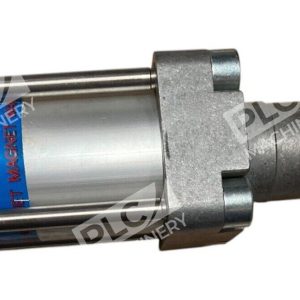

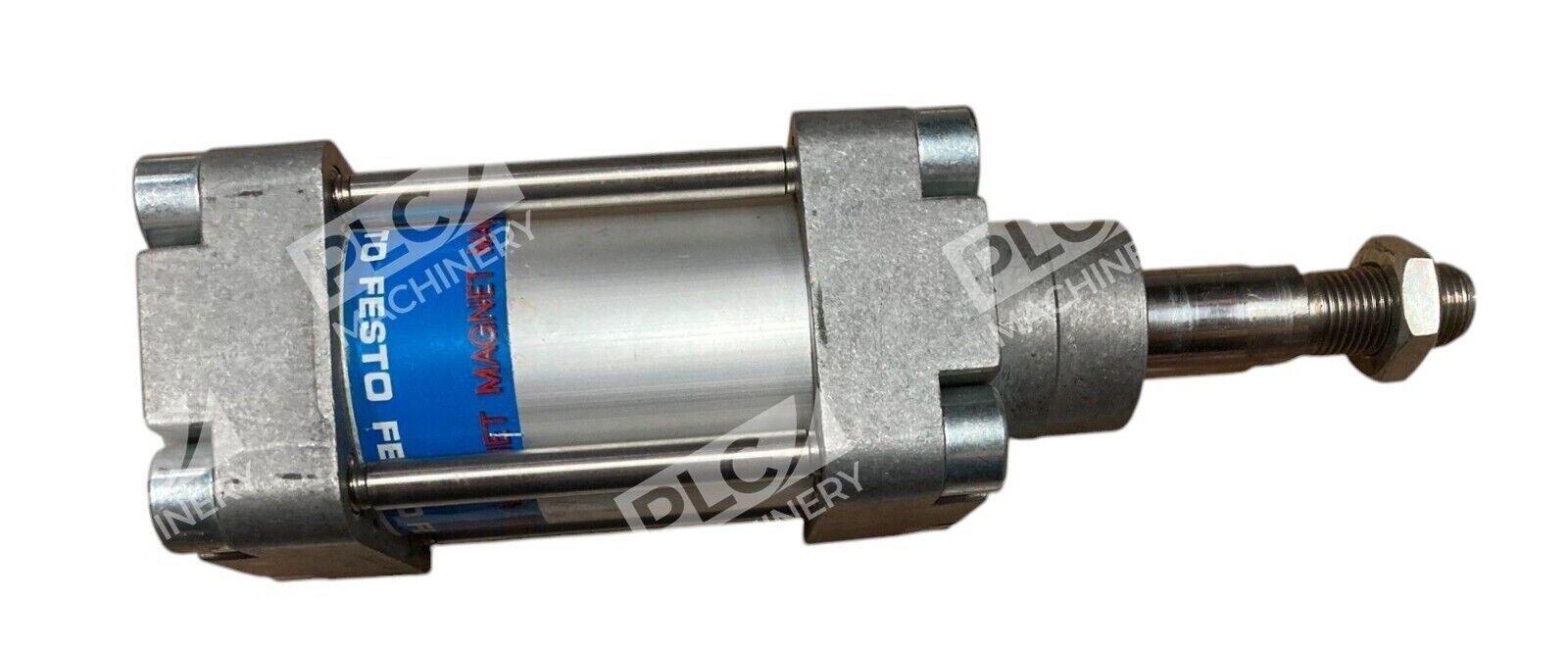

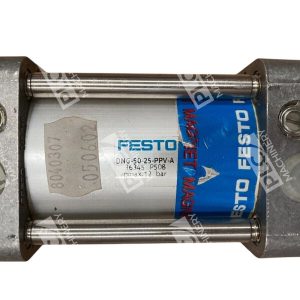

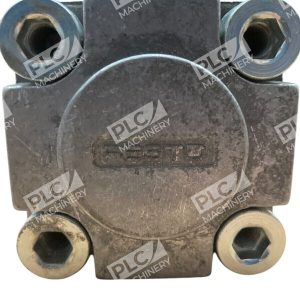

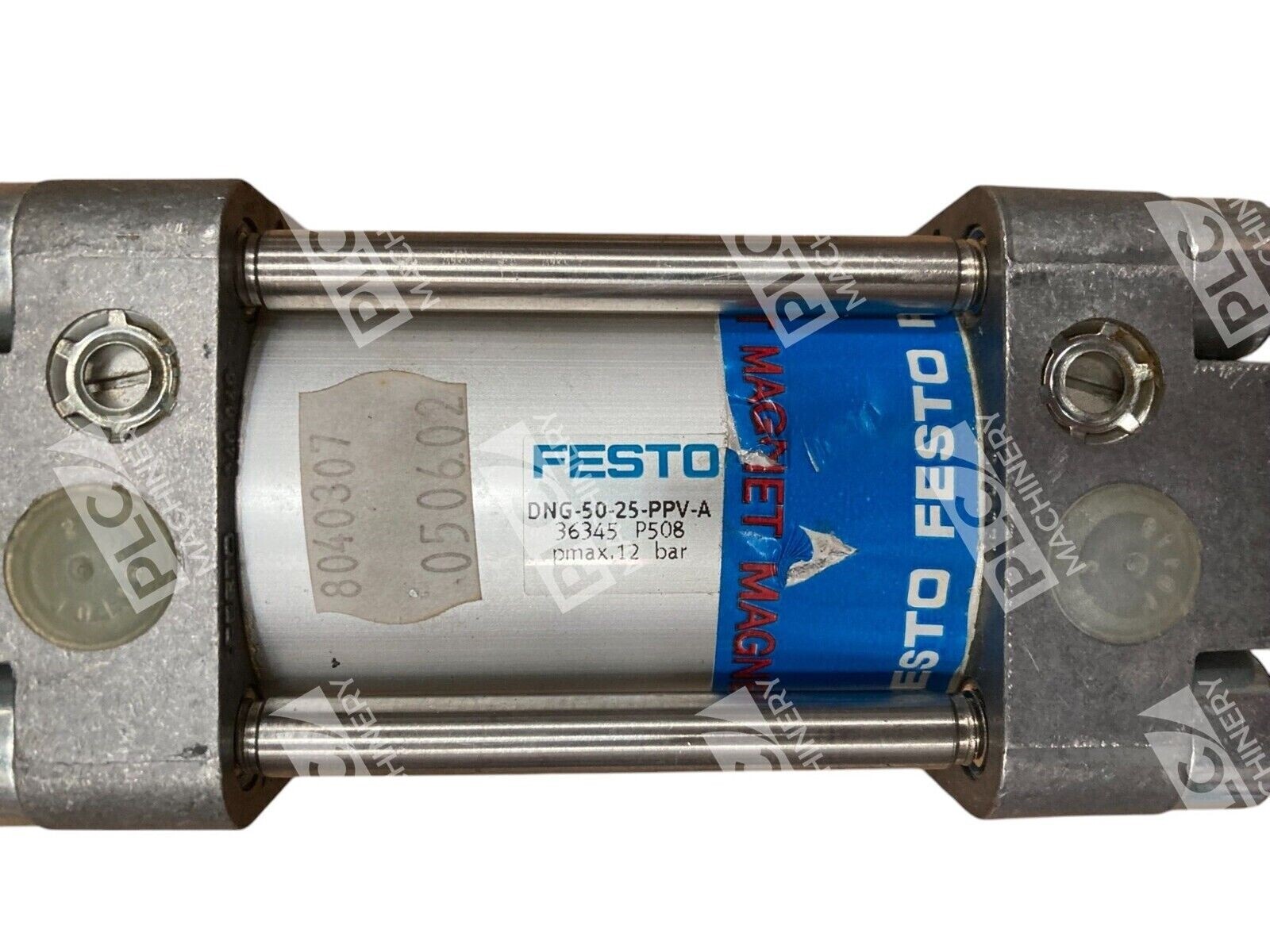

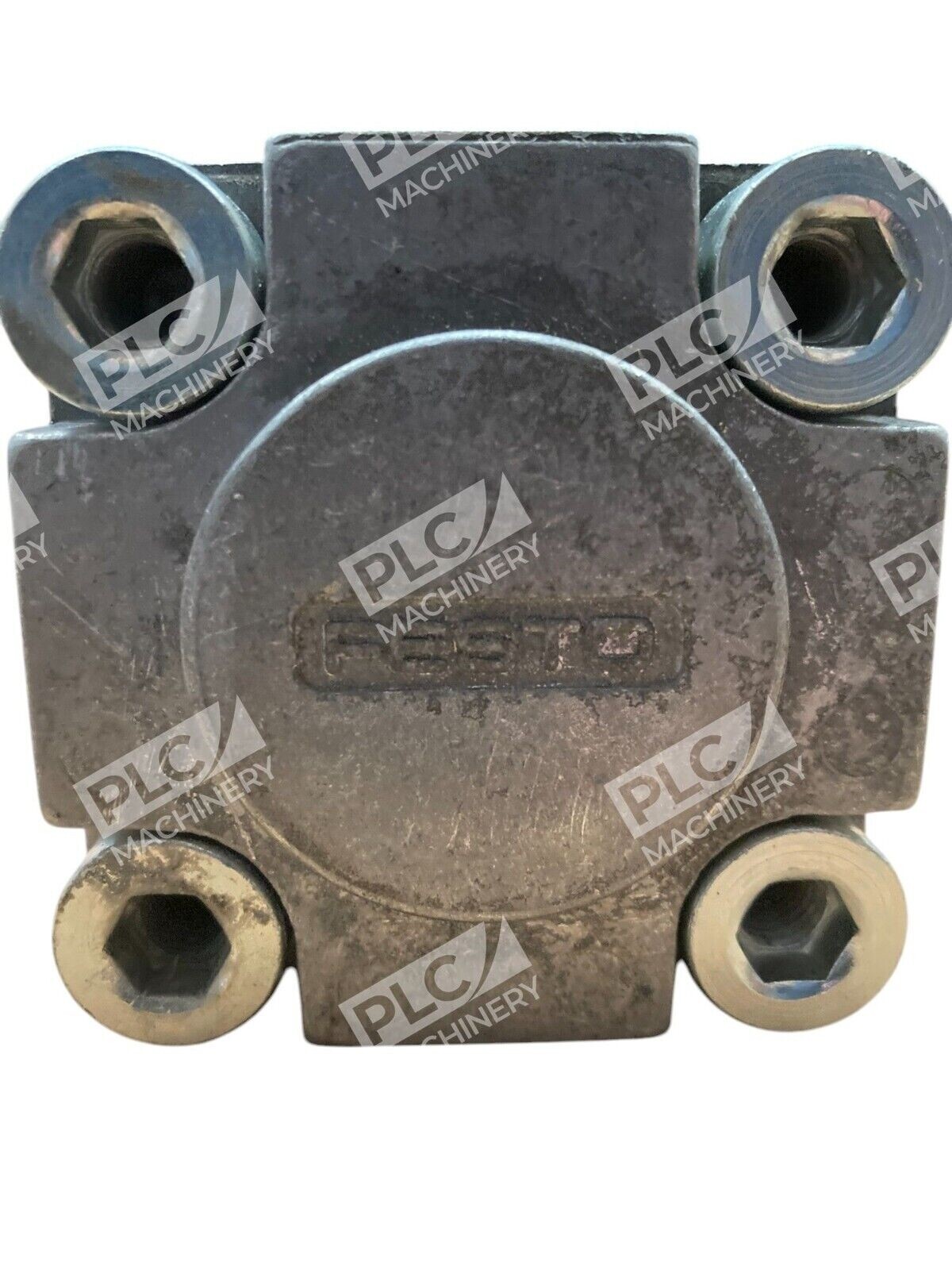

The Festo DNG-50-25-PPV-A is a double-acting pneumatic cylinder designed for reliable motion control and automation. With a 50mm piston diameter, 25mm stroke, and maximum operating pressure of 12bar, this unit delivers consistent force for industrial machinery, clamping, pressing, and positioning tasks. The cylinder features adjustable pneumatic cushioning at both ends to reduce impact forces and extend component life.
Key Features
- Double-acting operation: Provides controlled power on both extension and retraction strokes
- Adjustable cushioning: Protects against shock loads and extends service life
- G1/4 pneumatic port: Standard connection for quick integration into existing systems

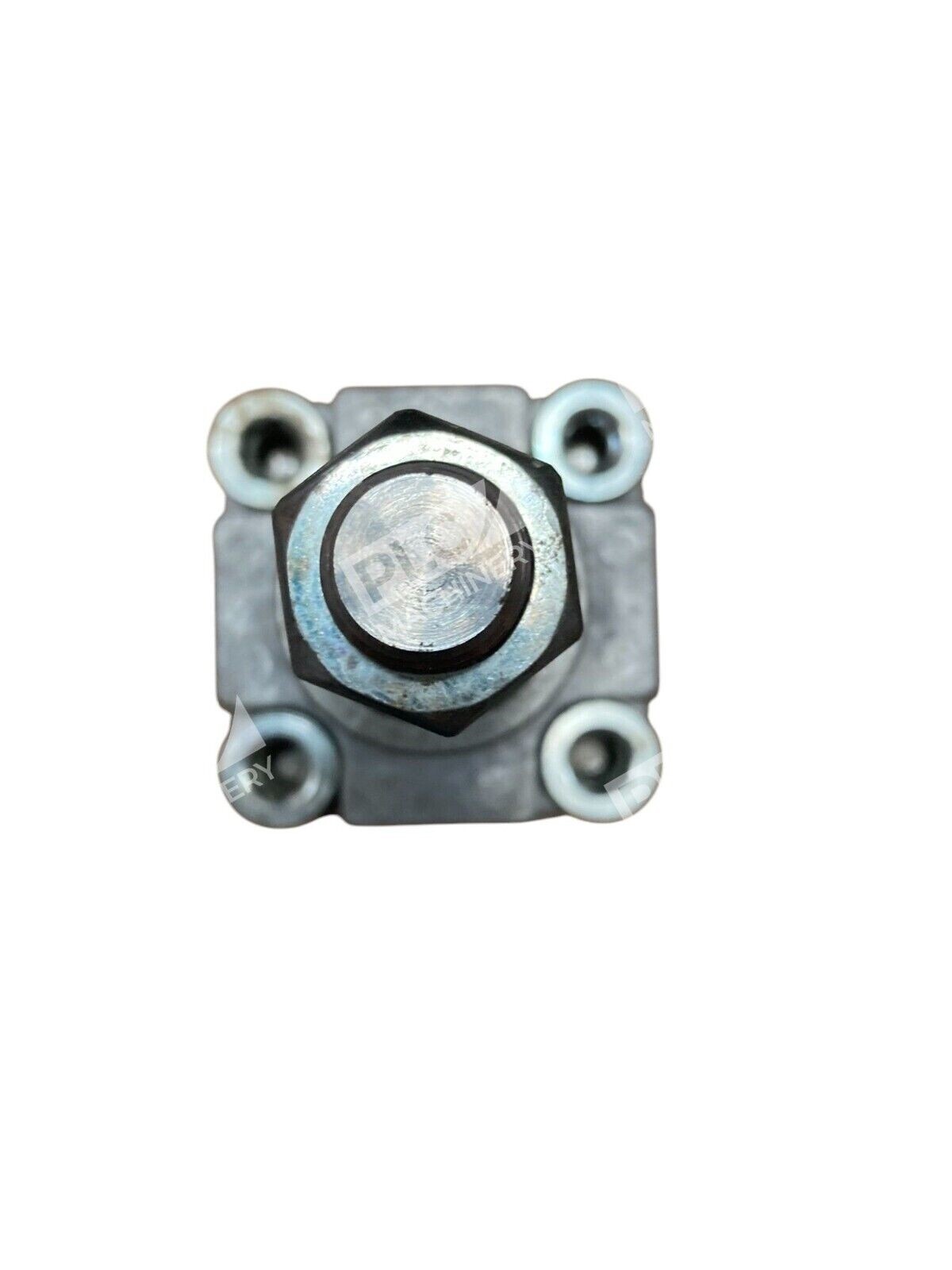

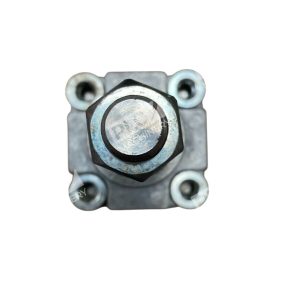

- M16×1.5 male piston rod: Threaded end for secure mechanical linkage
- Compact design: Space-efficient form factor suitable for tight installations
- Low-pressure capability: Safe operation starting at 0.5bar for delicate applications
Technical Specifications
- Piston Diameter: 50mm
- Stroke Length: 25mm
- Operating Pressure Range: 0.5–12bar
- Operation Mode: Double-acting
- Piston Rod Thread: M16×1.5
- Piston Rod End: Male thread
- Pneumatic Connection: G1/4
- Cushioning: Adjustable at both ends
- Operating Medium: Compressed air per ISO 8573-1:2010 [7:4:4]
- Weight: Approximately 2.95 lbs (1.34 kg)
- Lubrication: Optional lubricated operation supported
Typical Applications
- Automated clamping and pressing fixtures
- Linear positioning in assembly machinery
- Material handling and conveyor systems
- Machine tool automation
- Pneumatic actuator replacement or retrofit
- OEM equipment and factory automation
Compatibility & Replacements
Compatible With
- ISO 8573-1:2010 compressed air systems
- G1/4 pneumatic distribution networks
- Standard pneumatic control valves and regulators
- Position sensing via proximity switches (separate sensors required)
- Lubricated or unlubricated compressed air systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Similar Festo double-acting cylinders in the 50mm bore × 25mm stroke family include DNC-50-25-PPV-A and DSNU-50-25-PPV-A models; confirm exact model requirements with technical documentation.
Works With
- Festo pneumatic control blocks and manifolds
- Standard pneumatic directional control valves (4/3, 4/2)
- Flow control and pressure regulators
- Pneumatic solenoid valves and pilot-operated controls
- Position feedback systems (T-series binary proximity sensors)
