Overview

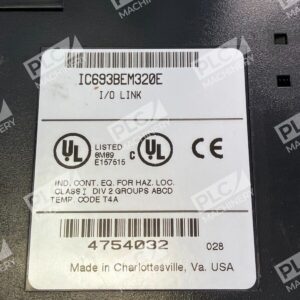

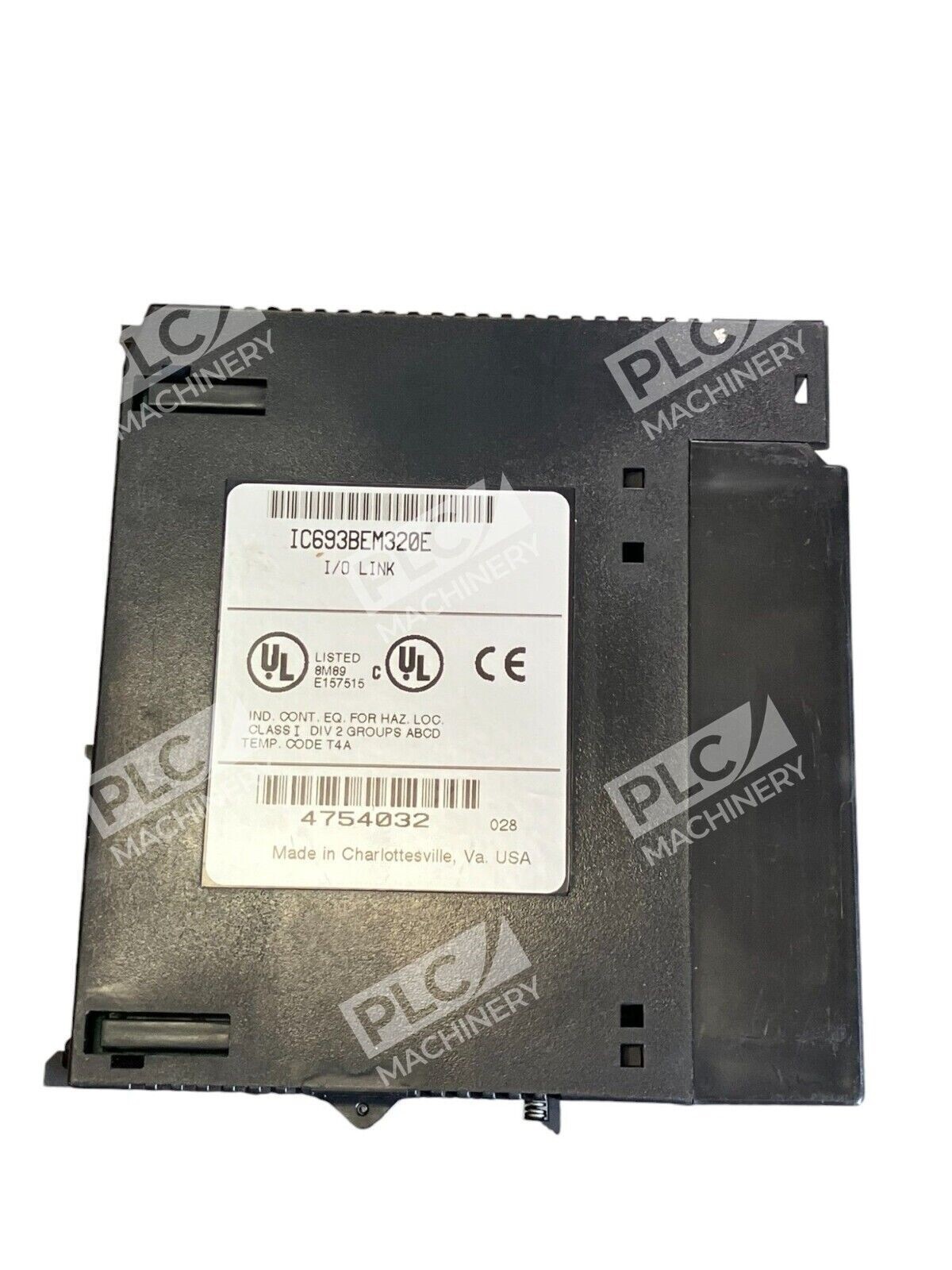

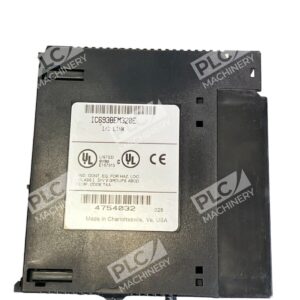

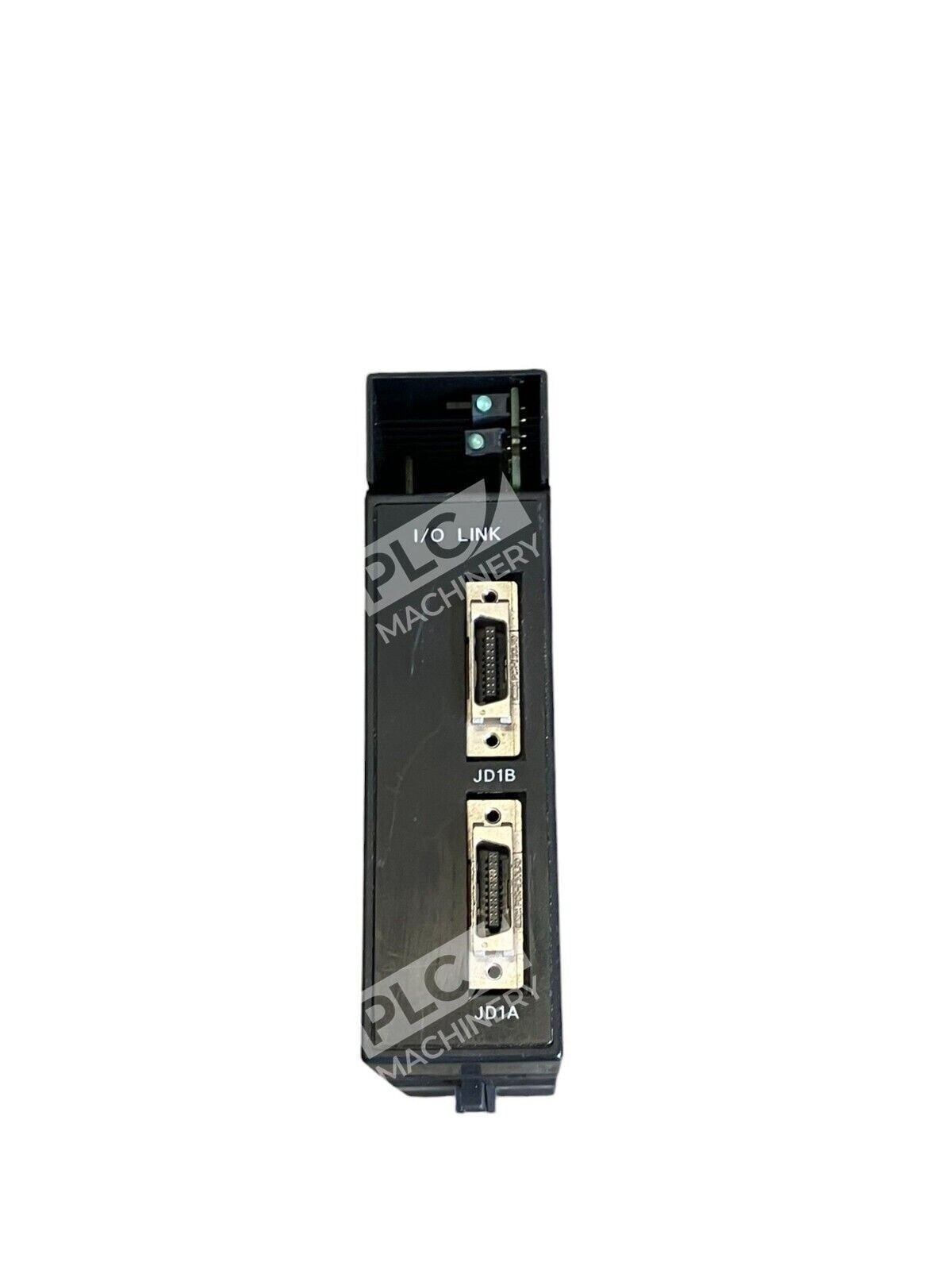

The Fanuc IC693BEM320E is a specialized I/O Link Interface Module designed for the GE Fanuc Series 90-30 PLC platform. This module serves as an interface between a 90-30 series PLC and a proprietary Fanuc I/O Link in a Fanuc CNC or a PLC in the 90-70 series. The module is configurable as a slave only. It bridges legacy industrial control architectures and enables seamless data exchange in manufacturing environments where Fanuc machine tools require direct PLC integration.
Key Features
- Allows the 90-30 series PLC to send either 32 or 64 I/O points to the I/O LINK
- Can be configured as either a 32, 40, or 64 point I/O module by setting the jumper plug inside of the front cover to either 32 I/O or 63 I/O
- The Fanuc I/O link is a serial interface that allows high speed data exchange between a master and up to 16 slaves
- Can be installed in any model of Series 90-30 PLC systems, and any number of I/O LINK Interface modules can be installed in a system
- New – No Box condition: pristine, untested surplus from factory clearance
- Immediate availability for equipment commissioning and replacement applications
Technical Specifications
- Baud rate: 115.2 kbps Fanuc I/O Link serial
- Configurable I/O: 32, 40, or 64 points
- Slave device (master functionality via IC693BEM321)
- High-speed data exchange between master and up to 16 slave devices
- Jumper-selectable configuration on module front cover
Typical Applications
The Fanuc IC693BEM320E is essential for manufacturing facilities running legacy Fanuc CNC equipment integrated with GE Fanuc Series 90-30 control platforms. Common applications include:
- Multi-spindle machining centers with networked Fanuc CNCs
- Transfer line controls requiring real-time machine status feedback
- Tool changers and auxiliary equipment synchronized through Fanuc I/O Link
- Factory modernization where existing GE Fanuc systems must retain Fanuc CNC connectivity
- Replacement of failed I/O Link modules in operational production lines
Compatibility & Replacements
Compatible With
- GE Fanuc Series 90-30 PLC systems (all baseplate models)
- Fanuc I/O Link networks (master IC693BEM321 module required)
- Fanuc CNC controllers with proprietary I/O Link
- GE Fanuc Series 90-70 PLC networks (via I/O Link master)
Replaces / Drop-In Replacement For
- IC693BEM320 (earlier revision)
- Legacy I/O interface cards in Series 90-30 expansion racks
Works With
- GE Fanuc Series 90-30 PLC programming environments
- Fanuc I/O Link serial communication protocol (115.2 kbps)
- IC693BEM321 I/O Link Master Module for centralized network control
