Overview

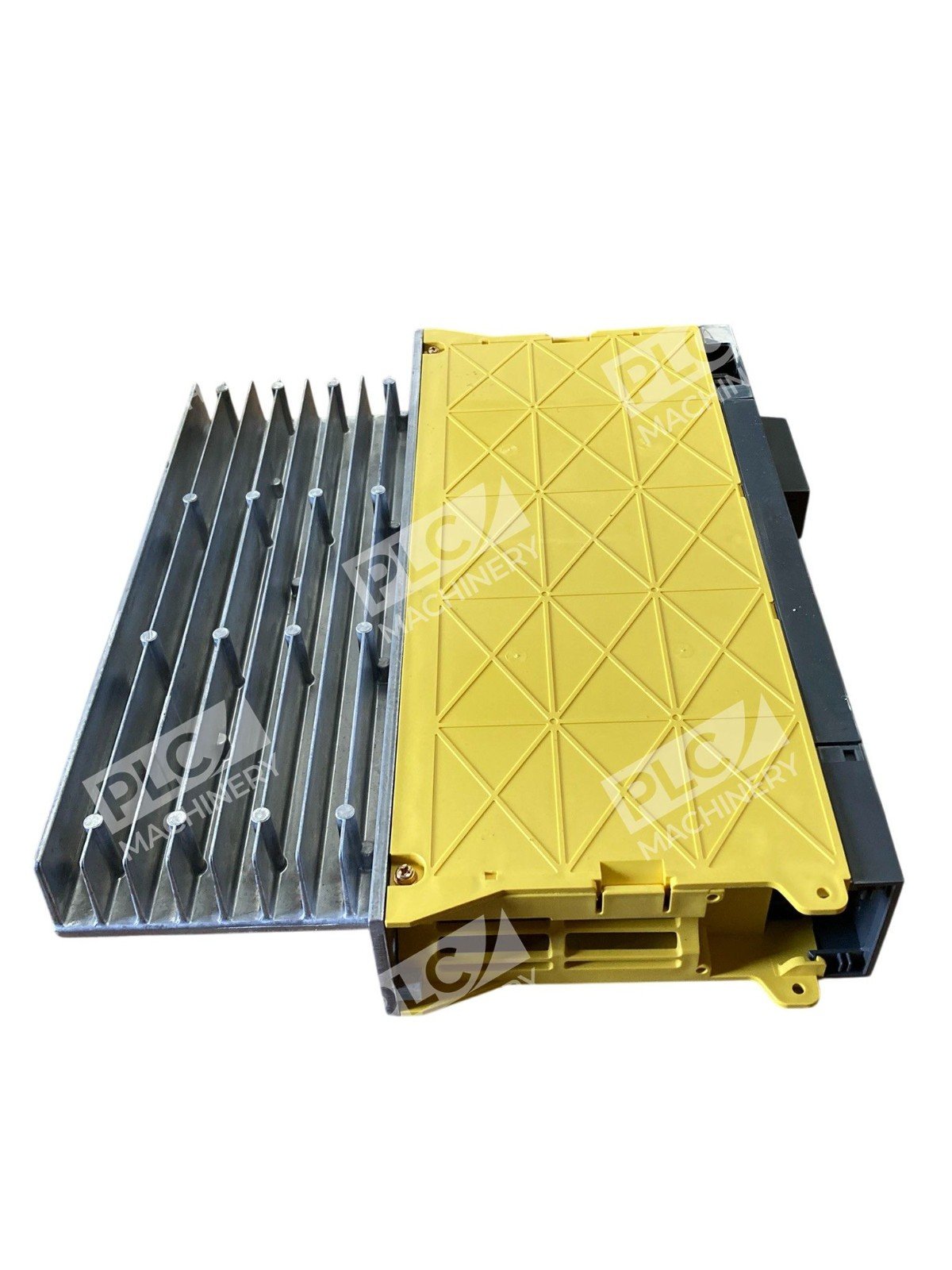

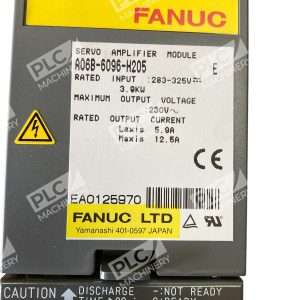

The Fanuc A06B-6096-H205 is a two-axis servo amplifier module from the Alpha i series, configured as model SVM2-20/40 with FSSB (Fanuc Servo Serial Bus) interface. The H205 is a 60mm wide twin axis drive fitted with external heatsink. The A06B-6096-H205 servo amplifier module can deliver a maximum output power of 5.5 kW, making it suitable for high-power servo motor applications. This unit is commonly found in FANUC CNC control systems ranging from Series 15 through Series 21i and is widely used in precision machining centers.
Key Features
- Dual-axis servo control with independent amplification per axis
- Maximum output power of 5.5 kW per amplifier channel
- FSSB communication interface for direct CNC integration

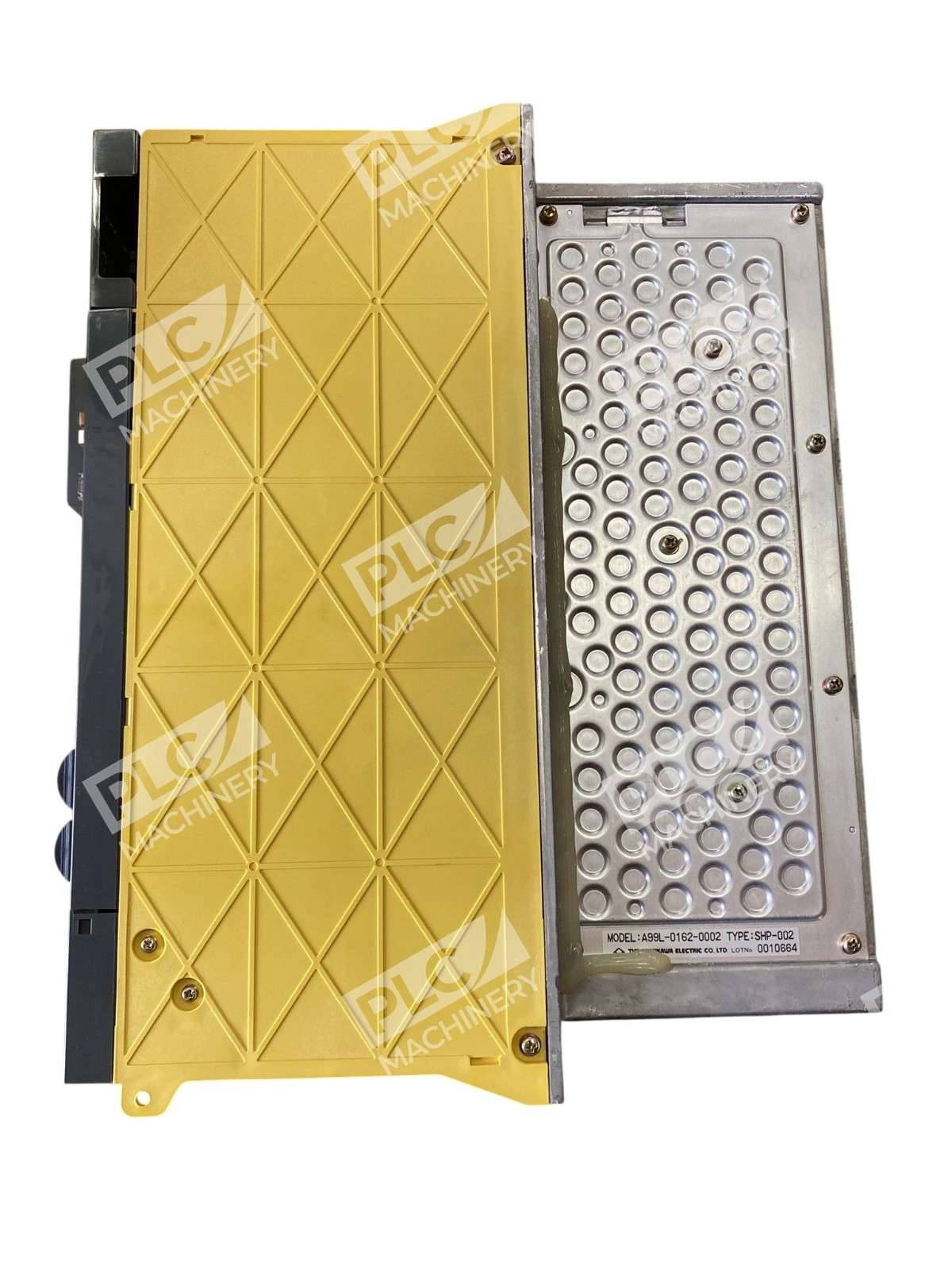

- 60mm compact width with external heatsink for thermal management
- Compatible with FANUC Alpha series AC servo motors (6/2000 and 12/2000 frame sizes)
- Integrated intelligent power modules with advanced control circuitry
Technical Specifications
The A06B-6096-H205 operates under standard industrial conditions with input voltages up to 400VAC, supporting both 50/60Hz AC power supplies. Operating temperature range is 0–55°C (32–131°F) with humidity tolerance of 10–90% non-condensing, suitable for most CNC machine enclosures. The module includes two intelligent power modules and features internal wiring boards (A16B-2203-059x or A16B-2202-077x) along with control cards (A20B-2100-054x). The unit is designed for standard industrial mounting within FANUC control cabinets.
Typical Applications
- FANUC CNC vertical and horizontal machining centers
- Multi-axis turning centers requiring dual-servo control
- High-precision boring and grinding machines
- Industrial robotics requiring synchronized servo motion
- Transfer machines and automated production equipment
Compatibility & Replacements
Compatible With
- FANUC Series 15/16/18/21i CNC controls
- FANUC Alpha AC servo motors (ALPHA 6/2000, 12/2000 frame sizes)
- FANUC PSM (Power Supply Module) configurations
- FSSB interface standard for direct CNC connection
Replaces / Drop-In Replacement For
The A06B-6096-H205 is the FSSB interface equivalent for dual 20/40 servo applications. Verify specific system compatibility with your integrator before ordering, as servo module selection depends on motor frame size, power requirements, and control system configuration.
Works With
- FANUC parameter programming (Alpha servo motor parameter manuals required)
- FSSB serial communication protocol
- Standard 400VAC three-phase power distribution
- FANUC diagnostic and servo troubleshooting tools
