Overview

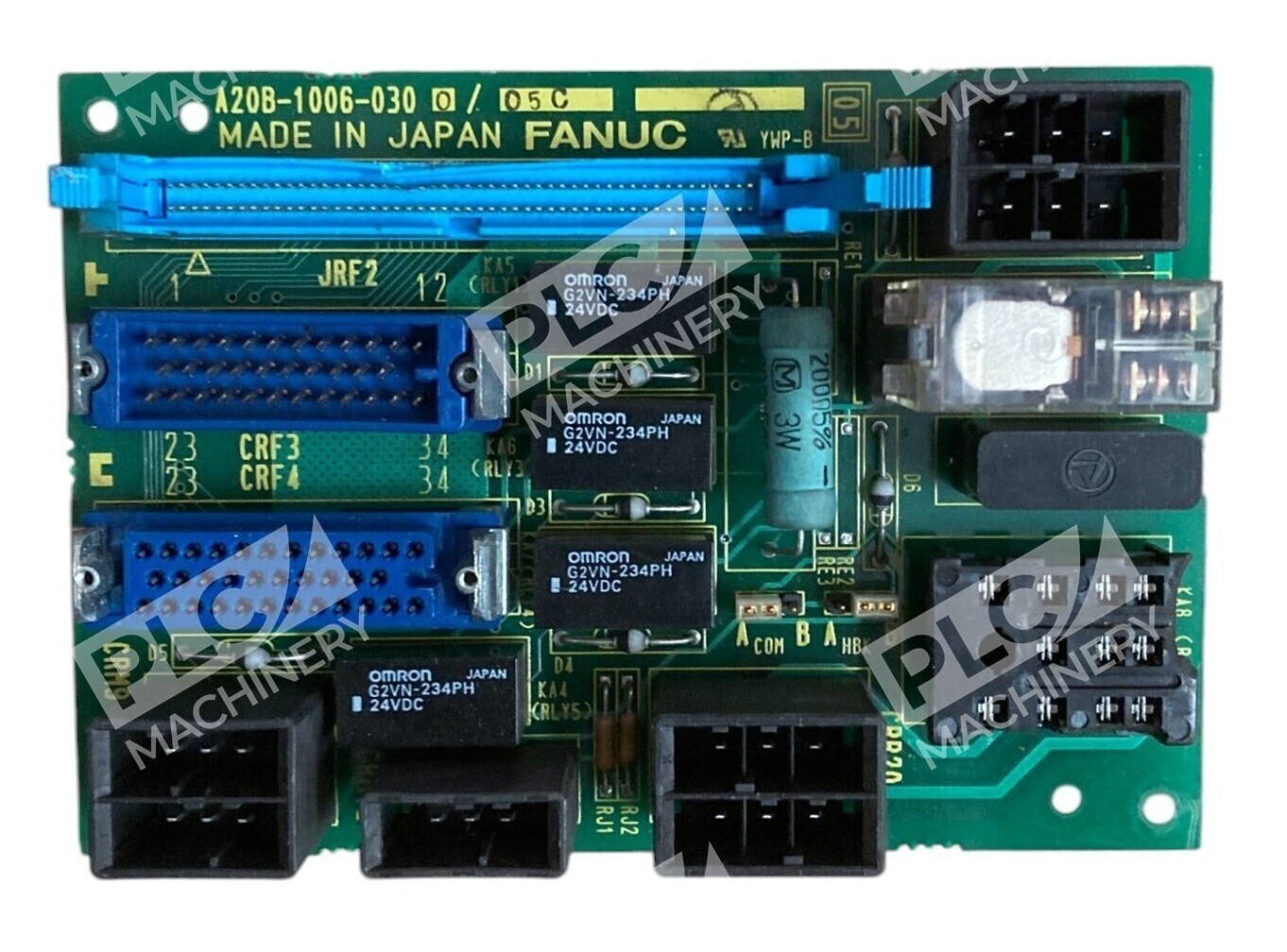

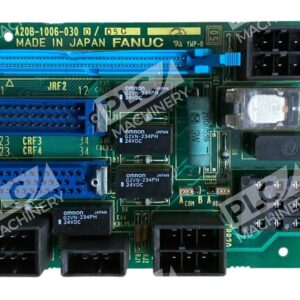

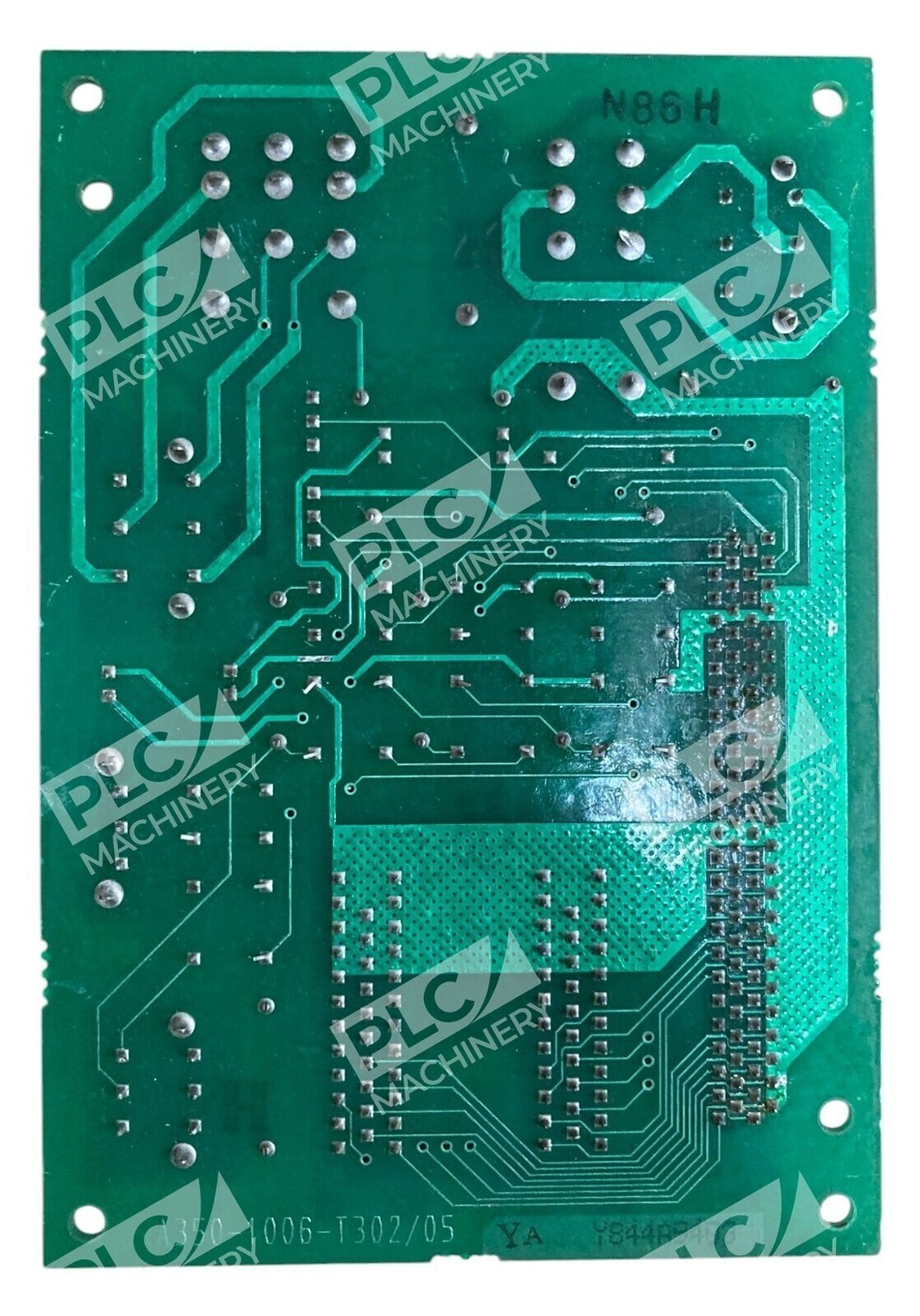

The Fanuc A20B-1006-030 is a control backplane PCB engineered for FANUC RJ2i controller systems. This board functions as an emergency stop (E-stop) interface module within servo automation systems, providing critical safety signal routing and electrical connectivity between the main controller and servo modules. The Fanuc A20B-1006-030 is manufactured in Japan and is part of the larger A20B-1006 series of control boards widely deployed in robotic and CNC automation environments.
Key Features
- Emergency stop signal distribution and safety interlock routing
- PC board backplane design for modular servo system expansion
- Compatible with FANUC RJ2i controller systems
- Japanese industrial-grade construction and reliability
- Drop-in replacement for legacy servo automation systems
Technical Specifications
- Manufacturer: Fanuc
- Part Number: A20B-1006-030
- Product Type: Control Backplane / Emergency Stop PCB
- Application: RJ2i Servo Controllers
- Series: A20B-1006
- Country of Origin: Japan
- Board Function: Emergency stop and safety signal routing
- Condition: Used, tested
Typical Applications
The Fanuc A20B-1006-030 is commonly used in:
- FANUC RJ2i robotic control systems and servo motion platforms
- Automated manufacturing and material handling lines
- Injection molding (ROBO SHOT) controller systems
- Multi-axis servo synchronization and safety interlock networks
- Industrial motion control retrofit and repair projects
Compatibility & Replacements
Compatible With
- FANUC RJ2i Controllers
- FANUC A20B-1006 Series backplane systems
- FANUC servo motion control platforms
- Emergency stop safety relay circuits
Replaces / Drop-In Replacement For
- Fanuc A20B-1006-030 (direct part match)
- Legacy RJ2i servo module PCBs requiring safety signal routing
Works With
- FANUC RJ2i CNC and servo controllers
- FANUC CNC Series 0/05C and similar platforms
- Standard industrial emergency stop (E-stop) circuits
- Modular servo system backplane configurations
