Overview

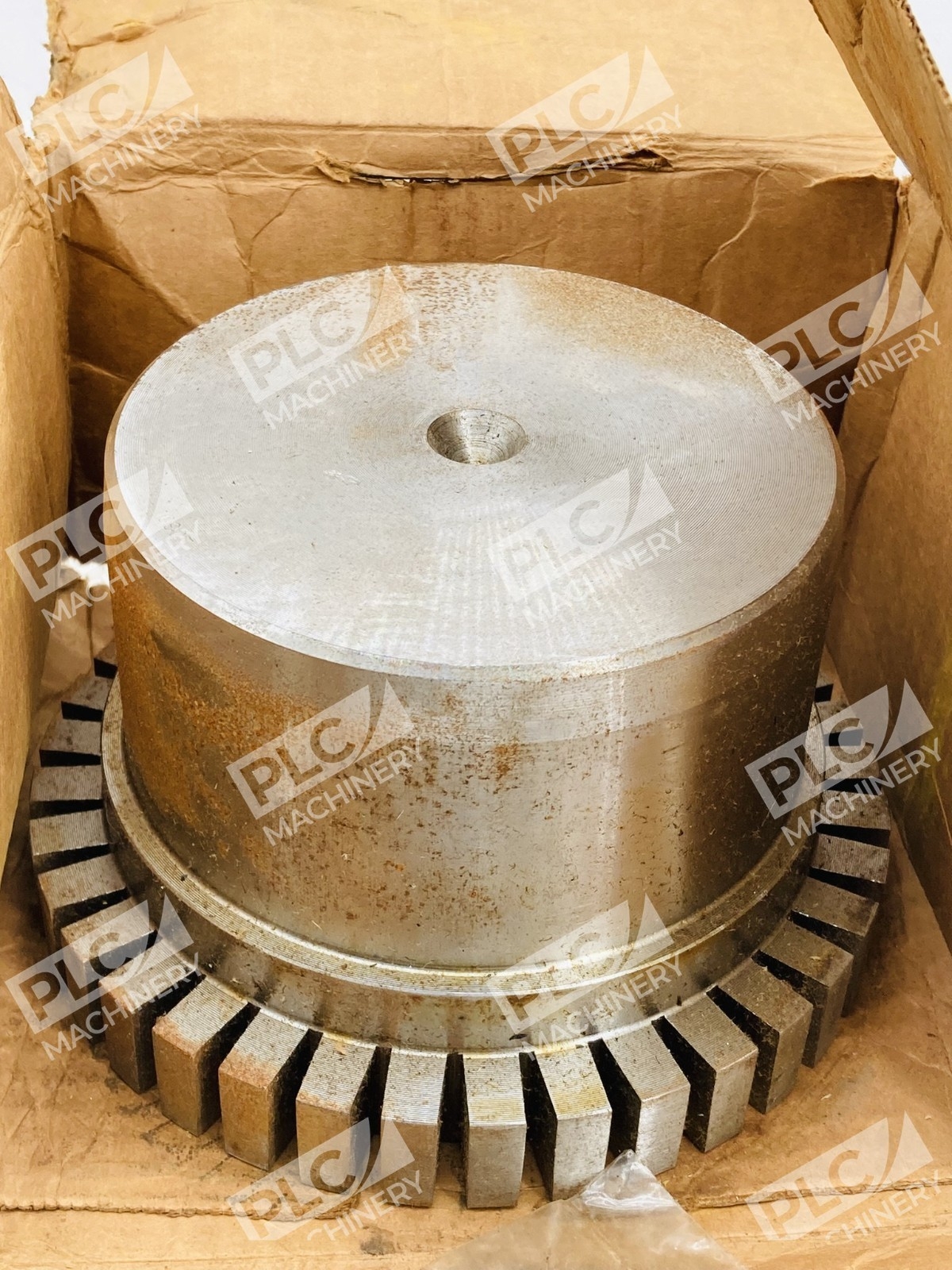

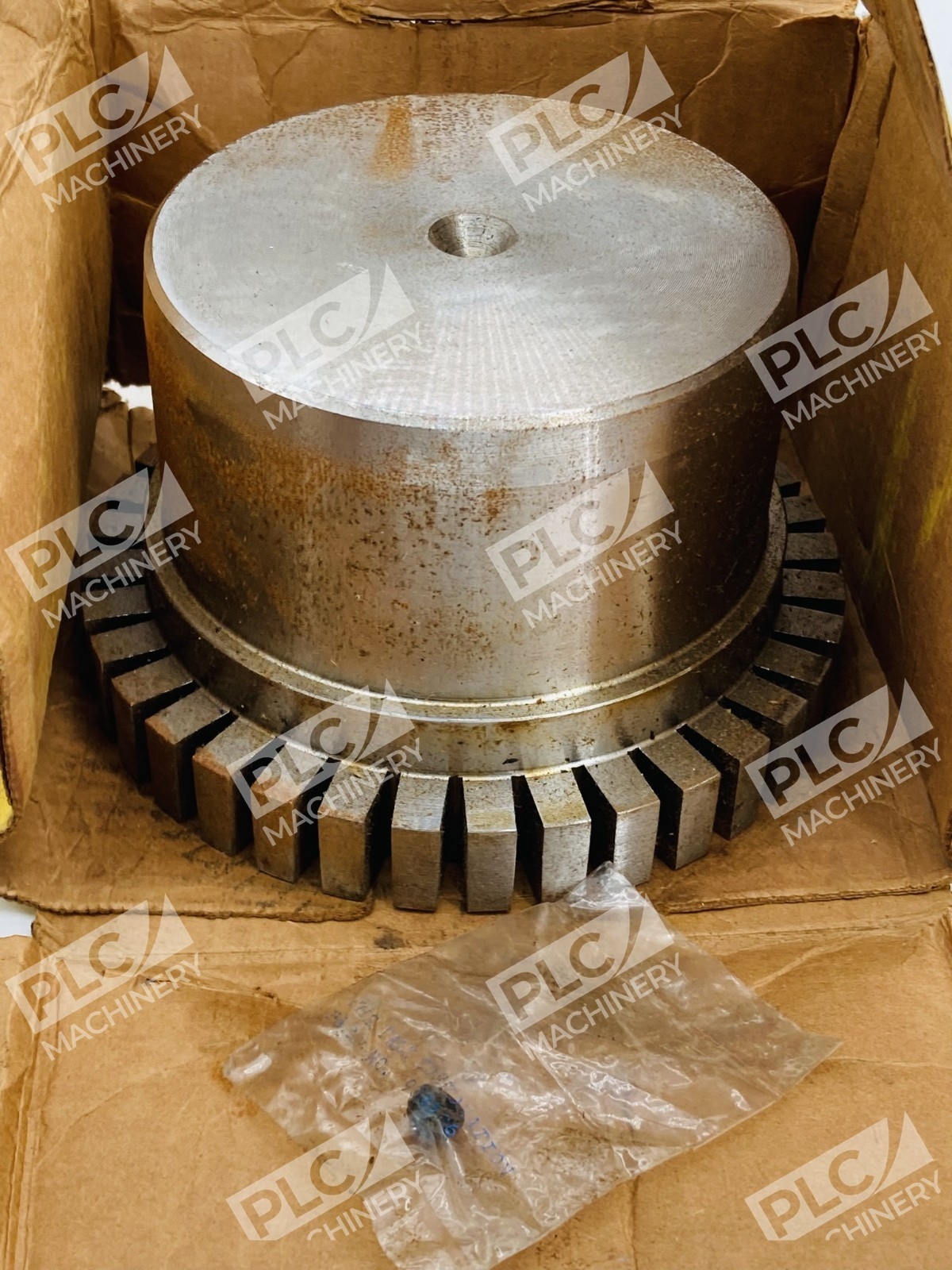

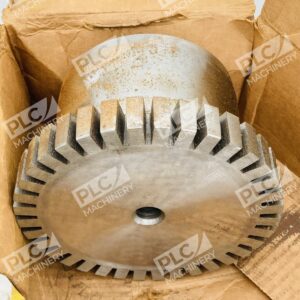

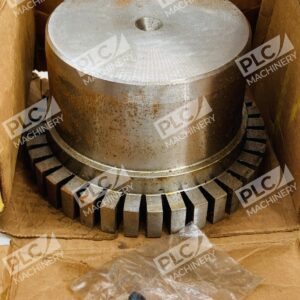

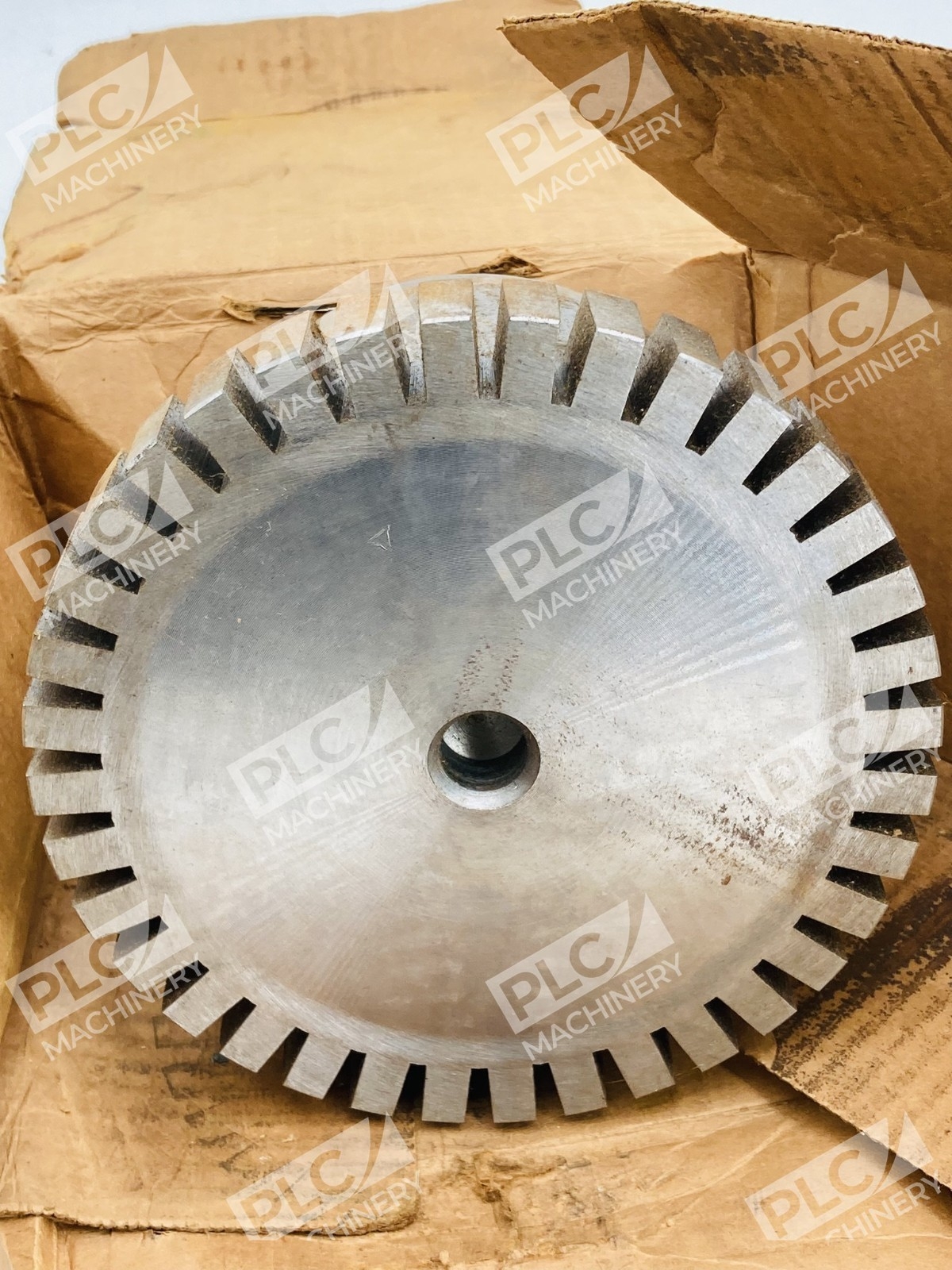

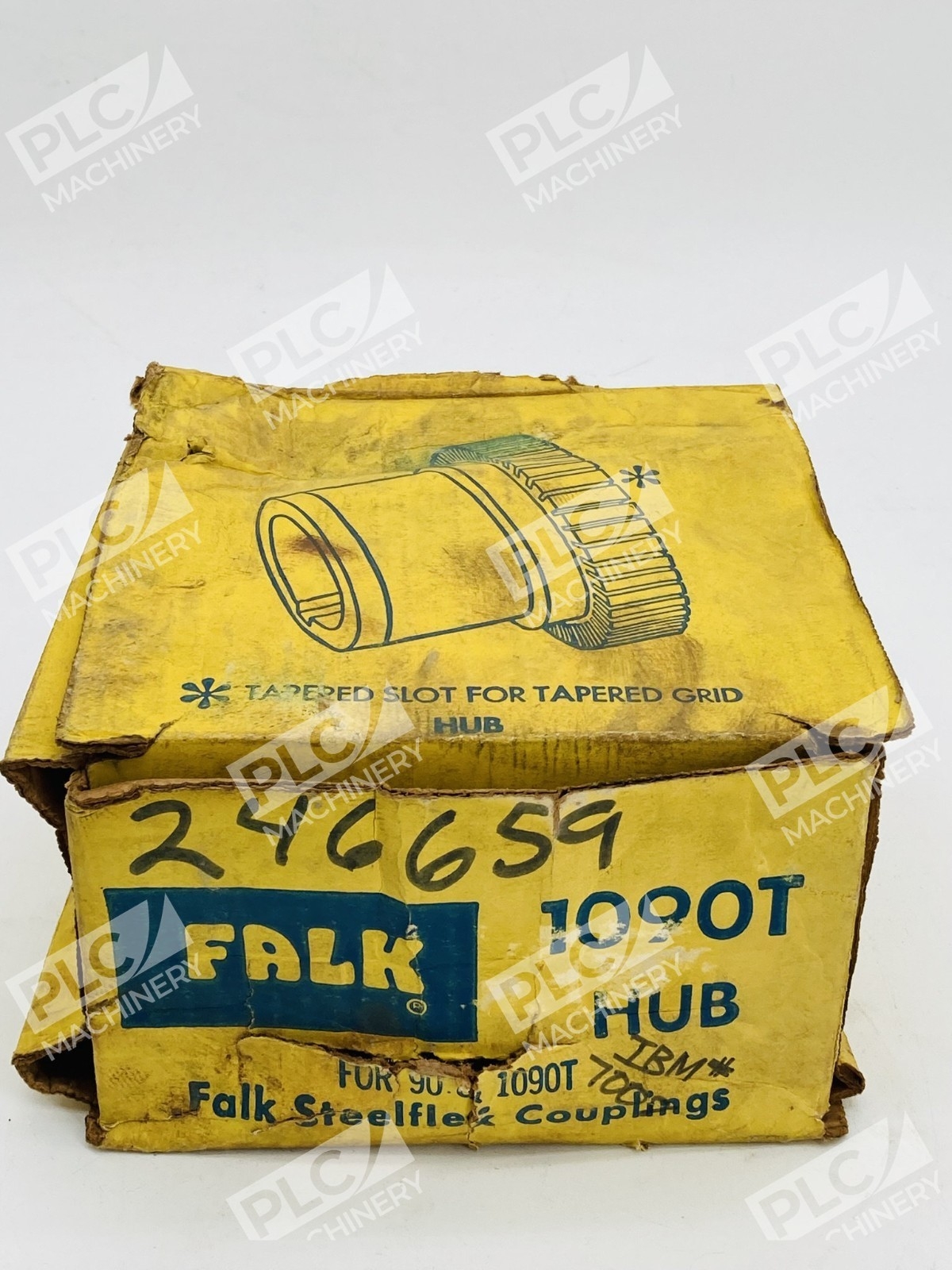

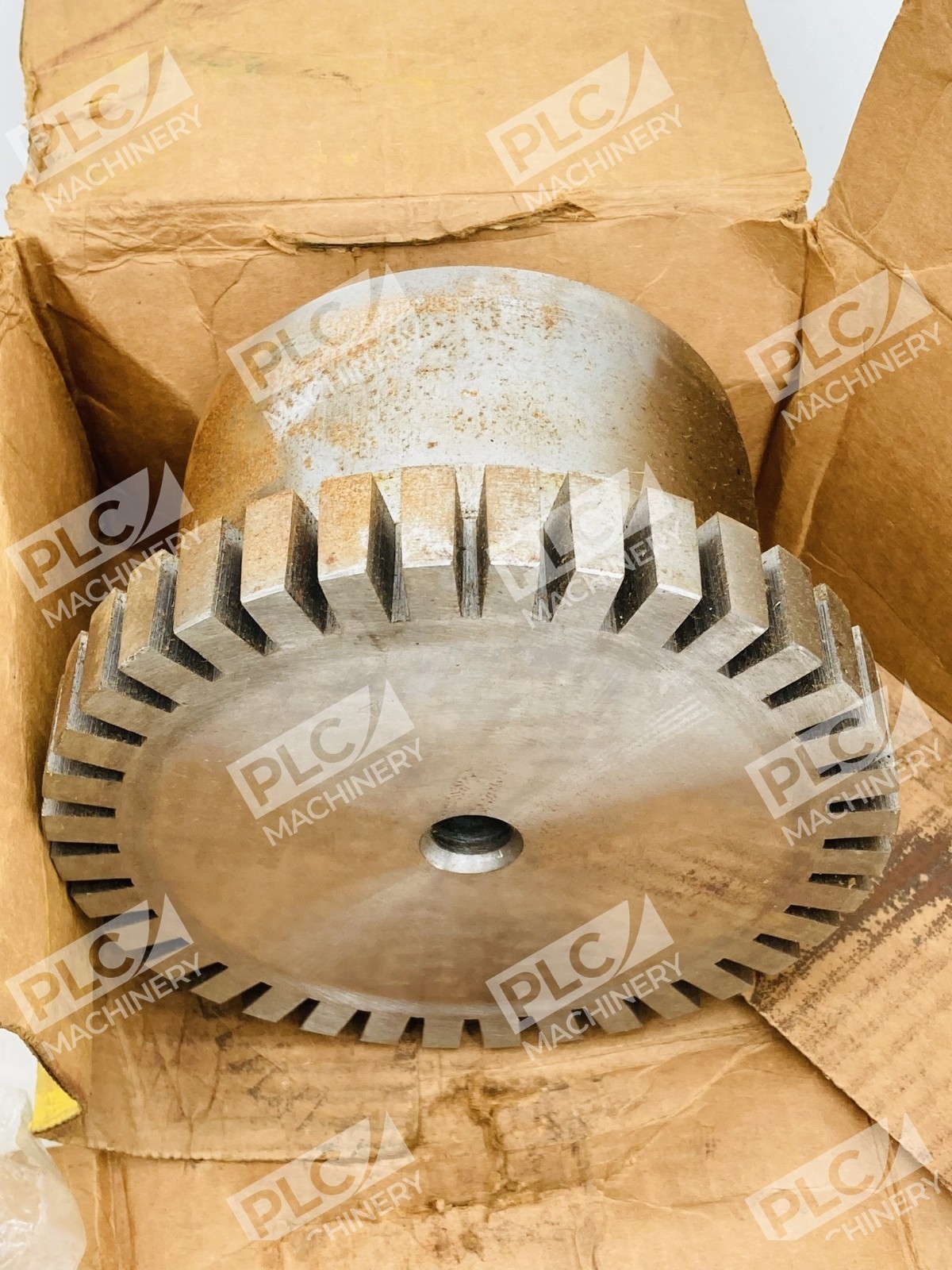

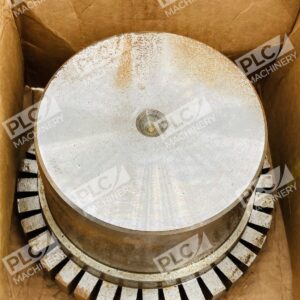

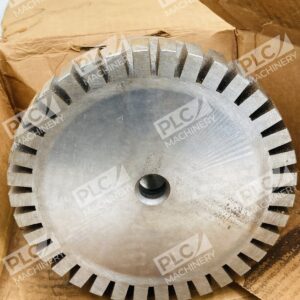

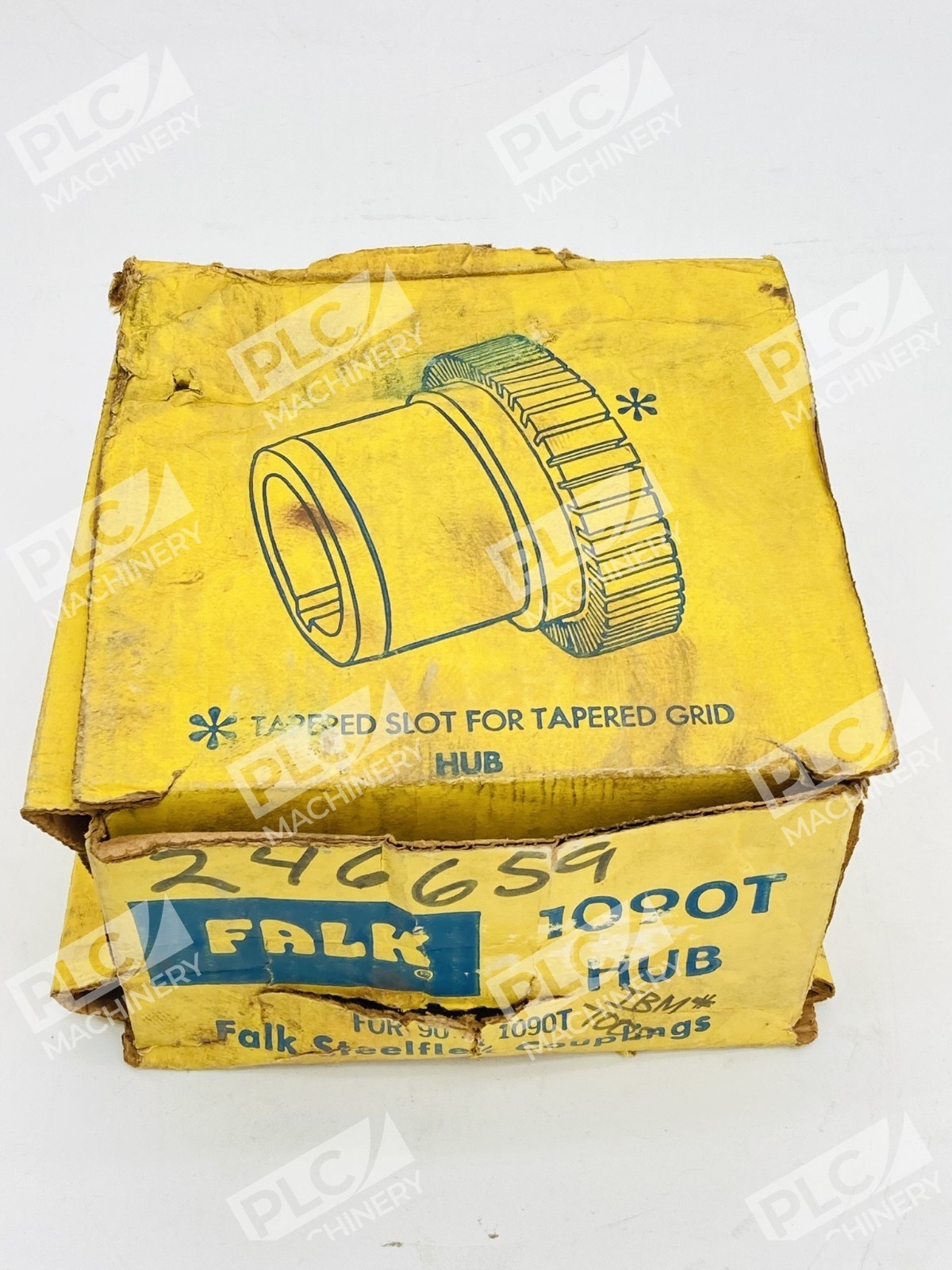

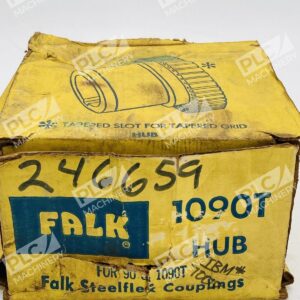

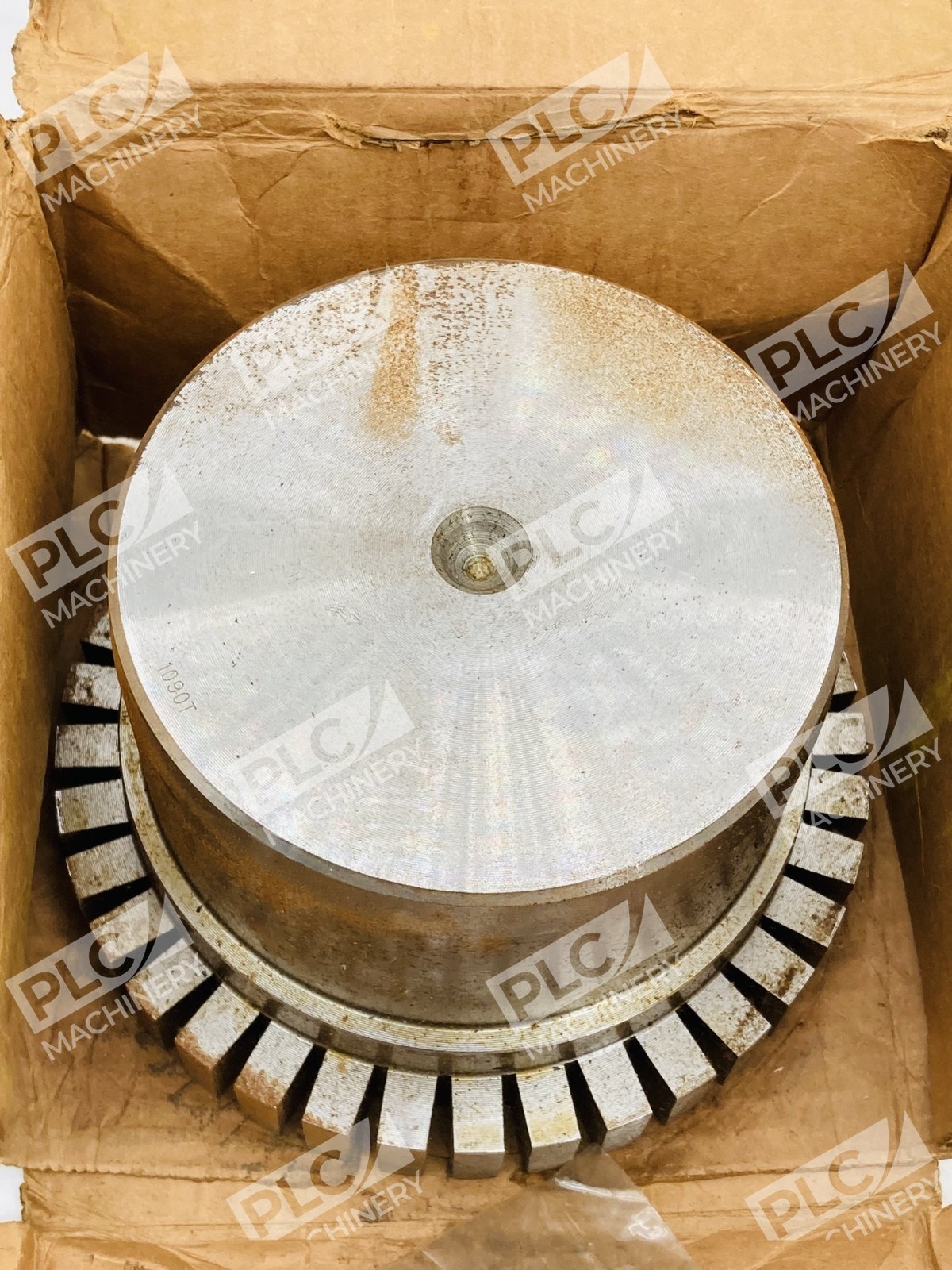

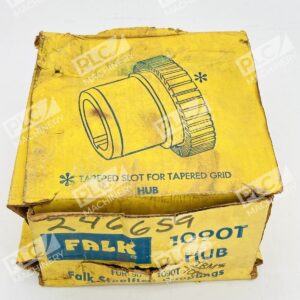

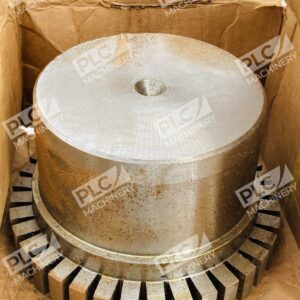

The Falk 1090T shaft hub coupling is a T10/T20 series steelflex grid coupling component manufactured by Falk (Rexnord). This steel hub provides a flexible, misaligned-shaft connection without creating the side loads typical of rigid couplings. The 1090T is part of Falk’s proven steelflex platform, used across manufacturing, mining, food processing, and power generation for smooth, maintenance-friendly power transmission.
Key Features
- Steelflex Grid Technology: Provides generous misalignment capacity without producing detrimental bearing side loads created by other couplings
- Standard T10/T20 Configuration: 4.880-inch outside barrel diameter with 3.88-inch length through bore for grid couplings
- Steel Construction: Steel hub material rated for industrial duty
- Multiple Bore Options: Coupling Sizes 1020T thru 1090T are generally furnished for CLEARANCE FIT with setscrew over the keyway
- Keyway Design: Finished bore with keyway, accepting standard keys for secure shaft mounting
- High Torque Capacity: Torque capacity of 33,000 in-lbs with maximum RPM of 4,000
Technical Specifications
The 1090T shaft hub is available in multiple bore diameters and configurations to fit your specific shaft dimensions.
Typical Applications
- Mining and aggregate processing equipment
- Food processing and beverage machinery
- Paper and pulp mill drives
- Power generation and turbine coupling
- Industrial pump and motor connections
- Printing and converting machinery
- Cement and material handling systems
Compatibility & Replacements
Compatible With
- 1090T steelflex grid coupling size code systems
- Grid coupling assemblies and elastomeric grid elements rated for 1090T
- Standard industrial shaft coupling applications up to 4,000 RPM
- Machines requiring flexible coupling with clearance fit setscrew mounting
Replaces / Drop-In Replacement For
- Other Falk T10/T20 Series 1090T hubs with equivalent bore diameters
- Rexnord 1090T coupling components (Falk is part of Rexnord Corporation)
- Applications previously using similar size steelflex grid coupling hubs
Works With
- Grid coupling elastomeric elements and guard kits designed for 1090T size
- Standard keyways and setscrew fastening systems
- Industrial maintenance tools for coupling alignment and installation
- Falk steelflex guard systems and safety covers
