Overview

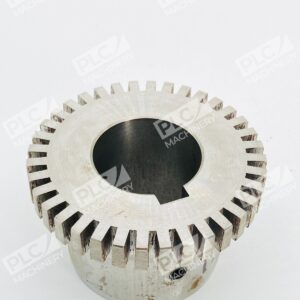

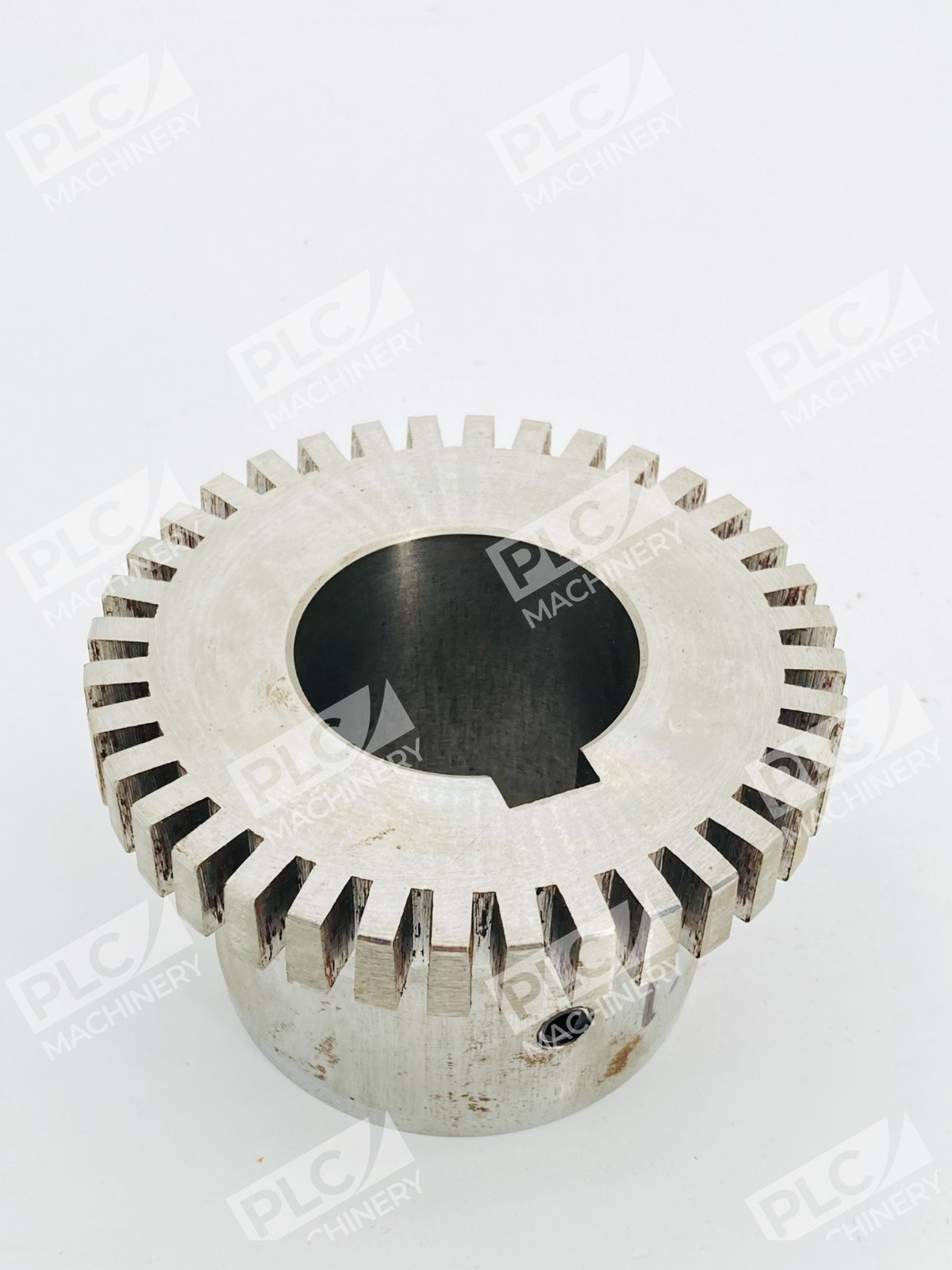

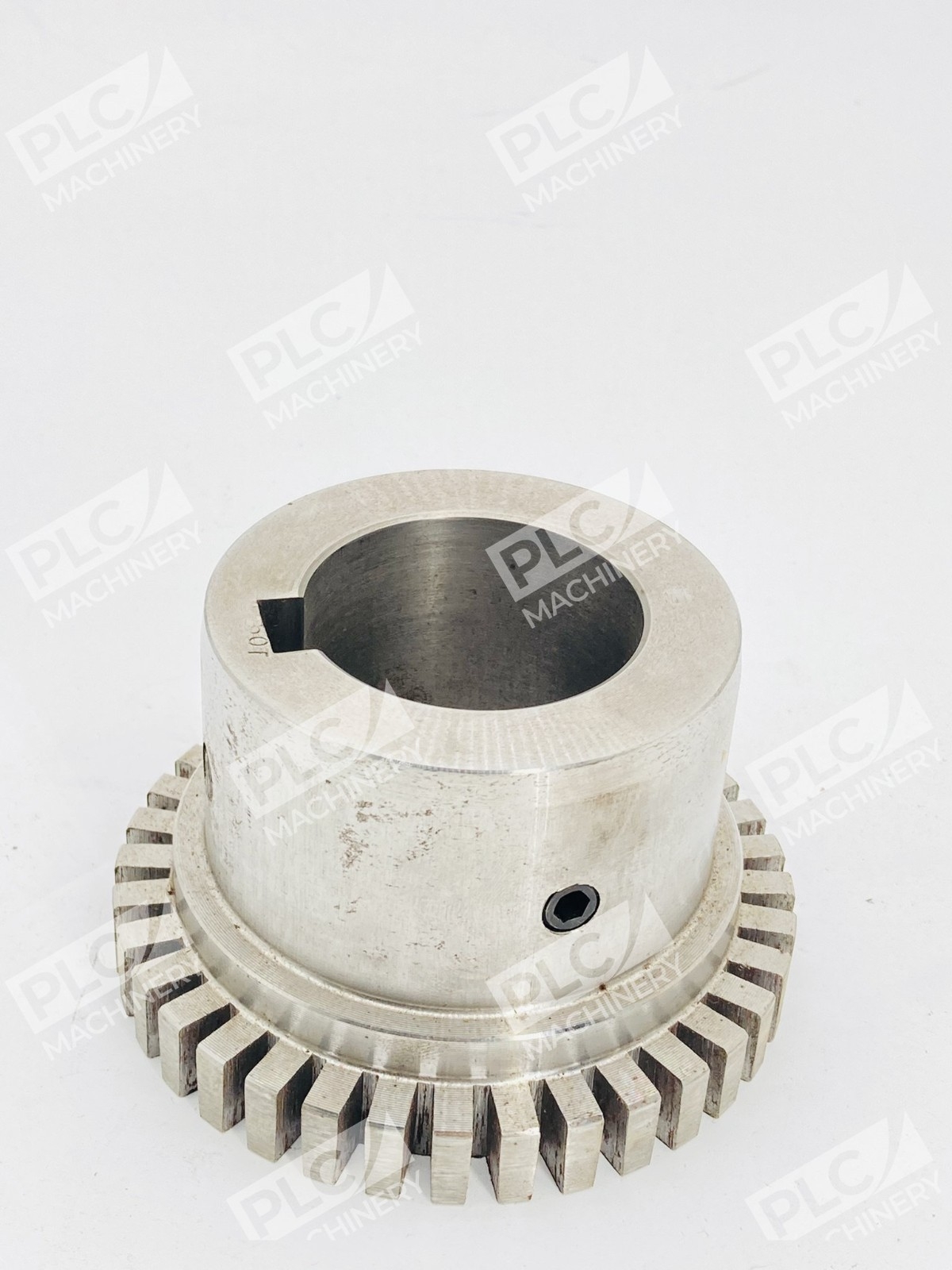

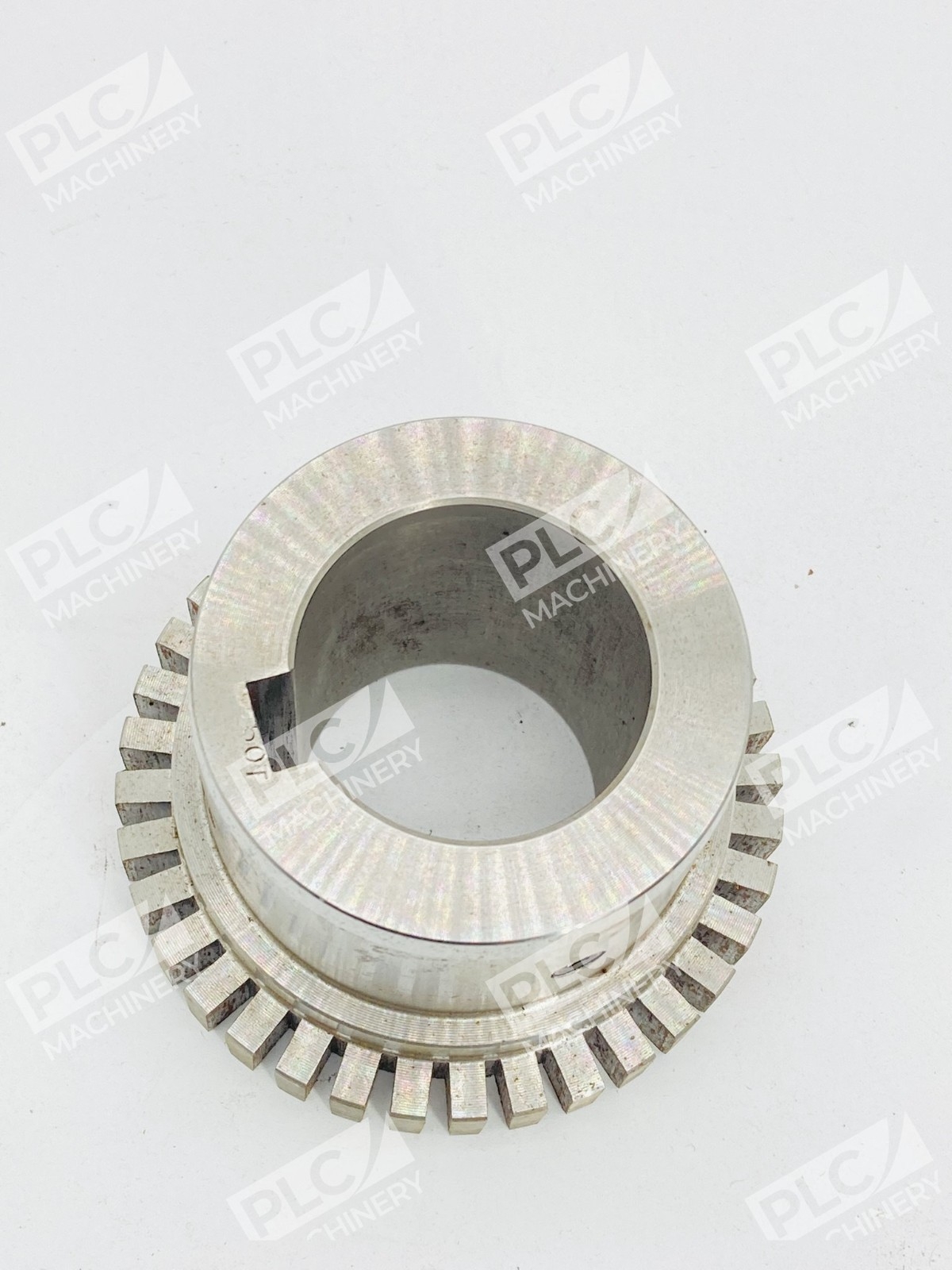

The Falk 046656 Steelflex grid coupling hub is a high-performance steel shaft hub engineered for reliable power transmission in industrial machinery. Part of the proven 1060T coupling family, this hub features precision-machined construction with alloy steel rated for demanding applications. The serpentine grid design connects two shafts while accommodating misalignment and damping shock loads.
Key Features
- Shot-peened alloy steel construction — hardened to spring strength for extended fatigue resistance and torque capacity
- Replace-in-place design — grid element changes without moving hubs or re-aligning shafts, reducing maintenance labor
- Misalignment accommodation — grid rocks, pivots, and floats within hub teeth to handle angular, parallel, and axial misalignment
- Shock absorption capability — torsional flexibility reduces peak loads and damps vibration during operation
- Long-term lubrication warranty — 5-year warranty when using Falk LTG (Long Term Grease) at installation
- Durable nitrile seals — prevent lubricant leaks and exclude water, dust, and contaminants
Technical Specifications
- Coupling Type: Grid Flexible (Steelflex)
- Model: 1060T
- Manufacturer: Falk (Regal Rexnord)
- Material: High-strength alloy steel
- Hub Configuration: Steel shaft hub
- Maximum Operating Speed: 10,000 RPM
- Peak Torque Capacity: Two times published rating
- Lubrication Type: Falk LTG (Long Term Grease)
- Maintenance Interval: 5 years (with Falk LTG)
- Seal Type: Nitrile (durable, contaminant-resistant)
- Warranty: 5-year lubrication warranty
Typical Applications
- Pump drive systems (general purpose and centrifugal applications)
- Motor-to-driven equipment connections requiring misalignment compensation
- Industrial machinery requiring shock load protection
- Line shaft and distributed power transmission systems
- Critical applications in mining, aggregate, and process industries
- Equipment requiring extended maintenance intervals and reduced downtime
Compatibility & Replacements
Compatible With
- 1060T Falk Steelflex coupling spacer assemblies (T31, T35 configurations)
- Standard shaft keyways and setscrew mounting arrangements
- Taper-Lock bushing options for flexible bore sizing
- Falk coupling grids and replacement elements
- Industrial motor and gearbox mounting arrangements
- Rough Stock Bore (RSB) and finish-bored hub configurations
Replaces / Drop-In Replacement For
- Original equipment manufacturer (OEM) 1060T hub assemblies
- Worn or damaged Steelflex 1060T shaft hubs
- Legacy grid coupling hub configurations of equivalent size and torque rating
Works With
- Falk Steelflex grid elements and spring grids
- Falk Long Term Grease (LTG) for extended lubrication intervals
- Standard mechanical alignment tools and procedures
- Shaft-to-hub connections using standard keys or tapered bushings
- Industrial coupling maintenance and repair protocols
