Overview

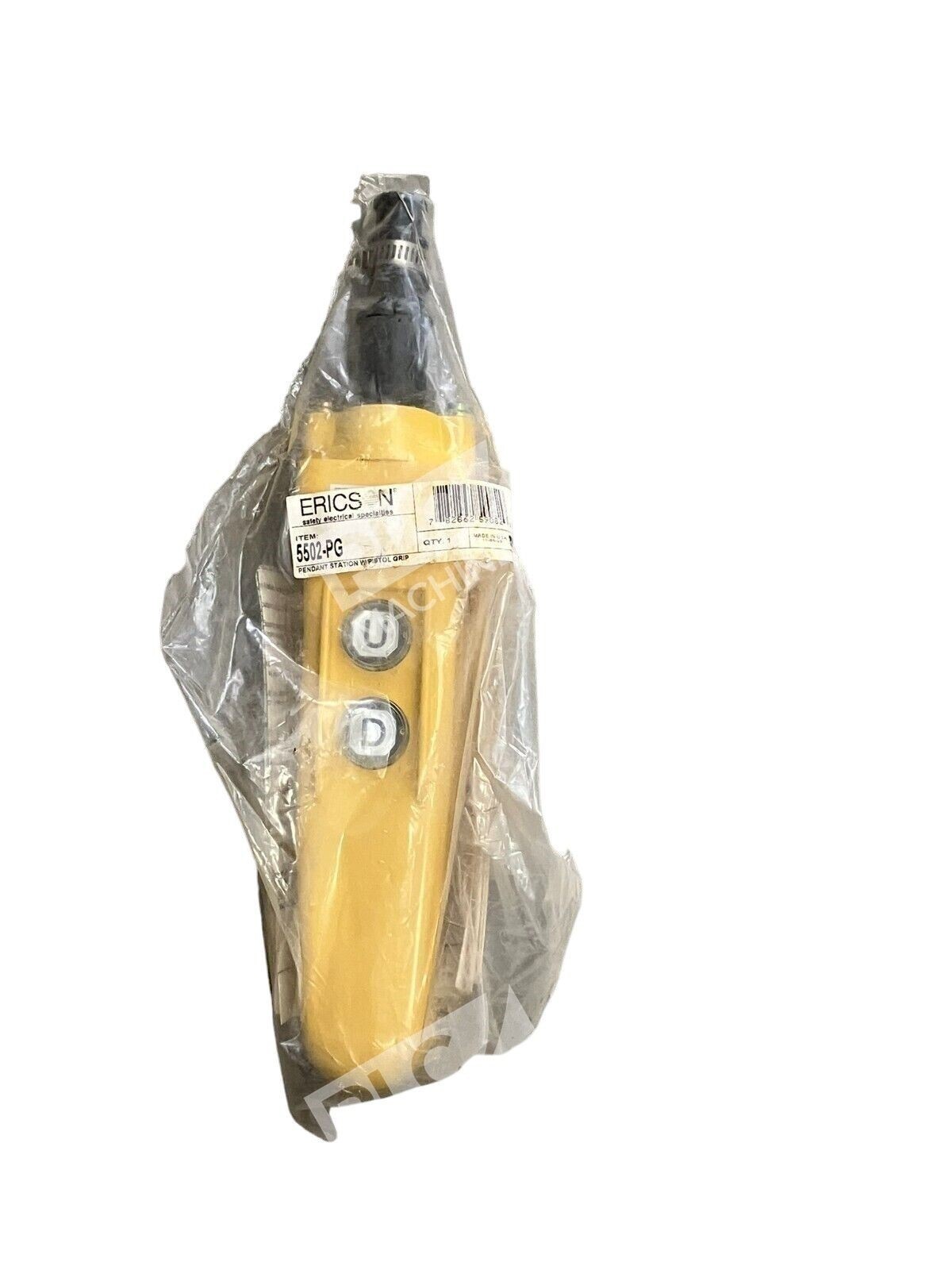

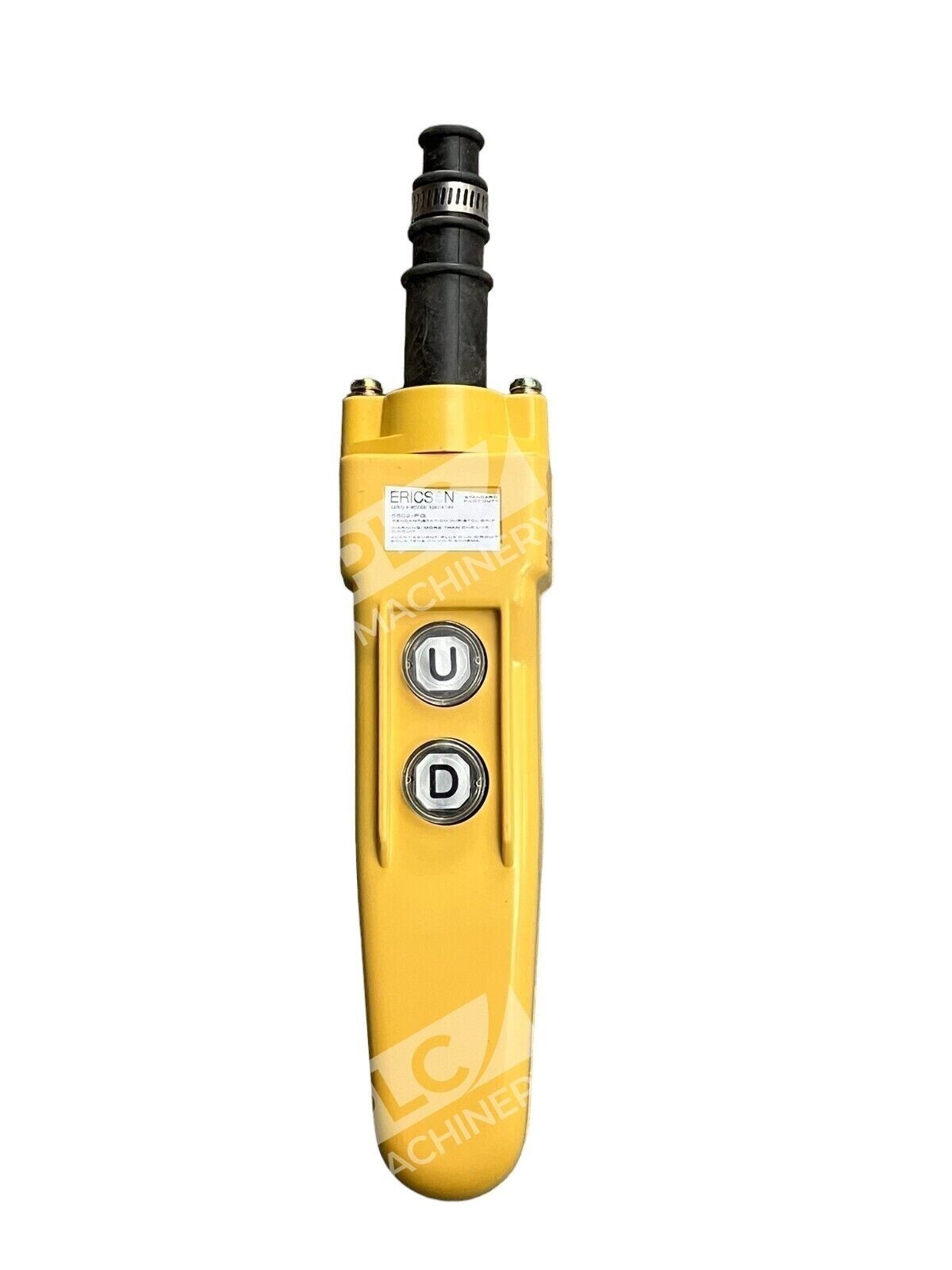

The Ericson 5502-PG is a 2-button, 1-speed pendant station featuring a pistol grip design for ergonomic operation. Rated at 125VAC, 5A, this NEMA 4/IP65-rated control station delivers reliable remote operation for industrial applications. The high-visibility safety yellow finish and impact-resistant ABS resin construction ensure visibility and durability in demanding environments.
Key Features
- 2-Button, 1-Speed Control: Simplified operator interface for single-speed equipment.
- Pistol Grip Design: Ergonomic handle for comfortable hand-held operation.
- NEMA 4/IP65 Rating: Waterproof enclosure rated for wet, dusty, and outdoor conditions.
- High-Visibility Yellow: Safety-rated finish for clear operator identification.
- Lightweight & Compact: Weighs only 10 ounces for portable pendant control.

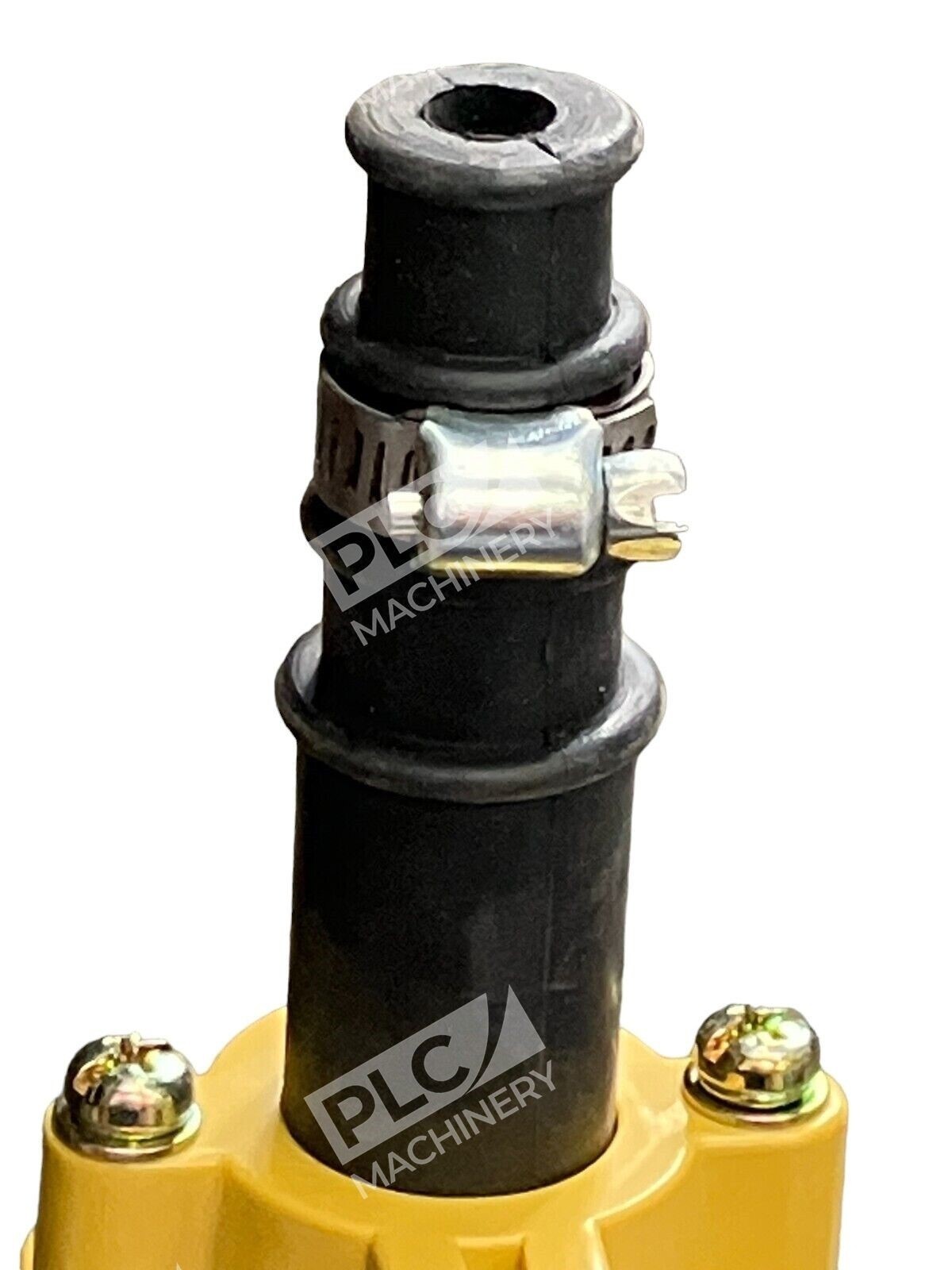

- Strain Relief: Internal and external anchor points for flexible cable management.

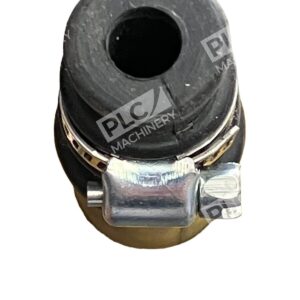

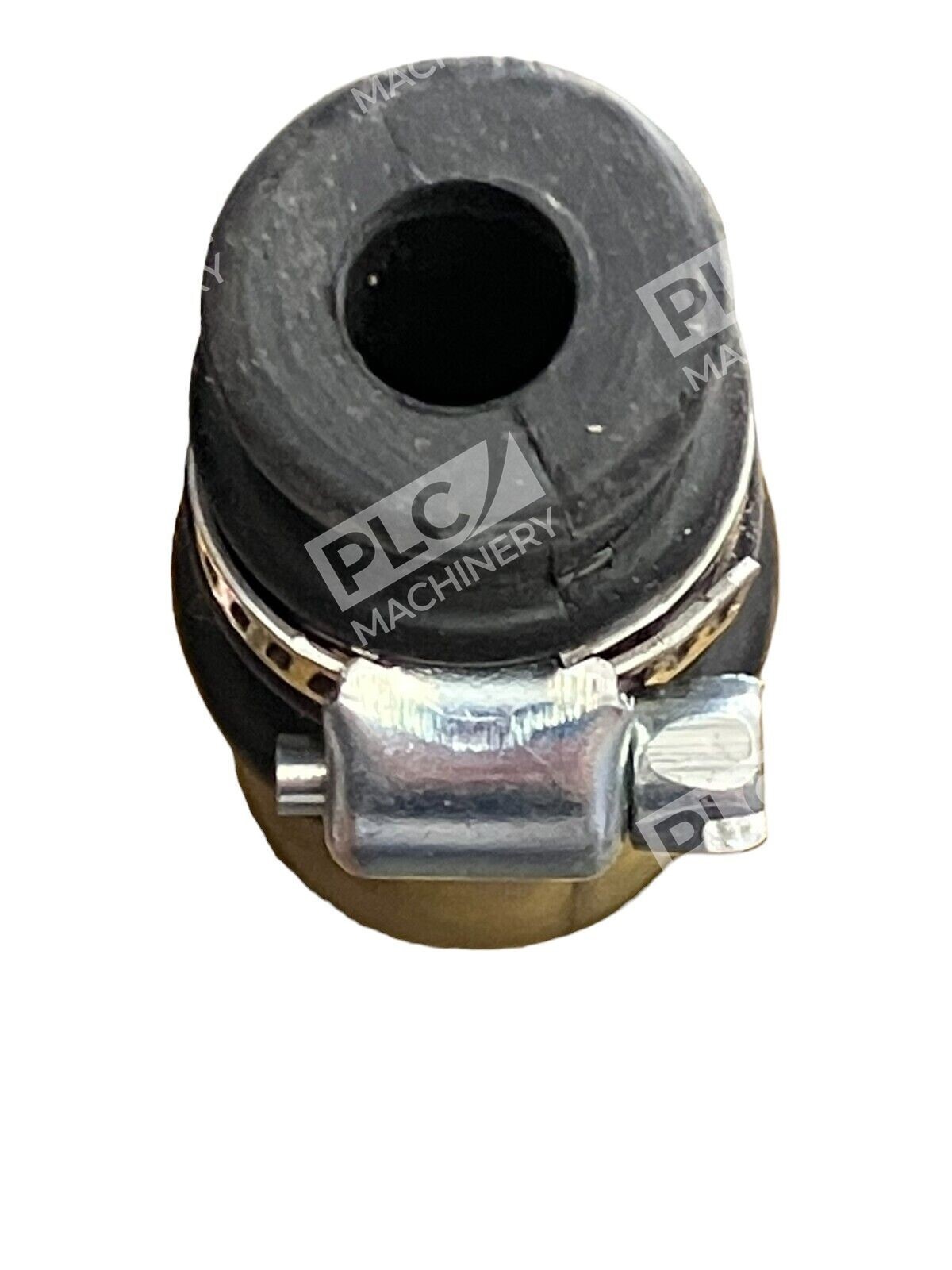

- Multi-Diameter Cable Bushing: Variable-diameter inlet accommodates cable sizes from 0.30 to 0.41 inches.
- UL/CUL/CSA Certified: Meets ANSI/UL 508 control circuit standards.
Technical Specifications
The Ericson 5502-PG meets strict industrial electrical standards for pendant control equipment. Internal button seals protect against moisture ingress, while high-impact ABS resin resists impact damage. The variable cable bushing with clamp simplifies installation across a wide range of cable diameters.
Typical Applications
The 5502-PG excels in overhead crane, monorail, and hoist operations where operators require portable, ergonomic remote control. Common applications include:
- Overhead bridge and gantry cranes
- Monorail systems and chain hoists
- Assembly line material handling equipment
- Industrial machinery requiring remote start/stop control
- Manufacturing and warehouse automation
Compatibility & Replacements
Compatible With
- Industrial control circuits rated 125VAC, 5A maximum
- Overhead crane and hoist systems
- Custom cable assemblies (0.30–0.41 inch diameter)
- Third-party motor starters and contactors rated for 125VAC
Replaces / Drop-In Replacement For
- Ericson 5502-PG (newer or used units)
- Standard pendant control stations requiring similar footprint and voltage rating
Works With
- Industrial AC motor control circuits
- Hoist and crane manufacturers using standard 125VAC control
- Variable cable connectors and strain relief systems
- Facility control networks requiring portable wired pendant control
