Overview

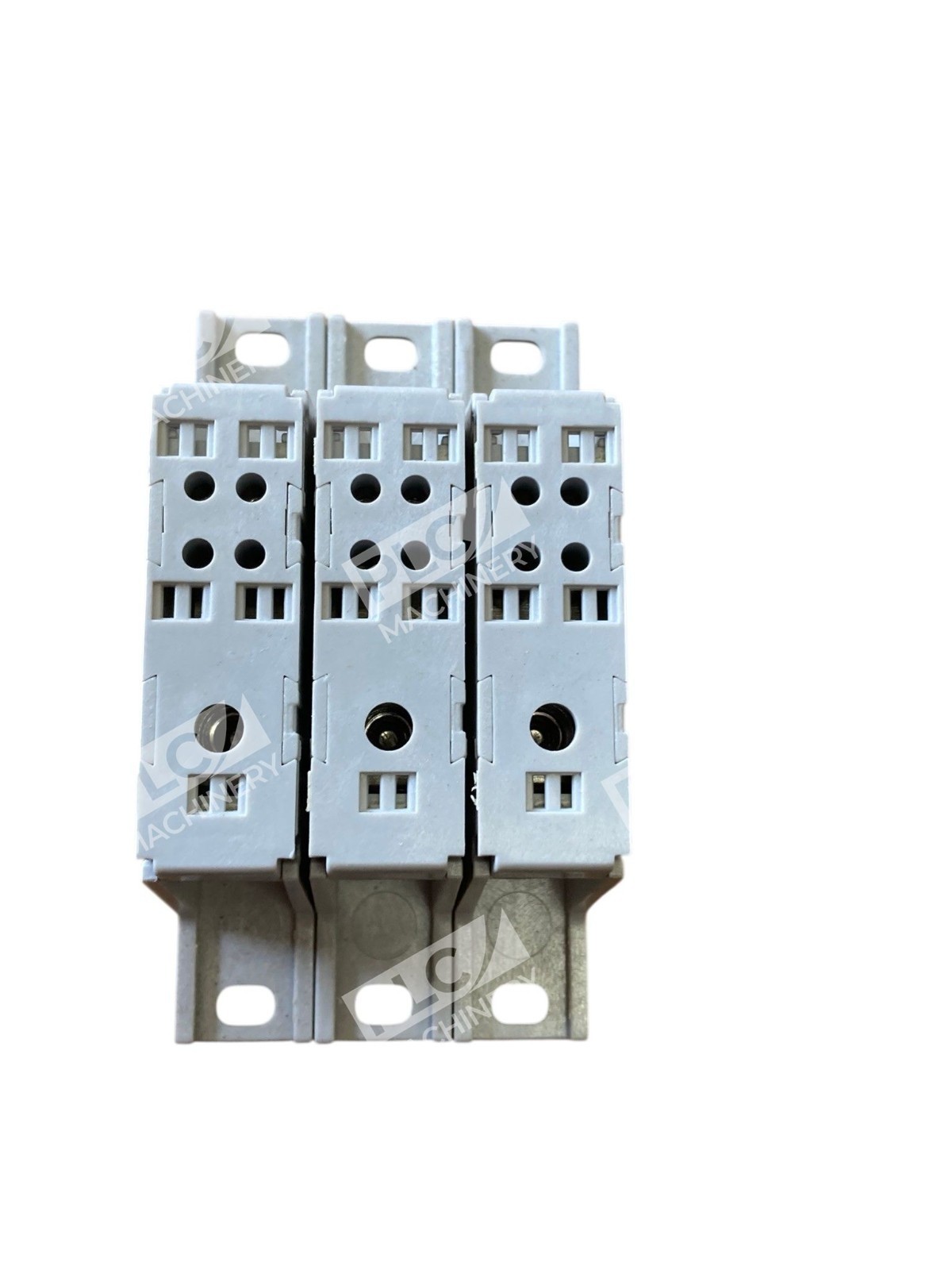

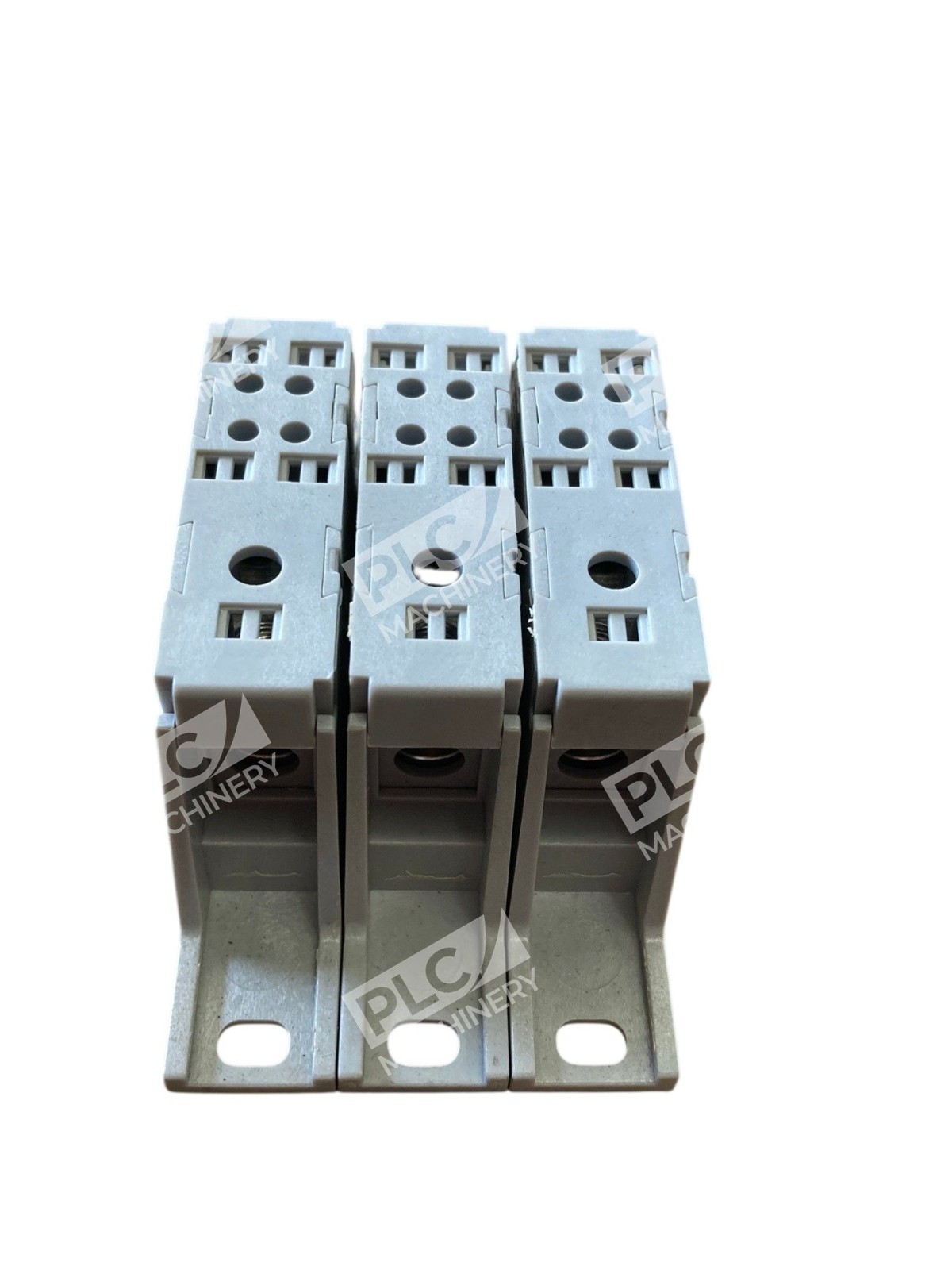

The Marathon EPBAD24 is an enclosed, modular power distribution block designed for safe and reliable power distribution in industrial control panels and automation systems. Rated for 115 amps at 600V AC/DC, it features a thermoplastic insulator base and tin-plated aluminum connectors. This block accepts a single line pole and four load poles, making it suitable for multi-output power routing in compact panel designs.
Key Features
- Enclosed design with thermoplastic insulator base for safety and protection
- Modular snap-together construction for easy installation and maintenance
- Rated for 115 amps, 600V AC/DC per UL 1953 and CSA 22.2 No. 158
- Accepts line conductors #2–#14 AWG, load conductors #10–#14 AWG
- Tin-plated aluminum connectors; nickel-plated steel terminal set screws
- DIN rail or panel mounting; compact footprint (4.14″ × 1.71″ × 0.75″)
- IP-20 touch protection (IEC 60529); CU7AL temperature rating –40°C to 125°C
- UL Listed, CSA Certified, CE Compliant (IEC 60947-7-1)
Technical Specifications
Electrical:
- Current Rating: 115 Amps
- Voltage Rating: 600V AC/DC
- Line Wire Range: #2 to #14 AWG (35–2.5 mm²)
- Load Wire Range: #10 to #14 AWG (6–2.5 mm²)
- Temperature Rating: –40°C to +125°C (insulator base)
Physical:
- Type: Enclosed, modular snap-together block
- Poles: 1 line, 4 load
- Insulator Material: Thermoplastic (UL 94 V-0)
- Connector Material: Aluminum (tin-plated)
- Housing Material: Polycarbonate
- Dimensions: 4.14″ H × 1.71″ D × 0.75″ W
- Weight: 0.12 lbs
- Mounting: DIN rail or panel mount
- Recommended Mounting Torque: Maximum 30 lbf·in (3.4 N·m)
Certifications & Compliance:
- UL Listed (File QPQS.E309401)
- CSA Certified (File LR19766)
- CE Compliant (IEC 60947-7-1)
- RoHS Compliant
- Country of Origin: USA
Typical Applications
The EPBAD24 is well-suited for:
- Industrial control panels and electrical enclosures
- Power distribution in PLCs, drives, and automation equipment
- Multi-load power routing in DIN rail systems
- Factory automation and manufacturing systems
- Machine control circuits operating at 600V or below
- Feed-through power blocks for medium-current distribution
Compatibility & Replacements
Compatible With
- DIN-rail mounted automation systems
- Panel-mount industrial control enclosures
- Enclosed breaker panels and disconnects
- Motor starter circuits and power distribution centers
- Standard industrial electrical enclosures (minimum 16″ × 12″ × 6″)
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The EPBAD24 is the specific model designated for 115A, 600V applications; consult Marathon Special Products documentation for equivalent models or legacy part numbers.
Works With
- Aluminum and copper conductors (AWG #2 to #14 line, #10 to #14 load)
- Standard industrial terminal set screw hardware (#10 fastener)
- Enclosed electrical equipment rated for 600V AC/DC circuits
- DIN rail systems (individual mounting recommended)
- UL 508 and CSA C22.2-compliant control panels
