Overview

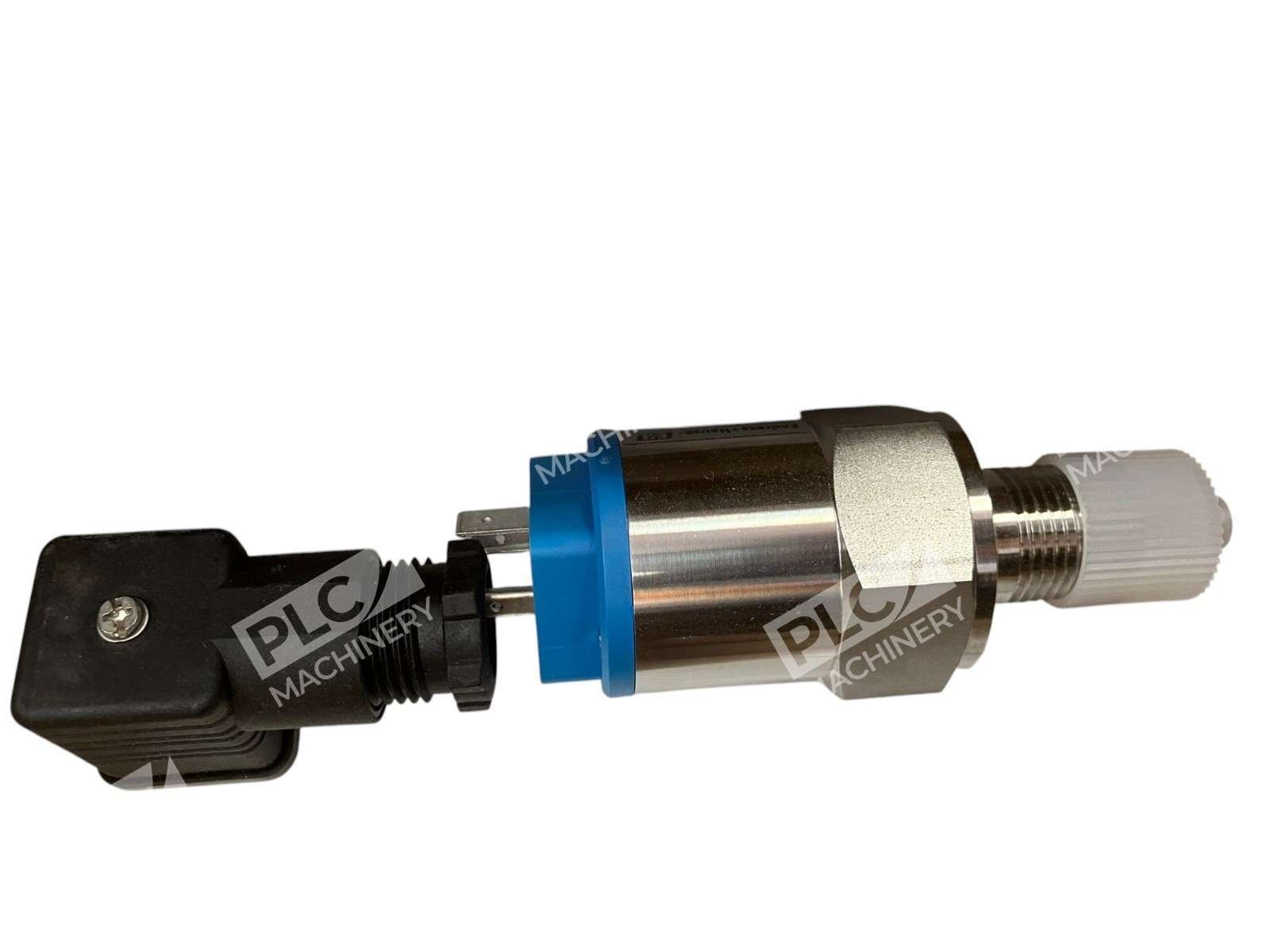

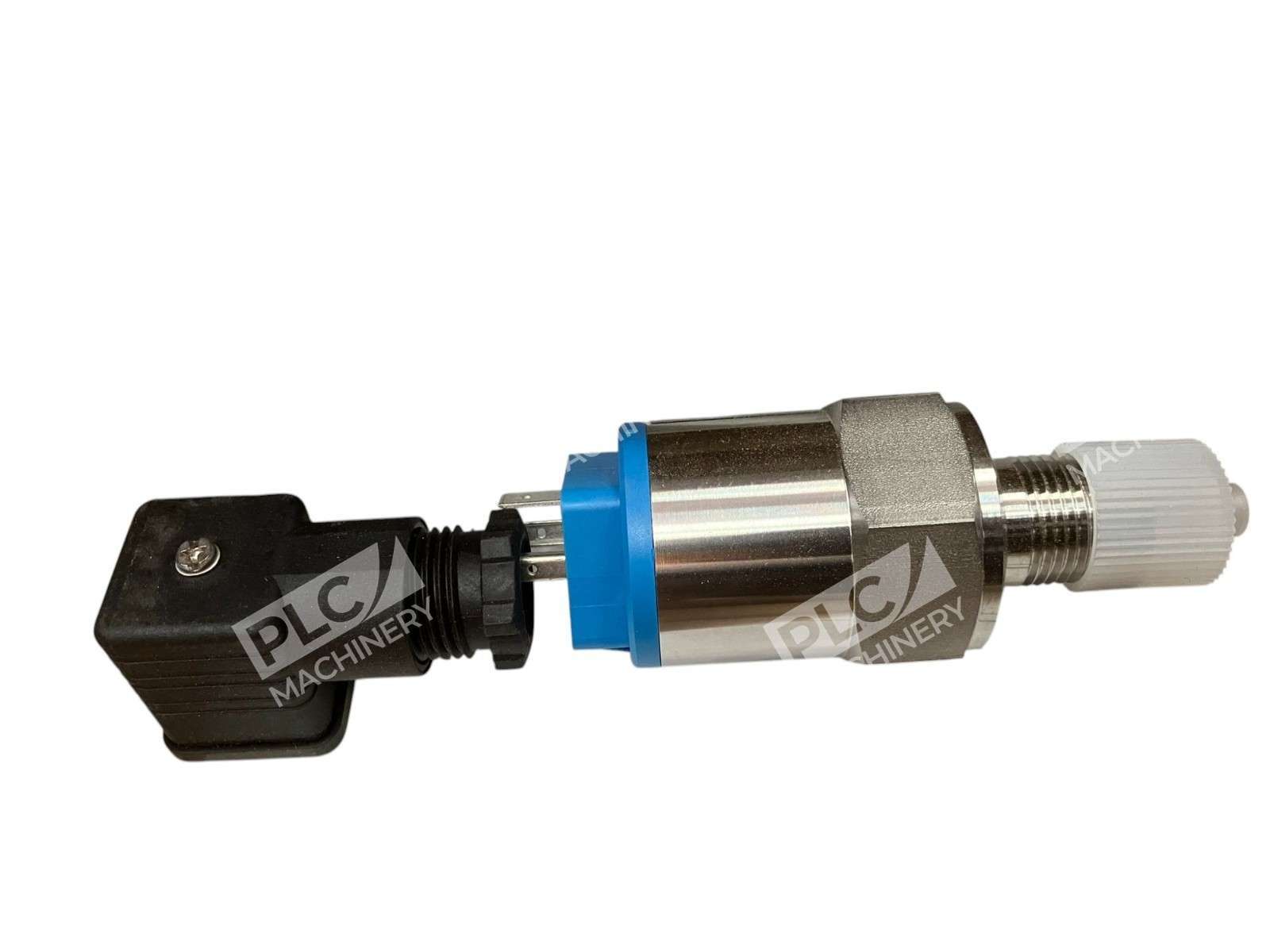

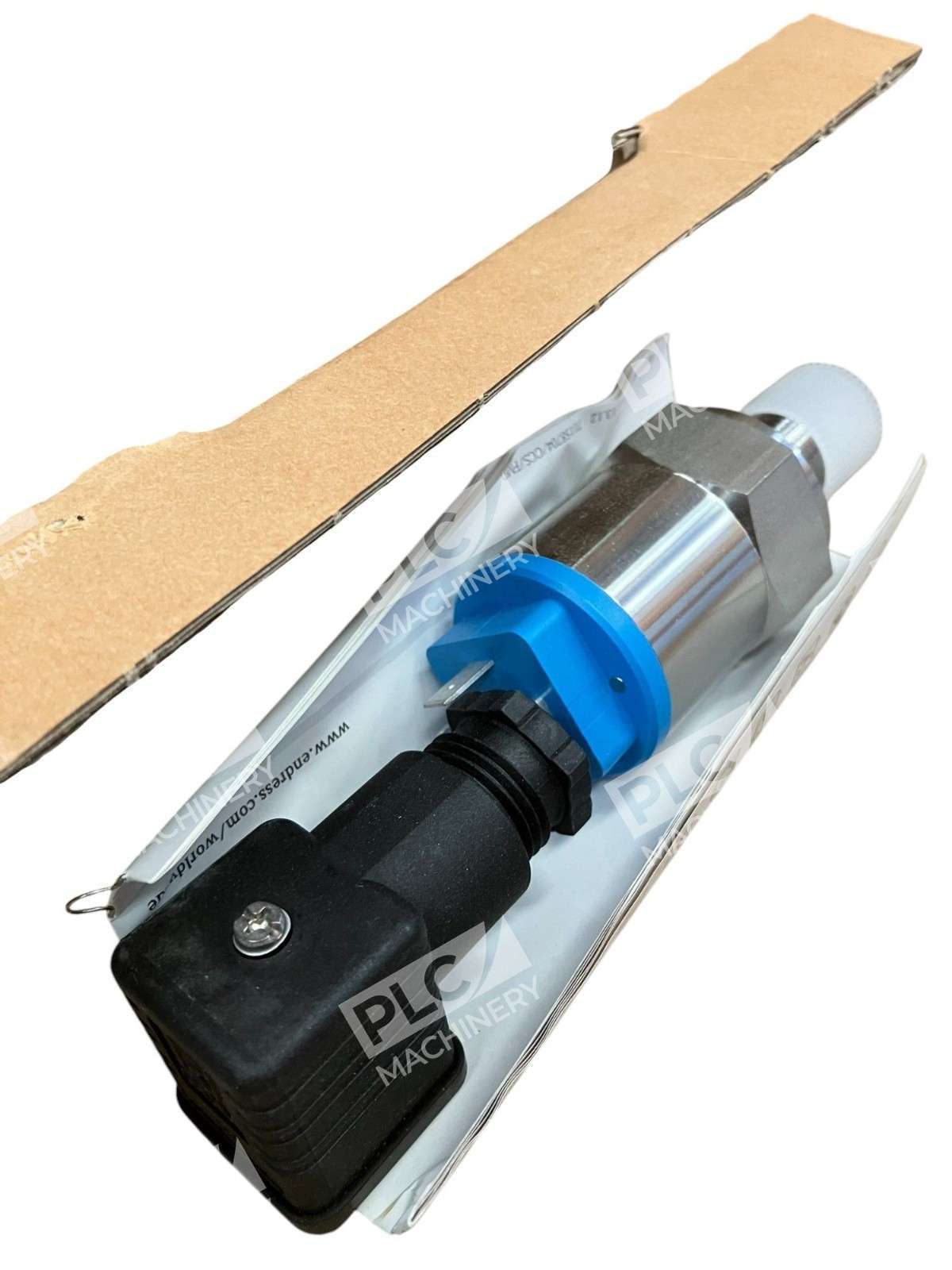

The Endress+Hauser PMC131-A22F1V6N Cerabar T is a compact, robust pressure transducer designed for precise measurement of absolute and gauge pressures in industrial applications. Featuring Ceraphire® ceramic sensor technology (99.9% Al₂O₃), this unit delivers long-term stability and corrosion resistance in demanding environments. With integrated 4–20 mA two-wire electronics and DIN 43650/ISO 4400 plug connectivity, the PMC131-A22F1V6N is ready to integrate into control systems without additional amplifiers.
Key Features
- Ceraphire® ceramic sensor: Exceptional corrosion, abrasion, and overload protection; FDA-compliant for food-contact applications
- Measurement range: Absolute and gauge pressure up to 400 bar (6000 psi); vacuum-capable
- Output signal: Integrated 4–20 mA two-wire, loop-powered, no external amplifier required

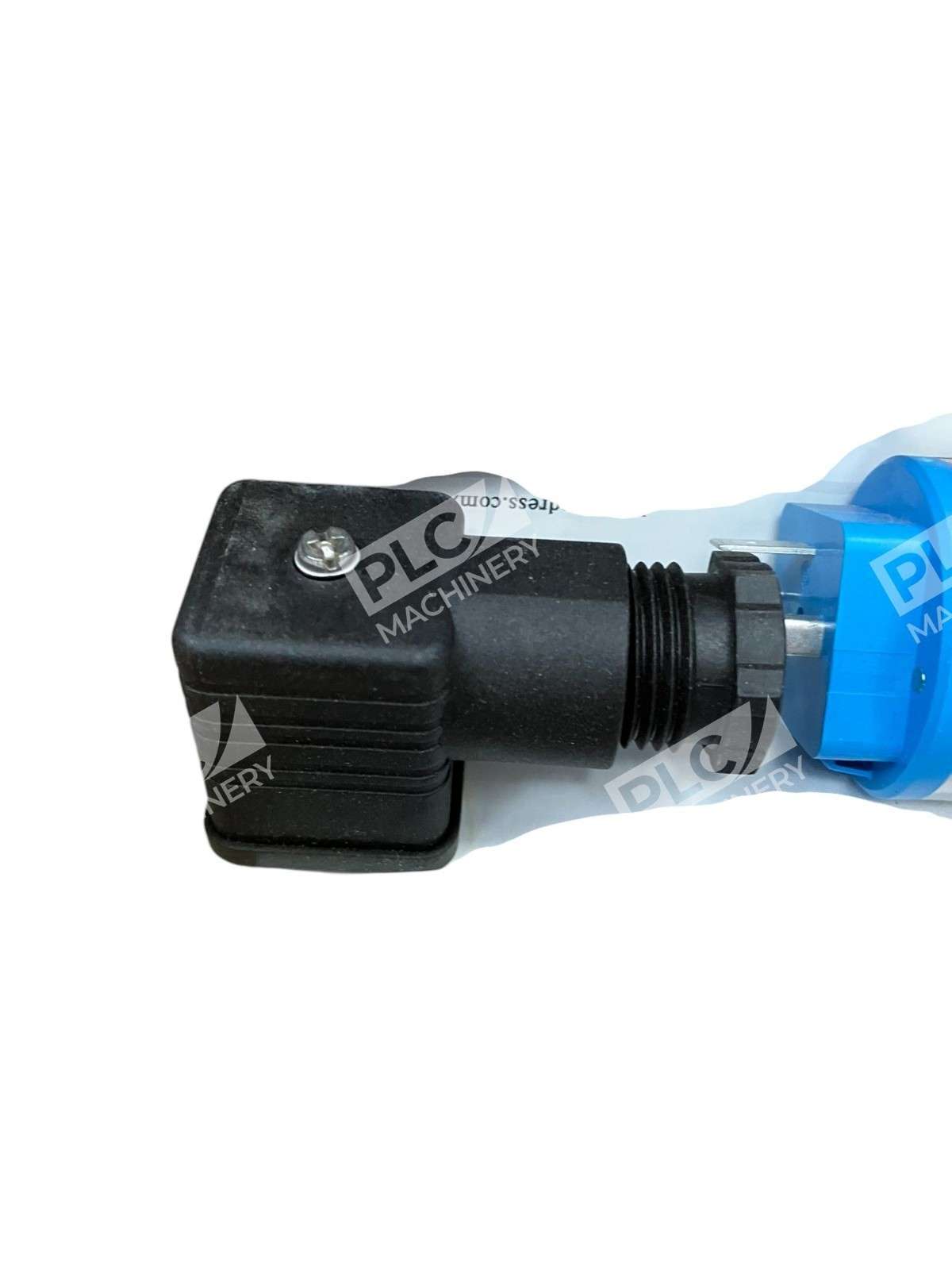

- Connector: DIN 43650/ISO 4400 plug version (M16 or ½ NPT process connection)
- Accuracy: ≤0.5% full-scale linearity (including hysteresis and repeatability) per DIN IEC 770
- Temperature stability: Operating range −20 to +85 °C; minimal temperature drift (typ. <1.5% at zero, typical range)
Technical Specifications
Includes standard output signal conditioning, IP65-rated connector housing, and stainless-steel process connections suitable for hygienic and threaded installations.
Typical Applications
- Beverage, dairy, and pharmaceutical manufacturing (hygienic systems)
- Water treatment and wastewater monitoring
- Compressed gas and steam system pressure control
- Process pressure instrumentation in chemical and food processing
- HVAC and utility pressure monitoring
- Safety-instrumented systems (SIL 2 certified per IEC 61508/IEC 61511-1)
Compatibility & Replacements
Compatible With
- DIN 43650/ISO 4400 power supply systems (e.g., RN221N, equivalent multi-channel amplifiers)
- Any PLC, data logger, or SCADA input accepting 4–20 mA analog signal
- Two-wire 12–30 V DC supply loops (burden: max. 250 Ω)
- Hygienic and threaded process piping (G ½, ISO 228, M16, ½ NPT)
- Optional PHX20 display and M12 cable adapters
Replaces / Drop-In Replacement For
- Older Cerabar M (PMC71, PMC81) in applications requiring improved ceramic durability
- General-purpose pressure transmitters in the 0–400 bar range where ceramic sensor robustness is required
- Verify compatibility with your process connection and supply voltage before ordering.
Works With
- All standard 4–20 mA data acquisition modules (Allen-Bradley, Siemens, Omron, Schneider)
- Rockwell Automation CompactLogix, SLC, PLC-5; Siemens S7-1200, S7-1500; Mitsubishi, Omron PLCs
- Continuous and discrete control loops; alarm and safety monitoring circuits
- Loop-powered displays and remotely mounted indicators
