Overview

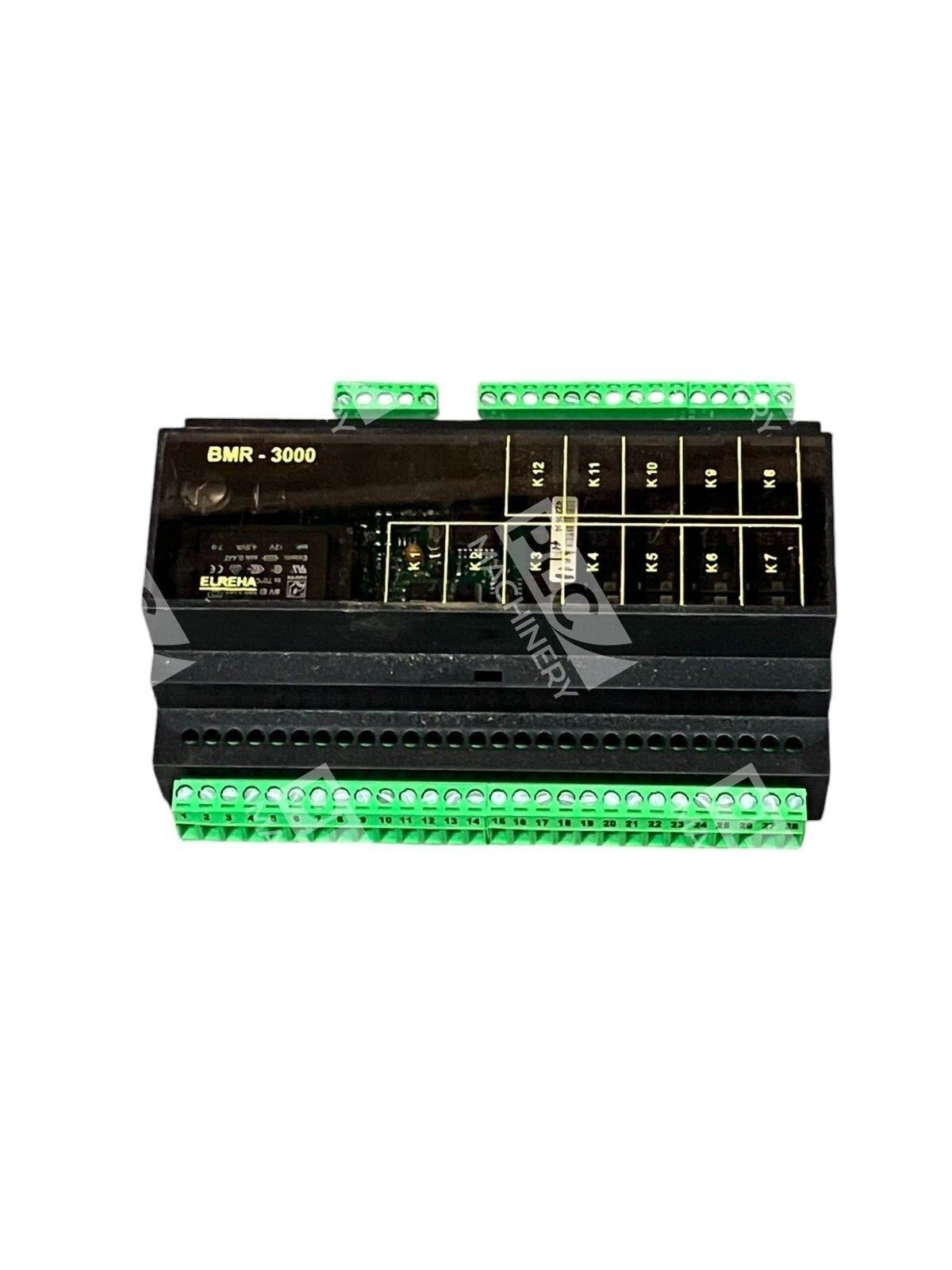

The Elreha BMR-3001 is a high-performance relay output module designed for integration into ELREHA control systems. This industrial I/O module provides 12 isolated SPDT (single-pole double-throw) relay switching outputs on a compact DIN 35 mm rail-mount housing. The module communicates via RS-485 databus, enabling seamless integration with central control units and other networked I/O modules in refrigeration and HVAC applications.
Key Features
- 12 SPDT relay outputs with 8A switching capacity per channel
- DIN 35 mm rail-mount housing for compact panel integration
- RS-485 databus interface for networked control architecture
- Configurable databus address via on-module DIP switches
- LED status indicators for mains power and communication monitoring
- Pluggable terminal connections for field installation
Technical Specifications
- Output Type: 12x SPDT Relays
- Contact Rating: 8A per relay
- Housing: DIN 35 mm rail mount, ABS with transparent cover (IP30)
- Communication: RS-485 databus (ICOM protocol)
- Address Setting: DIP switch configurable
- Status Indicators: Mains LED, Com LED
- Connectors: Pluggable terminals
- Mounting: Standard DIN rail
Typical Applications
- Compressor and condenser stage control in refrigeration systems
- Bridging relay switching for frequency converters
- Safety shutdown and alarm relay outputs
- Brine circuit and pump switching control
- Multi-stage cooling plant automation
- Networked I/O expansion for ELREHA control platforms
Compatibility & Replacements
Compatible With
- ELREHA VPR 5100/5140 control systems
- ELREHA VPR 5300/5340 compound control platforms
- RS-485 databus (ICOM protocol) networks
- Standard DIN rail mounting systems (35 mm)
- ELREHA BMO digital input modules
- ELREHA BMA analog input/output modules
Replaces / Drop-In Replacement For
Verify compatibility with your control system integrator before ordering. The BMR-3000 may be a compatible variant; confirm part number with documentation.
Works With
- ELREHA Compound Control Central software
- RS-485 ICOM databus protocol
- Standard DIN rail automation enclosures
- ELREHA multi-module I/O expansion architecture
