Overview

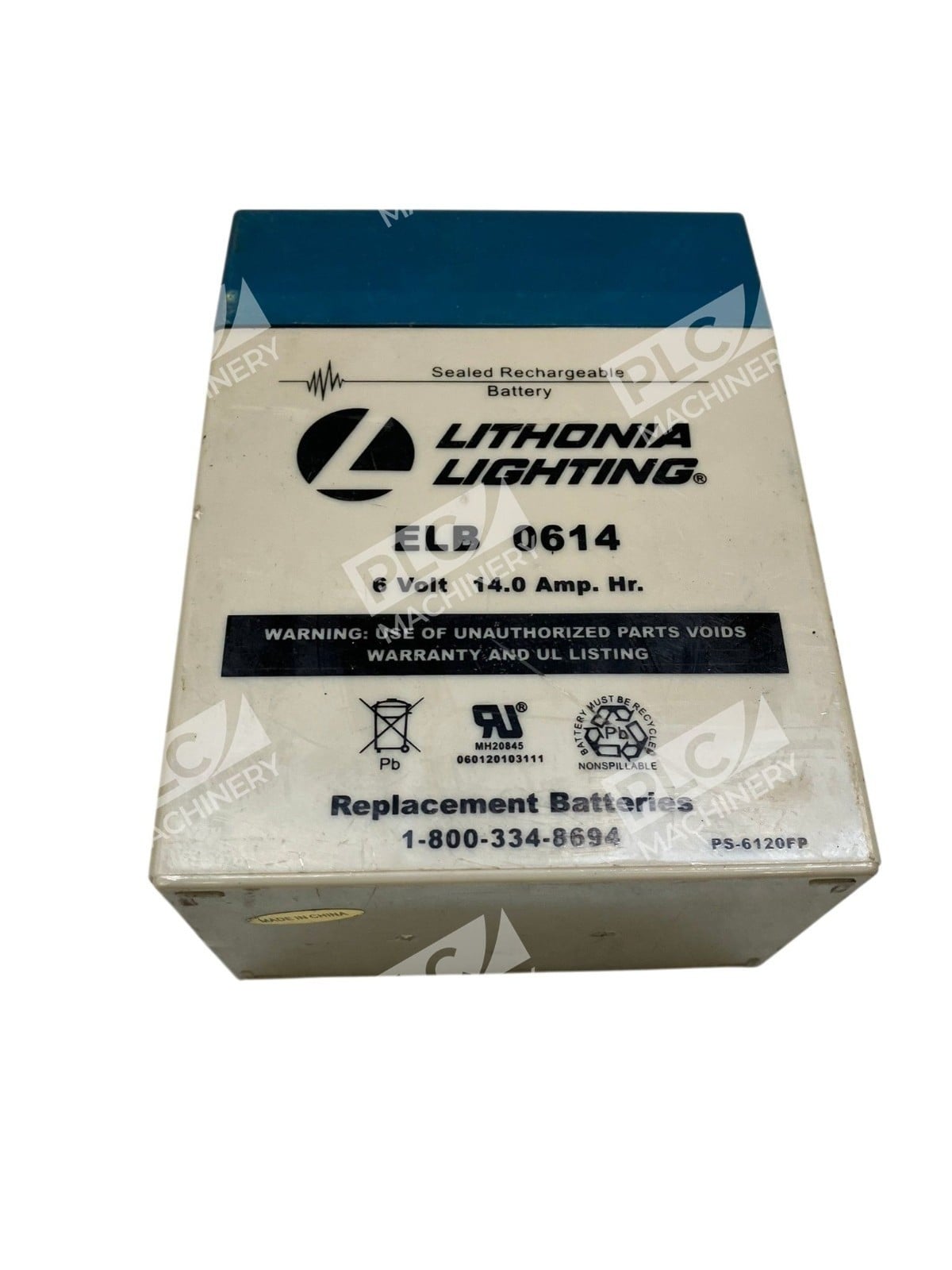

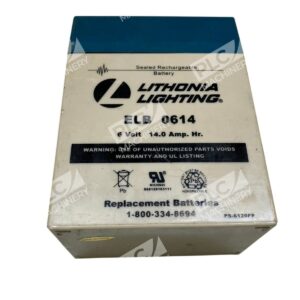

The Lithonia ELB0614 is a rechargeable sealed lead acid (SLA) battery engineered for emergency lighting and exit sign backup power. Rated 6V 14Ah, this unit uses lead-calcium chemistry to deliver consistent performance and long cycle life. The battery features Faston-polarized slip-on terminals for reliable, secure connections in Lithonia emergency light fixtures.
Key Features
- 6V 14Ah Capacity: Nominal voltage 6V with 14Ah capacity, ideal for mid-sized emergency lighting applications
- Sealed Lead Acid Chemistry: Maintenance-free, non-spillable valve regulated sealed lead acid design

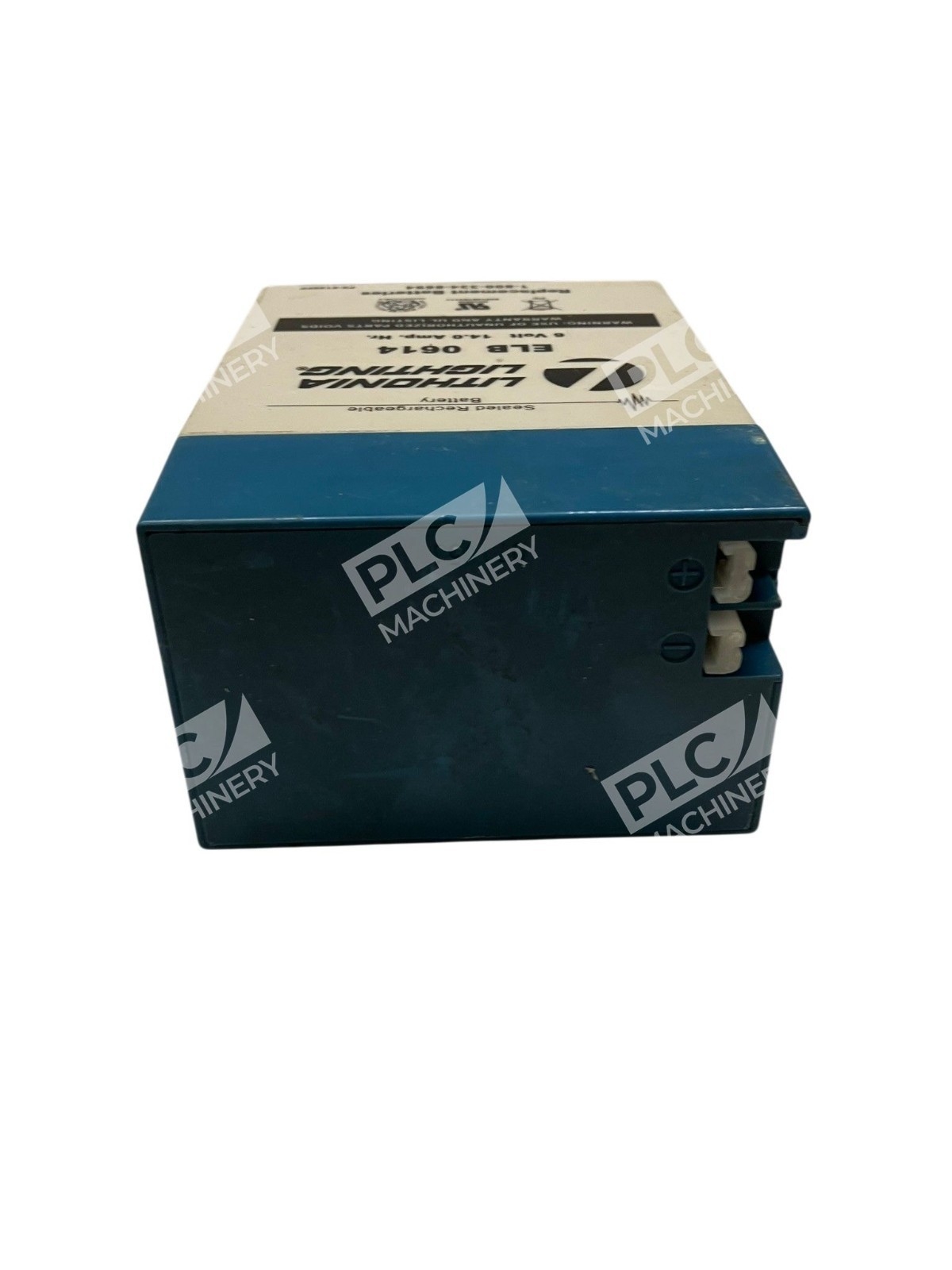

- Faston Terminals: Faston polarized quick disconnect tabs with positive F2 and negative F1 connections
- Low Initial Current: Initial current rated less than 2.1A, reducing startup draw on charging systems
- Compact Form Factor: Dimensions optimized for mounting in Lithonia Titan and select emergency lighting units
- Extended Service Life: Lifetime expectancy of 3–5 years under typical cycling conditions
Technical Specifications
- Chemistry: Rechargeable Sealed Lead Acid (SLA)
- Nominal Voltage: 6V DC
- Nominal Capacity: 14 Ah
- Length: 4.25 inches (108 mm)
- Width: 2.80 inches (71 mm)
- Height: 5.51 inches (140 mm)
- Weight: 4.96 lbs
- Terminal Type: +F2 – 0.250″ / –F1 – 0.187″ Faston quick disconnect
- Container Material: ABS (optional UL94-HB and UL94-V0)
- Condition: New – No Box
Typical Applications
The Lithonia Lighting replacement battery is intended for use in emergency lighting. Common installations include:
- Exit and emergency sign systems (LED and incandescent)
- Lithonia Titan emergency light units
- Backup power for emergency egress lighting
- Fire alarm and safety system battery backup
- Self-contained emergency light fixtures
Compatibility & Replacements
Compatible With
- Lithonia Titan emergency light fixtures (select models)
- Lithonia emergency exit signs with 6V DC charging systems
- Standard 6V emergency lighting chargers rated for SLA batteries
- Any emergency lighting fixture with F2/F1 Faston terminal connections and 6V nominal voltage
Replaces / Drop-In Replacement For
- Lithonia ELB0614 (original equipment part)
- Lithonia ELB 0614 (alternate spacing)
- Direct Lithonia OEM battery applications requiring 6V 14Ah SLA with slip-on terminals
Works With
- Lithonia standard 6V emergency lighting chargers
- Industry-standard battery test and maintenance equipment (voltage and load testing)
- Faston terminal-compatible battery connectors and holder assemblies
- Facility emergency lighting management systems monitoring 6V backup batteries
