Overview

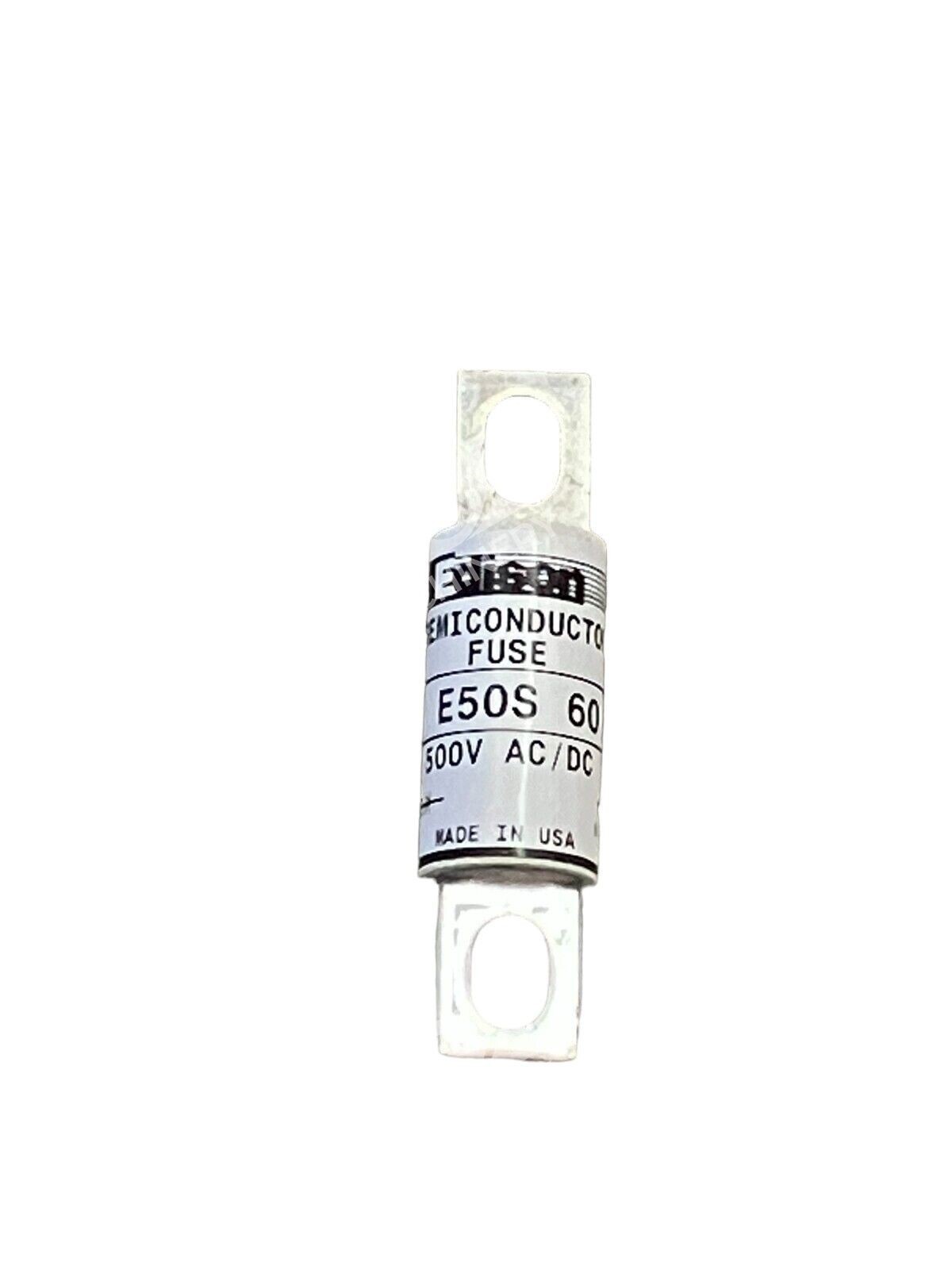

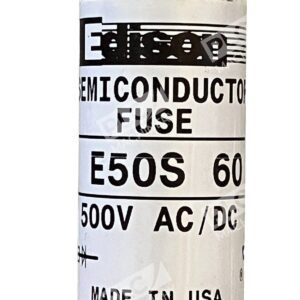

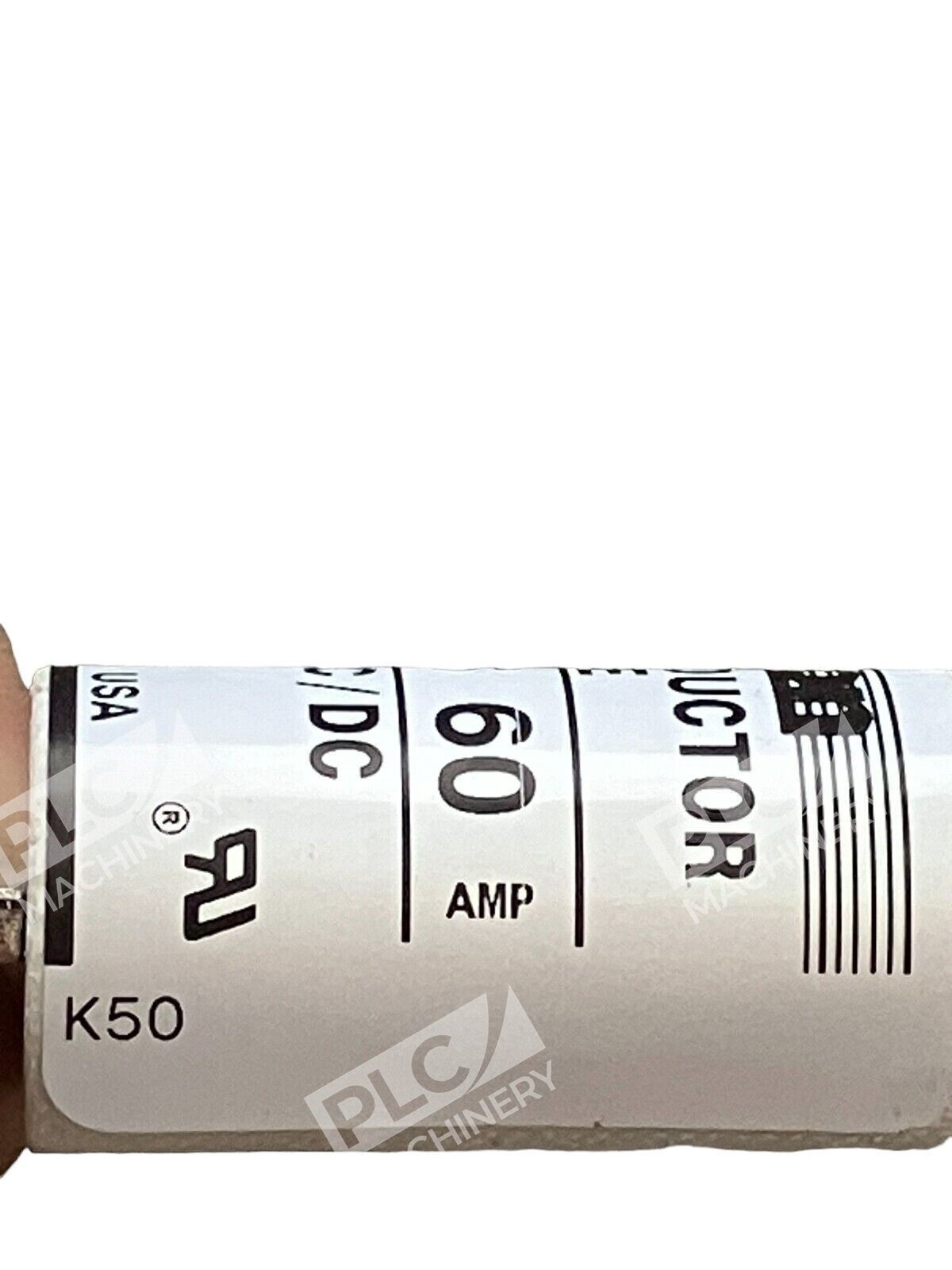

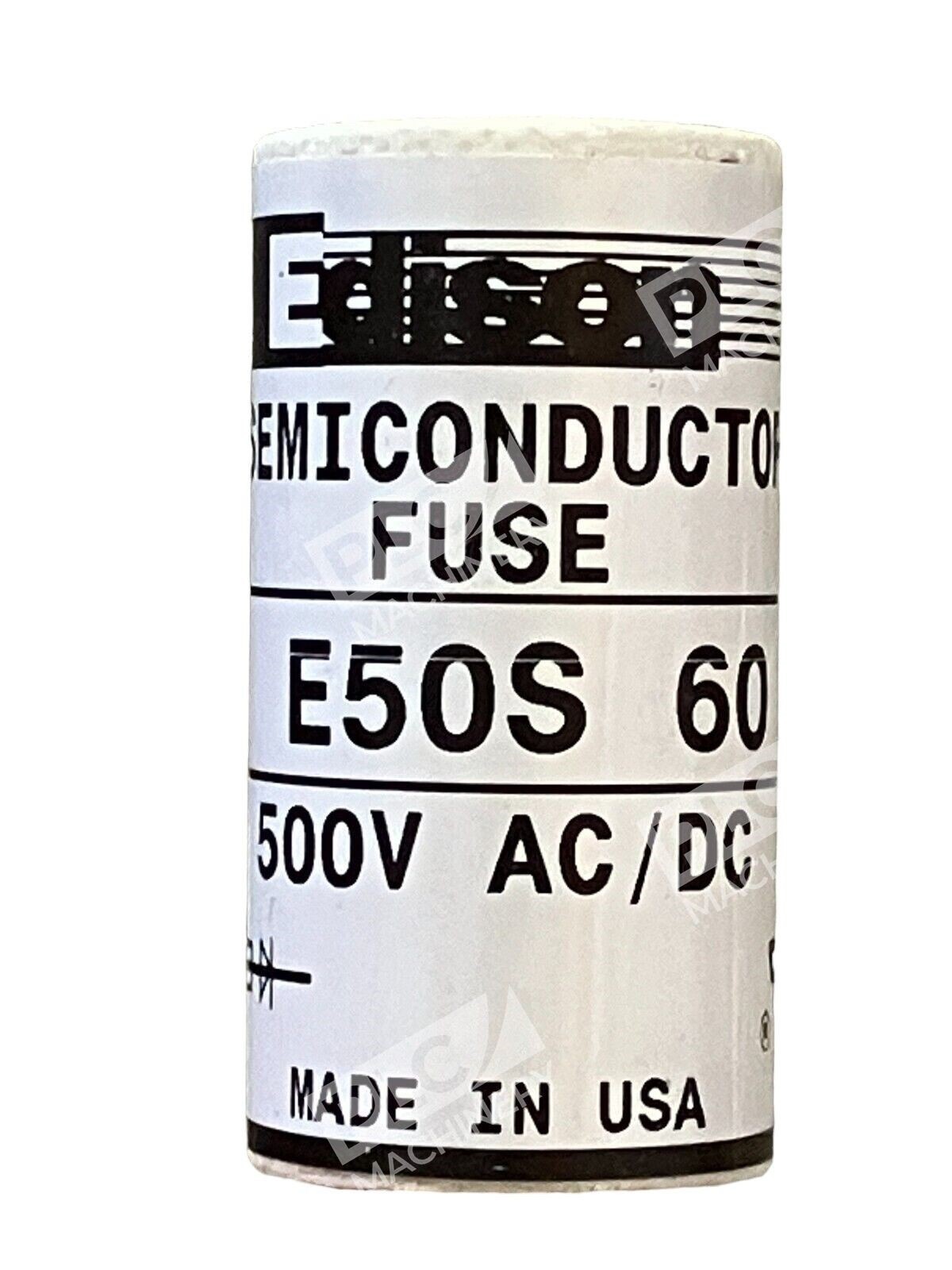

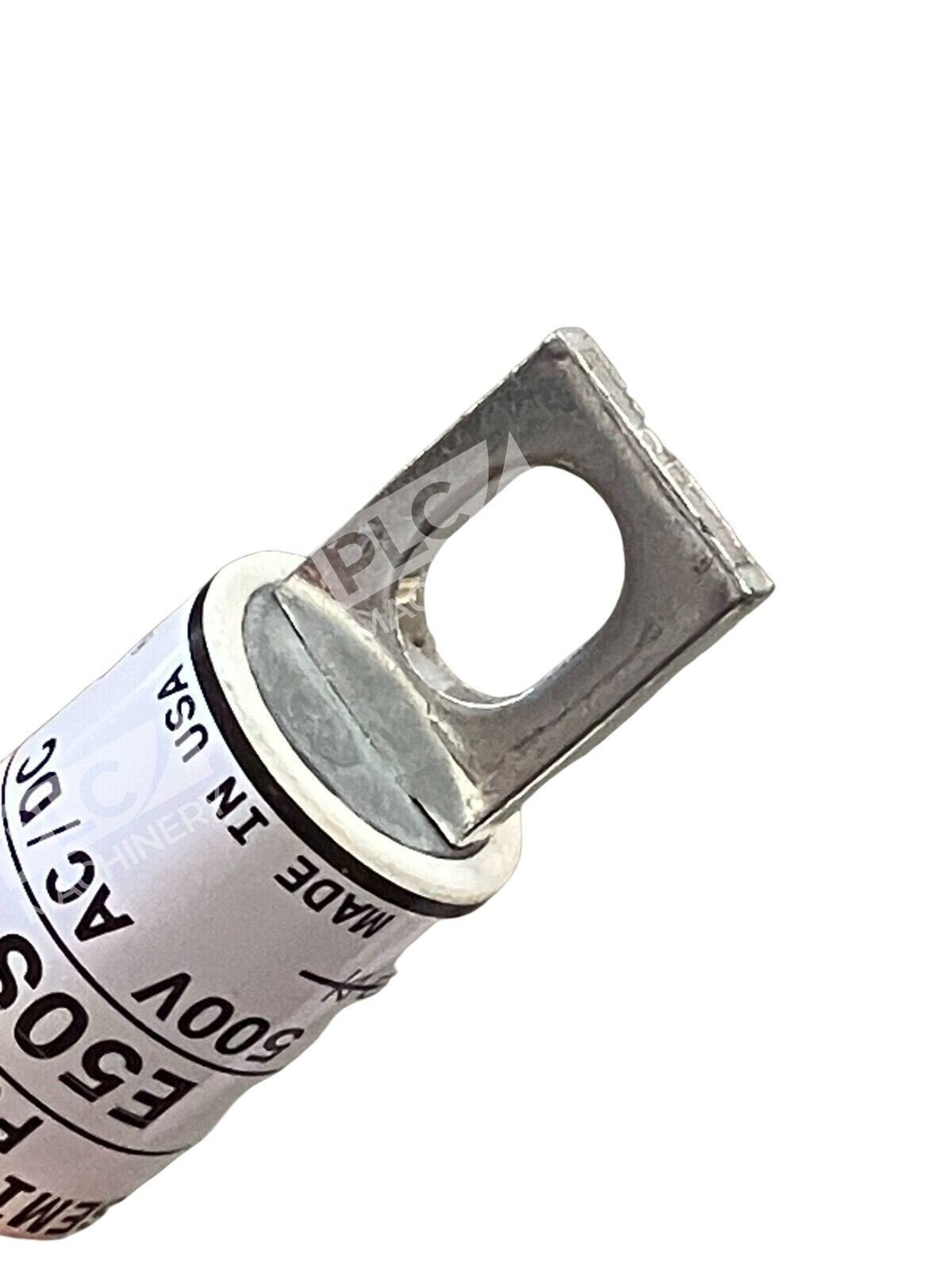

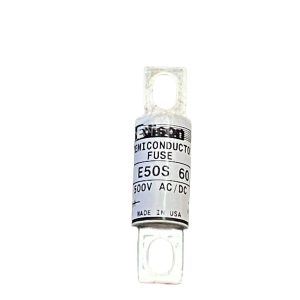

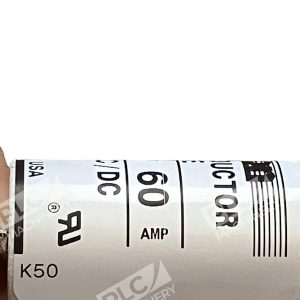

The Edison E50S 60 is a semiconductor fuse manufactured by Eaton Corporation, engineered to protect semiconductor devices and drives. Rated at 60 amps and 500 volts AC/DC, this high-speed fuse offers a 200kA interrupting rating for reliable overcurrent protection. Supplied new in box as a lot of two units, perfect for immediate deployment or spare inventory in drive and power conversion applications.
Key Features
- Fast-acting, high-speed protection for semiconductor devices and AC/DC drives
- 60-amp current rating with 500VAC/VDC voltage capacity
- 200kA interrupting rating provides robust fault containment

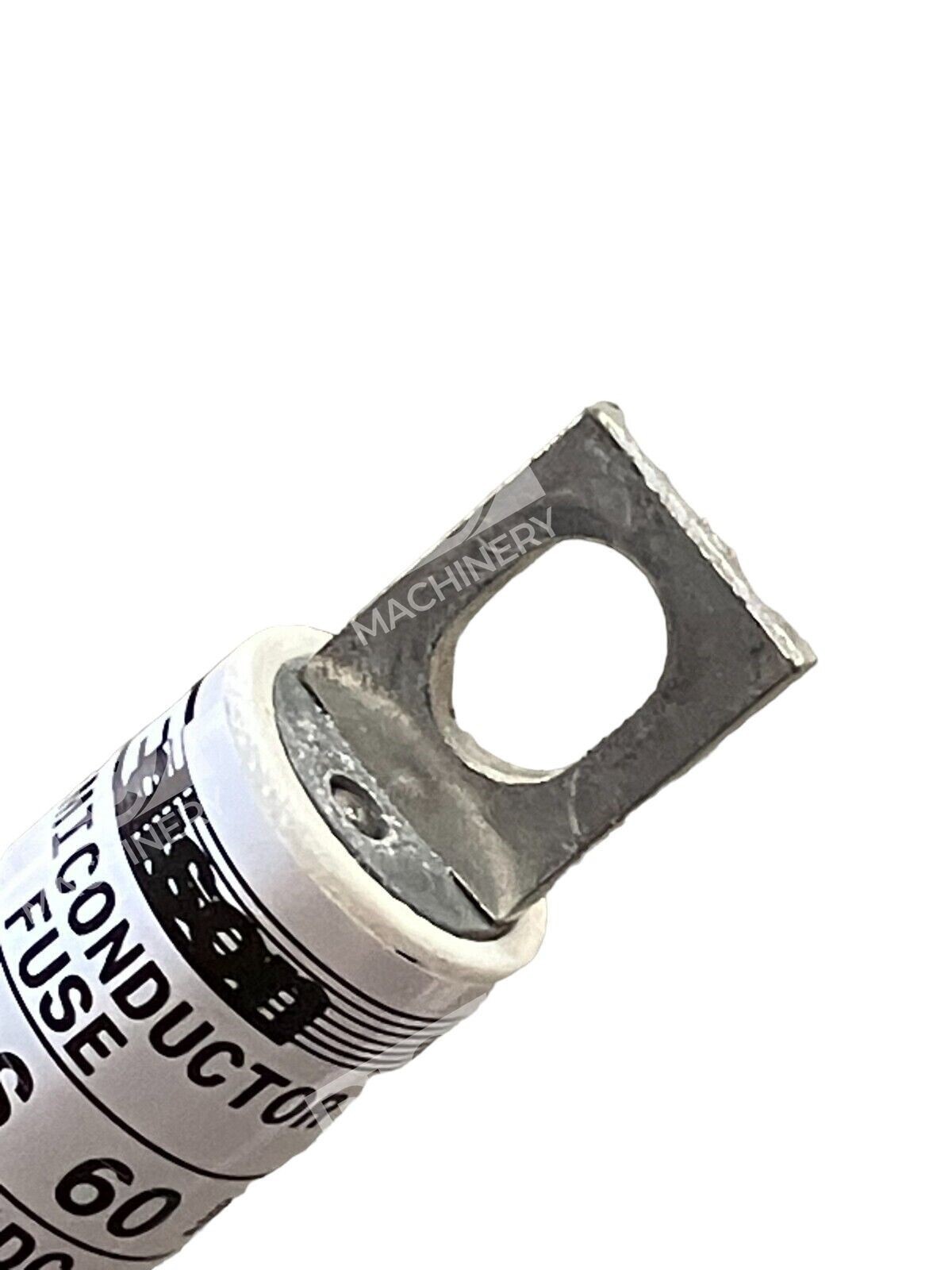

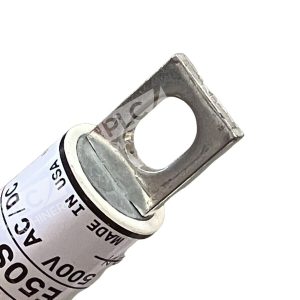

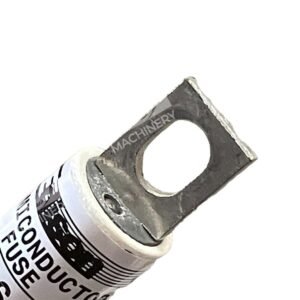

- Bolt-terminal mounting compatible with standard fuse blocks and carriers
- Supplied as a matched pair for redundancy and system maintenance

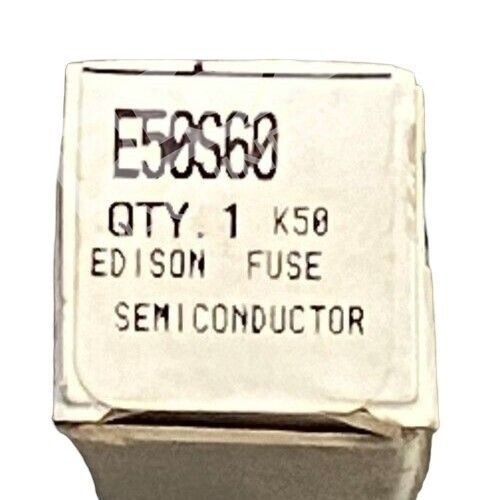

- New in box condition, manufactured to Eaton Edison standards
Technical Specifications
- Part Number: E50S60
- Manufacturer: Eaton (Edison brand)
- Current Rating: 60 amps
- Voltage Rating: 500 VAC/VDC
- Interrupting Rating: 200 kAIC
- Type: High-speed semiconductor fuse
- Mounting: Bolt terminal
- Application Class: Semiconductor device protection
- Quantity in Lot: 2 units
- Condition: New
Typical Applications
- AC and DC variable frequency drive (VFD) protection
- Power conversion and rectifier circuits
- Industrial motor control systems
- Semiconductor device overcurrent protection
- Heavy-duty switching and solid-state controller circuits
Compatibility & Replacements
Compatible With
- Eaton Edison semiconductor fuse blocks and carriers
- Industrial VFD and drive control systems rated 500V or less
- Bolt-terminal fuse holders and mounting assemblies
- AC and DC power distribution systems requiring high-speed protection
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Edison E50S 60 fuses are application-specific; replacement by rating alone may not be appropriate without engineering review.
Works With
- Eaton/Edison Drive Fuse product line for coordinated protection
- Standard industrial fuse blocks rated 500V, 60A
- AC and DC drive control platforms (ABB, Siemens, Mitsubishi, Allen-Bradley, etc.)
- Power distribution and motor control centers (MCC)
