Overview

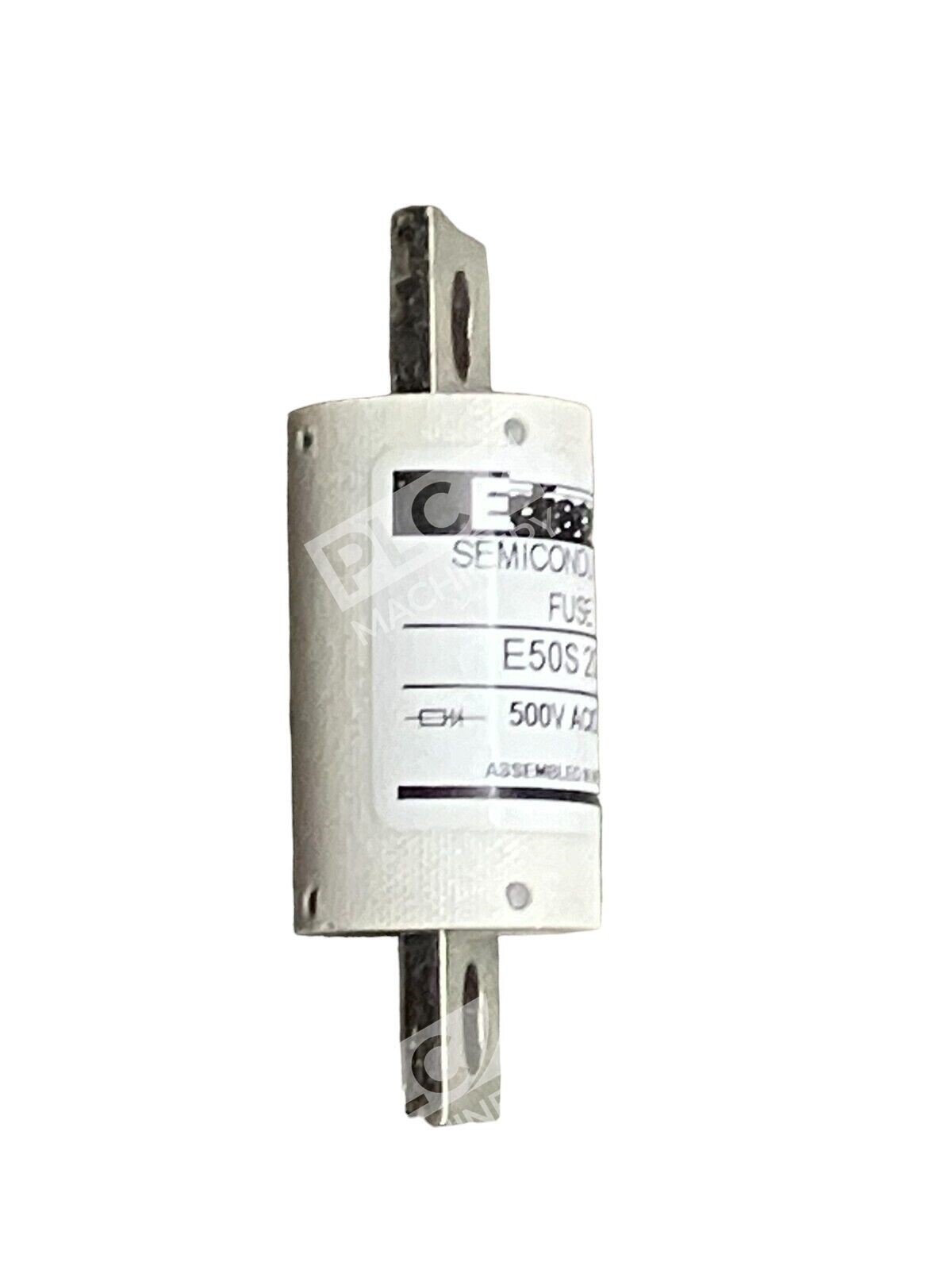

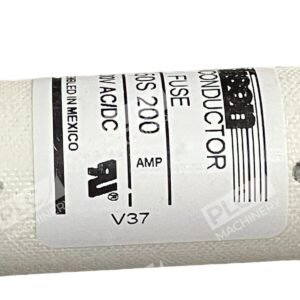

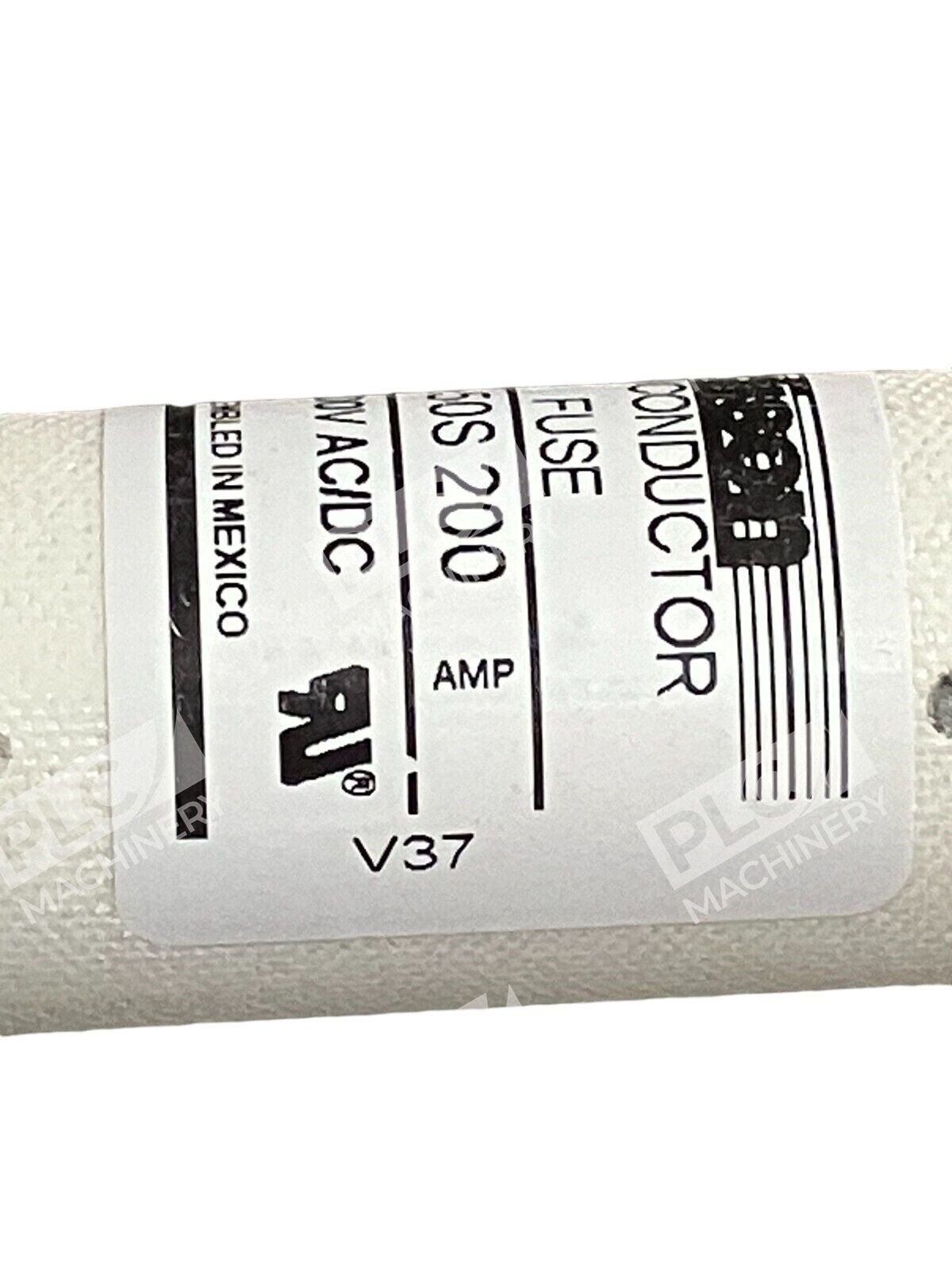

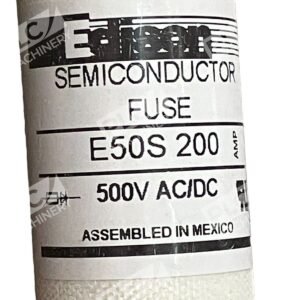

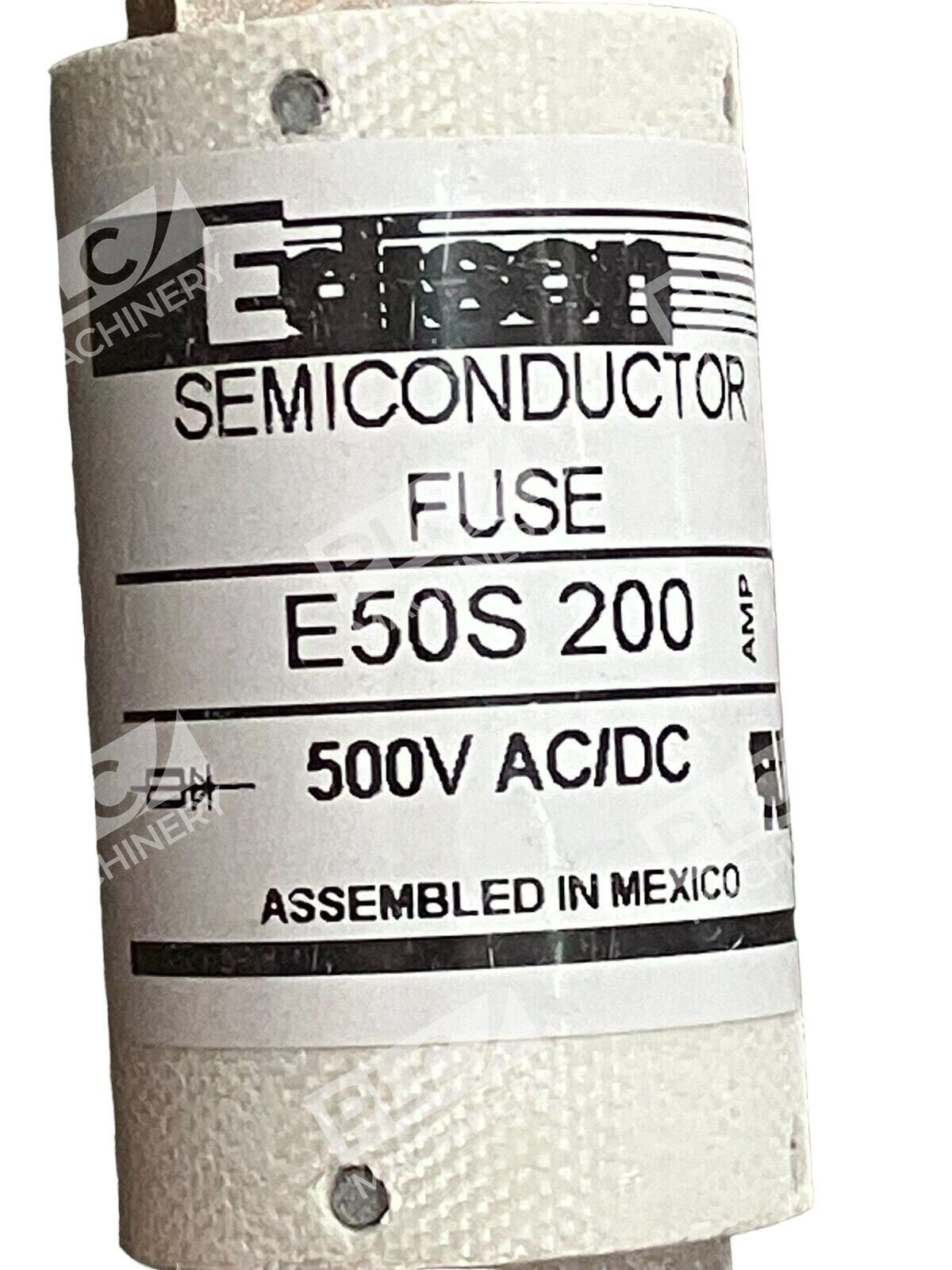

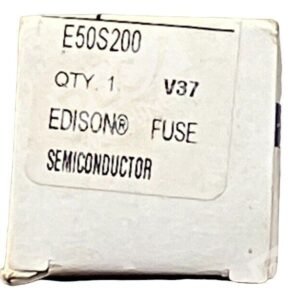

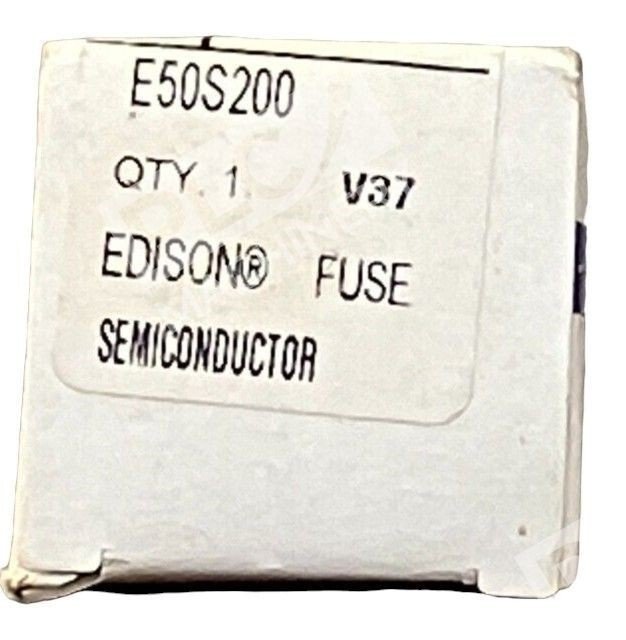

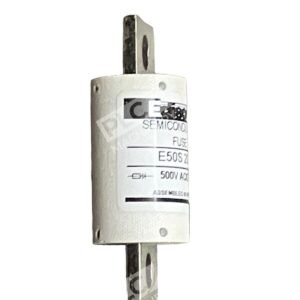

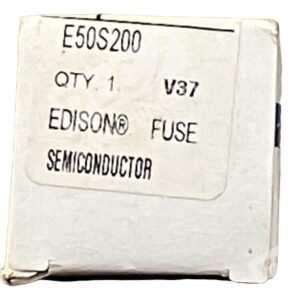

The Edison E50S 200 semiconductor fuse is a high-speed circuit protection device engineered for semiconductor and motor control applications requiring fast response times. Part of Edison’s established E50S fuse series, the 200-amp model provides reliable overload and short-circuit protection in industrial control systems. This new-in-box unit ships same-day from our Austin, TX facility.
Key Features
- 200-amp current rating for semiconductor and motor protection
- Fast-acting design responds quickly to fault conditions

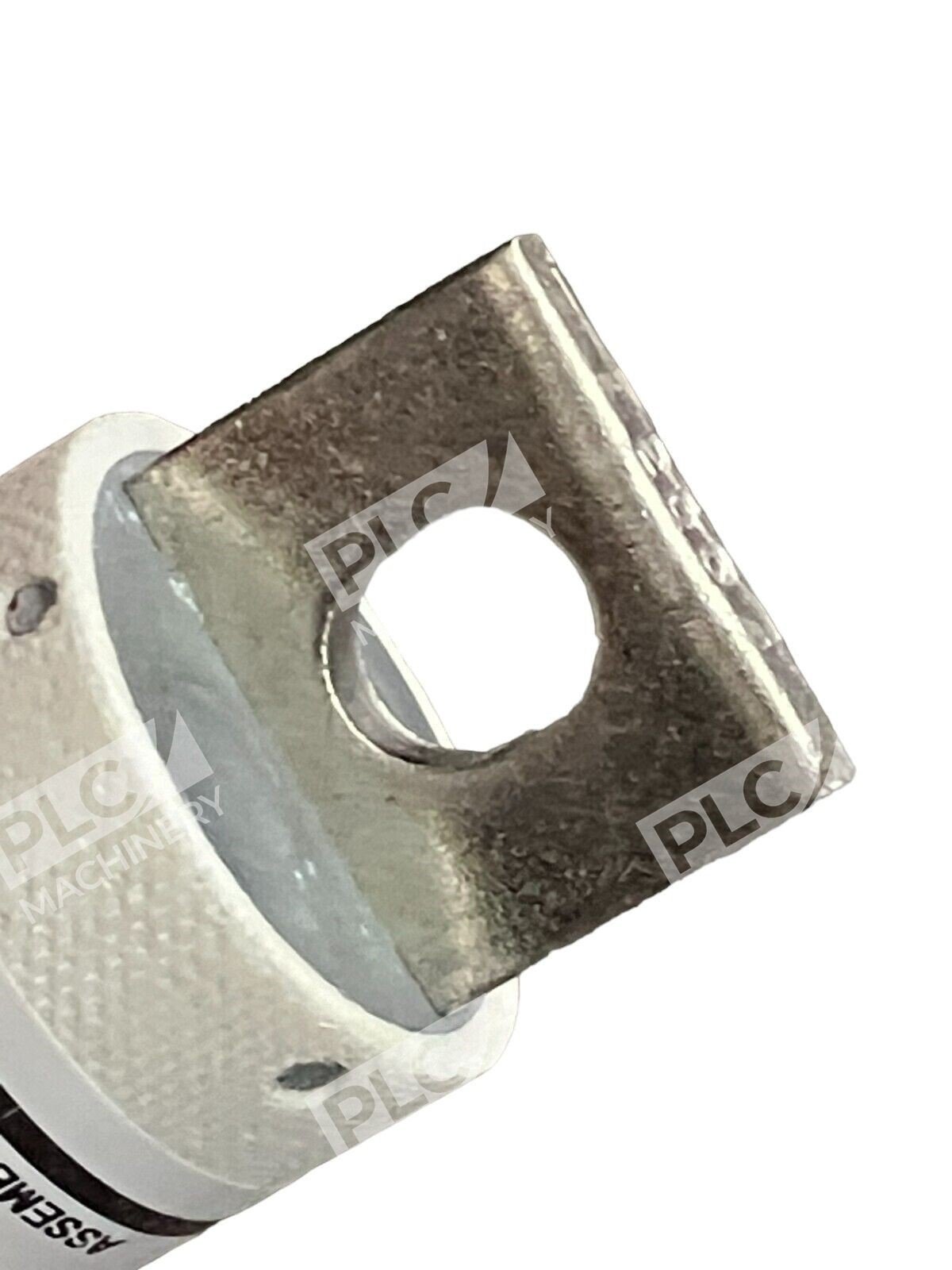

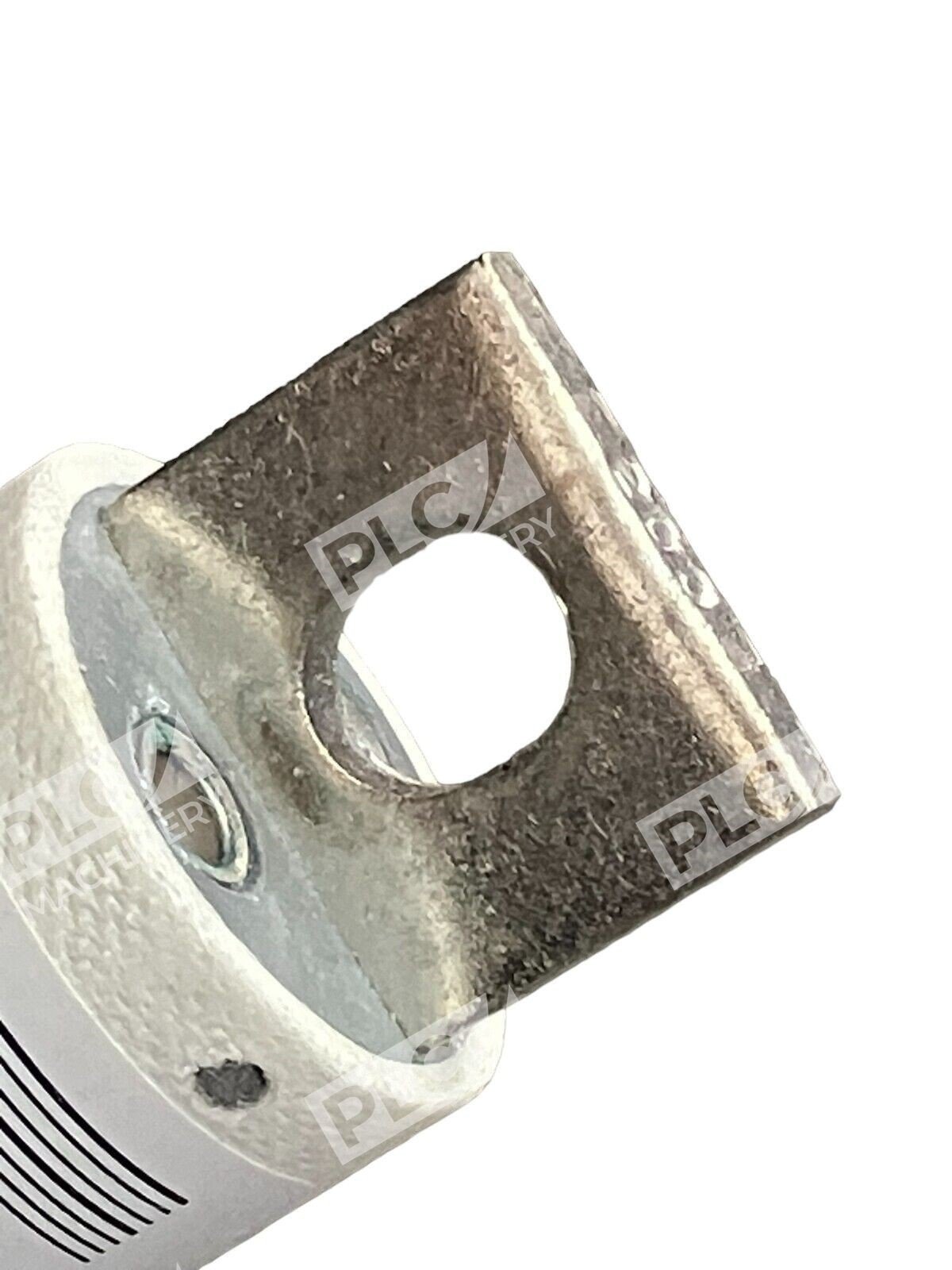

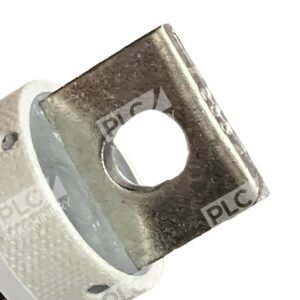

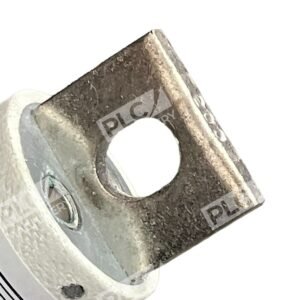

- Bolt terminal construction for secure mounting
- Blade terminal interface for standard fuse holders
- United States manufacturing with proven reliability in industrial applications
Technical Specifications
- Nominal Current Rating: 200 amperes
- Speed Classification: Fast-acting
- Mounting Style: Bolt terminal
- Terminal Type: Blade
- Voltage Rating: 500V AC/DC typical for E50S series
- Primary Application: Semiconductor and motor control circuits
Typical Applications
- Semiconductor equipment protection circuits
- Industrial motor control systems
- Power distribution panels requiring fast-response fusing
- Machinery and drive circuit protection
- OEM equipment integration and replacement
Compatibility & Replacements
Compatible With
- E50S fuse holders and blocks rated 200A or higher
- Industrial control panels and power distribution equipment
- Standard bolt-terminal fuse receptacles
- Semiconductor equipment manufacturers’ OEM specifications
Replaces / Drop-In Replacement For
- Edison E50S 200 (direct replacement in same footprint)
- Verify compatibility with your system integrator before ordering if substituting from different fuse series
Works With
- Fuse holders designed for bolt-terminal, blade-end fuses
- Power distribution systems using 500V AC/DC ratings
- Standard industrial fusing frameworks and panel mounts
