Overview

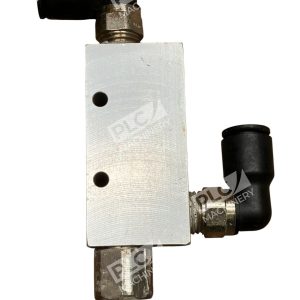

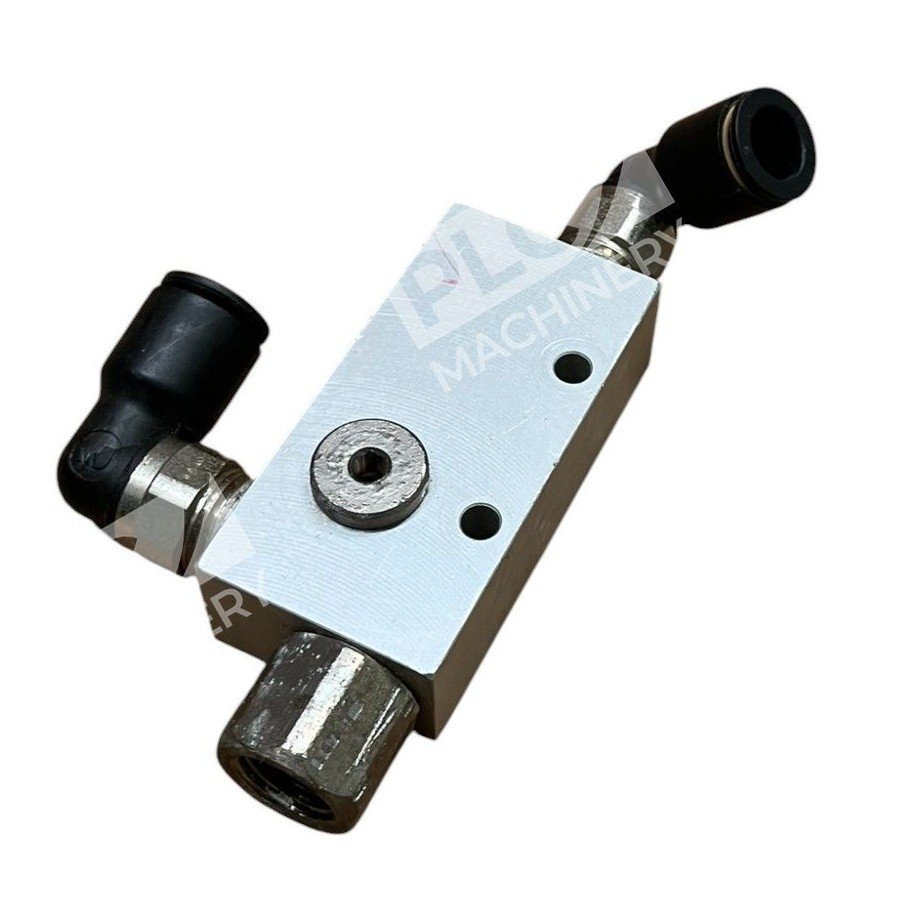

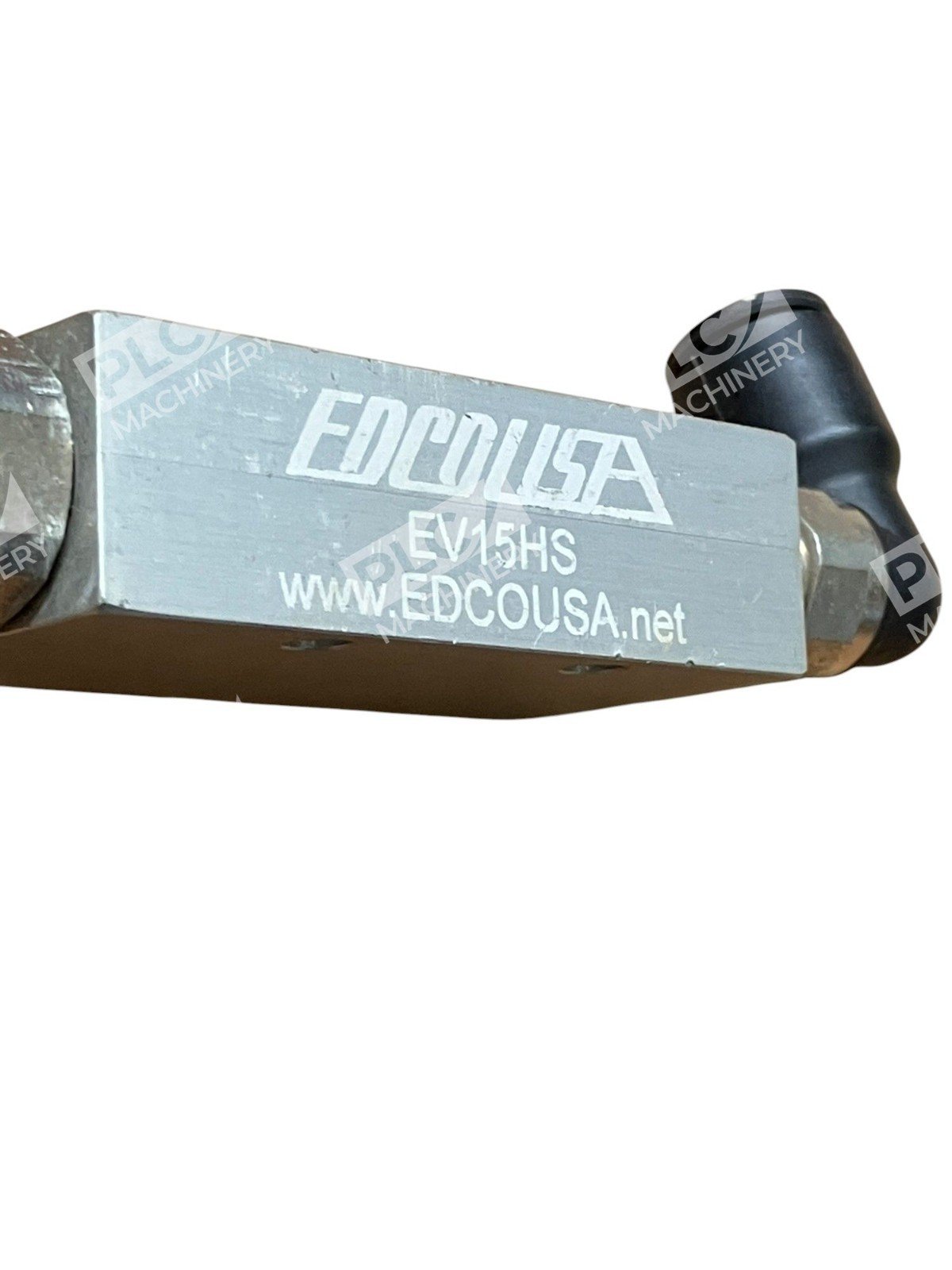

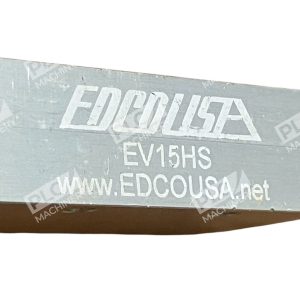

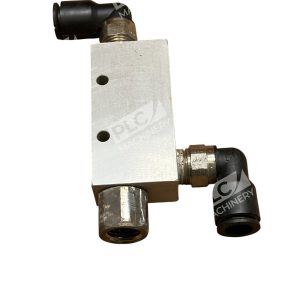

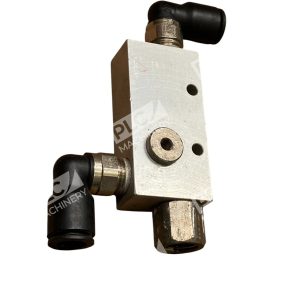

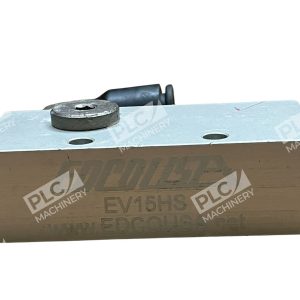

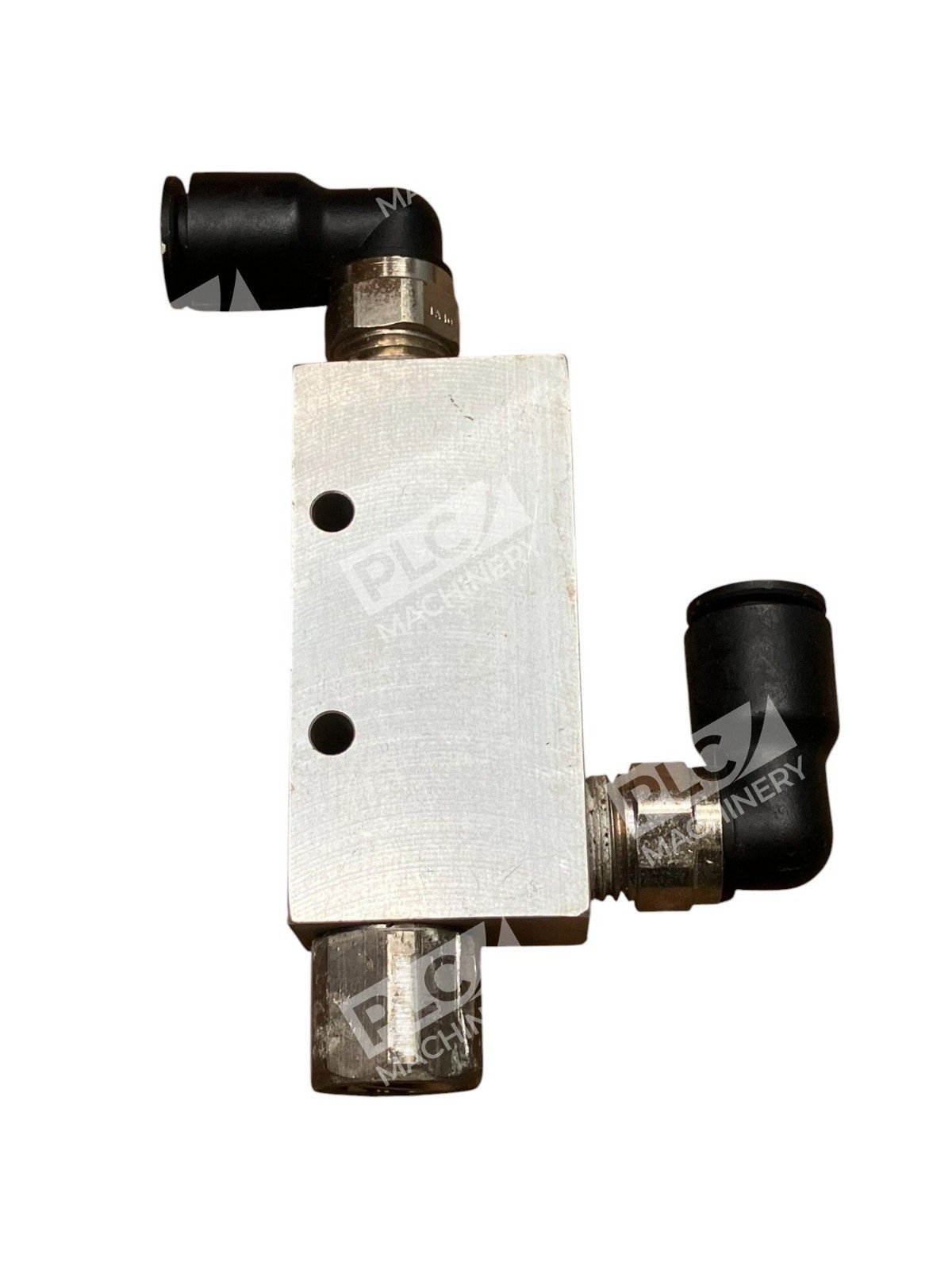

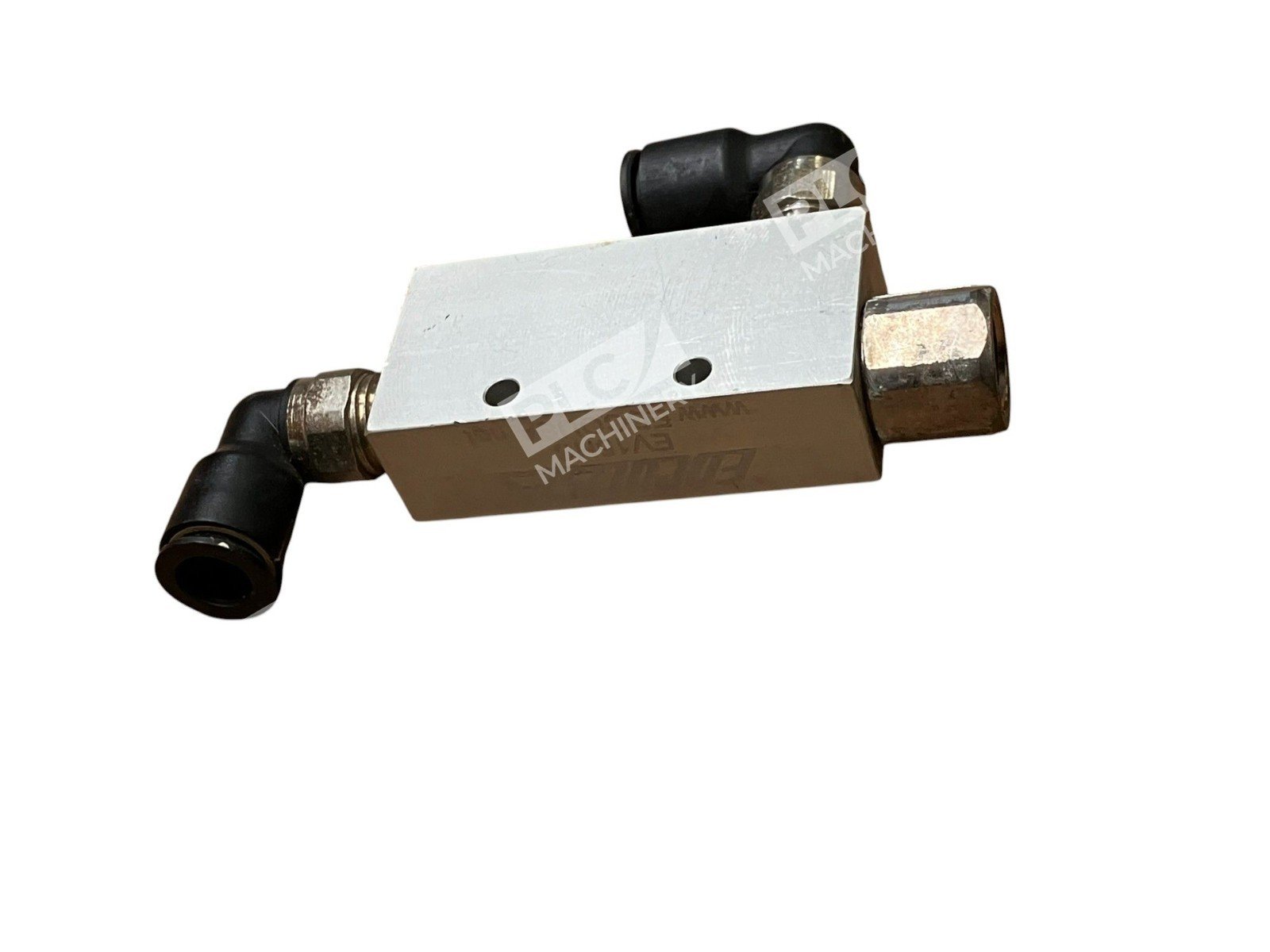

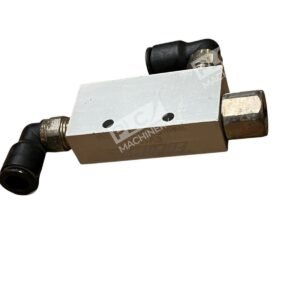

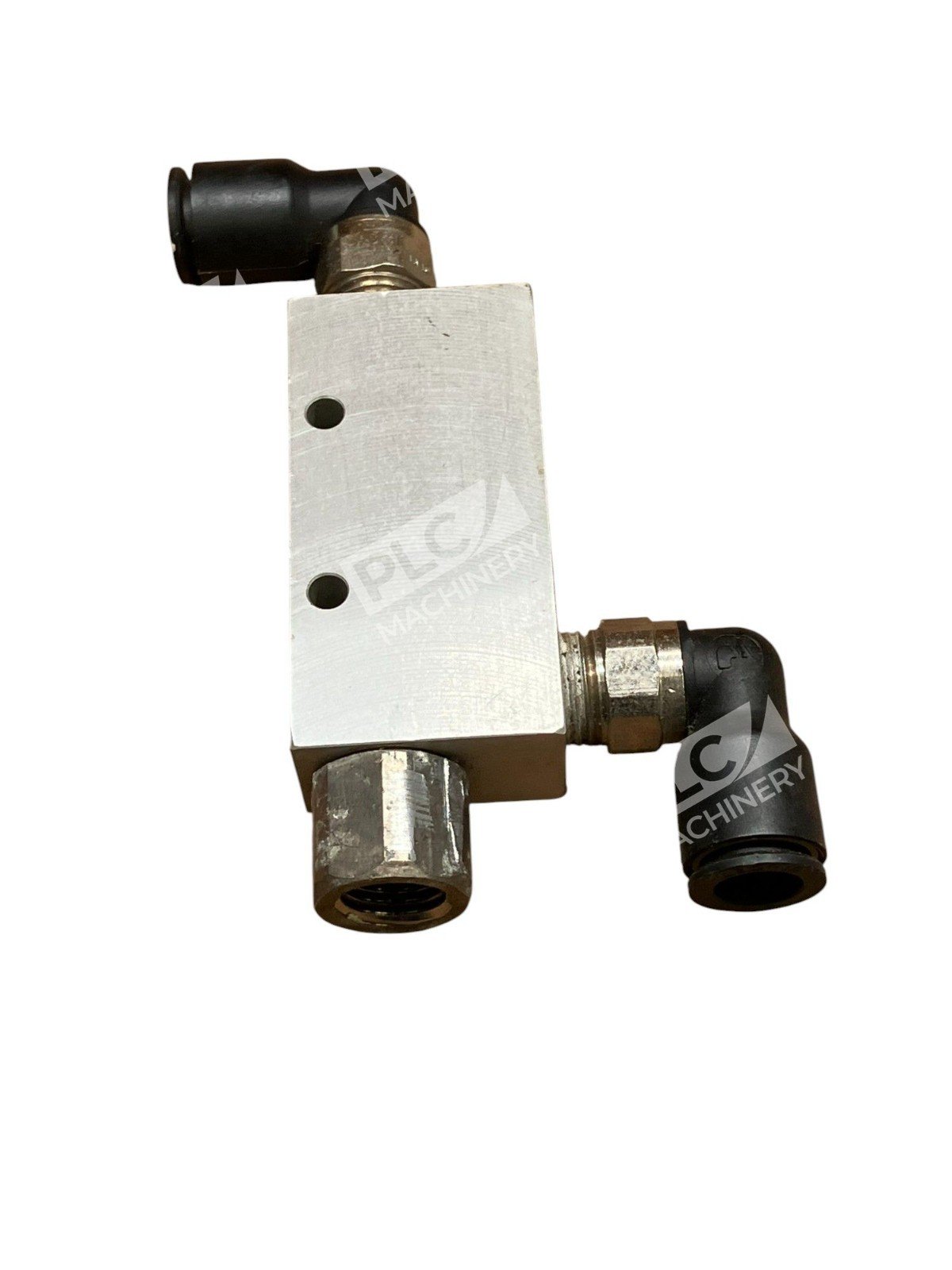

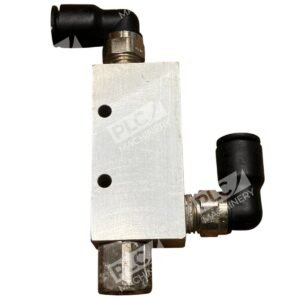

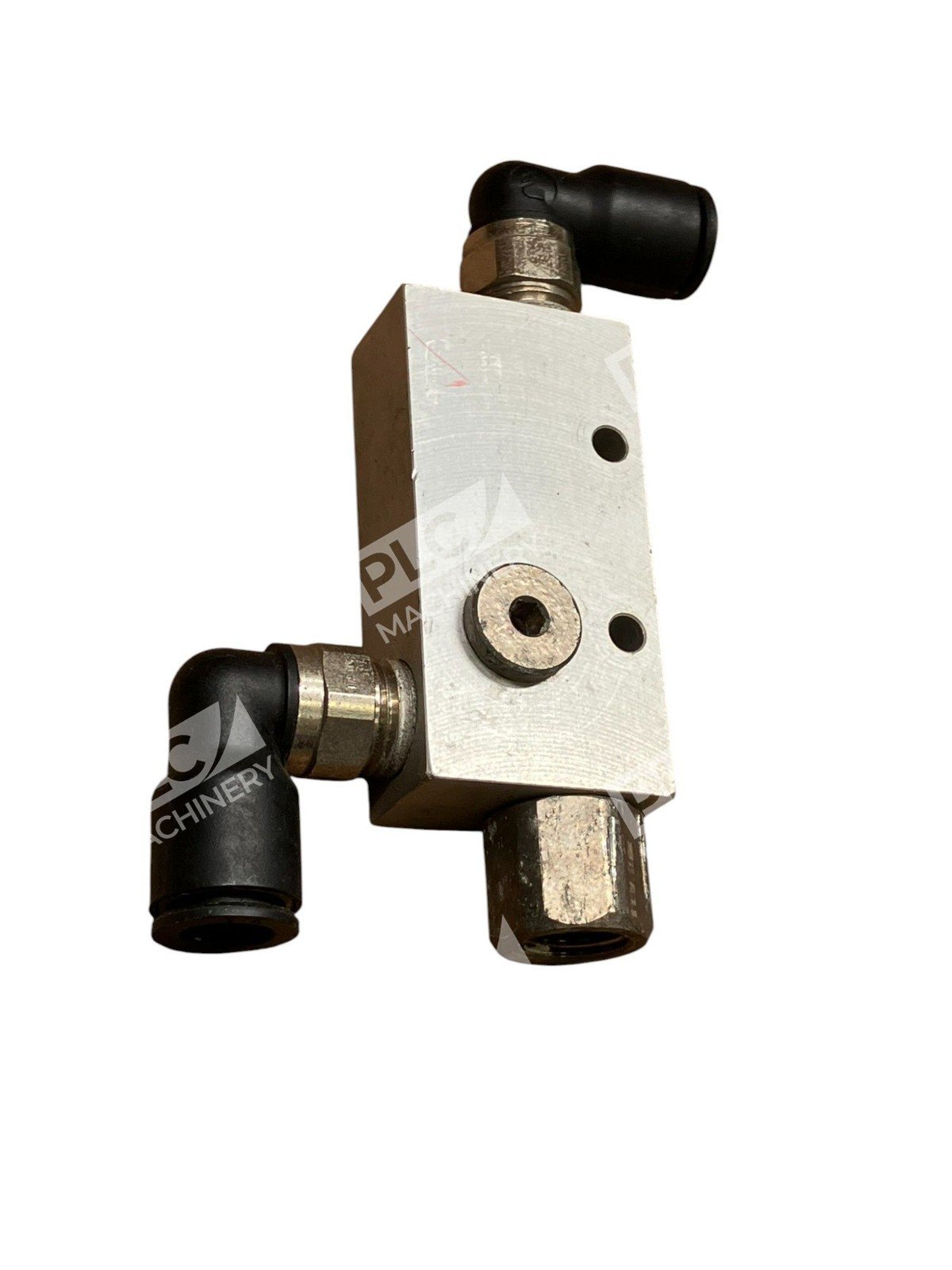

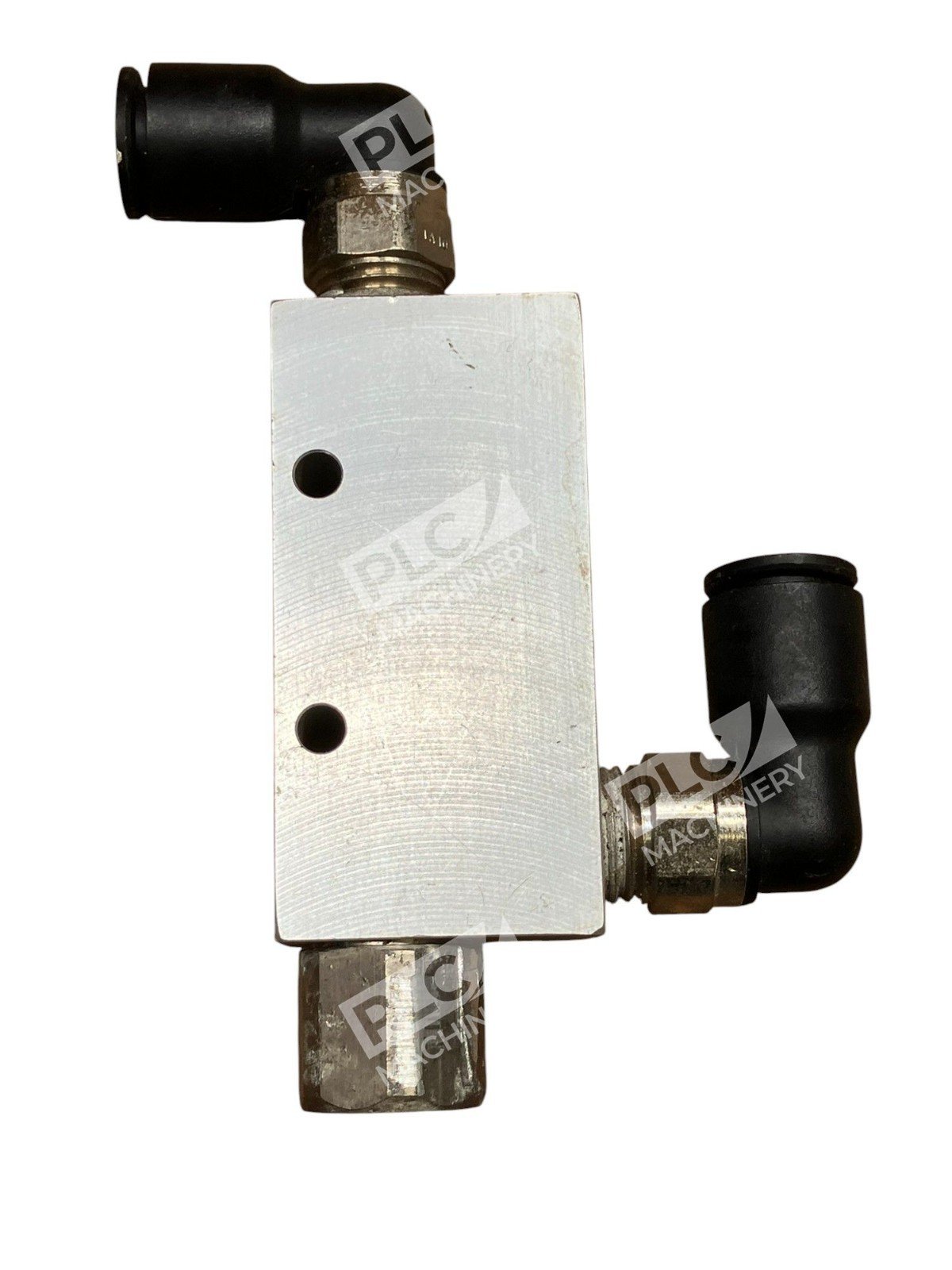

The EDCO EV15HS is a single-stage vacuum pump engineered for material handling and automation applications. This compact vacuum pump combines economical operation with robust all-metal construction, making it ideal for pick-and-place, packaging, and vacuum-cup-based material transfer systems.
Key Features
- Single-stage ejector design for instantaneous vacuum response
- Anodized aluminum body with electroless-nickel plated nozzle for corrosion resistance
- Auxiliary vacuum port (G 1/8 NPSF) for easy gauge, switch, or blow-off circuit installation
- No-clog, flow-through design tolerates paper fibers and debris ingestion
- Optional ST straight-through silencer for debris-heavy environments
- Lightweight and compact for space-constrained installations
Technical Specifications

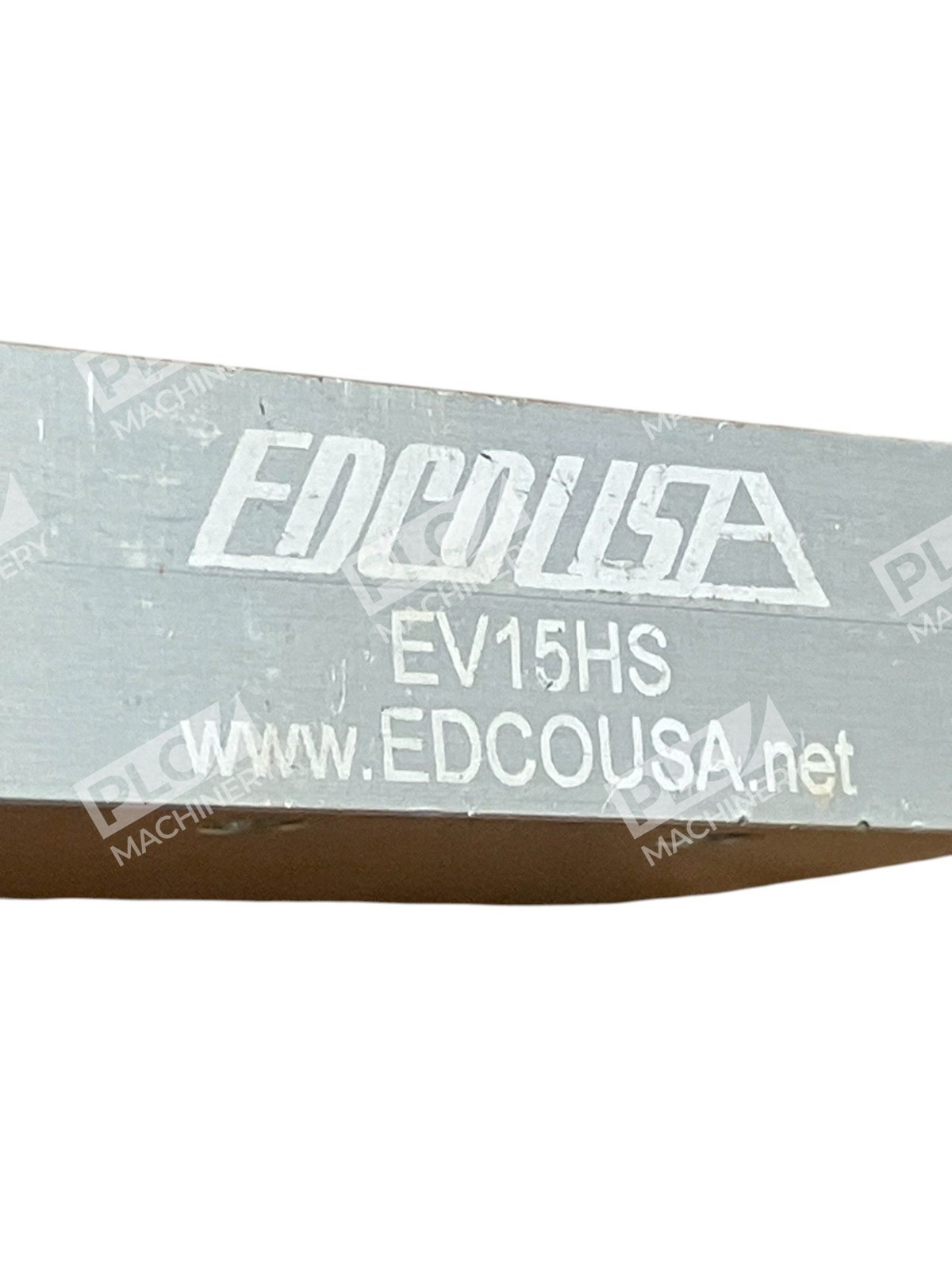

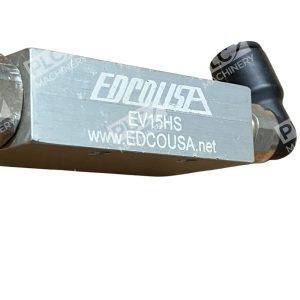

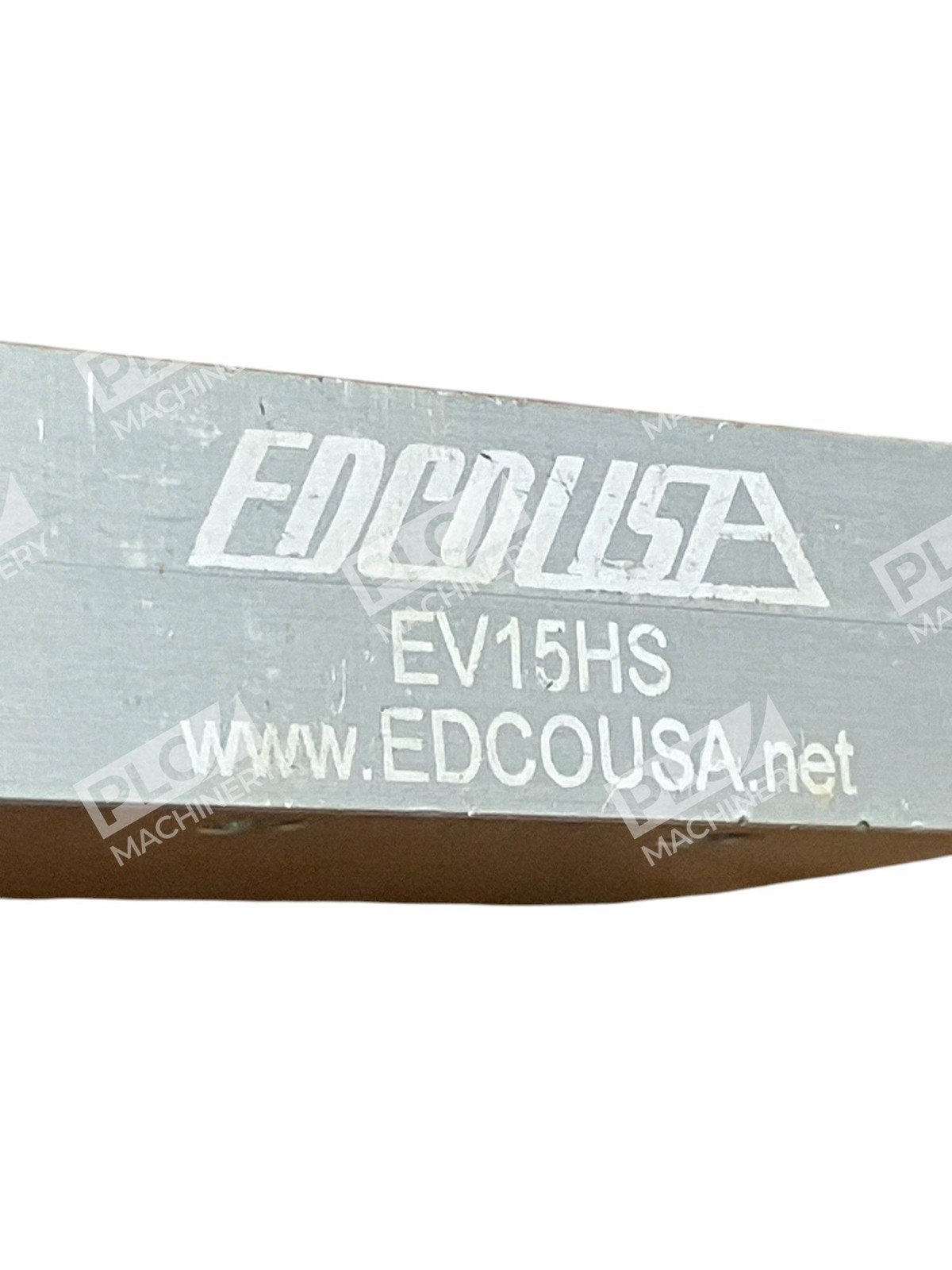

- Model Number: EV15HS
- Pump Type: Single-stage vacuum ejector
- Construction Material: Anodized aluminum body; electroless-nickel plated nozzle
- Primary Ports: 1/4 NPTF (air supply and vacuum)
- Auxiliary Port: G 1/8 NPSF (vacuum)
- Weight: 0.20 lbs
- Design: Two-piece construction with integral base
Typical Applications
The EDCO EV15HS serves a wide range of industrial automation and material handling roles:
- Pick-and-place systems and robotic end-effectors
- Packaging and labeling machinery
- Paper and document handling equipment
- Sheet feeding and material transfer
- Suction-cup-based material conveyance
- Systems requiring quick, responsive vacuum generation
Compatibility & Replacements
Compatible With
- Pneumatic air-supply systems (1/4 NPTF connections)
- Vacuum gauges and pressure switches (via G 1/8 NPSF auxiliary port)
- Blow-off circuits and solenoid-controlled vacuum relief
- Standard suction cups and vacuum pads
- Custom vacuum manifold systems (ejector cartridge variants available)
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The EV15HS is commonly used as a replacement for obsolete single-stage vacuum ejectors in legacy pick-and-place and material-handling equipment.
Works With
- Pneumatic control systems (pilot-operated and solenoid-controlled variants available)
- Vacuum sensing equipment and digital pressure transducers
- Optional ST straight-through silencer for exhaust noise reduction
- Manifold-mounted configurations with integral bases or cartridge integration
