Overview

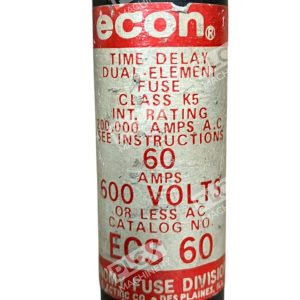

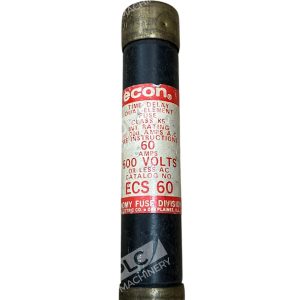

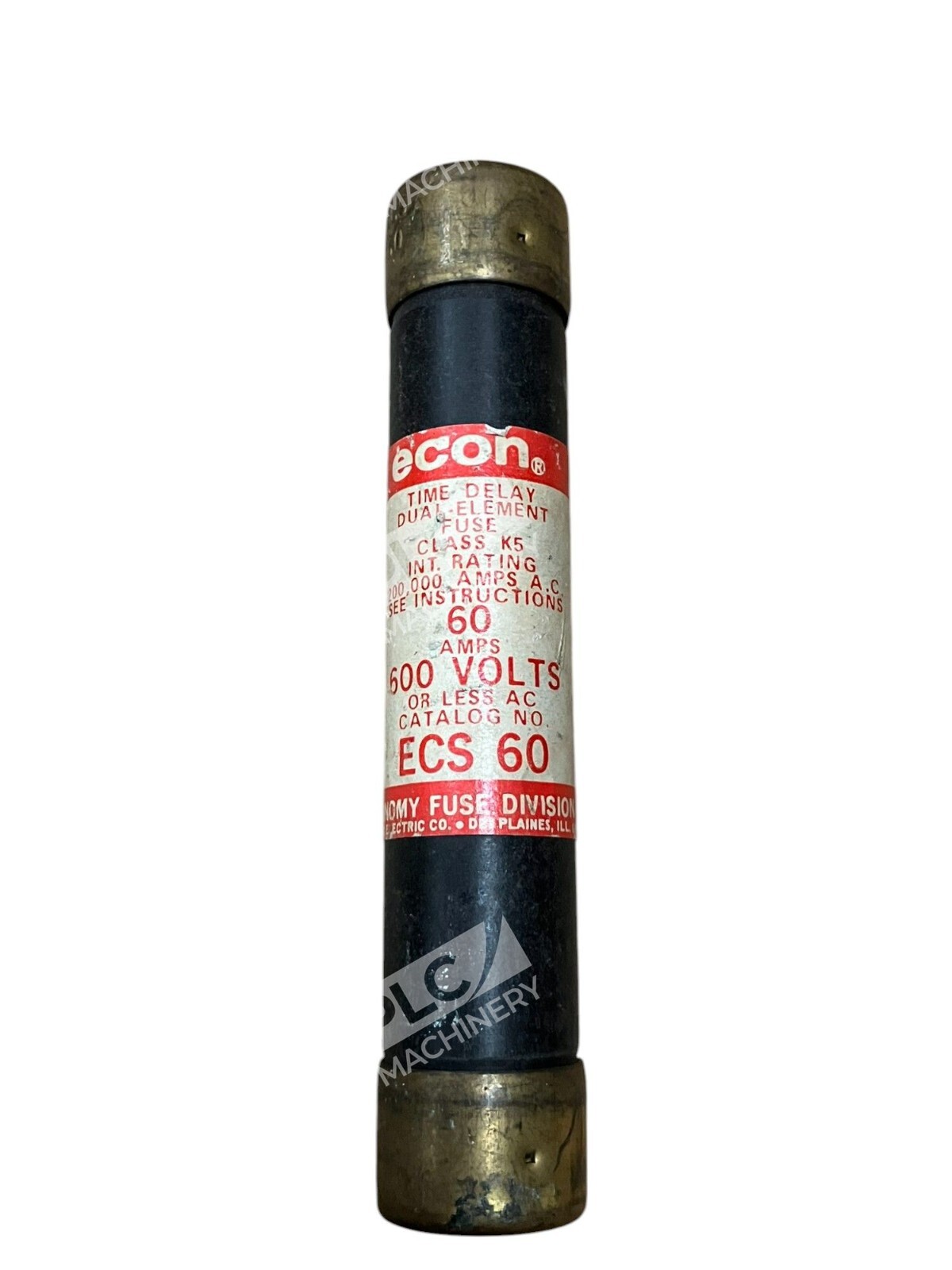

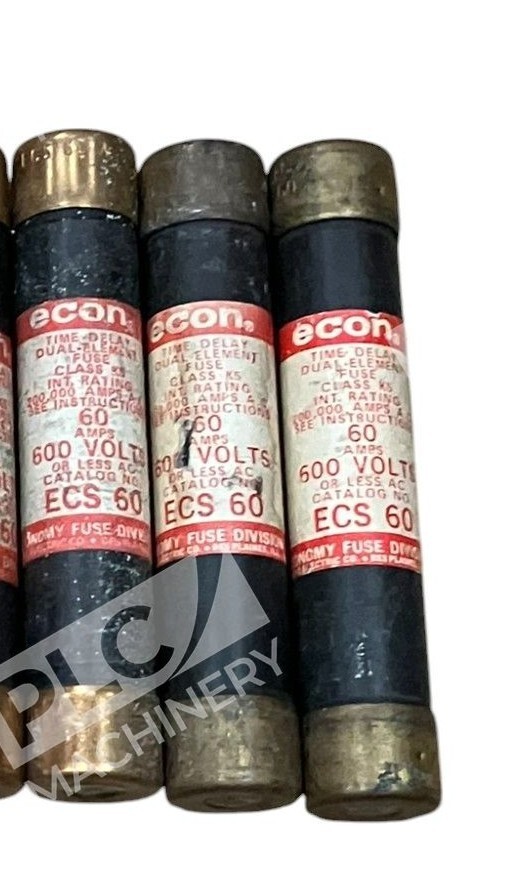

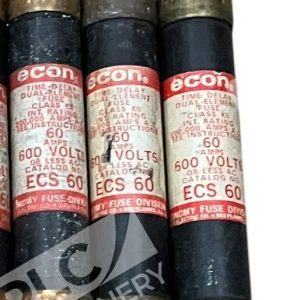

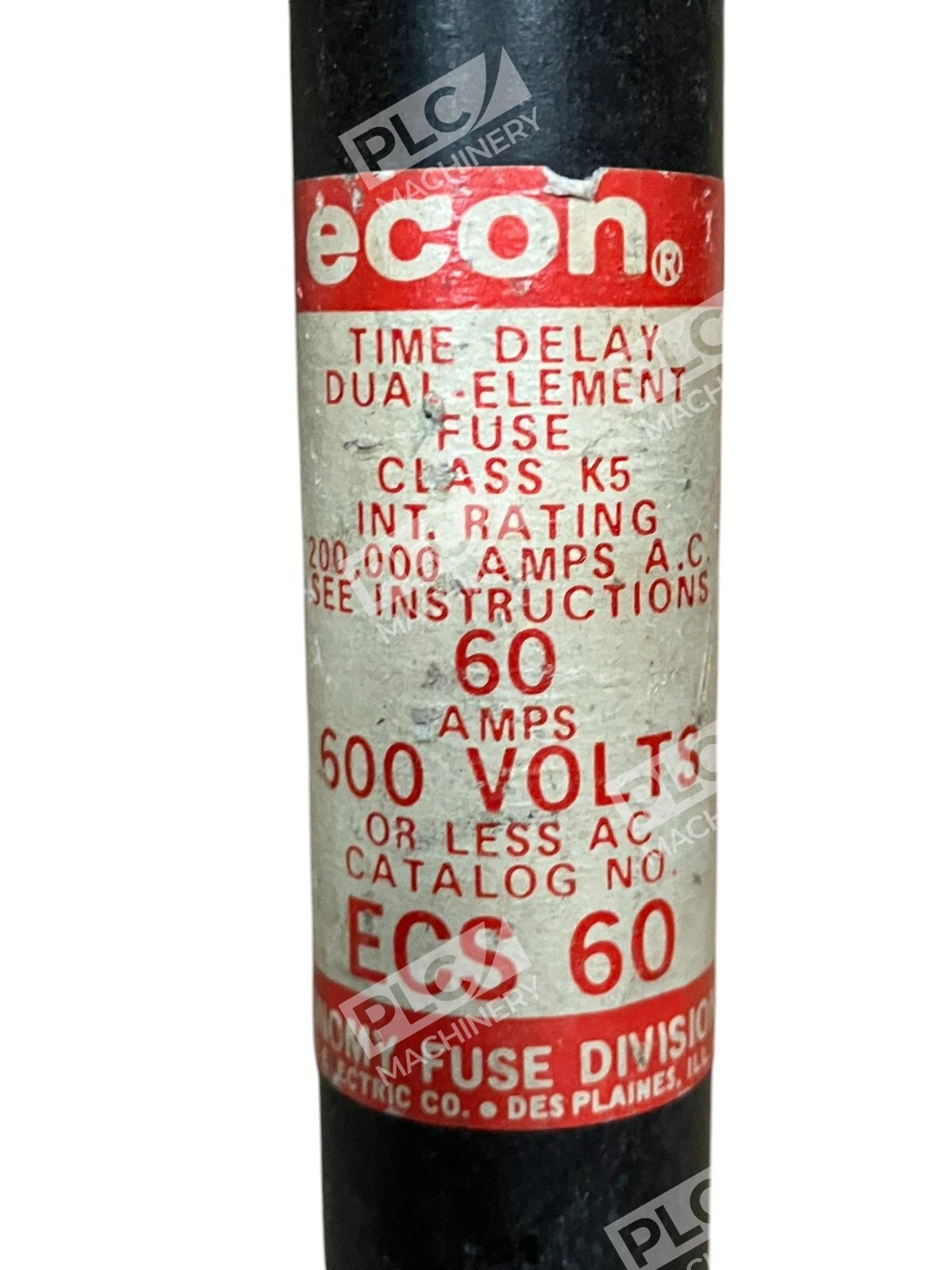

The Econ ECS60 is a time delay, dual element, Class K5 cartridge fuse rated 60A at 600VAC. Engineered for motor circuit protection and general branch circuit applications, this fuse combines proven dual-element technology with a 200,000 Amp interrupt rating to deliver dependable overload and short-circuit protection in industrial environments.
Key Features
- Time delay dual-element design reduces nuisance trips on motor inrush
- Class K5 current limiting fuse prevents damage to equipment during faults
- 200,000 Amp interrupt capacity meets standard industrial requirements
- Cylindrical ferrule body, 5.5″ length, 1.06″ diameter for standard fuse holders
- UL listed and made in the USA
Technical Specifications
- Part Number: ECS-60 / ECS60
- Ampere Rating: 60A
- Voltage Rating: 600VAC
- Fuse Class: K5 (Time Delay)
- Interrupt Rating: 200,000 Amps AC
- Body Style: Cylindrical Cartridge
- Overall Length: 5.5 inches
- Diameter: 1.06 inches
- Connection Type: Ferrule End
- Element Type: Dual Element
- UL Standard: 248-8
Typical Applications
- AC motor branch circuit protection
- Industrial control panel protection
- General purpose circuit protection rated up to 60A
- HVAC and mechanical systems requiring time delay protection
Compatibility & Replacements
Compatible With
- Standard ferrule fuse holders rated for 600VAC Class K5 fuses
- Industrial control panels with 60A branch circuits
- Motor starter circuits and disconnect switches
- Three-phase 480V and 600V distribution systems
Replaces / Drop-In Replacement For
- Econ ECS-60 (original part number variant)
- Federal Pacific ECS60
- Older economy-grade Class K5 60A time delay fuses
Works With
- Standard cylindrical fuse holders and clips
- Class K5 fuse sockets and push-in cartridge blocks
- IEC 60751 compliant industrial control equipment
- UL 248-8 rated electrical distribution panels
