Overview

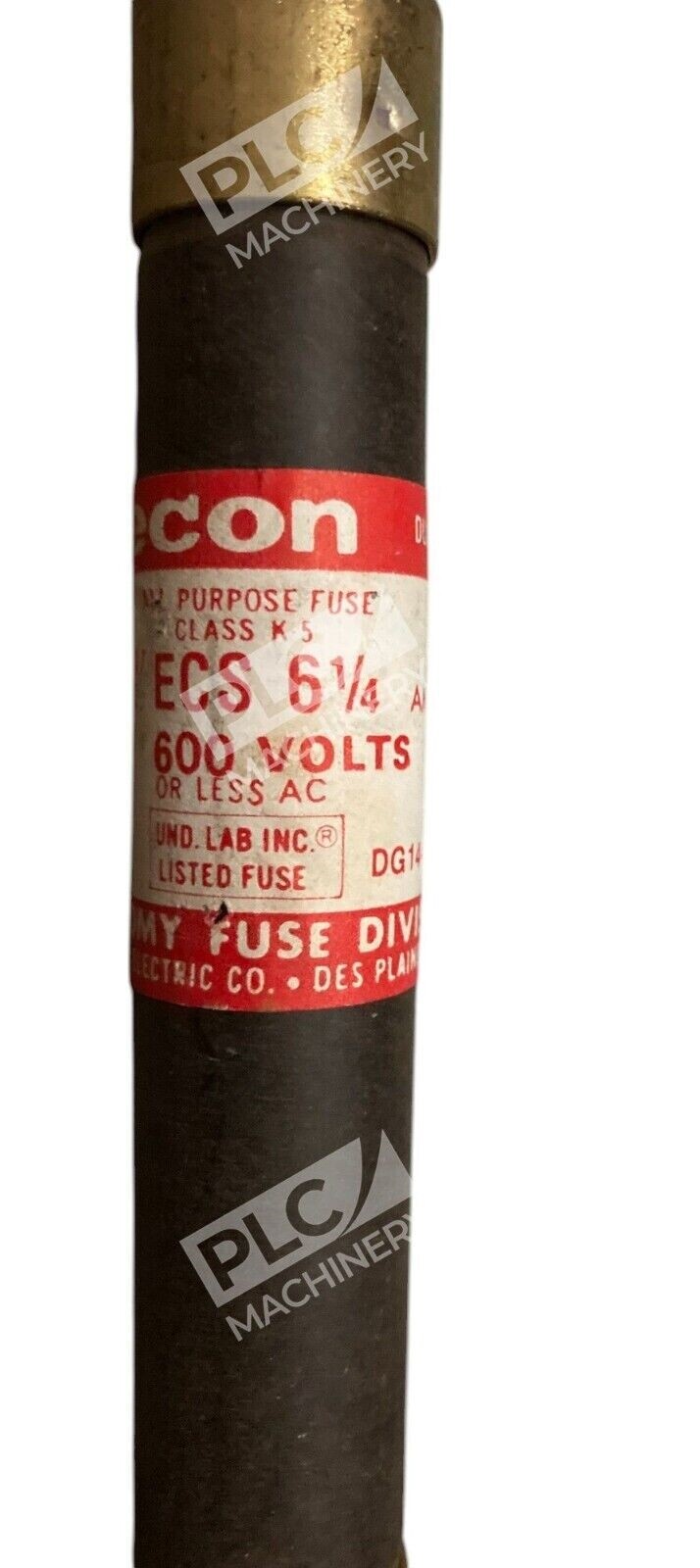

The Econ ECS-6-1/4 is a Class K-5 all-purpose fuse designed for 600VAC electrical systems rated at 6.25A. As a dual-element time-delay fuse, it provides reliable overcurrent protection while accommodating transient inrush currents common in motor and transformer circuits. The ECS series offers cost-effective protection for industrial control panels, distribution boards, and general-purpose electrical equipment.
Key Features
- Class K-5 design for industrial and commercial applications
- Dual-element, time-delay technology reduces nuisance trips
- 600VAC voltage rating suitable for standard three-phase and single-phase systems
- 6.25A current rating for circuits requiring moderate overcurrent protection
- All-purpose construction compatible with standard fuse holders
- Economical alternative to premium fuse brands
Technical Specifications
The ECS-6-1/4 meets industry standards for cartridge fuses used in motor control centers and distribution equipment:
- Voltage Rating: 600VAC
- Current Rating: 6.25A
- Fuse Class: Class K-5
- Type: Dual-element, time-delay
- Applications: General overcurrent protection, motor circuits, transformer protection
Typical Applications
The Econ ECS-6-1/4 is suitable for:
- Motor starter circuits requiring time-delay protection
- Transformer inrush current protection
- Industrial control panel branch circuits
- Commercial electrical distribution equipment
- HVAC and pump motor circuits
Compatibility & Replacements
Compatible With
- Standard Class K-5 600VAC fuse holders and clips
- Motor control centers and industrial panels
- Distribution boards rated 600VAC
- General industrial electrical equipment
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The ECS-6-1/4 is designed as an economical alternative to premium fuses in the same amperage and voltage class.
Works With
- 600VAC single-phase and three-phase electrical systems
- Motor control circuits with typical inrush loads
- Transformer protection applications
- Standard UL/CSA-certified electrical enclosures
