Overview

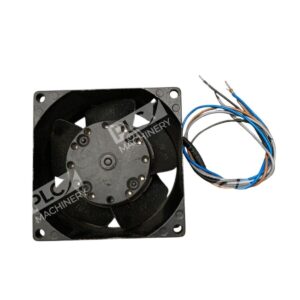

The EBM Papst W2S076-AO01-67 is an industrial-grade axial case fan engineered for reliable thermal management in electrical cabinets, drives, and equipment housings. Part of the proven W2S076 series, this fan combines efficient cooling performance with durable ball-bearing construction suited for continuous industrial operation.
Key Features
- Compact 80 mm square footprint with 38 mm depth for tight installations
- Ball bearing motor for extended service life in industrial environments
- Low power consumption ideal for control cabinet applications
- Standard 50/60 Hz dual-frequency operation
- Proven design used across industrial automation, electrical enclosures, and UPS systems
Technical Specifications

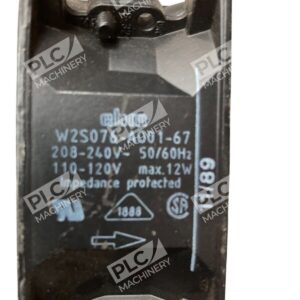

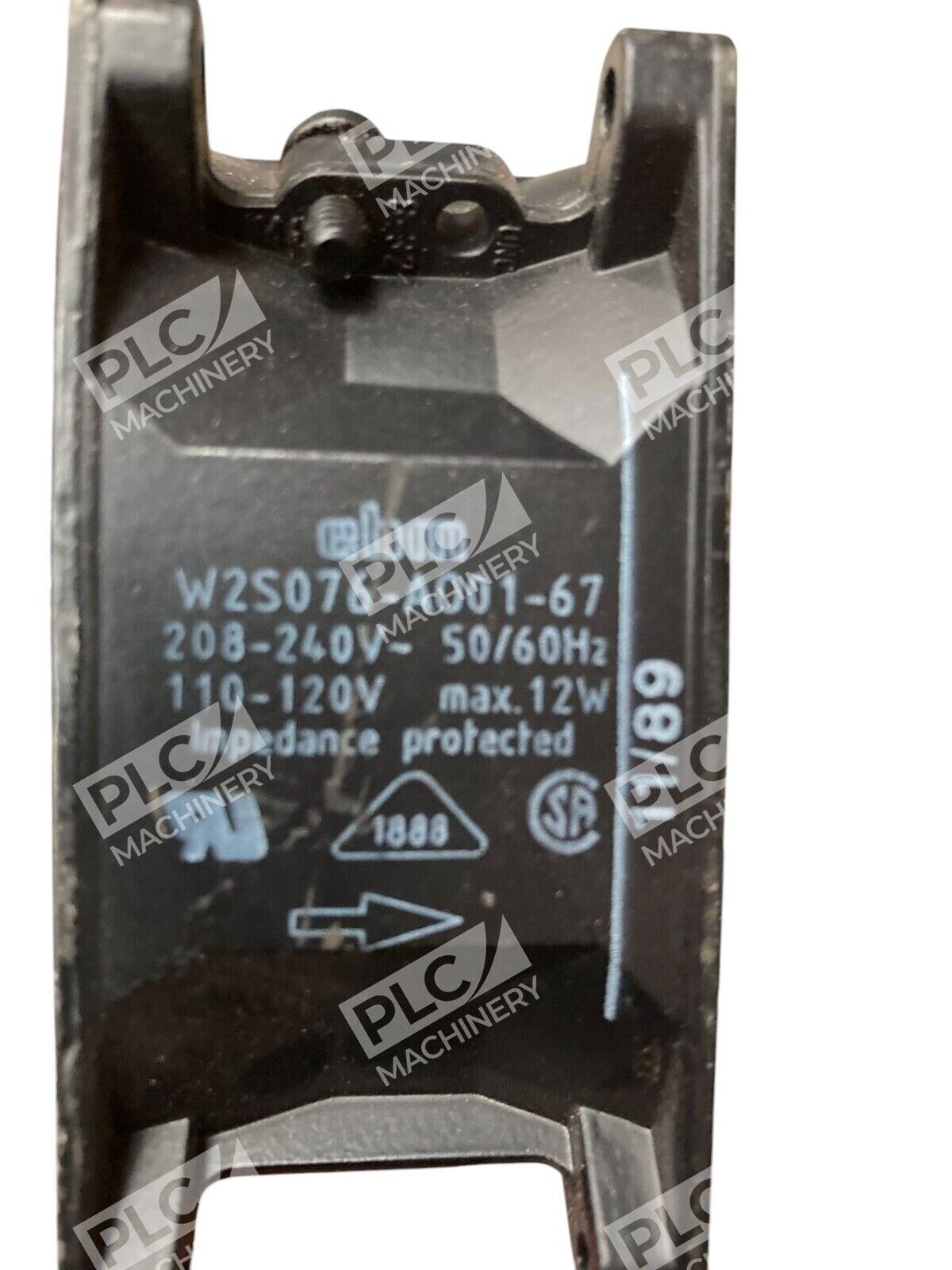

Standard power consumption for the W2S076 series is 12W. The AO01-67 suffix indicates this unit’s specific voltage and wiring configuration. For exact voltage rating (110-120V, 208-240V, or 220V) and wire count, verify the unit’s nameplate or contact your system integrator before installation. All units operate at 50/60 Hz.
Typical Applications
- Electrical control cabinet and enclosure cooling
- PLC and servo drive thermal management
- UPS and power supply equipment ventilation
- Industrial machinery cabinet ventilation
- Electronics cooling in harsh industrial environments
Compatibility & Replacements
Compatible With
- Standard DIN-rail control cabinets and enclosures
- Industrial equipment with 80 mm mounting apertures
- Retrofit cooling for PLC cabinets, drive enclosures, and power distribution units
- 50/60 Hz single-phase AC power supplies (230V, 120V, or 208-240V per unit configuration)
Replaces / Drop-In Replacement For
- Other EBM Papst W2S076 series variants with matching mounting and airflow requirements
- Legacy industrial cooling fans with 80 mm case envelope
- Verify compatibility with your system integrator before ordering to ensure correct voltage and connector configuration match your application.
Works With
- Allen-Bradley ControlLogix and CompactLogix cabinets
- Siemens S7-1200 and S7-1500 control systems
- Rockwell and Siemens servo drive enclosures
- Standard industrial 50/60 Hz AC power distribution
- Cabinet temperature monitoring and thermostat controls
