Overview

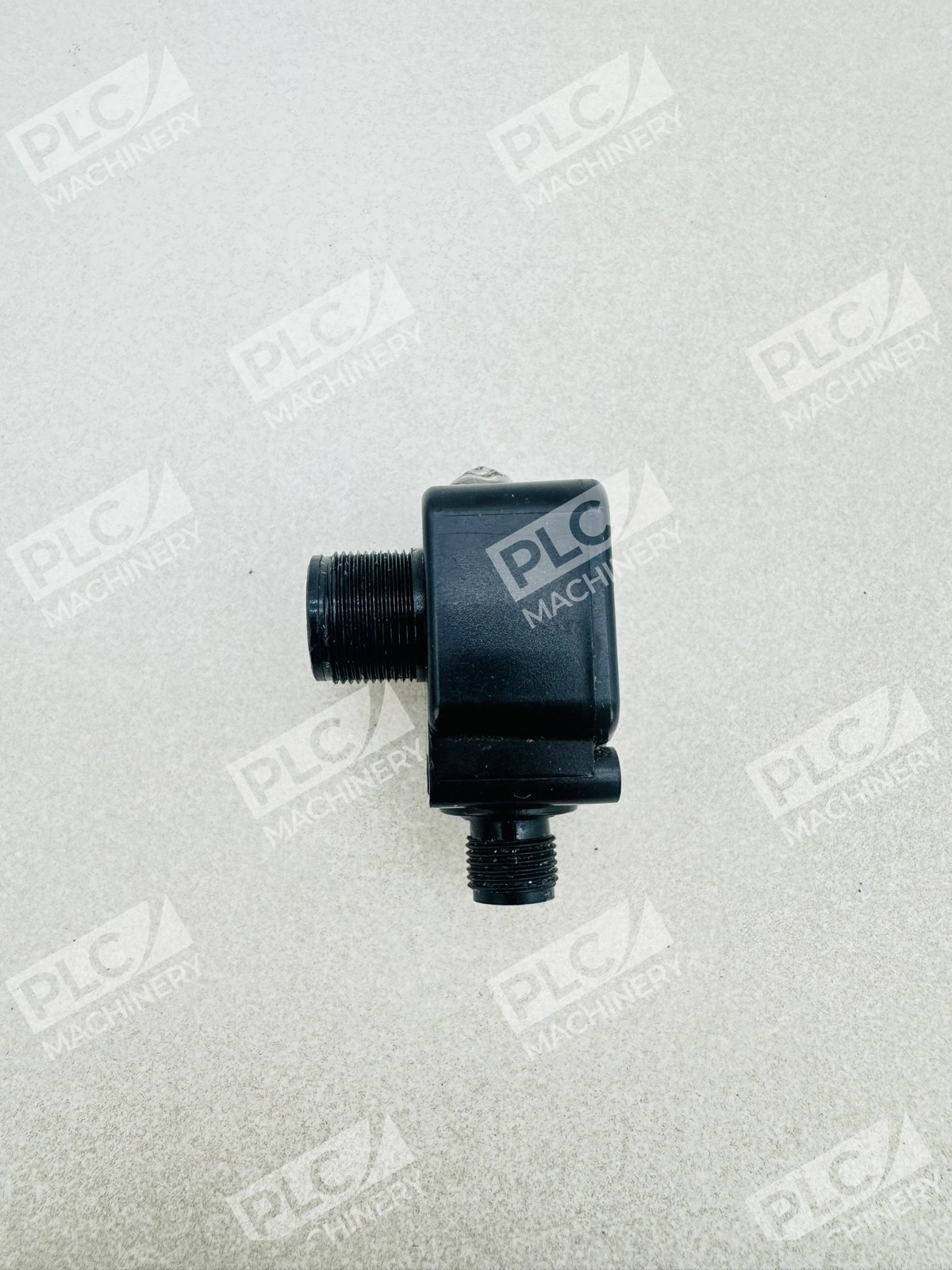

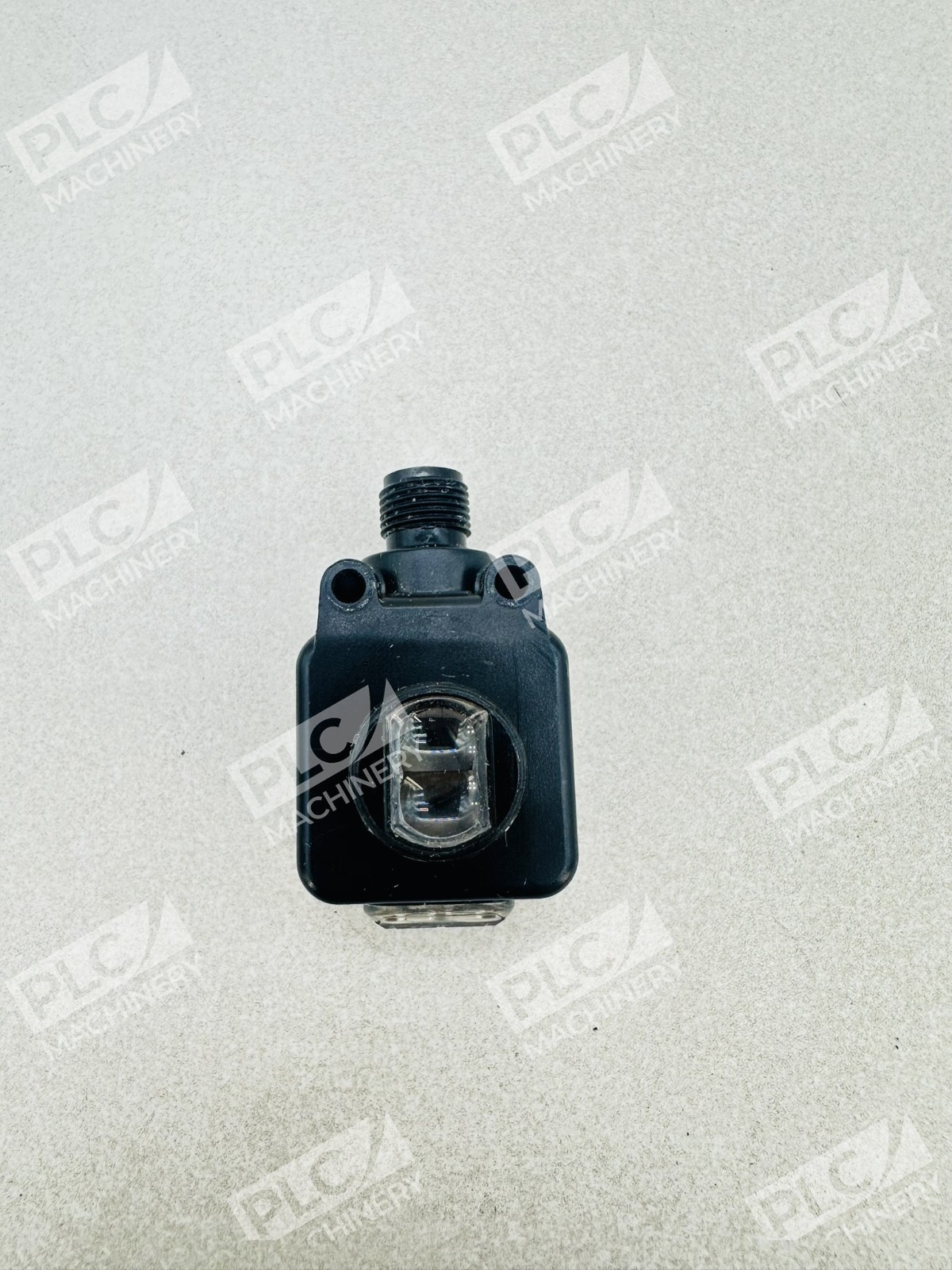

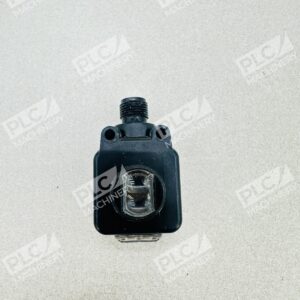

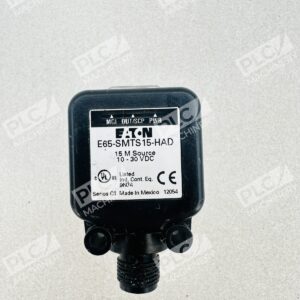

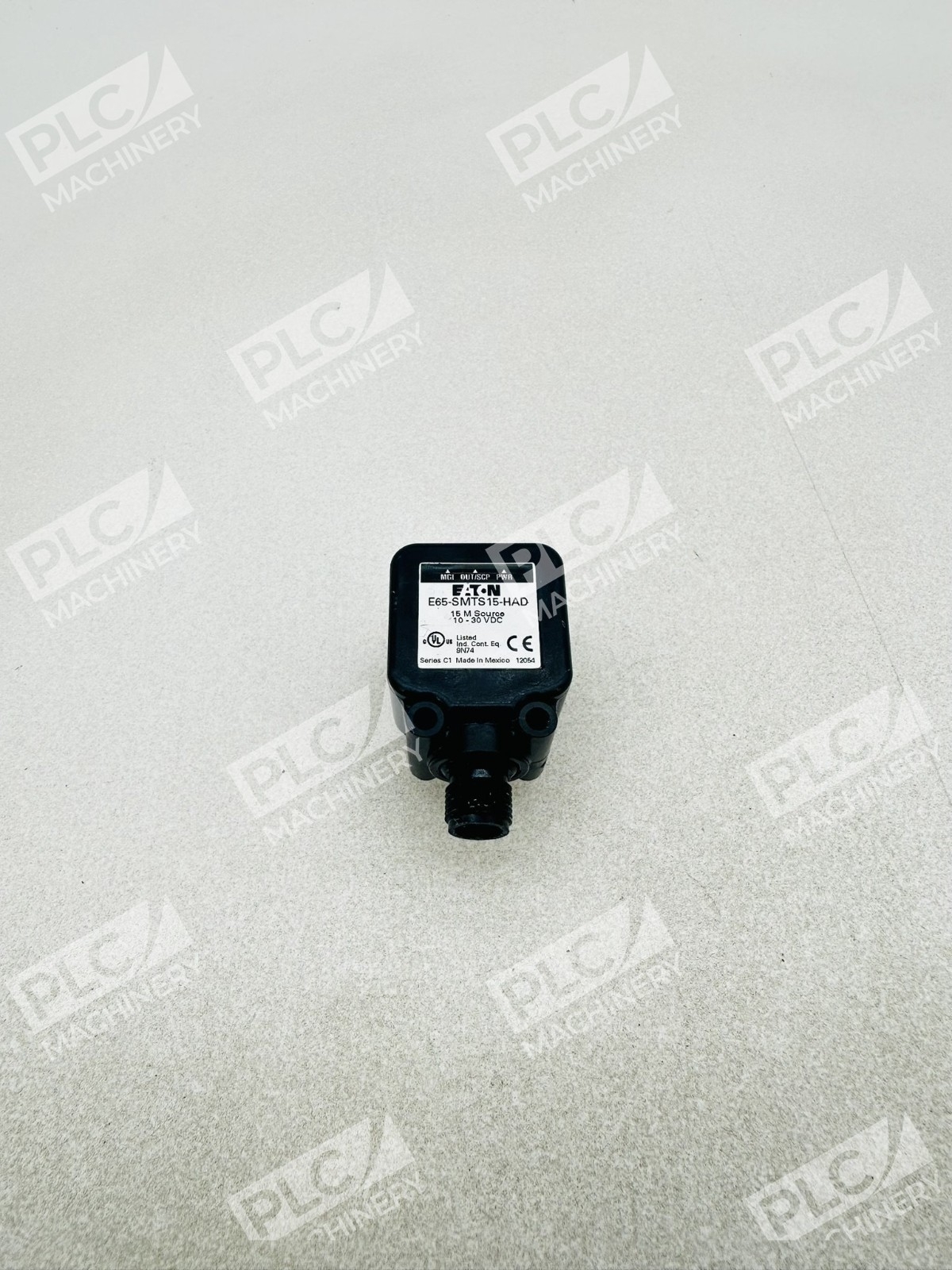

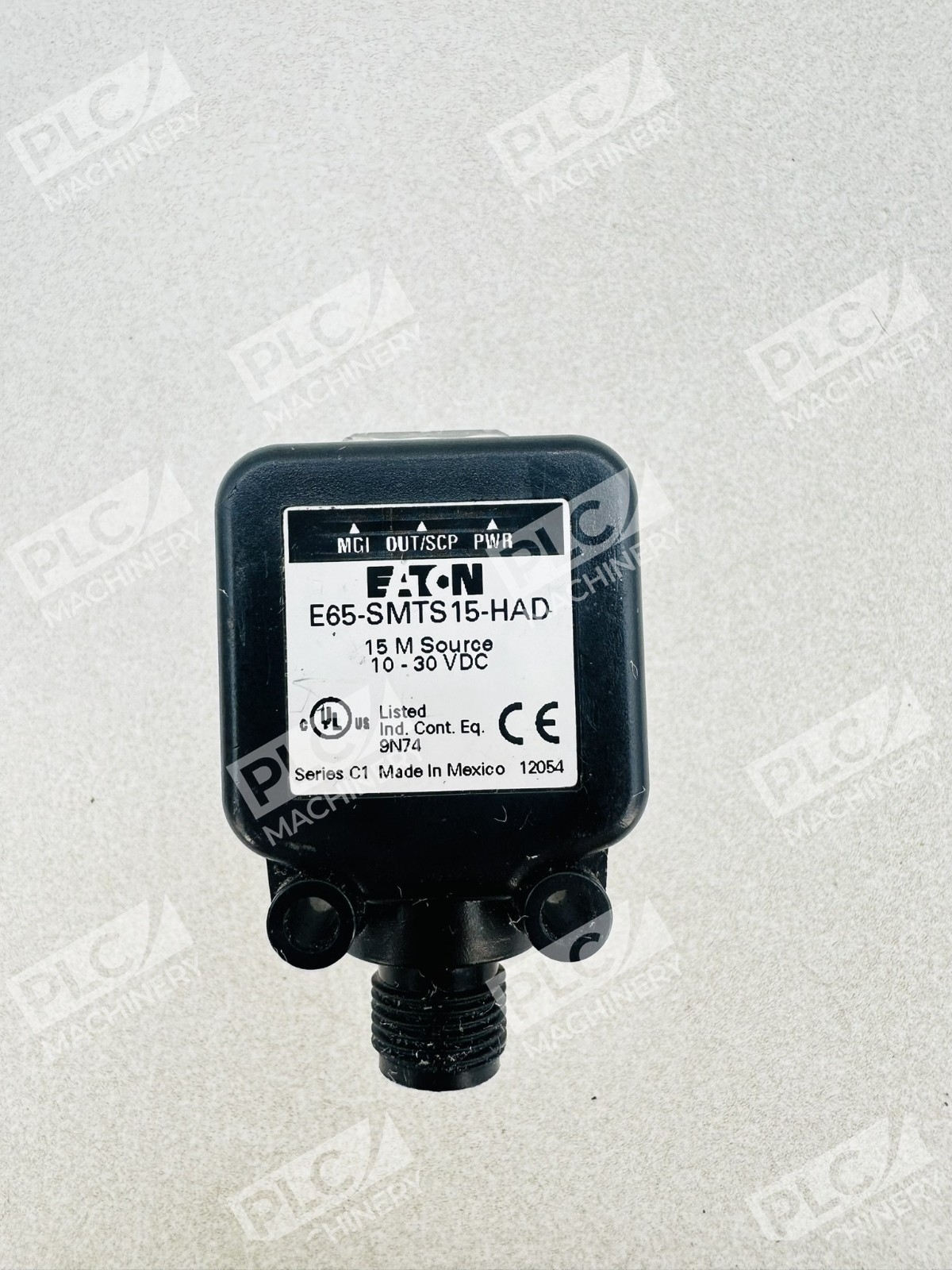

The Eaton E65-SMTS15-HAD is a thru-beam photoelectric sensor transmitter from the compact SM Series, engineered for high-reliability industrial automation and motion control. This unit delivers a 49 Ft. (15 m) sensing distance with polycarbonate lens, PVC cable jacket, and Cycoloy enclosure, operating on 10-30 VDC input through a 4-pin M12 connector. The thru-beam transmitter architecture is ideal for washdown environments and applications requiring long sensing ranges.
Key Features
- Emits visible red LED sensing beam with 660 nm wavelength and 50-foot maximum range

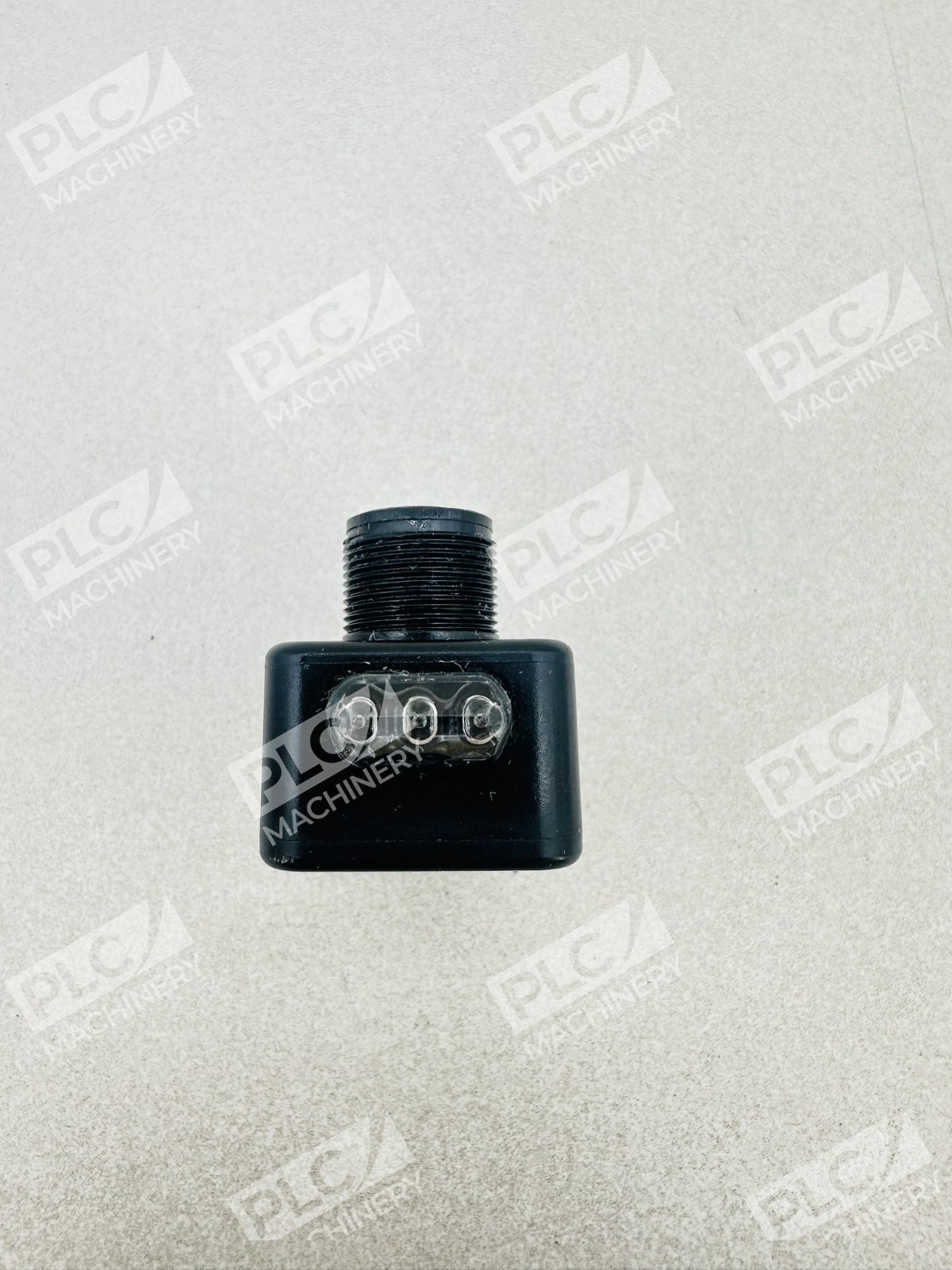

- Advanced 3-LED indicator display (power, output, and TargetLock) for quick setup and real-time operational feedback
- Bright LED indicators visible from 360°
- IP 69K rated for protection against water under pressure and dust; UL and CE compliant
- 1.0 millisecond response time and 500 Hz operating frequency for fast sensing cycles
- TargetLock LED indicates maintenance needs before sensor failure
Technical Specifications
The E65-SMTS15-HAD transmitter combines compact cylindrical construction with industrial-grade durability:
- Sensing Method: Dark operate through-beam transmitter
- Sensing Distance: Up to 15 metres
- Wavelength: 660 nm visible red LED
- Power Supply: 10-30 VDC
- Output Current: 100 mA maximum load current
- Response Time: 1.0 millisecond
- Operating Frequency: 500 Hz
- Connector Type: 4-pin micro DC-style quick-disconnect (QD) connector
- Cable: 2m cable with 4-pin micro DC connector
- Housing: Cylindrical, 18 mm diameter, 55 mm length
- Operating Temperature: -25 to +55 degrees C
- IP Rating: IP 68
- Certifications: UL Listed and CE compliant
- Circuit Type: NPN/PNP selectable
Typical Applications
The E65-SMTS15-HAD is ideal for automation applications such as manufacturing and packaging in washdown environments. Common use cases include:
- Production line object detection and counting
- Packaging machinery fill-level sensing
- Conveyor belt product presence detection
- Washdown and food processing environments
- Assembly line synchronization and positioning
Compatibility & Replacements
Compatible With
- Eaton E65 SM Series control systems
- Industrial automation platforms supporting 10-30 VDC sensor inputs
- PLC and motion control systems with NPN/PNP input modules
- M12 connector-based sensor networks
- Manufacturing execution systems (MES) and SCADA platforms
Replaces / Drop-In Replacement For
- E65-SMTS15-HA (earlier variant with different connector configuration)
- Other Eaton E65 thru-beam transmitters with matching voltage and M12 pinout
- Verify exact model compatibility with your system integrator before ordering to ensure connector and output configuration match your receiver module.
Works With
- Eaton E65 SM Series receiver modules (E65-SMRS15-HA, E65-SMRS15-HAD)
- Standard M12 A-coded connectors and extension cables
- PLC input cards supporting NPN and PNP logic circuits
- Motion control and industrial Ethernet gateways
