Overview

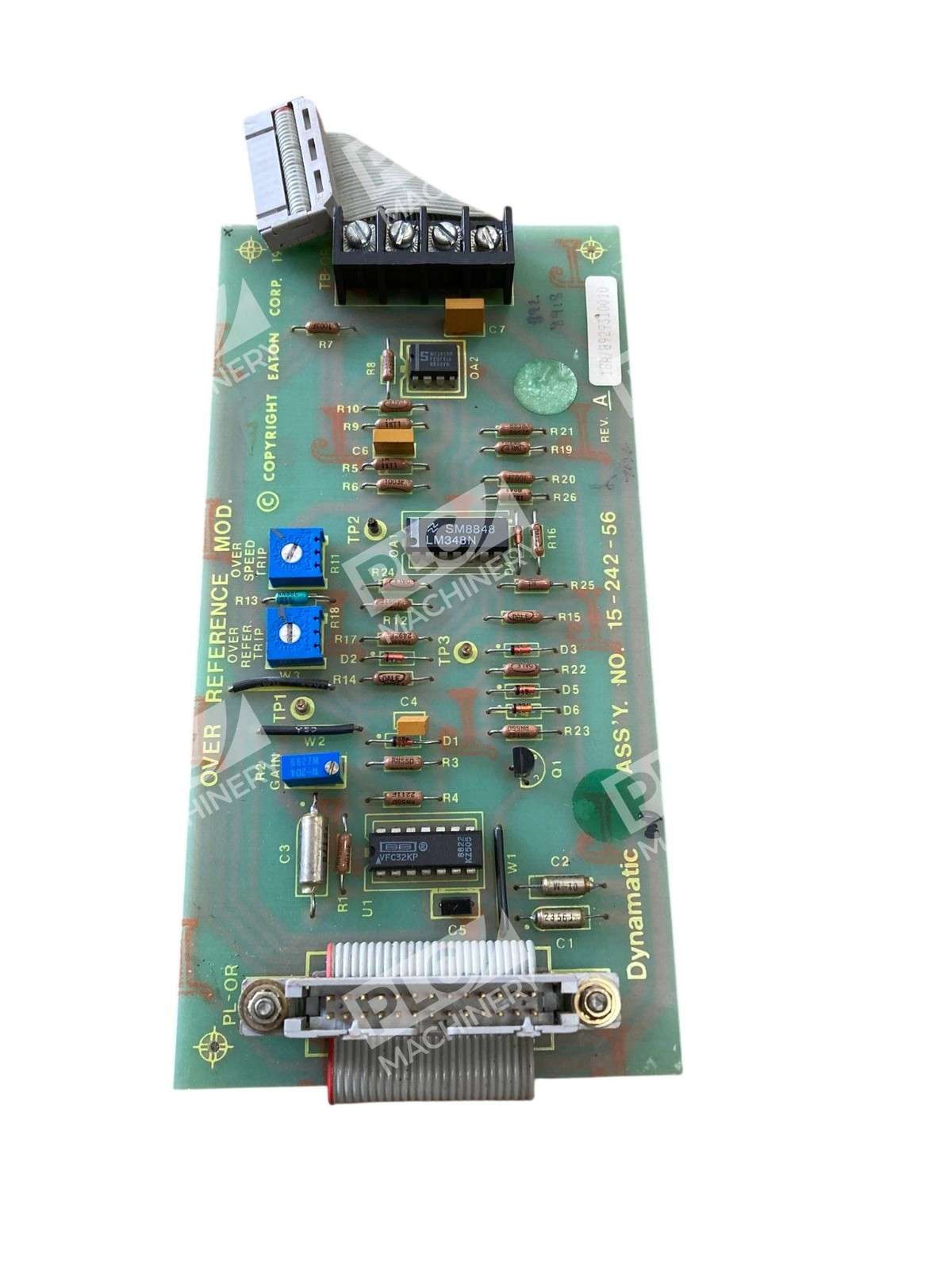

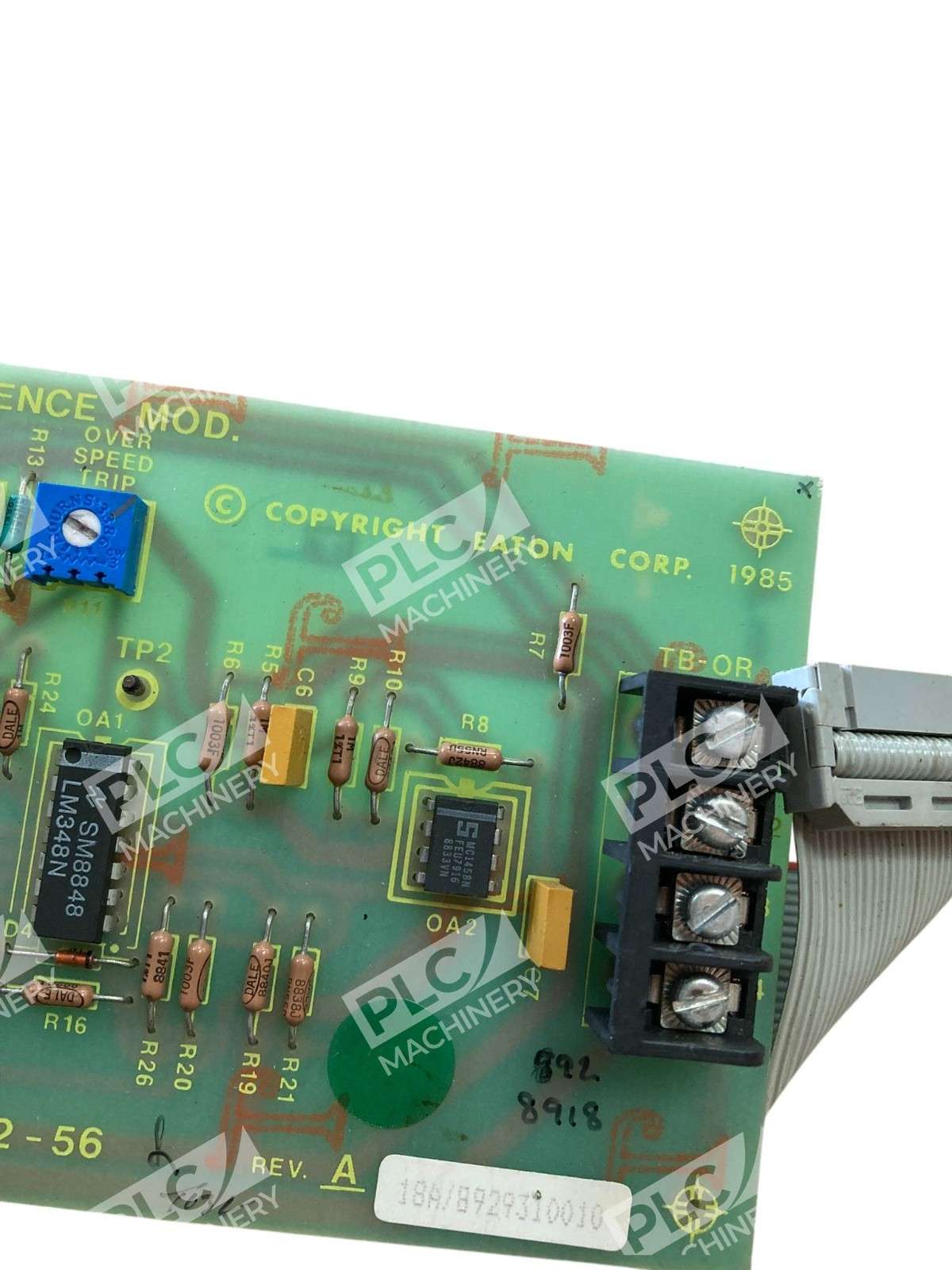

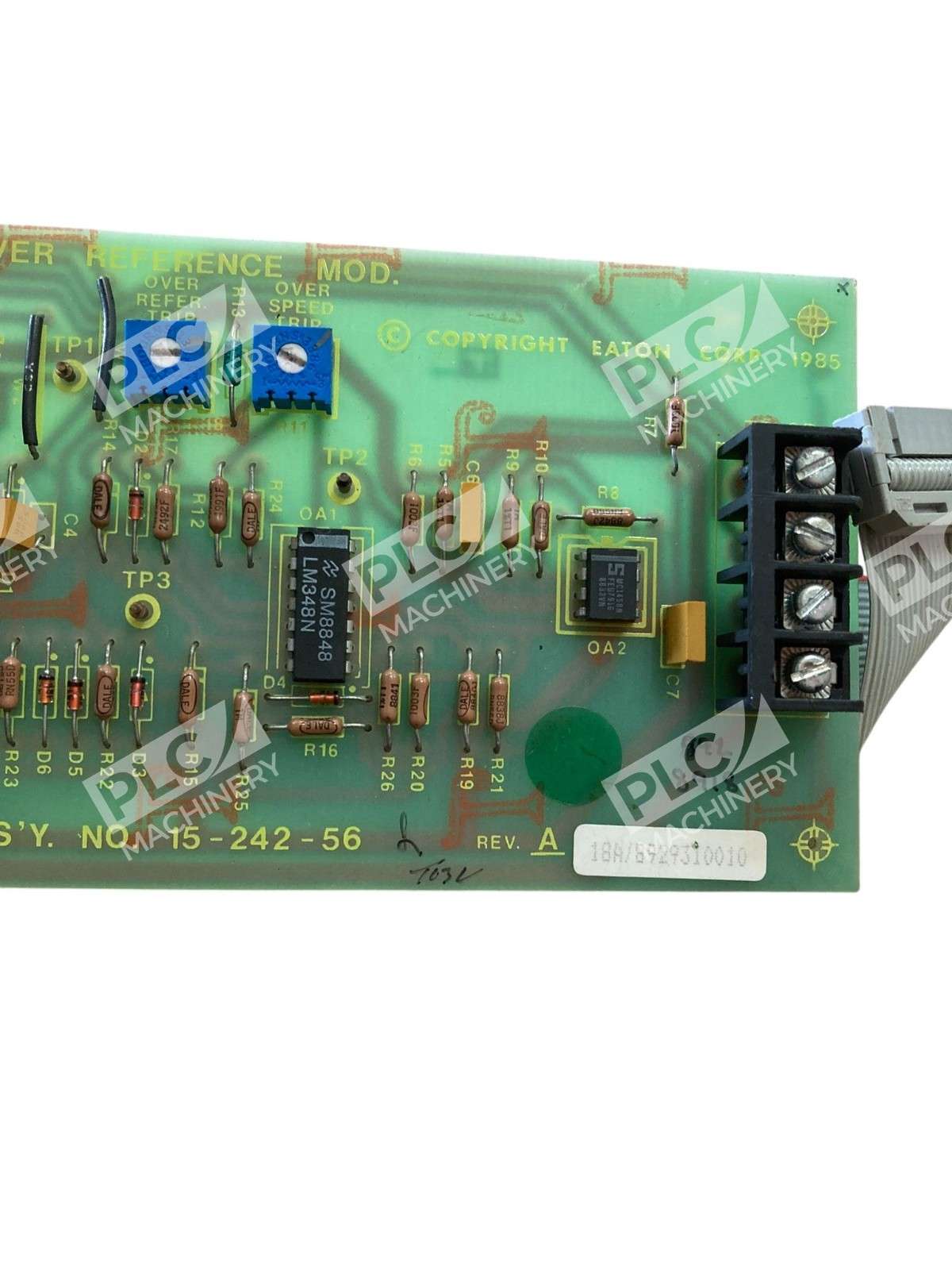

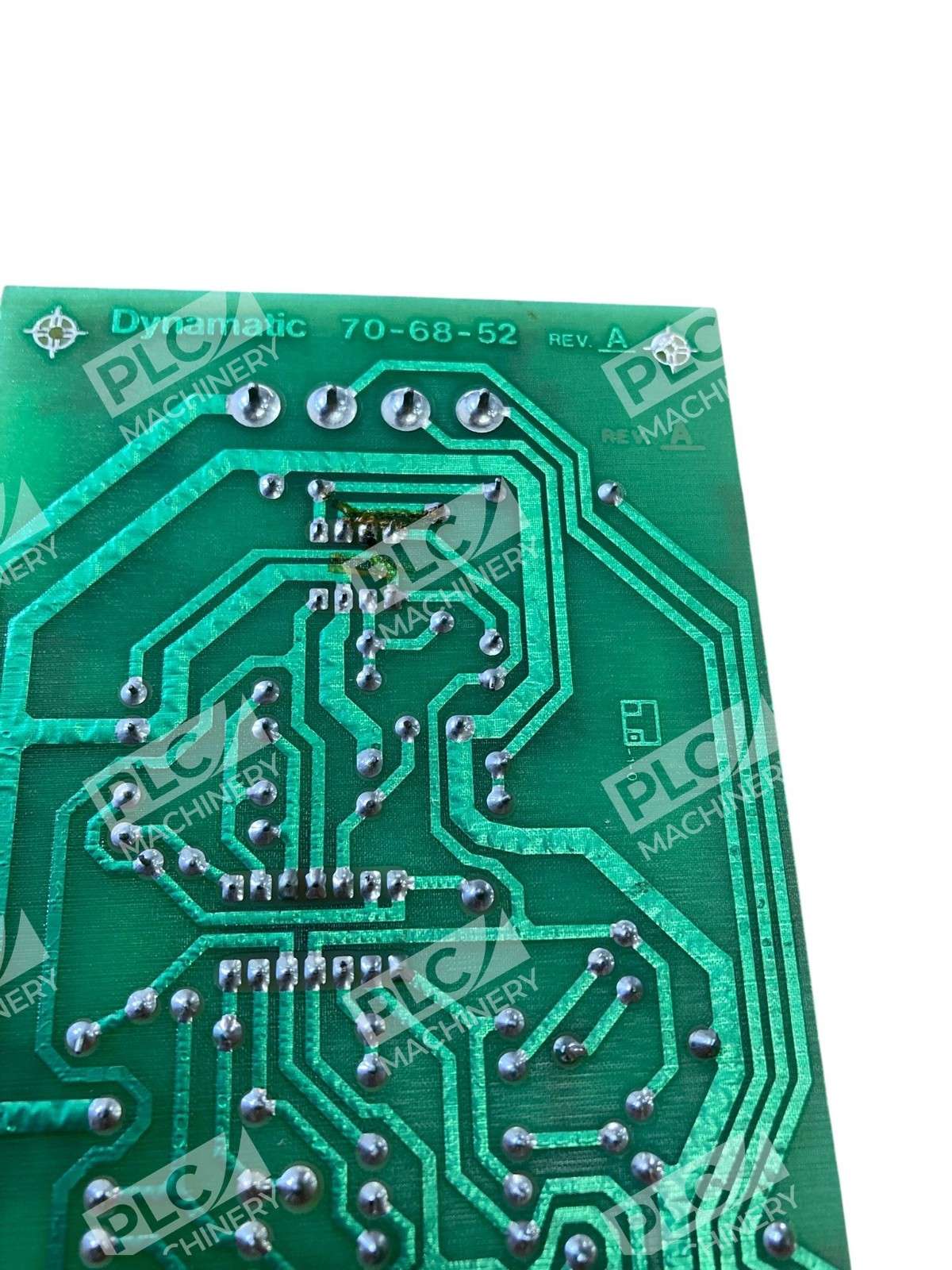

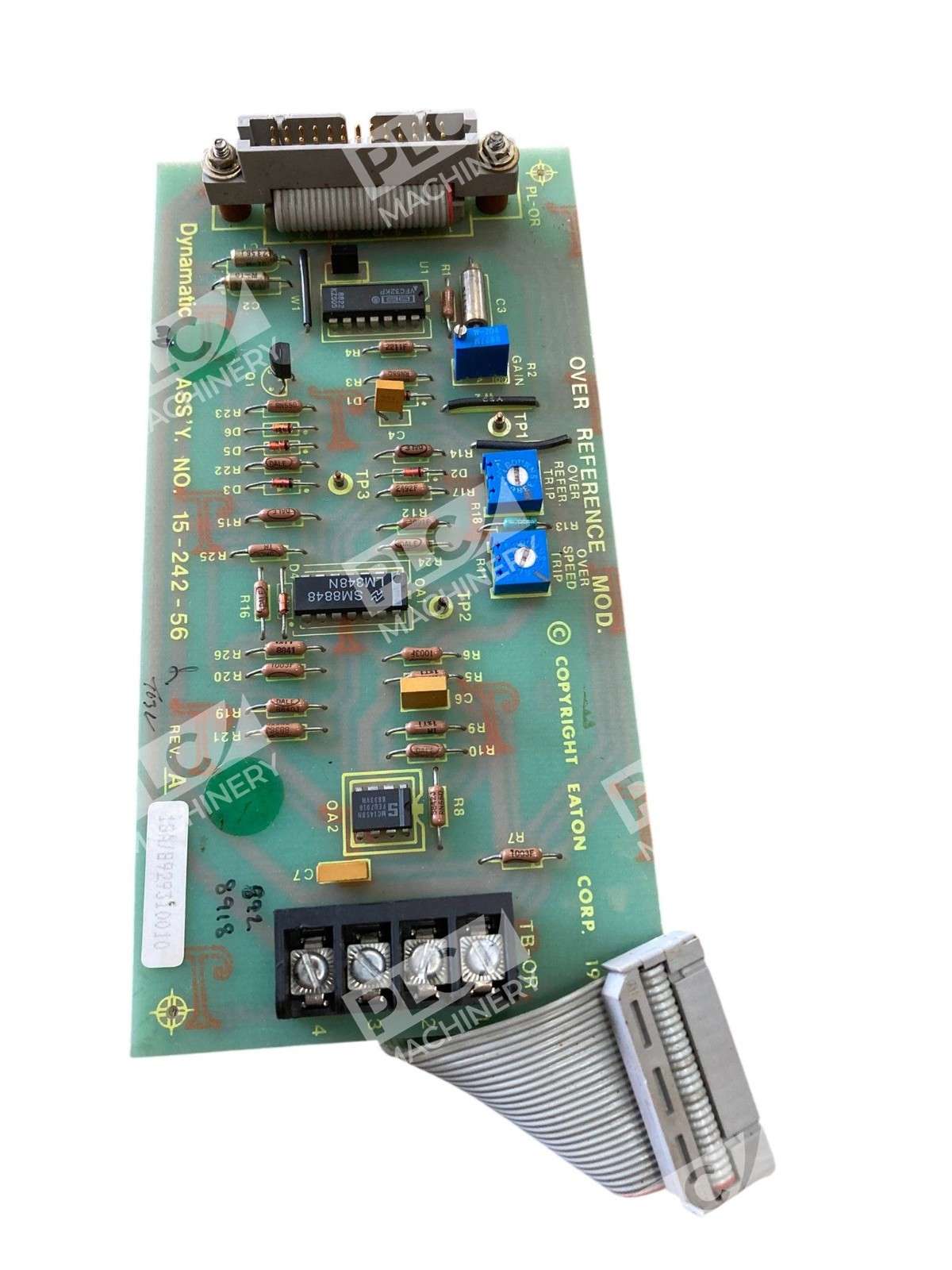

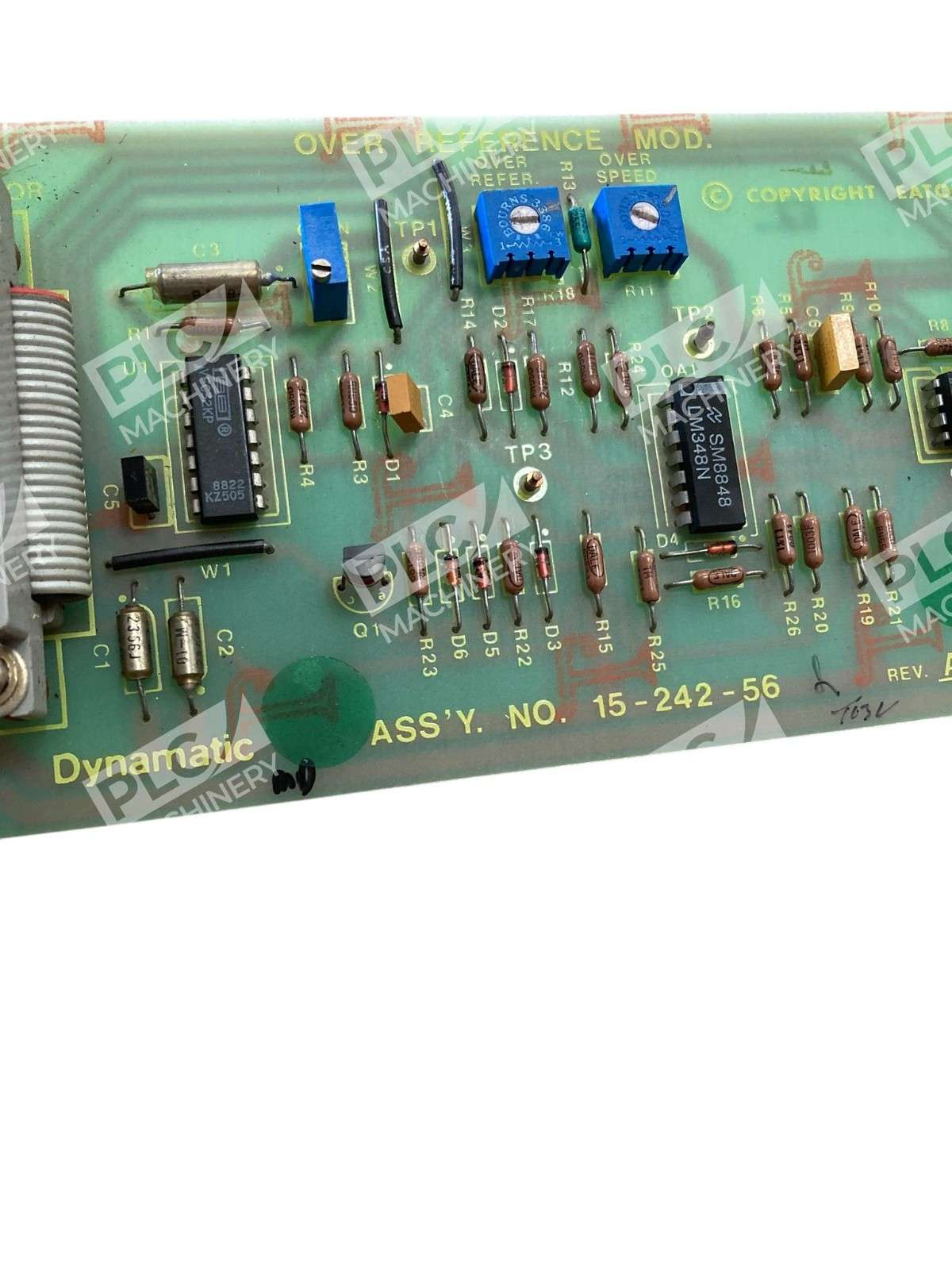

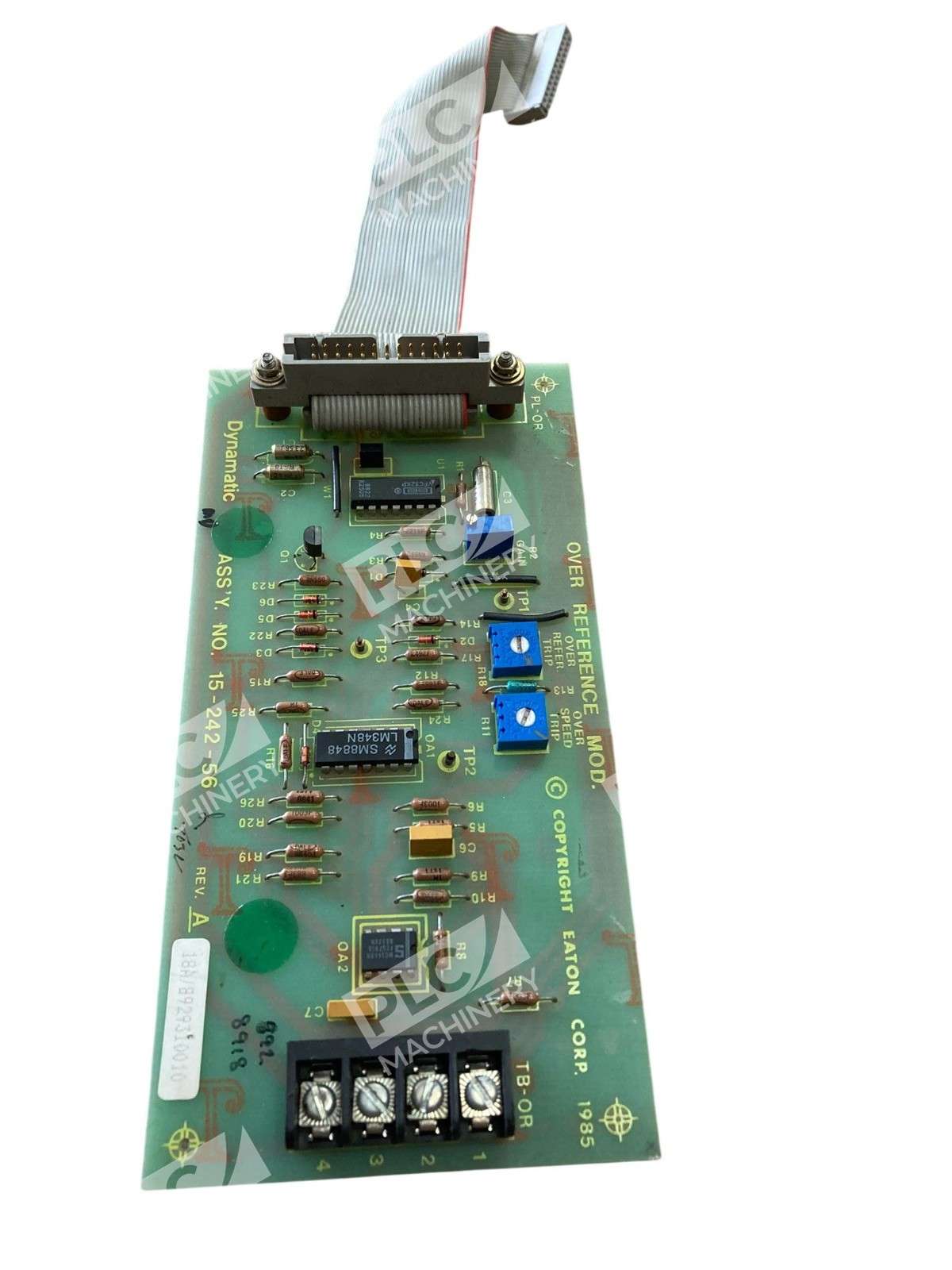

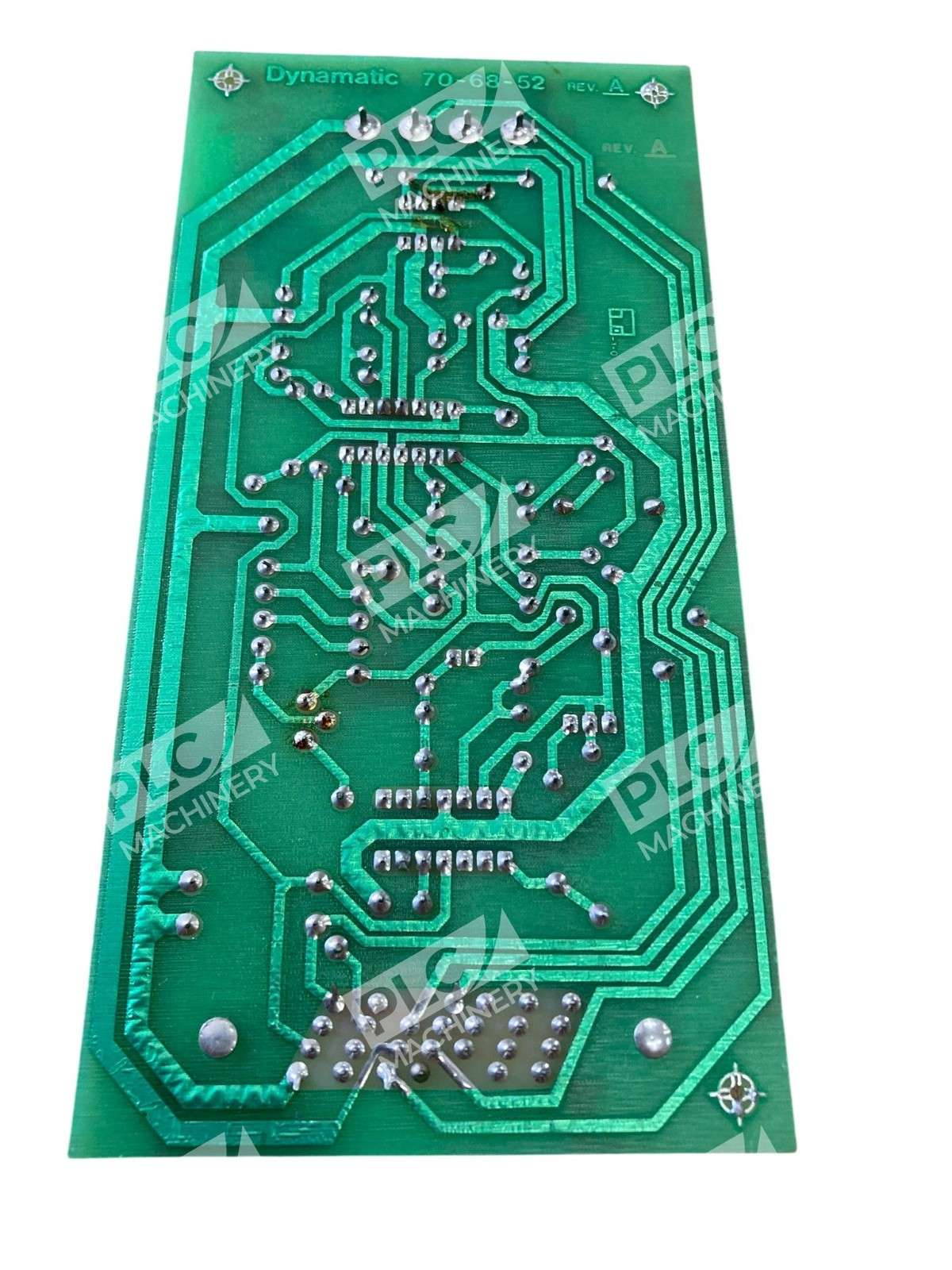

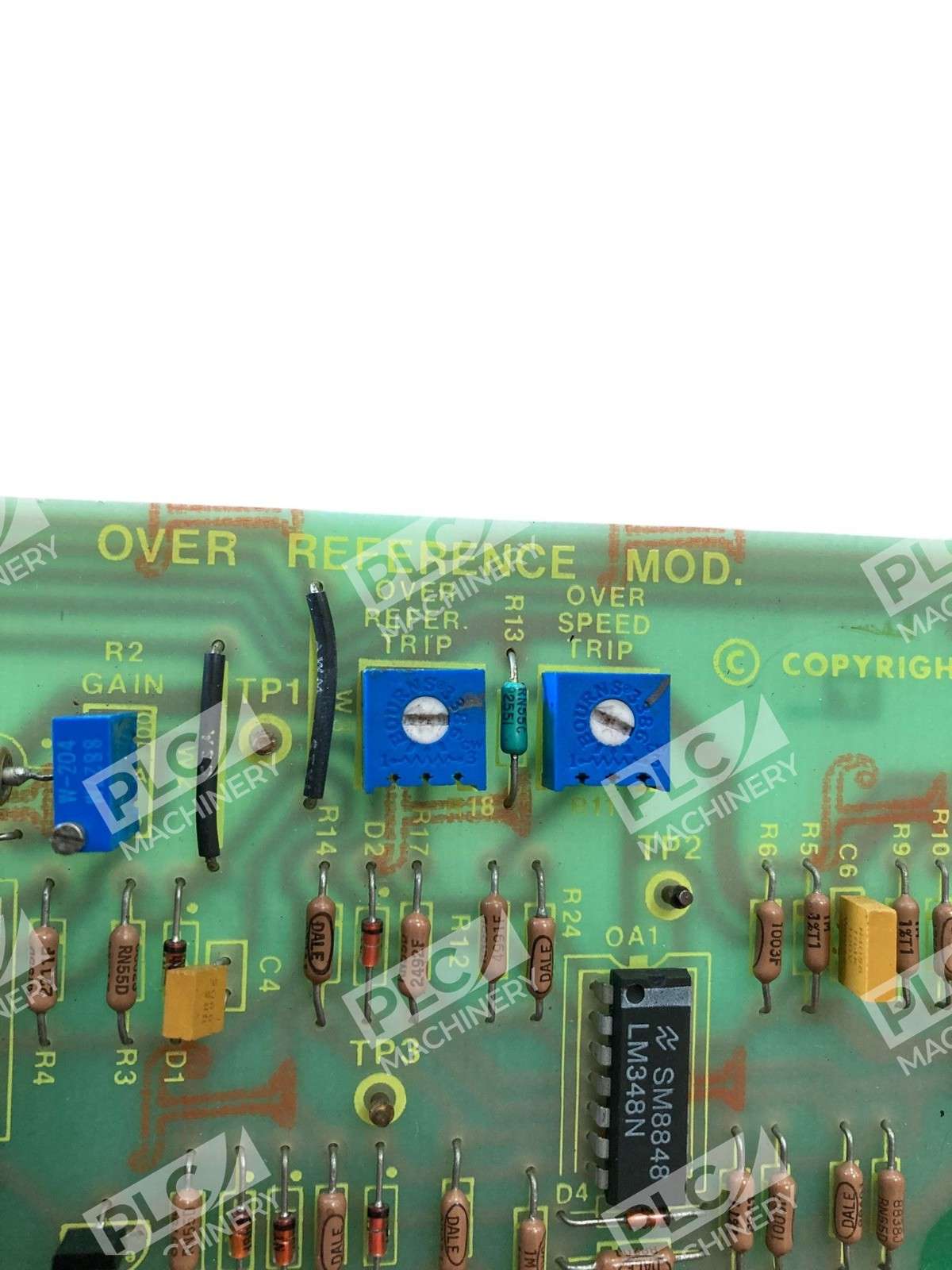

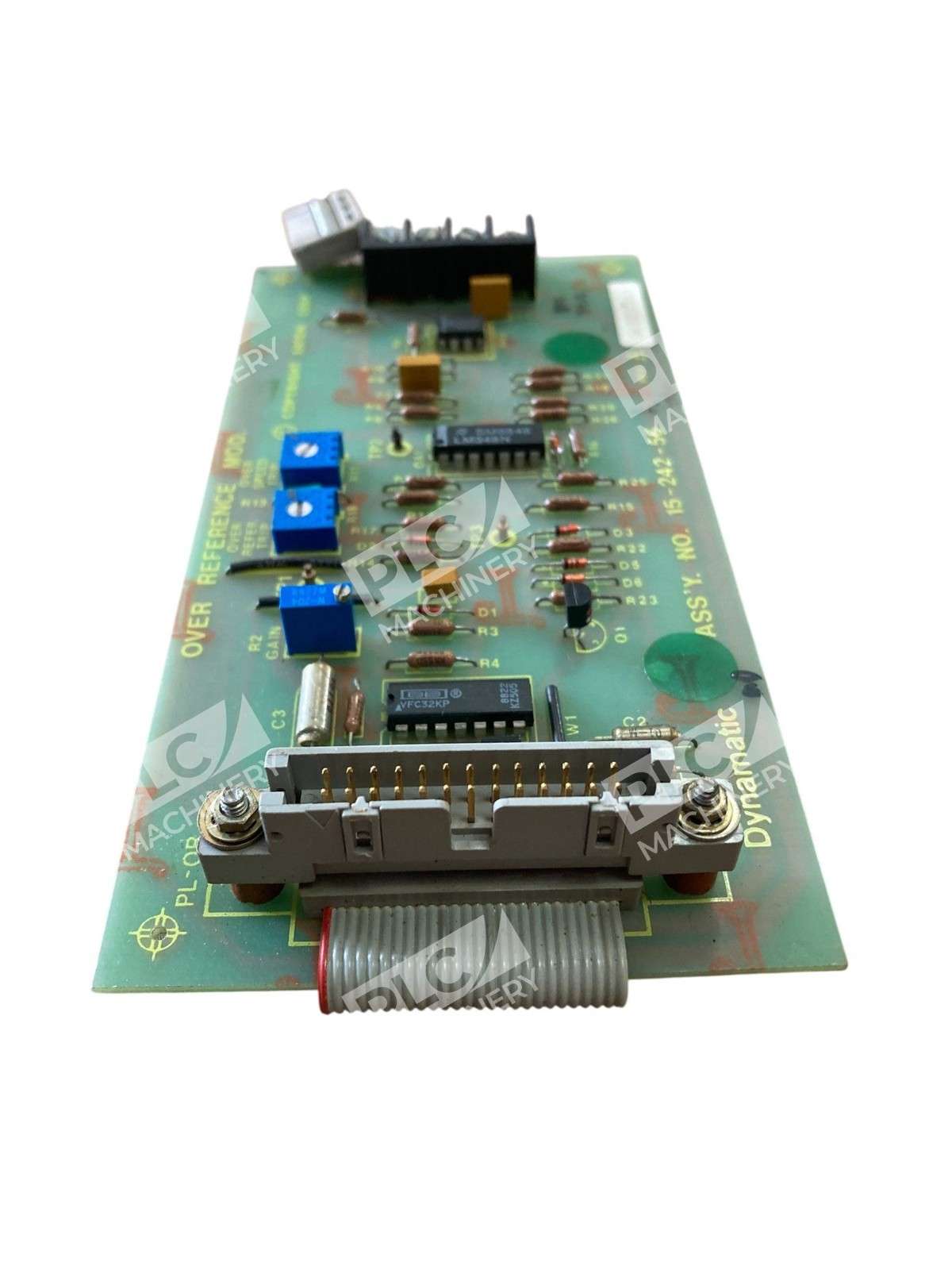

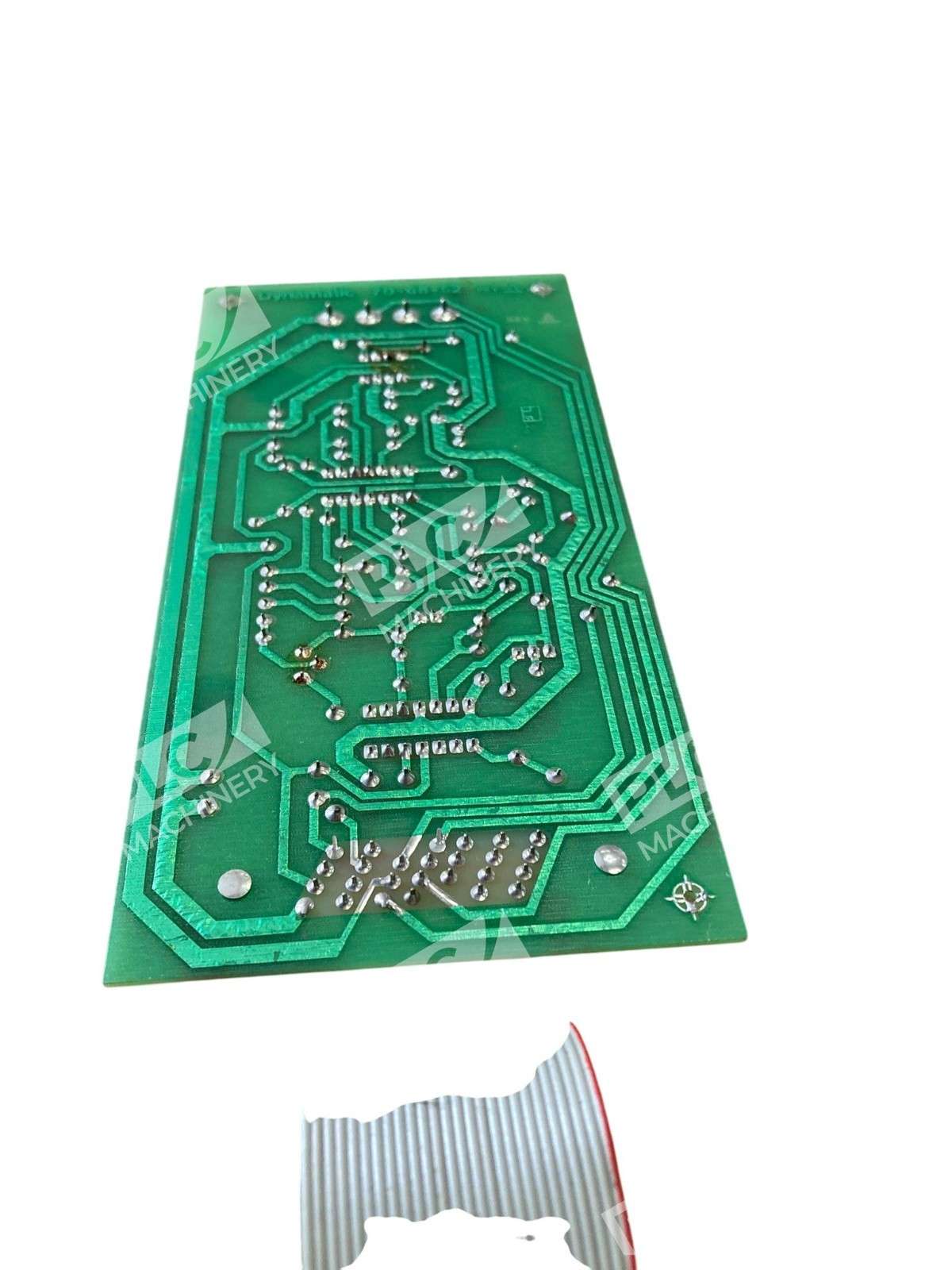

The Eaton Dynamatic 15-242-56 (Ana/Dig) Trip Board Assembly 70-68-52 REV. A is a control circuit board designed for DC motor drive and motion control applications in industrial automation systems. As part of Eaton’s Dynamatic line of motor control products, this trip board handles analog and digital signal processing for drive protection and regulation. The board is suitable for retrofit installations and maintenance repairs where original equipment specifications must be maintained.
Key Features
- Analog/Digital trip board for DC motor drive systems
- Revision A PCB assembly with proven field reliability
- Compact form factor for standard industrial panel mounting
- Compatible with Eaton Dynamatic motor control platforms
- Used condition – fully tested and functional
Technical Specifications
- Manufacturer: Eaton Dynamatic (Eaton Cutler-Hammer)
- Part Number: 15-242-56
- Assembly Revision: 70-68-52 REV. A
- Board Type: Analog/Digital Trip Board
- Product Category: Motor Control Board / Drive Assembly
- Condition: Used, tested, fully functional
Typical Applications
- DC motor drive system repairs and upgrades
- Industrial motion control retrofits
- OEM equipment maintenance replacements
- Textile machinery, printing equipment, and web handling systems
- Automation and process control systems requiring motor drive regulation
Compatibility & Replacements
Compatible With
- Eaton Dynamatic Model 4000 motor controllers
- Eaton Dynamatic DC drive systems
- Industrial motion control platforms using Eaton motor control components
- Standard 19″ relay rack and panel-mounted drive assemblies
Replaces / Drop-In Replacement For
- Eaton Dynamatic 15-242-56 (original specification)
- Verify compatibility with your system integrator or controls engineer before ordering to confirm this unit meets your exact drive configuration requirements
Works With
- Eaton Dynamatic control board networks and harnesses
- Legacy DC motor drive platforms using analog/digital trip circuitry
- Standard industrial control system architectures
