Overview

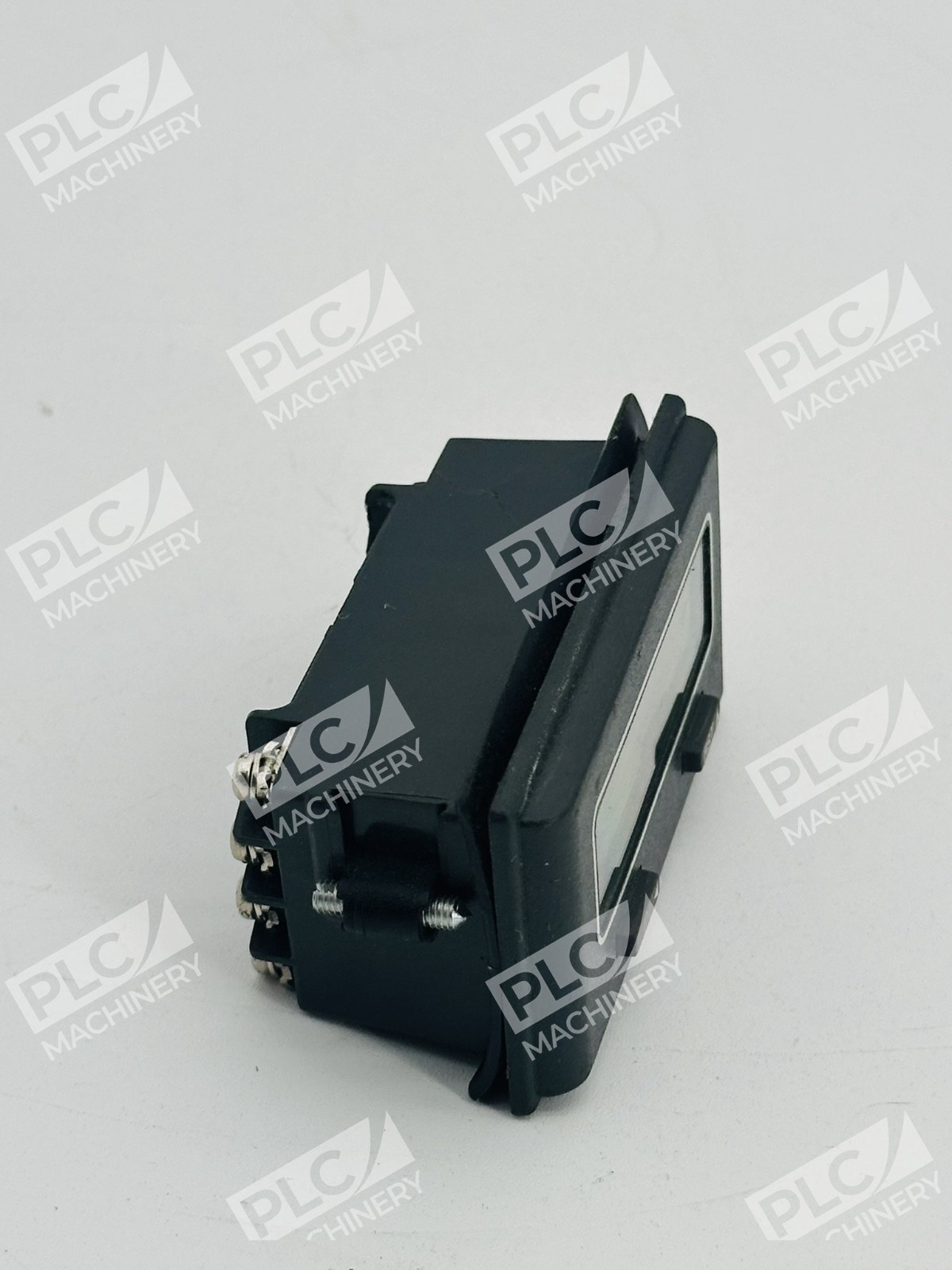

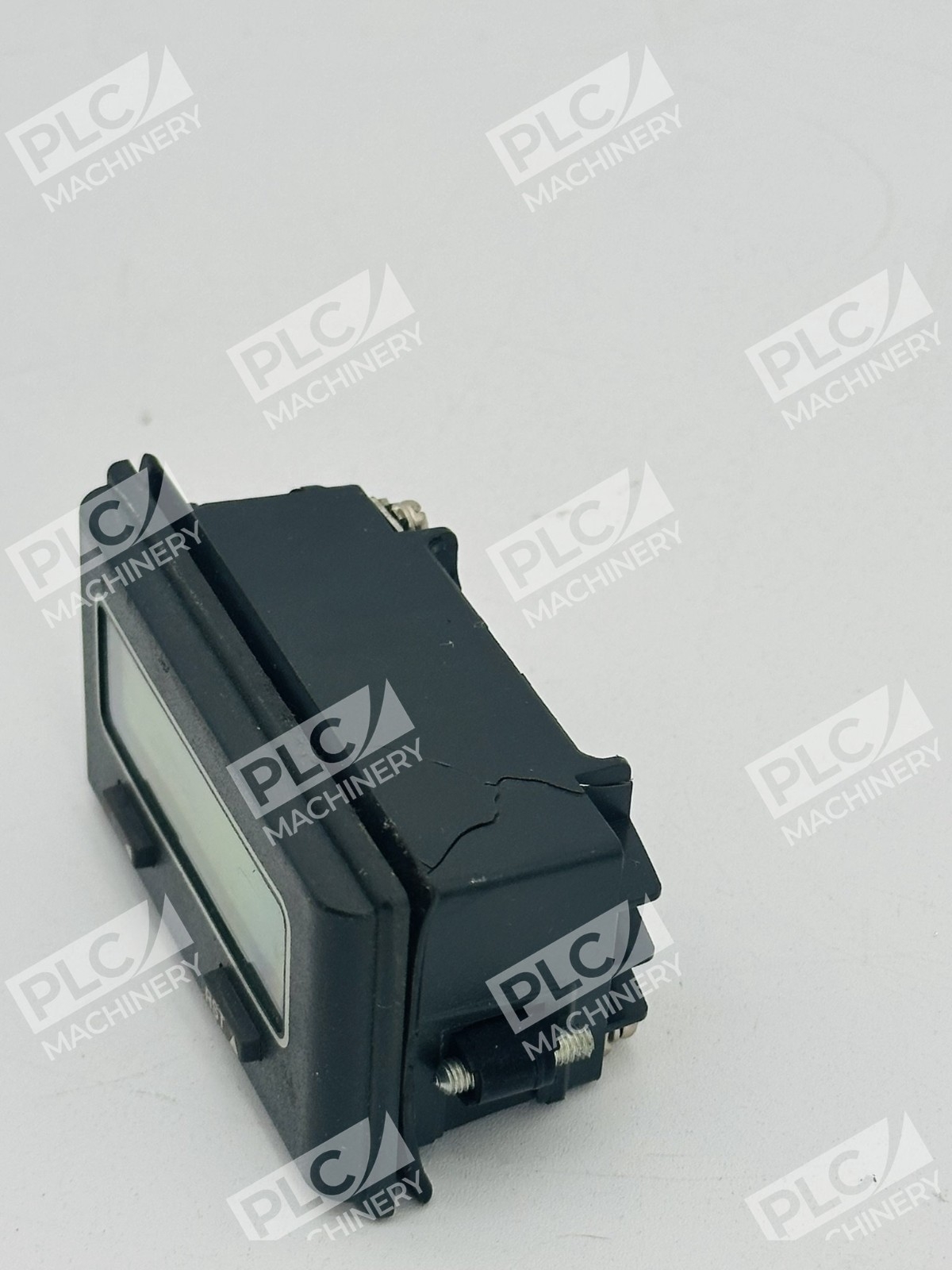

The Eaton Durant 53300401 is a compact, battery-powered electronic totalizing counter part of the Courier series. This 8-digit counter module is engineered for simple totalizing applications where reliable pulse counting and add/subtract functionality are required. The unit combines solid-state input technology with an always-readable LCD display, making it suitable for production tracking, flow measurement verification, and piece-counting operations in industrial automation systems.
Key Features

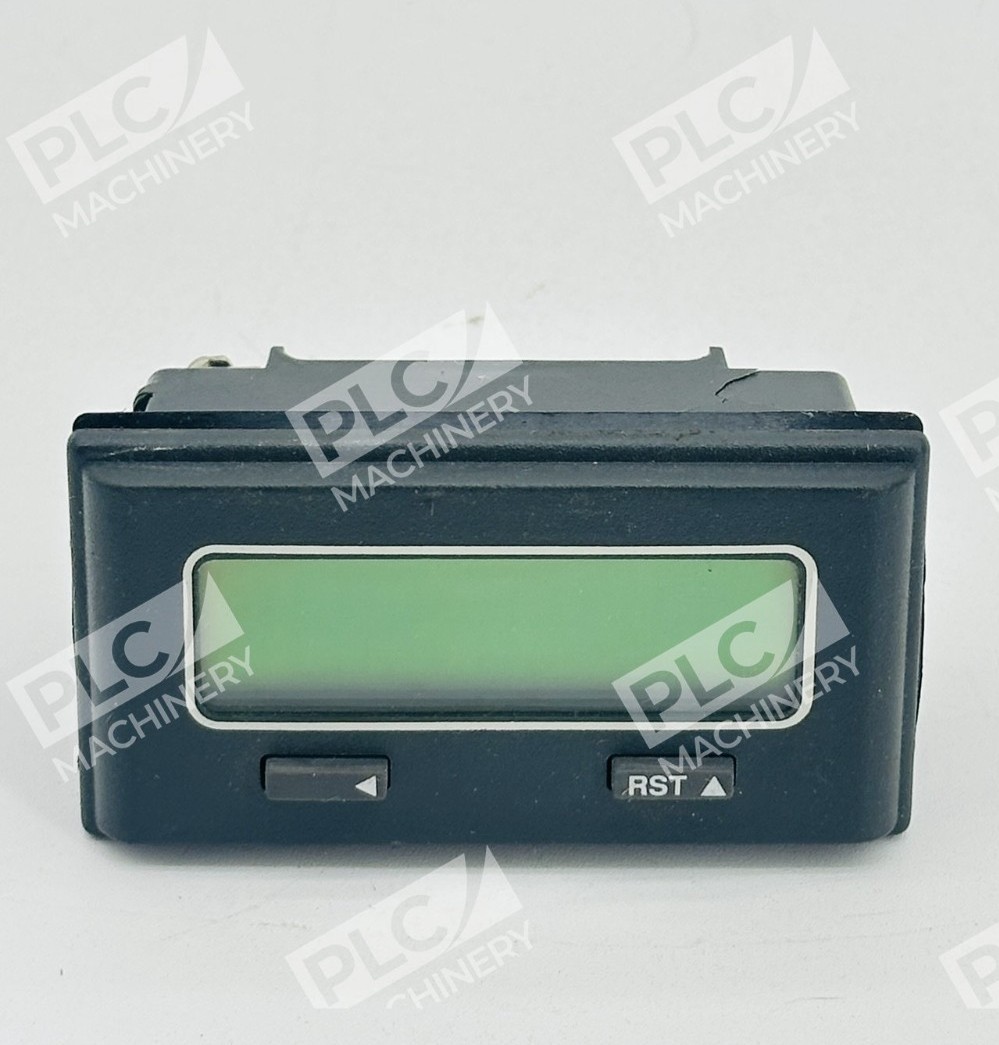

- 8-digit LCD display with lead-zero blanking for clean readouts
- Add/subtract capability using solid-state PNP input sensor signal
- High-speed count input—handles up to 10 kHz solid-state (PNP) pulses

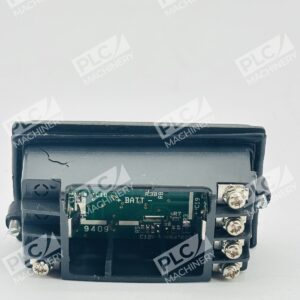

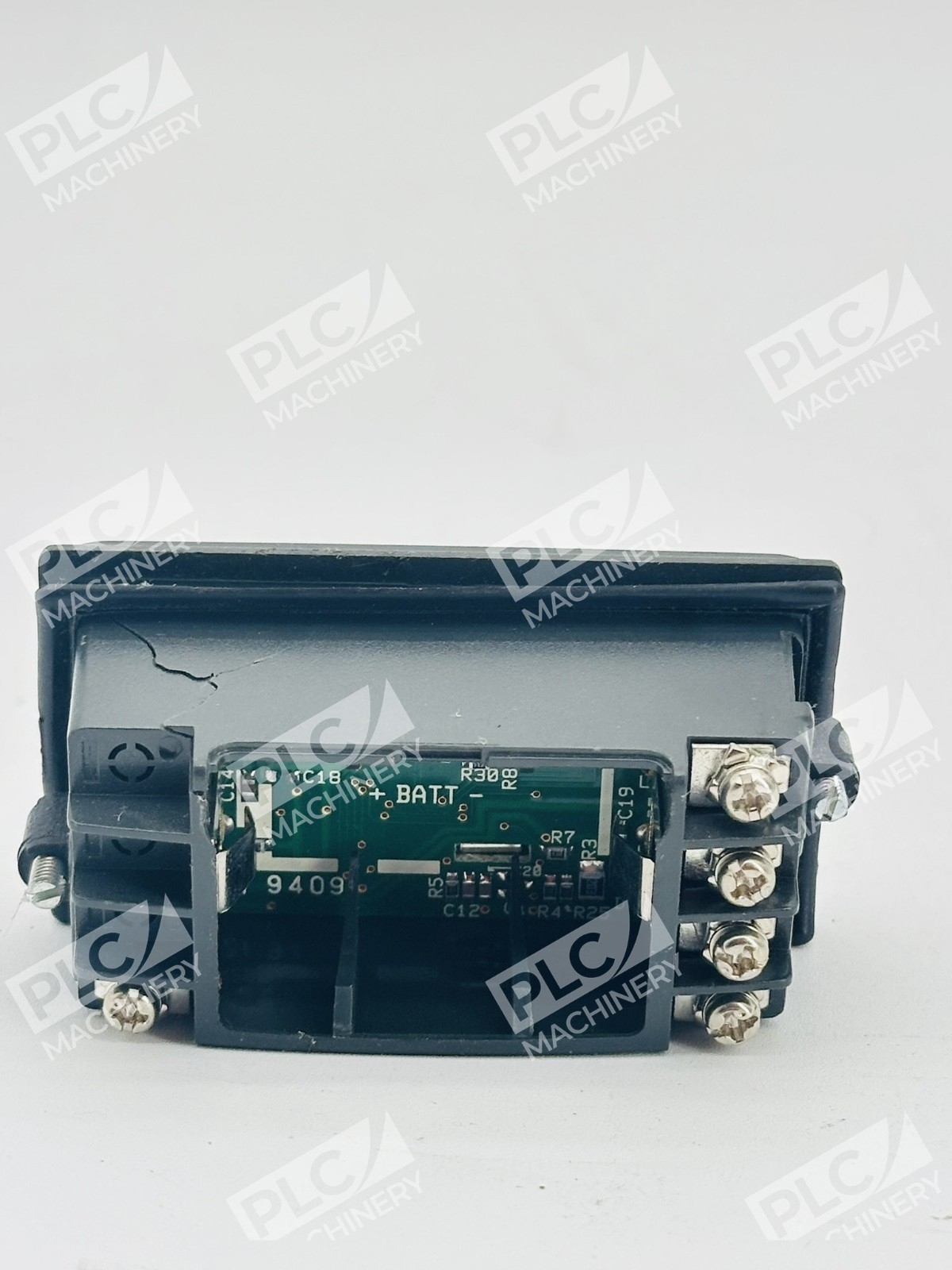

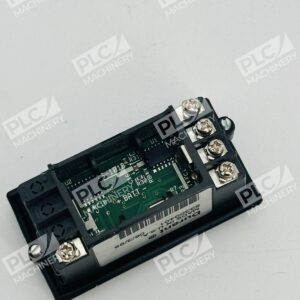

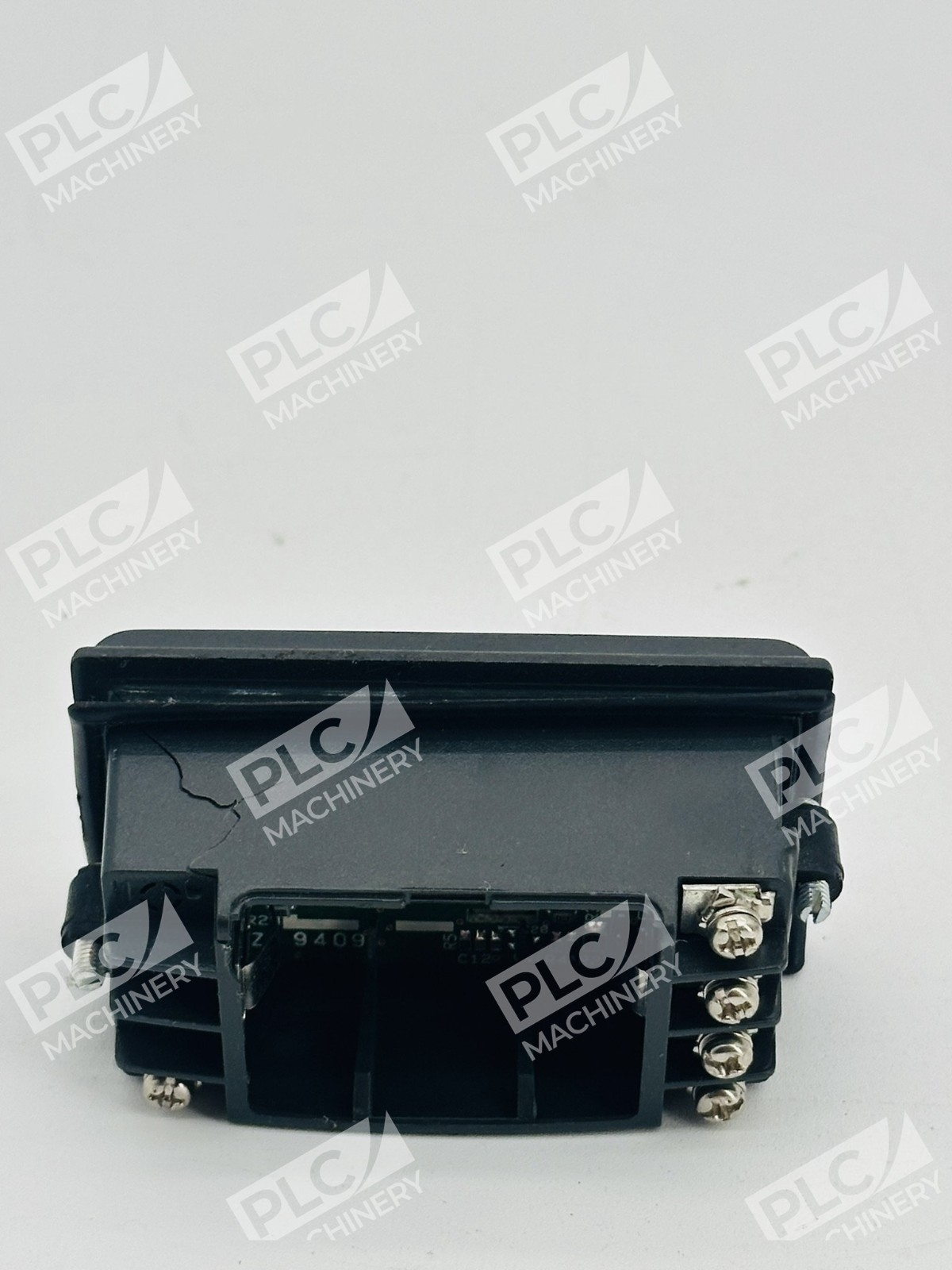

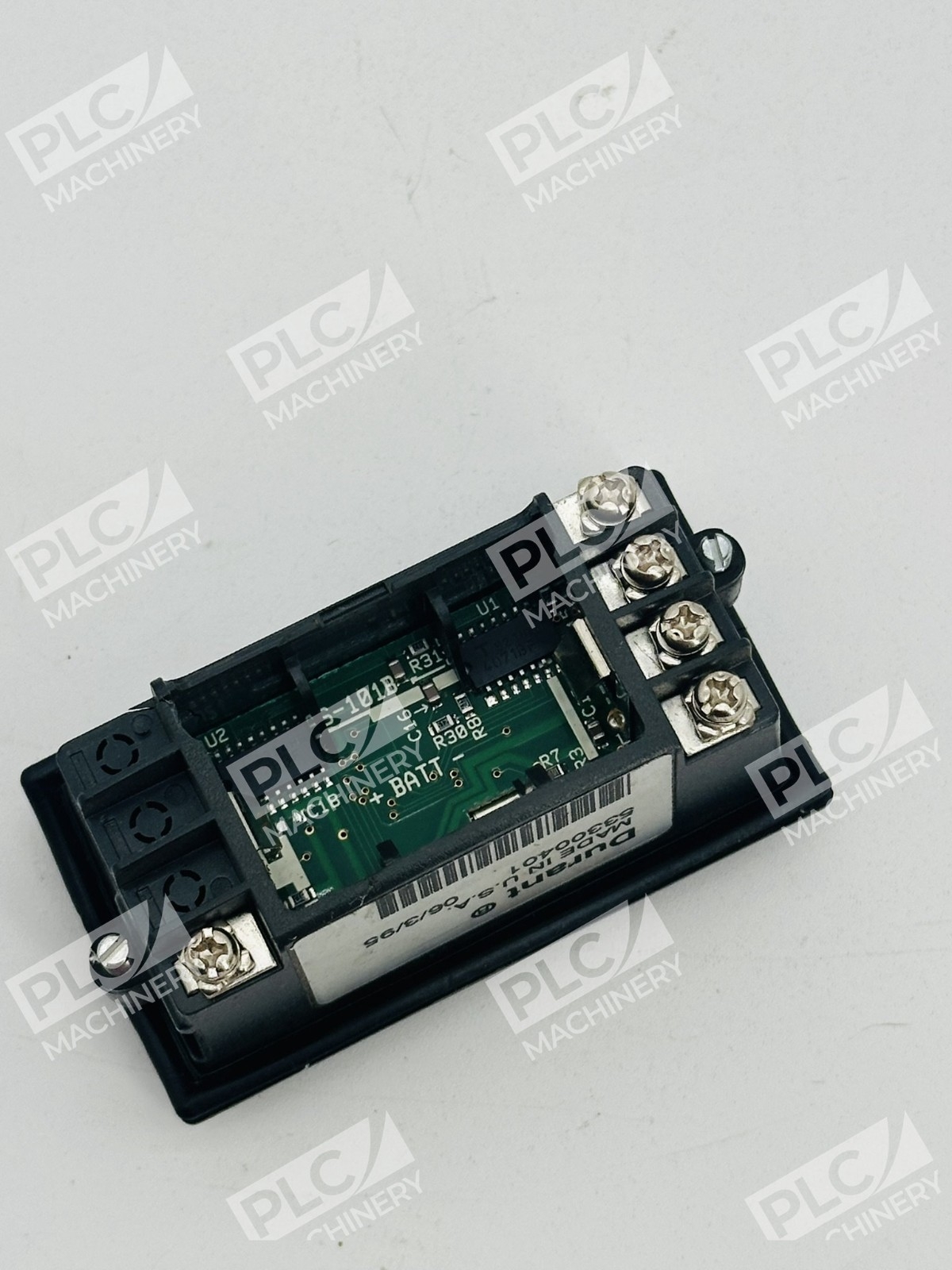

- Separate contact and solid-state input terminals for flexible sensor integration
- Battery-powered operation—no external AC/DC power supply required
- Compact design suitable for panel mounting and integration into existing systems
Technical Specifications
| Display Type | 8-Digit LCD |
| Display Range | -9999999 to 99999999 (with overflow) |
| Counting Mode | Add/Subtract (Solid-State PNP Input) |
| Input Type | Solid-State PNP + Contact Input terminals |
| Maximum Count Frequency (Solid-State) | 10 kHz |
| Power Source | Battery (Internal) |
| Series | Courier |

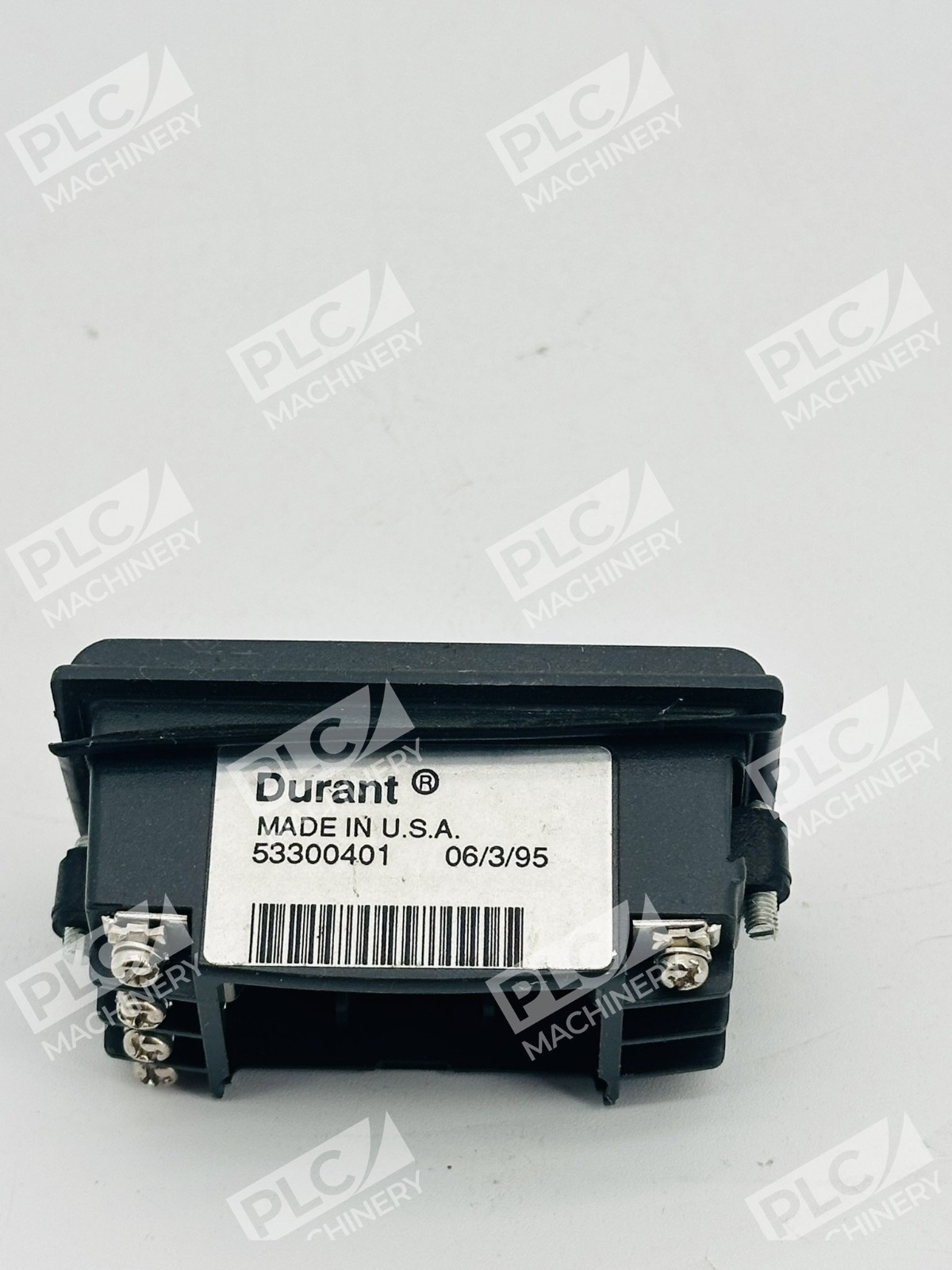

| Catalog Number | 53300401 |
| Manufacturer | Eaton (formerly Durant) |
Typical Applications
- Production line piece counting and batch totalization
- Flow meter verification and totalizing in process control
- Equipment stroke and cycle counting
- Inventory and material tally in assembly systems
- Accumulation of pulses from proximity sensors and photoelectric switches
Compatibility & Replacements
Compatible With
- PNP proximity sensors and photoelectric switches
- NPN contact sensors (via separate contact input terminal)
- Industrial control systems requiring pulse totalization
- Automation applications with basic counting logic
Replaces / Drop-In Replacement For
- Eaton Durant 53300400 (standard totalizer—verify input requirements before substitution)
- Other Eaton Courier series totalizers in similar applications (model-specific compatibility required)
Works With
- Standard 24VDC and 5VDC sensor systems
- Pneumatic and hydraulic instrumentation with electronic pulse feedback
- Legacy industrial automation platforms using basic counting modules
- Verify compatibility with your system integrator before ordering
