Overview

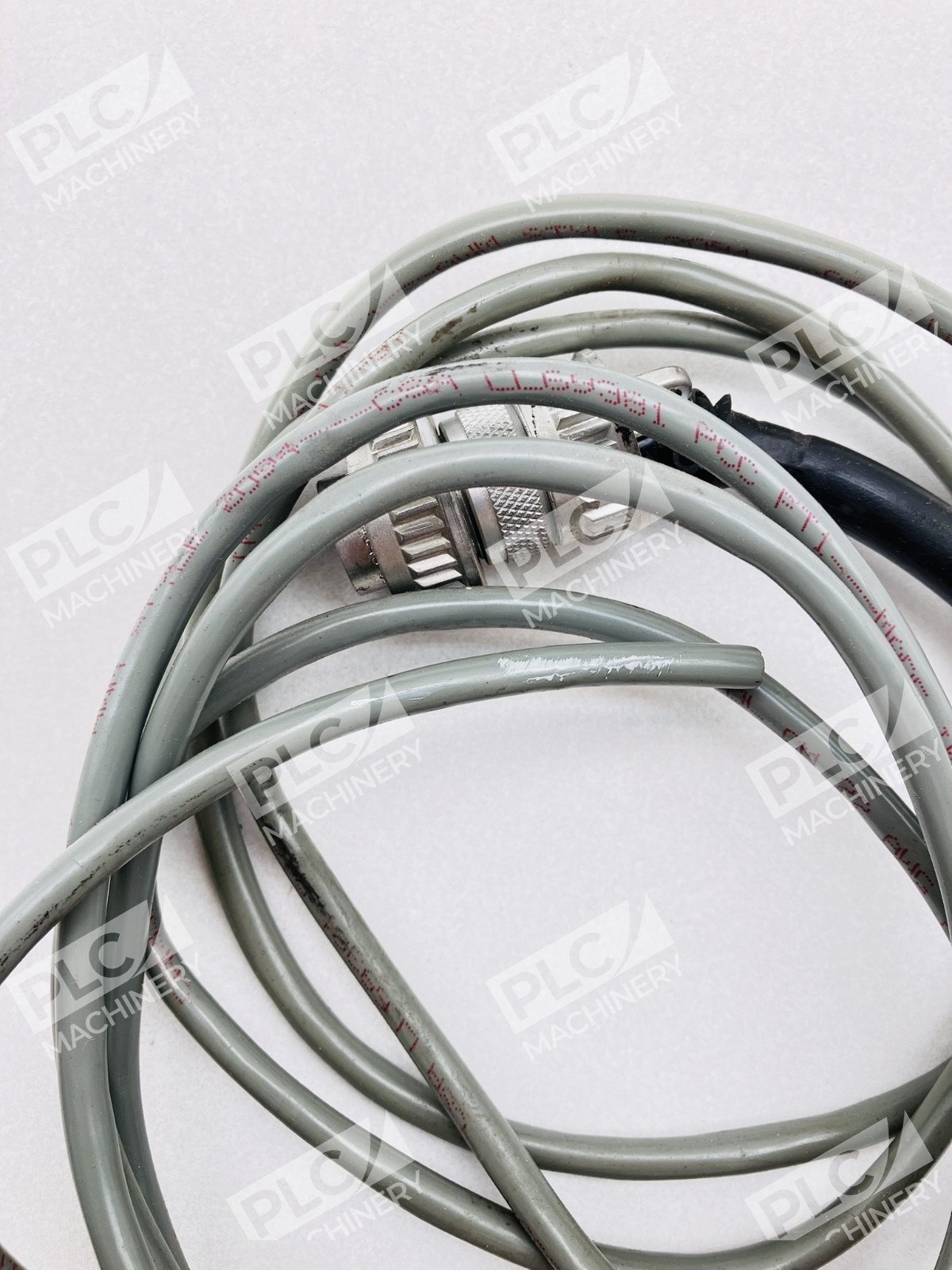

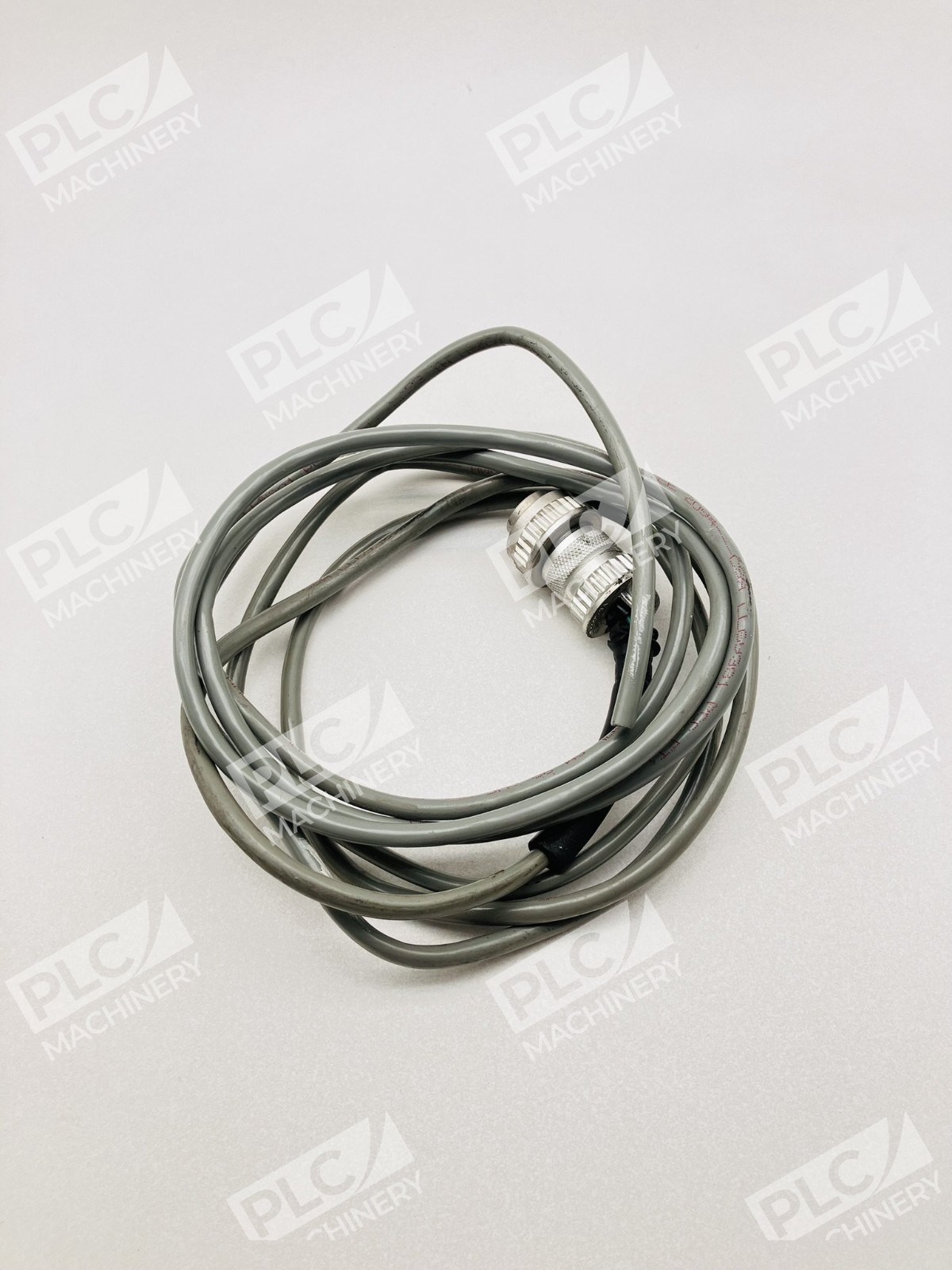

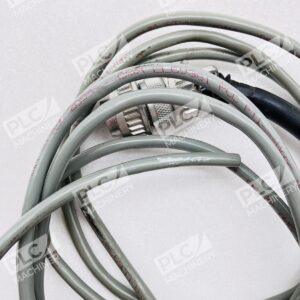

The Eaton Durant 29665300 encoder cable is a 10-foot shielded assembly purpose-built for Eaton Cutler-Hammer standard duty rotary shaft encoders. This cable provides secure signal transmission in industrial environments where electromagnetic interference can degrade encoder accuracy. The product is no longer in production but remains available as surplus stock for replacement applications.
Key Features
- 10-foot cable length with shielded construction for EMI protection

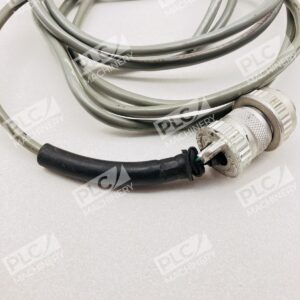

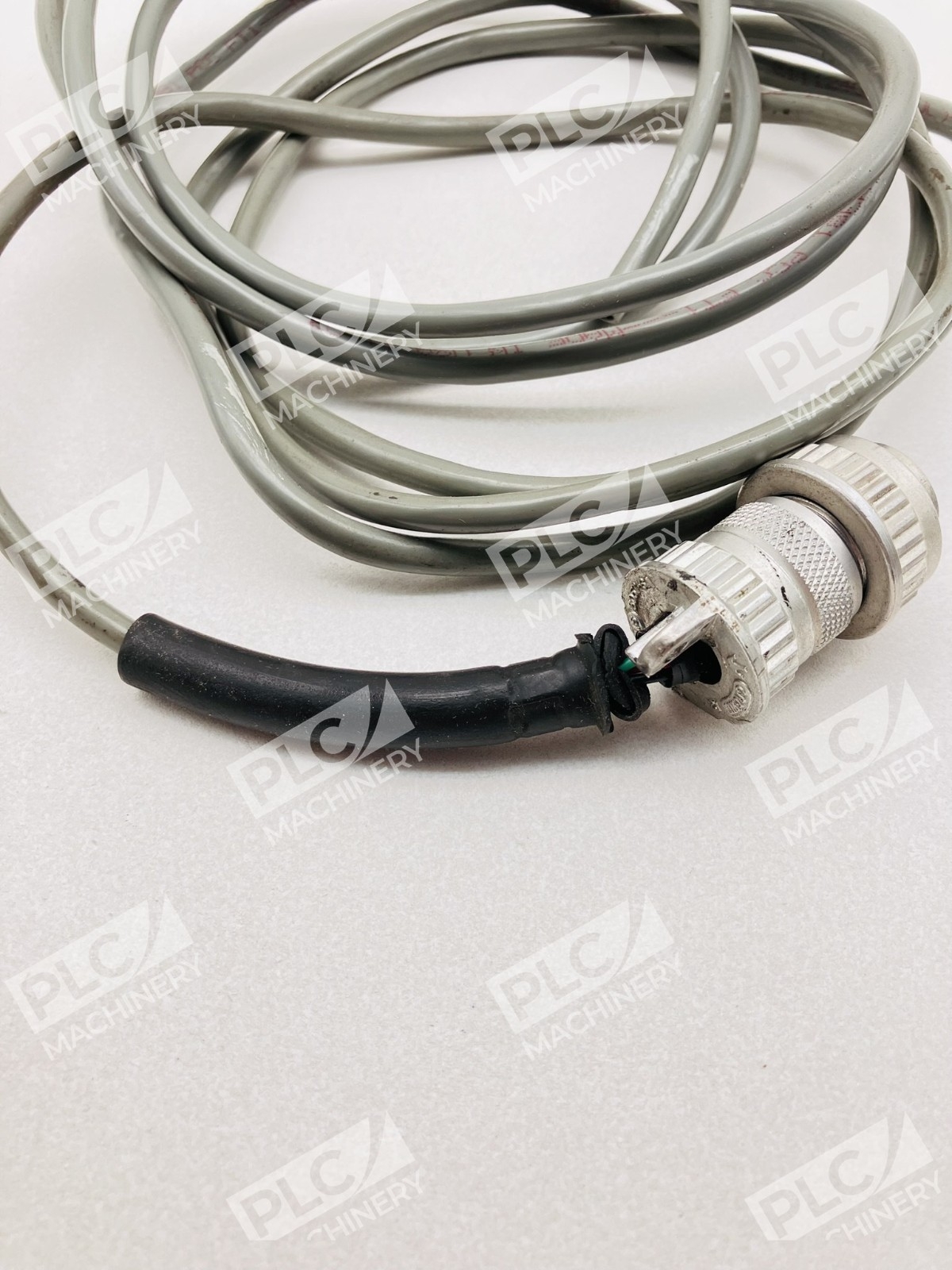

- 6-position circular plug connector with free/stripped end leads
- Includes mounting clamp and bushing hardware
- Designed for Eaton Cutler-Hammer standard duty rotary encoders
- Industrial-grade construction for machine automation and control systems
Technical Specifications
- Cable Length: 10 feet (120 inches)

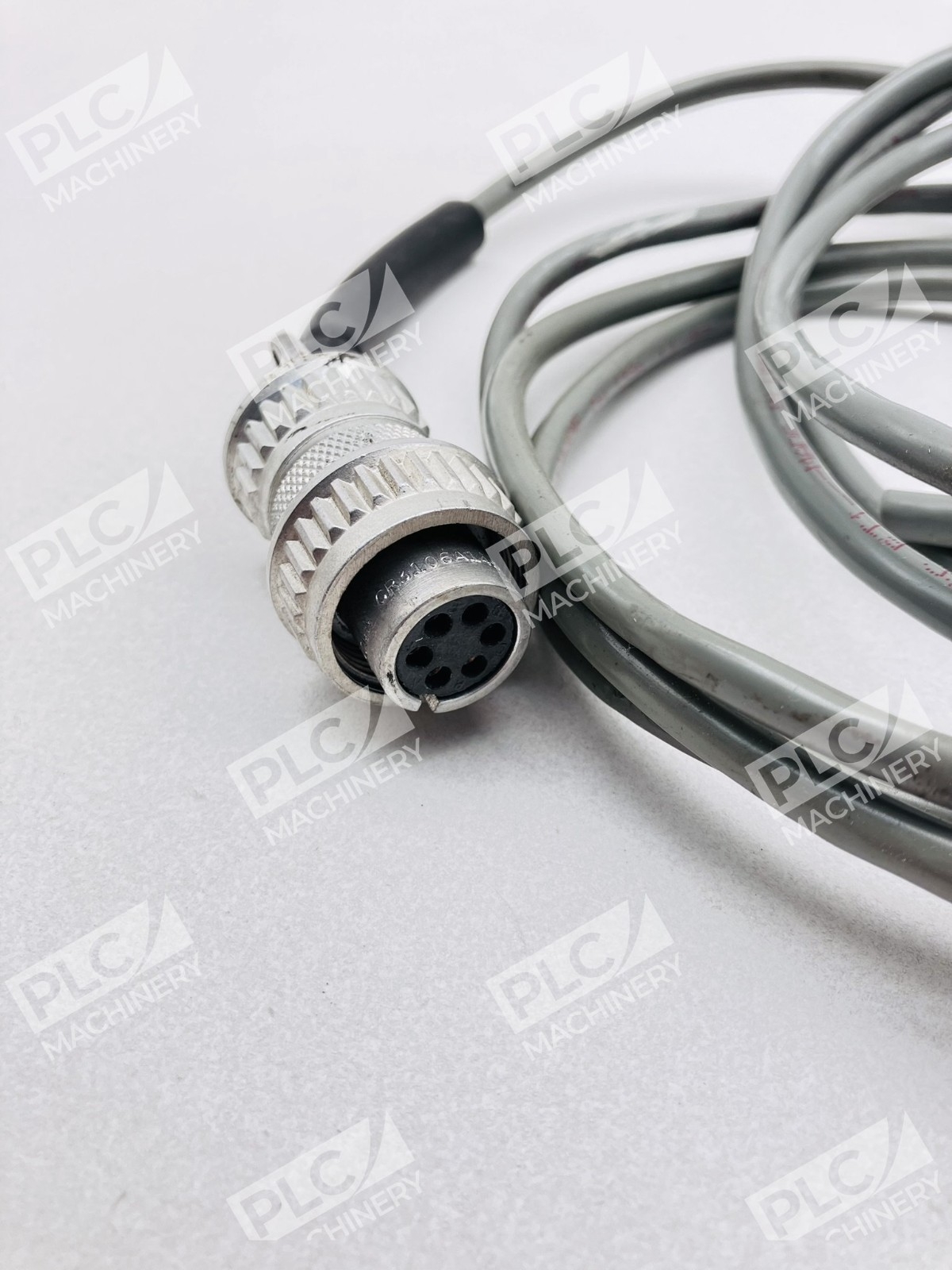

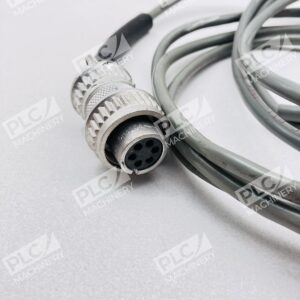

- Connector Type: 6-position circular plug
- End Configuration: Free/stripped end connector
- Shielding: Shielded for electromagnetic interference protection
- Included Hardware: Clamp and bushing
- Weight: 4 lbs

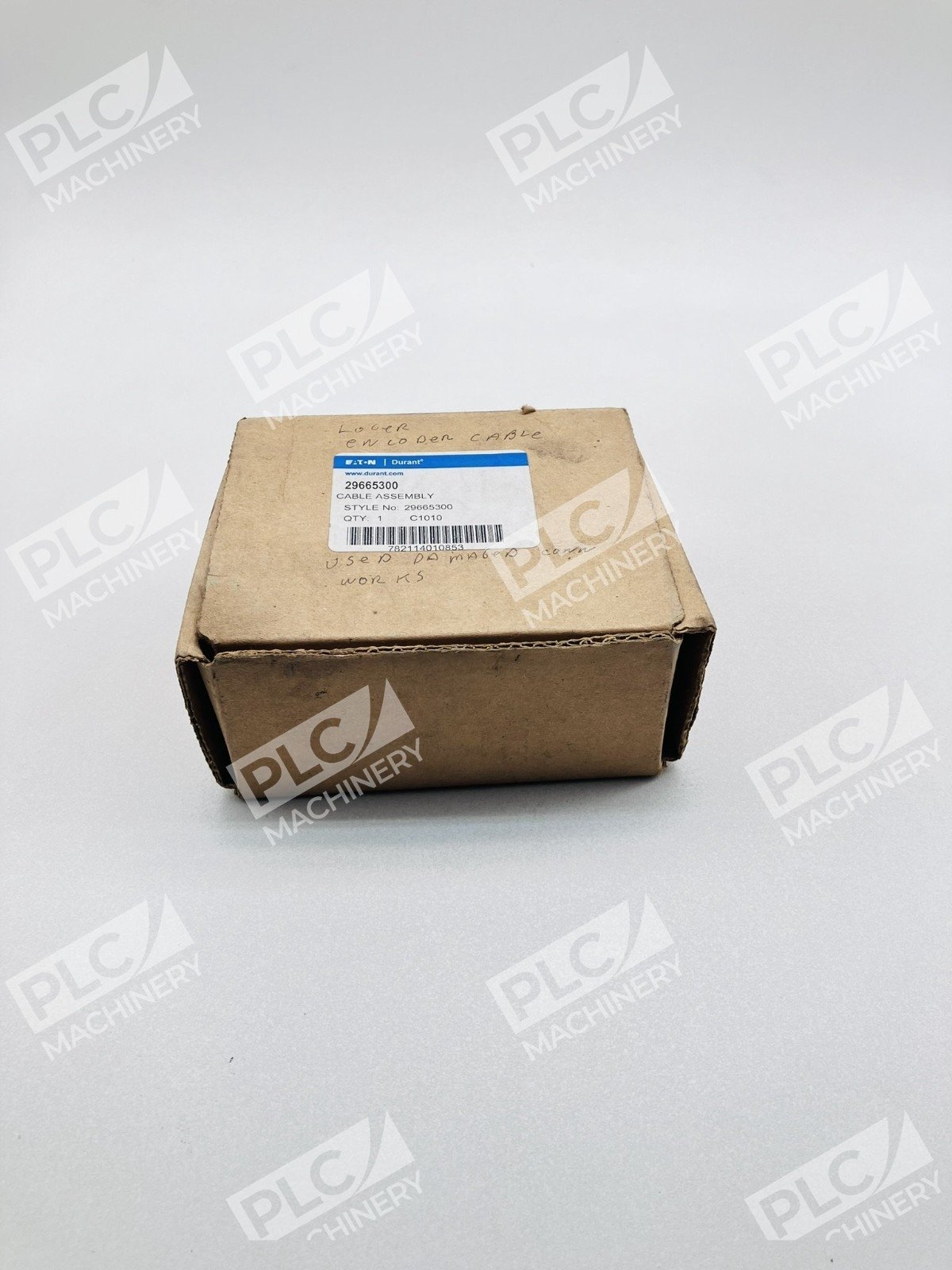

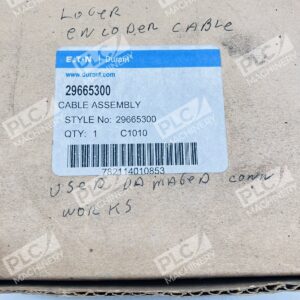

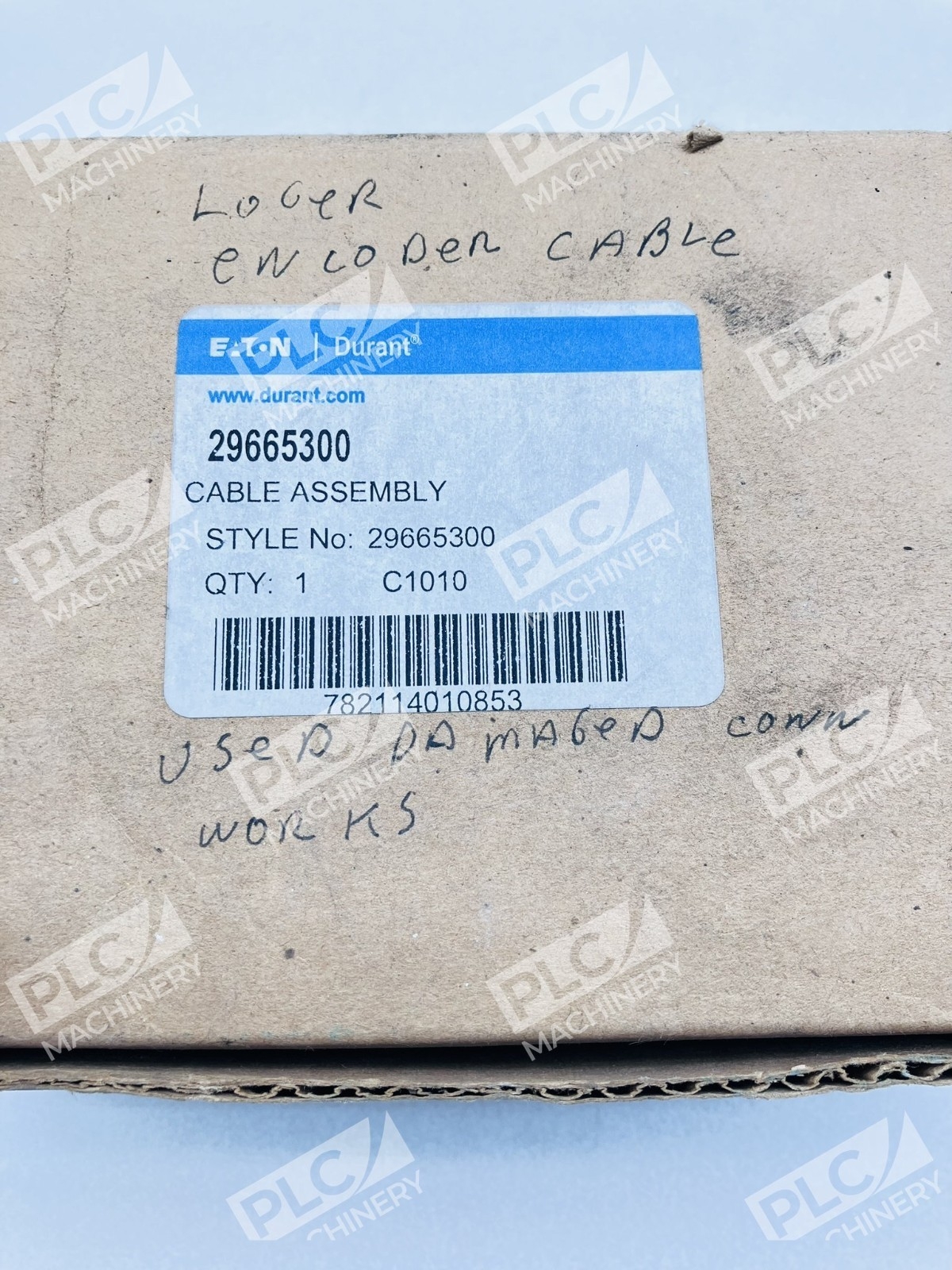

- Catalog Number: 29665300
- UPC: 782114010853
- Status: Discontinued by manufacturer
- Warranty: Eaton Selling Policy 25-000: one (1) year from installation or eighteen (18) months from shipment, whichever occurs first
Typical Applications
The 29665300 encoder cable is suitable for:
- Machine tool position feedback and axis control
- Material handling and conveyor belt encoders
- Packaging machinery motion control
- Industrial production line monitoring
- Legacy automation system upgrades and repairs
Compatibility & Replacements
Compatible With
- Eaton Cutler-Hammer standard duty rotary shaft encoders
- Eaton Durant counter accessories
- Industrial control systems using 6-position circular connectors
- Legacy machine automation platforms requiring 10ft cable runs
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. This discontinued part may serve as a replacement for other Eaton Durant encoder cable assemblies; consult original equipment documentation or your controls engineer.
Works With
- Eaton Cutler-Hammer programmable logic controllers (PLCs)
- Industrial motion control systems with standard encoder inputs
- Standard industry 6-pin circular connector protocols
- Analog and digital feedback systems using rotary encoders
