Overview

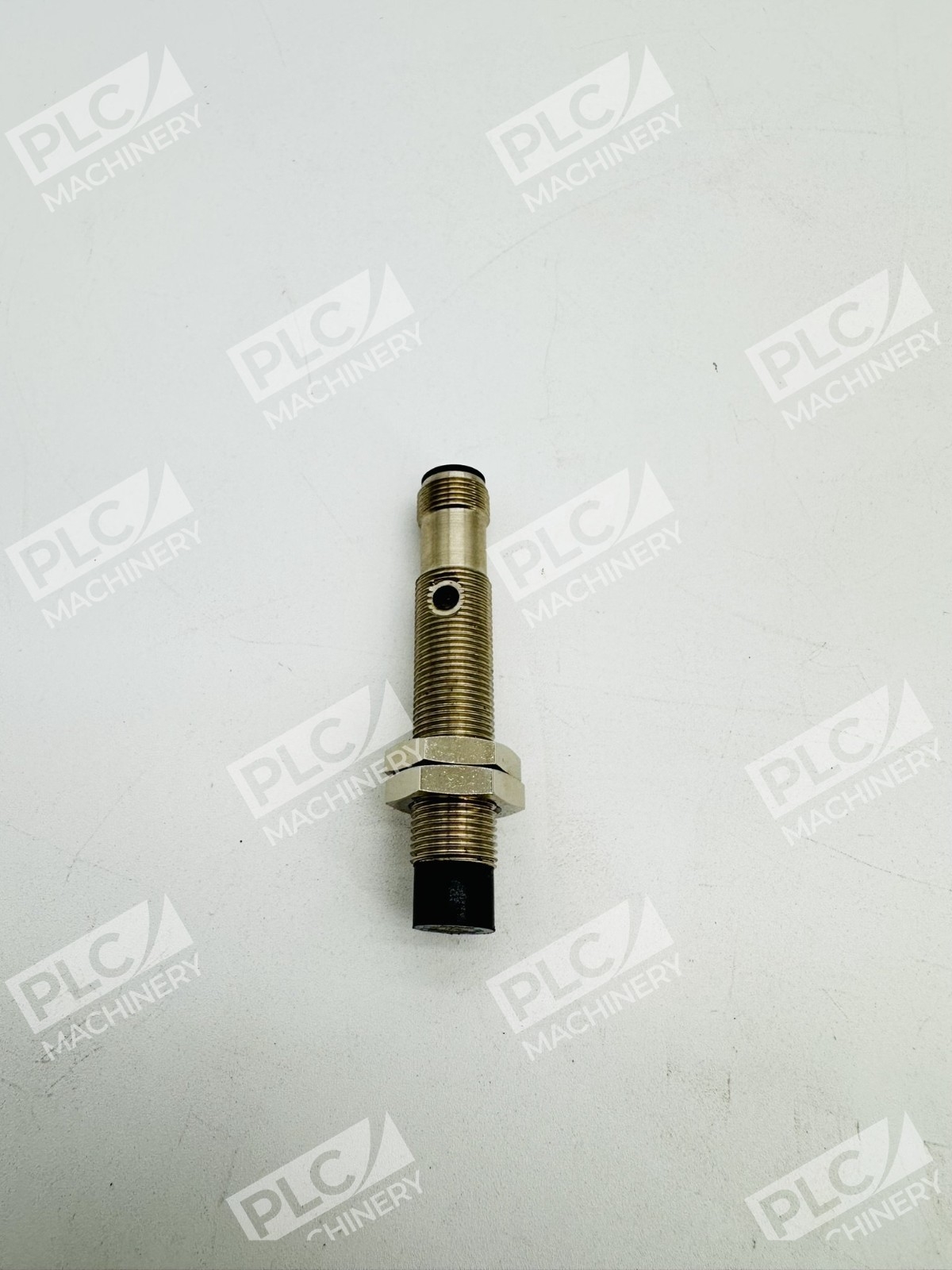

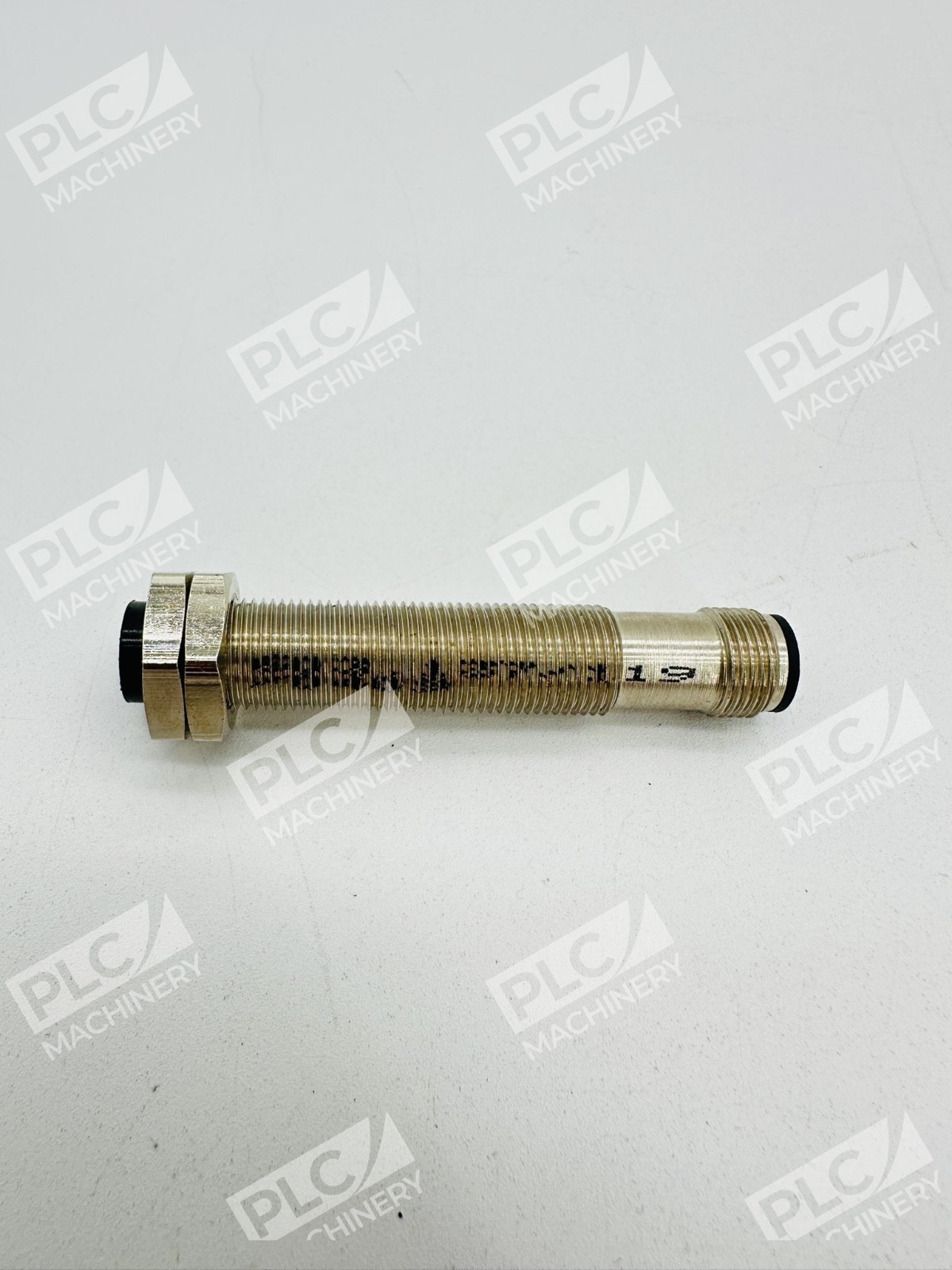

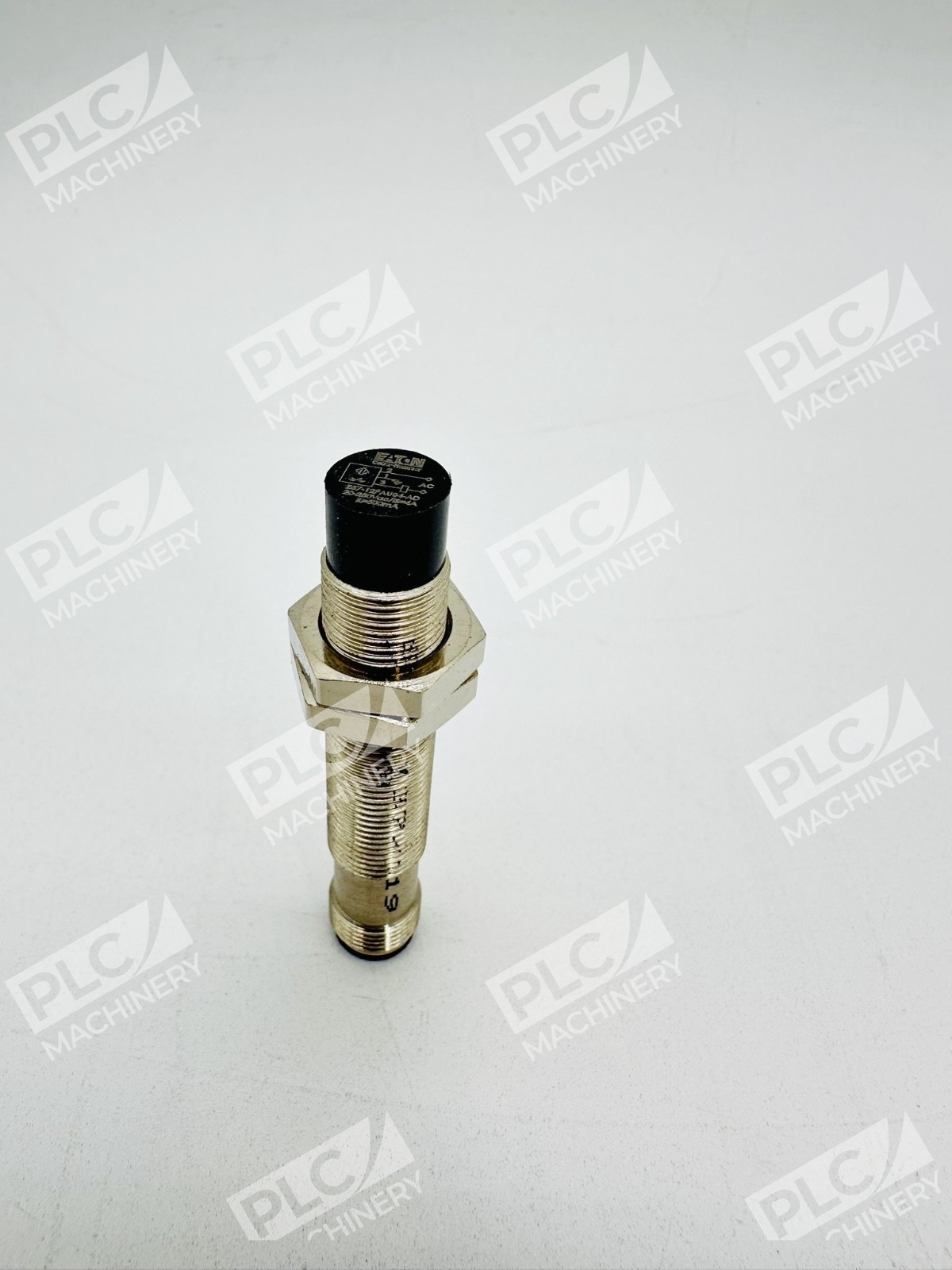

The Eaton Cutler-Hammer E57-12PAU04-AD is a compact 12mm inductive proximity sensor from Eaton’s Global Plus Prox series. This 2-wire AC model delivers reliable object detection without physical contact across industrial automation, manufacturing, and machinery control applications. The sensor operates at 20–250V AC, making it compatible with standard industrial AC power supplies.
Key Features
- 12mm cylindrical housing for tight mounting spaces
- 4mm sensing range for close-proximity detection applications
- 2-wire AC design reduces wiring complexity and cost

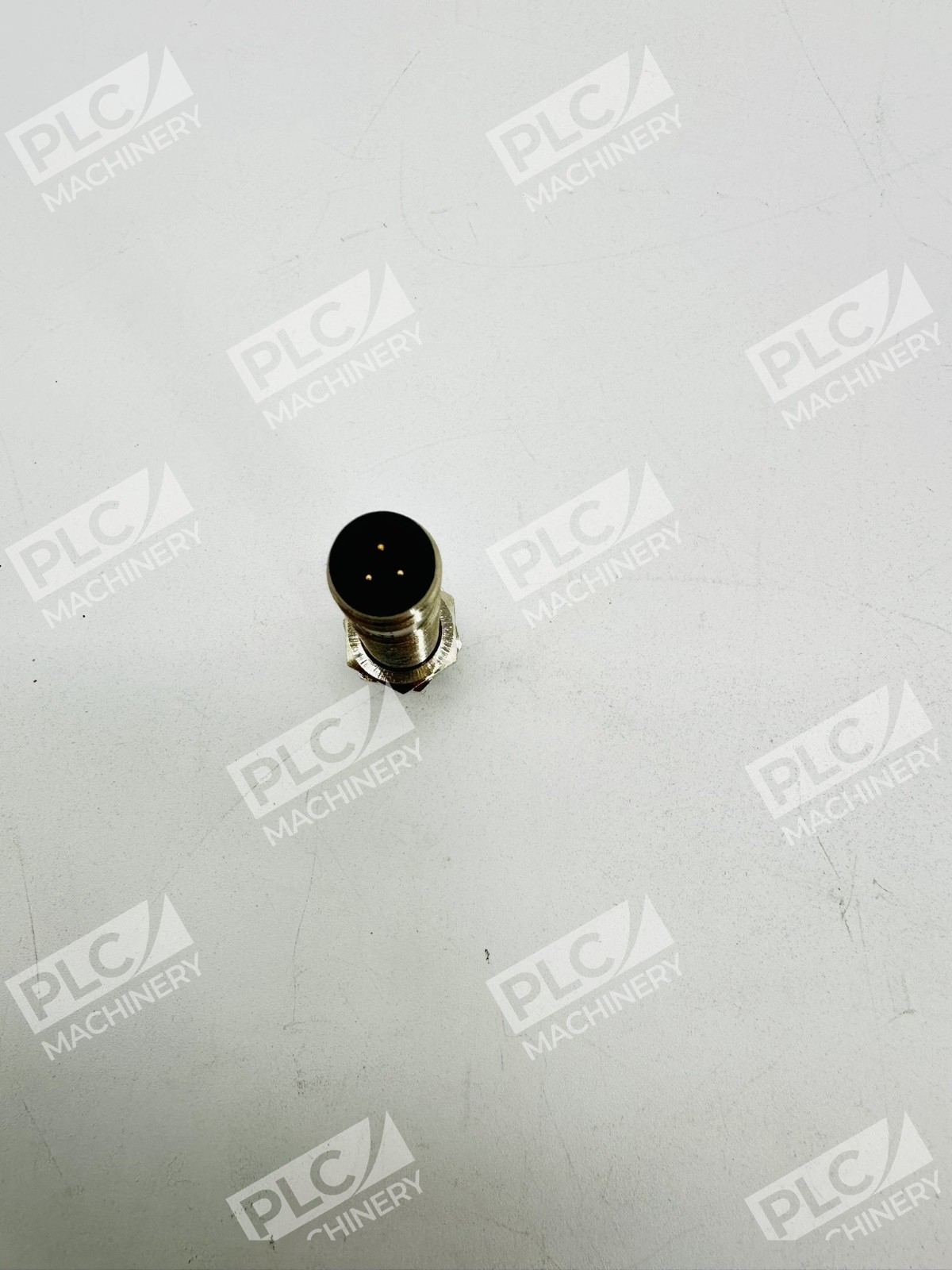

- Connector output type (PAU series designation) for quick disconnect
- Bright LED indicator shows output status in real time

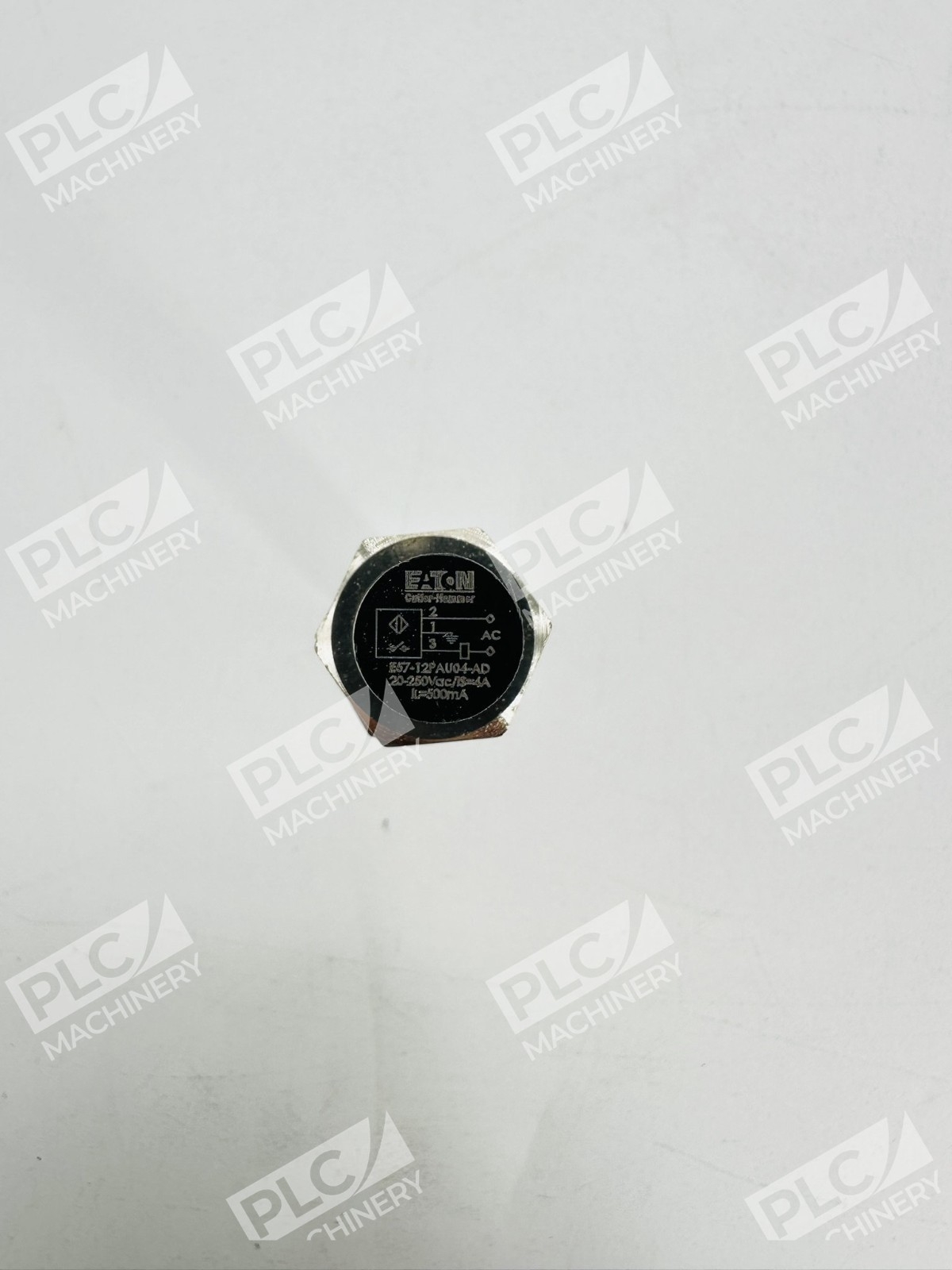

- Rugged stainless-steel face resists abrasion and corrosion
Technical Specifications
The sensor is rated for 20–250V AC operation with a standard 100 mA load current capacity. Housing diameter is 12mm with an overall length of 60mm and sensing face diameter of 12mm. The sensing range is 4mm, suitable for metal detection at short distances. Wiring is provided via connector configuration for secure, repeatable connections. Operating temperature range is 0–60°C, with storage temperature to −20°C. The unit is RoHS compliant for environmental regulations.
Typical Applications
- Conveyor and assembly line presence detection
- Machinery position and limit sensing
- Metal part detection in packaging and sorting
- Door and gate closure confirmation
- Speed and motion monitoring
- Industrial automation and control circuits
Compatibility & Replacements
Compatible With
- Standard industrial 20–250V AC control systems
- PLC inputs accepting NO (normally open) contact closure signals
- Relay logic and hardwired control circuits
- Industrial motion control and machinery automation platforms
- Standard M12 12mm threaded mounting applications
Replaces / Drop-In Replacement For
Direct compatibility with other Eaton E57-12P series AC 2-wire sensors. Verify mounting thread and connector orientation before installation. The E57-12PAS02-AD and E57-12PBS02-AD are related AC 2-wire models in the same family; consult Eaton documentation to confirm interchangeability for your specific application.
Works With
- Allen-Bradley and Rockwell Automation PLC input modules
- Siemens SIMATIC S7 and S5 controller input terminals
- Omron and Mitsubishi industrial control systems
- Standard NO/NC relay contacts and solenoid circuits
- Hardwired industrial control panels
- AC-rated proximity detection networks
