<h2>Overview</h2>

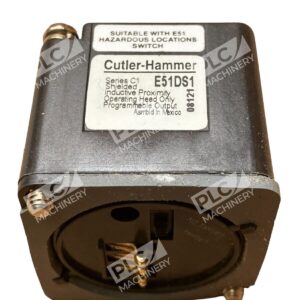

<p>The <strong>Eaton E51DS1</strong> is a compact inductive proximity sensor head designed for industrial motor control and limit switch applications. This side-sensing, shielded unit is part of the Eaton E51 series NEMA limit switch family and provides precise metallic object detection in stationary machinery and factory automation environments.</p>
<h2>Key Features</h2>
<ul>
<li>0.51-inch (13mm) sensing range for reliable ferrous and non-ferrous metal detection</li>
<li>Side-sensing configuration ideal for flush-mounted applications</li>
<li>Shielded design reduces false triggering from external electromagnetic interference</li>
<li>Plastic enclosure rated for NEMA 3/3S, 4, 4X, 6, 6P, 12, 13</li>

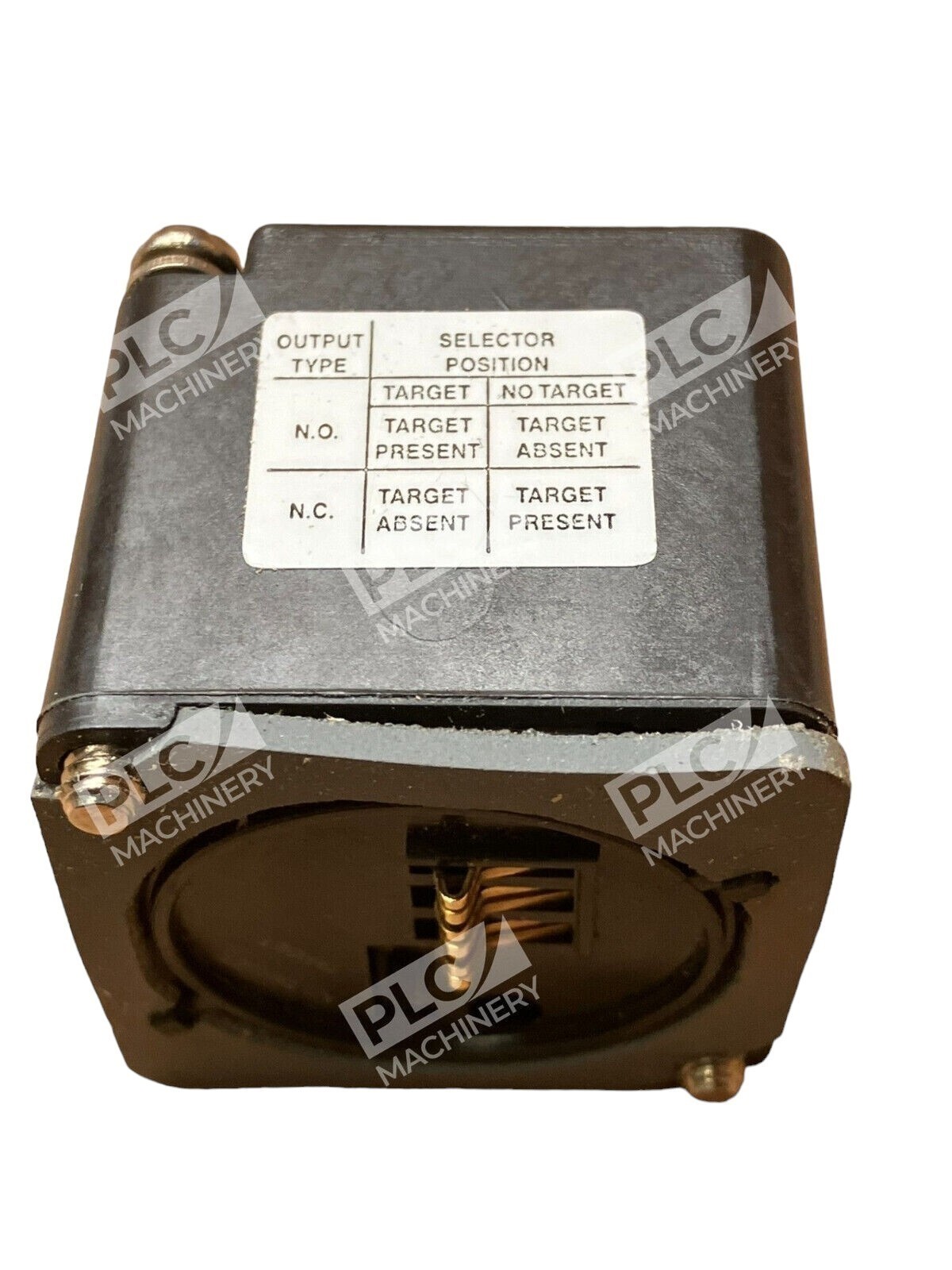

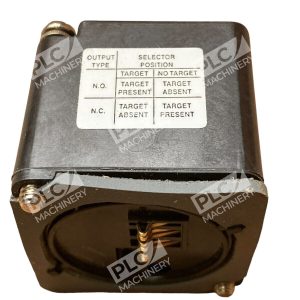

<li>Programmable NO or NC output; NPN/PNP configurations available</li>
<li>Standard frequency operation (50/60 Hz)</li>
<li>IP67 rated for washdown and moist environments</li>
<li>UL Listed and CSA Certified</li>
</ul>
<h2>Technical Specifications</h2>
<ul>
<li><strong>Sensing Range:</strong> 0.51 inches (13 mm)</li>
<li><strong>Sensing Position:</strong> Side sensing</li>
<li><strong>Shielding:</strong> Shielded</li>
<li><strong>Operating Voltage:</strong> 120 VAC (50/60 Hz), 20–264 VAC (50/60 Hz), 20–264 VDC, 10–30 VDC</li>
<li><strong>Output Configuration:</strong> NO/NC, NO-NC Complementary, NPN/PNP</li>
<li><strong>Switching Frequency:</strong> Standard</li>
<li><strong>Enclosure Material:</strong> Plastic</li>
<li><strong>NEMA Rating:</strong> 3, 3S, 4, 4X, 6, 6P, 12, 13</li>
<li><strong>IP Rating:</strong> IP67</li>
<li><strong>Dimensions:</strong> 1.38″ L × 1.51″ W × 1.51″ H</li>
<li><strong>Weight:</strong> 0.45 lbs</li>
<li><strong>Series:</strong> Eaton E51</li>
<li><strong>Certifications:</strong> UL Listed, CSA Certified</li>
</ul>
<h2>Typical Applications</h2>
<ul>
<li>Motor control and limit detection in industrial machinery</li>
<li>Position sensing in conveyor systems and material handling equipment</li>
<li>Automation and logic control systems</li>
<li>Metallic object detection in washdown and corrosive environments</li>
<li>NEMA-rated control enclosure applications</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Eaton E51 series modular limit switch enclosures</li>
<li>NEMA 3, 3S, 4, 4X, 6, 6P, 12, 13 rated control systems</li>
<li>Standard 50/60 Hz industrial electrical systems</li>
<li>Equipment supporting 10–30 VDC, 20–264 VAC, and 20–264 VDC operation</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<ul>
<li>Older Eaton E51DS1 units in existing limit switch applications</li>
<li>Verify compatibility with your system integrator before ordering to ensure side-sensing orientation matches your application.</li>
</ul>
<h3>Works With</h3>
<ul>
<li>Industrial motor control systems using NEMA-rated limit switches</li>
<li>Programmable logic controllers (PLCs) with NO/NC input modules</li>
<li>Automation platforms supporting standard frequency sensors</li>
</ul>
