Overview

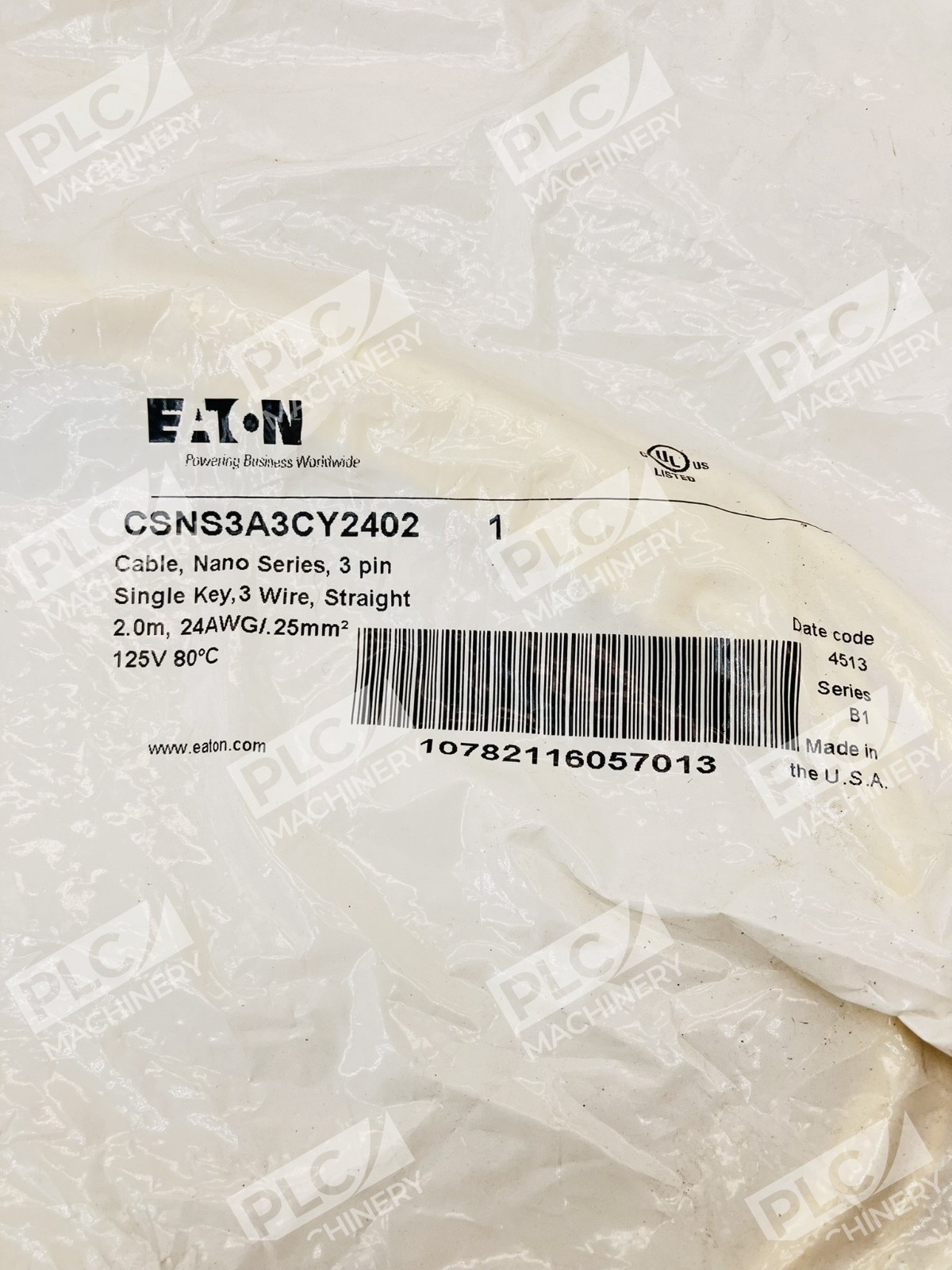

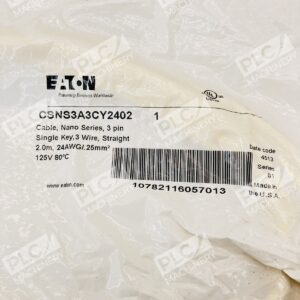

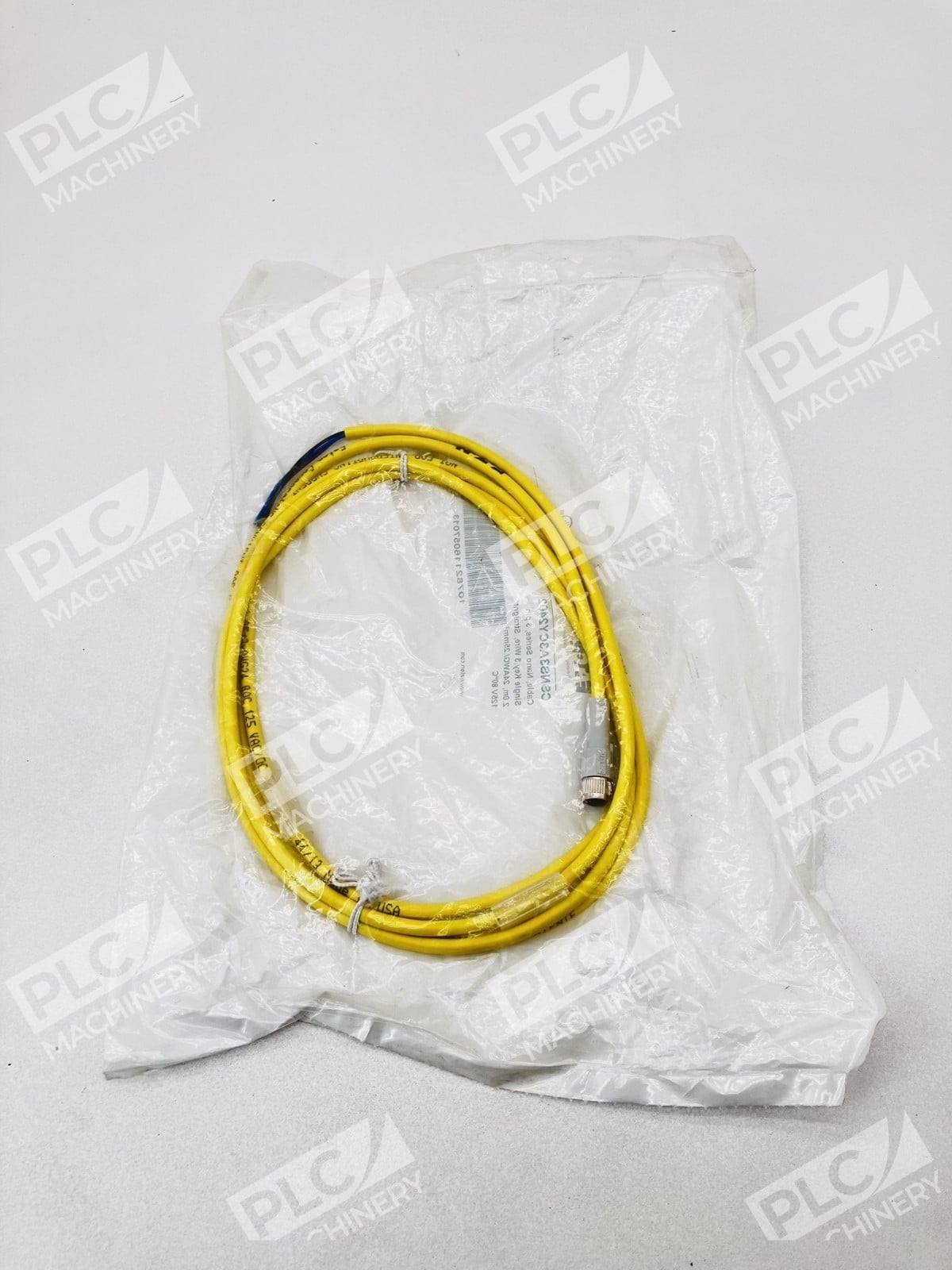

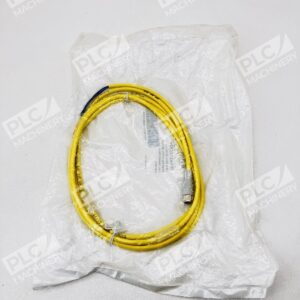

The Eaton CSNS3A3CY2402 is a three-pin M8 Nano-style sensor cable cordset engineered for direct sensor-to-control connectivity in industrial automation environments. Featuring a straight female M8 connector and loose-wire termination on the opposite end, this cordset bridges sensors and terminal blocks without the need for additional adapters, reducing installation time and points of failure.
Key Features
- Three-pin Nano M8 straight female connector for quick-disconnect installation
- Three-wire configuration with brown, blue, and black color-coded conductors
- 6.6 feet (2 meters) of cable for flexible sensor placement and routing
- 24 AWG conductor gauge for reliable signal transmission
- Durable PVC jacket resistant to abrasion and machine environment exposure
- 100 Vdc rated for DC sensor applications
Technical Specifications

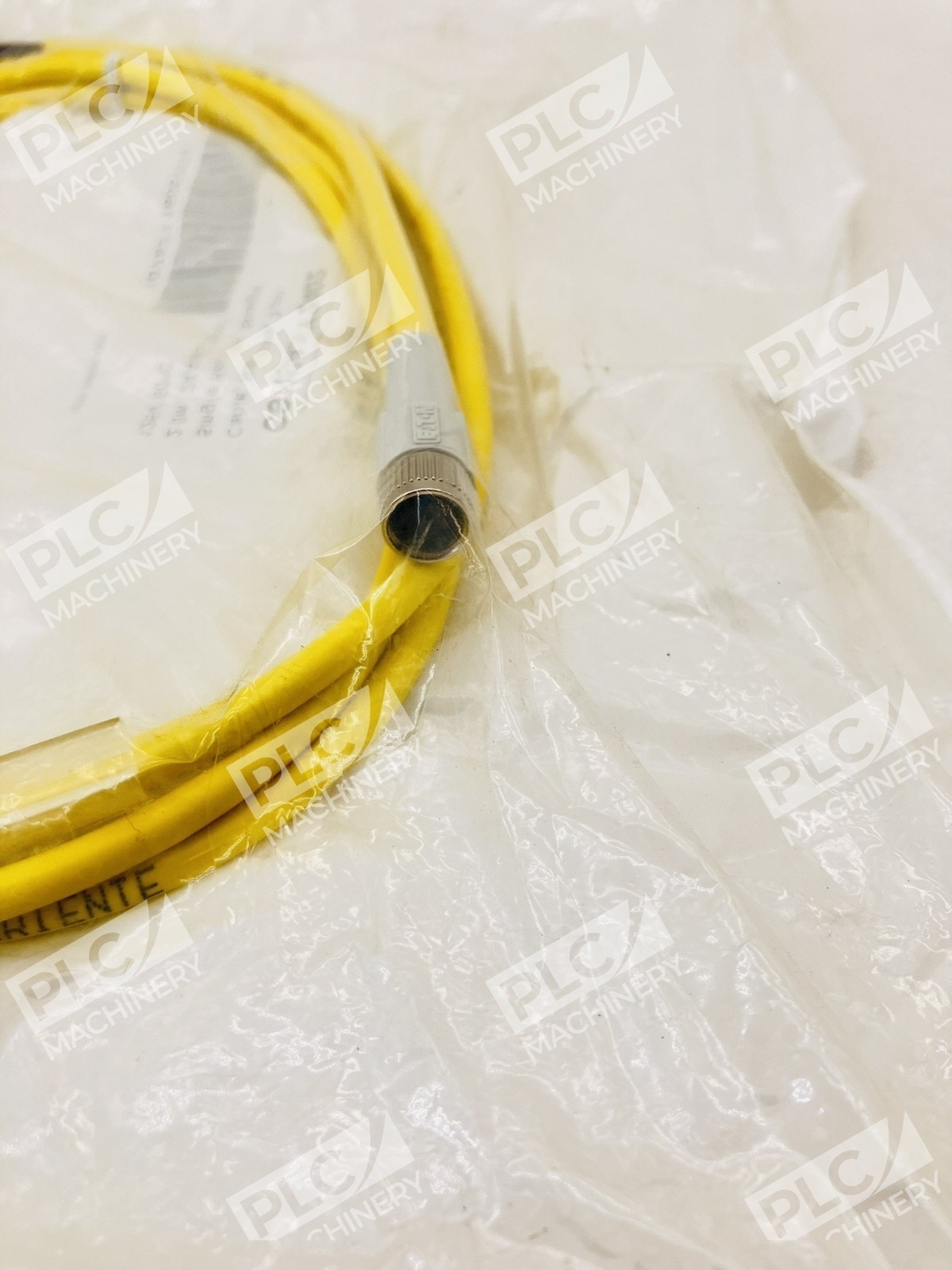

- Connector Type: M8 Nano, 3-pin straight female

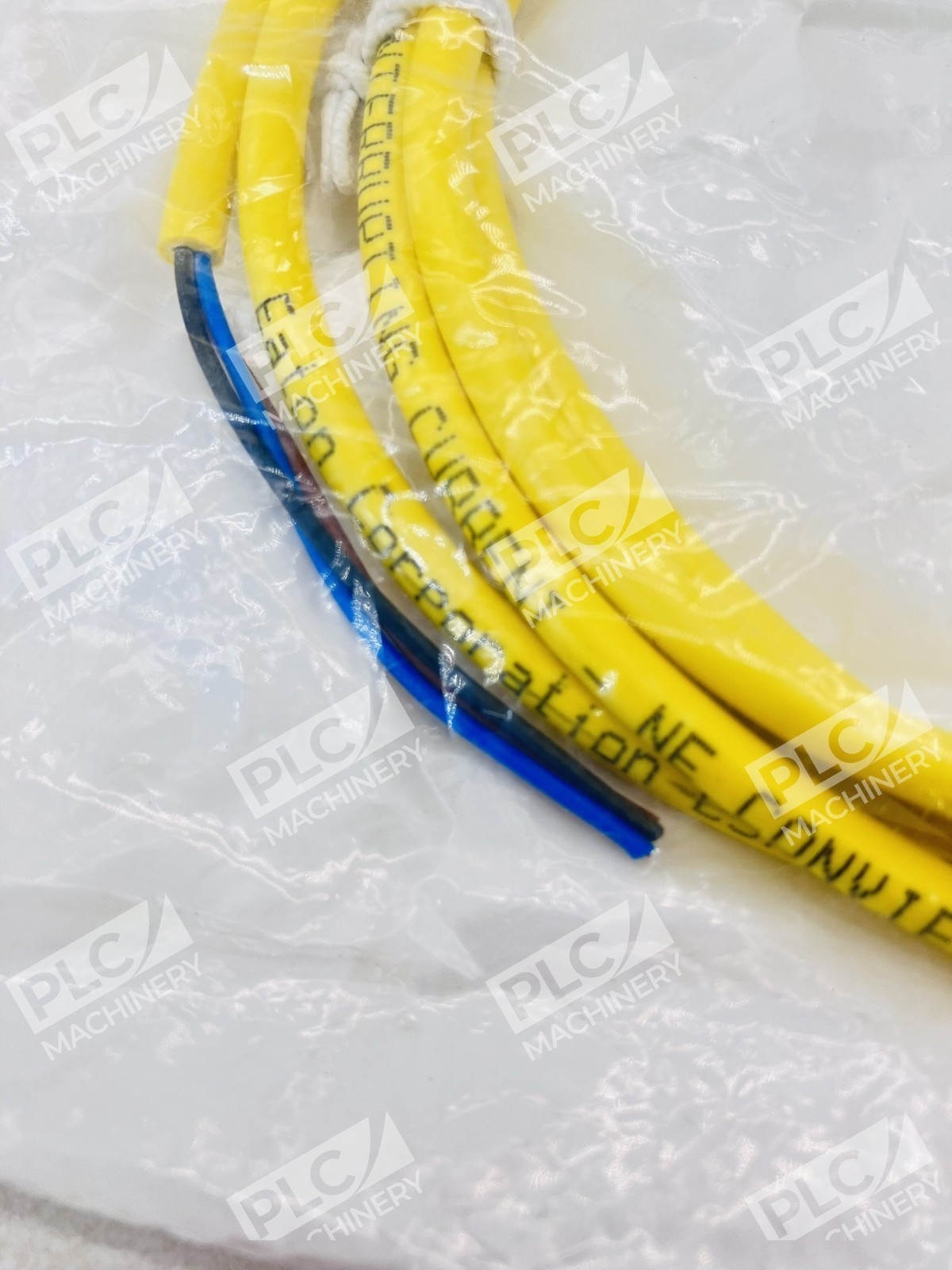

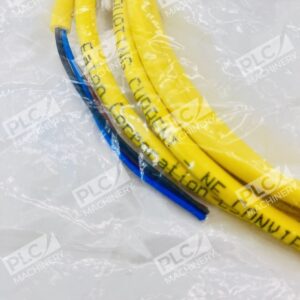

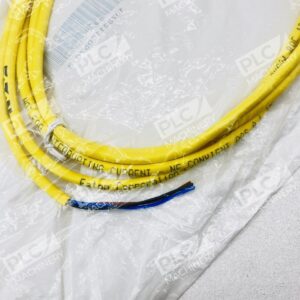

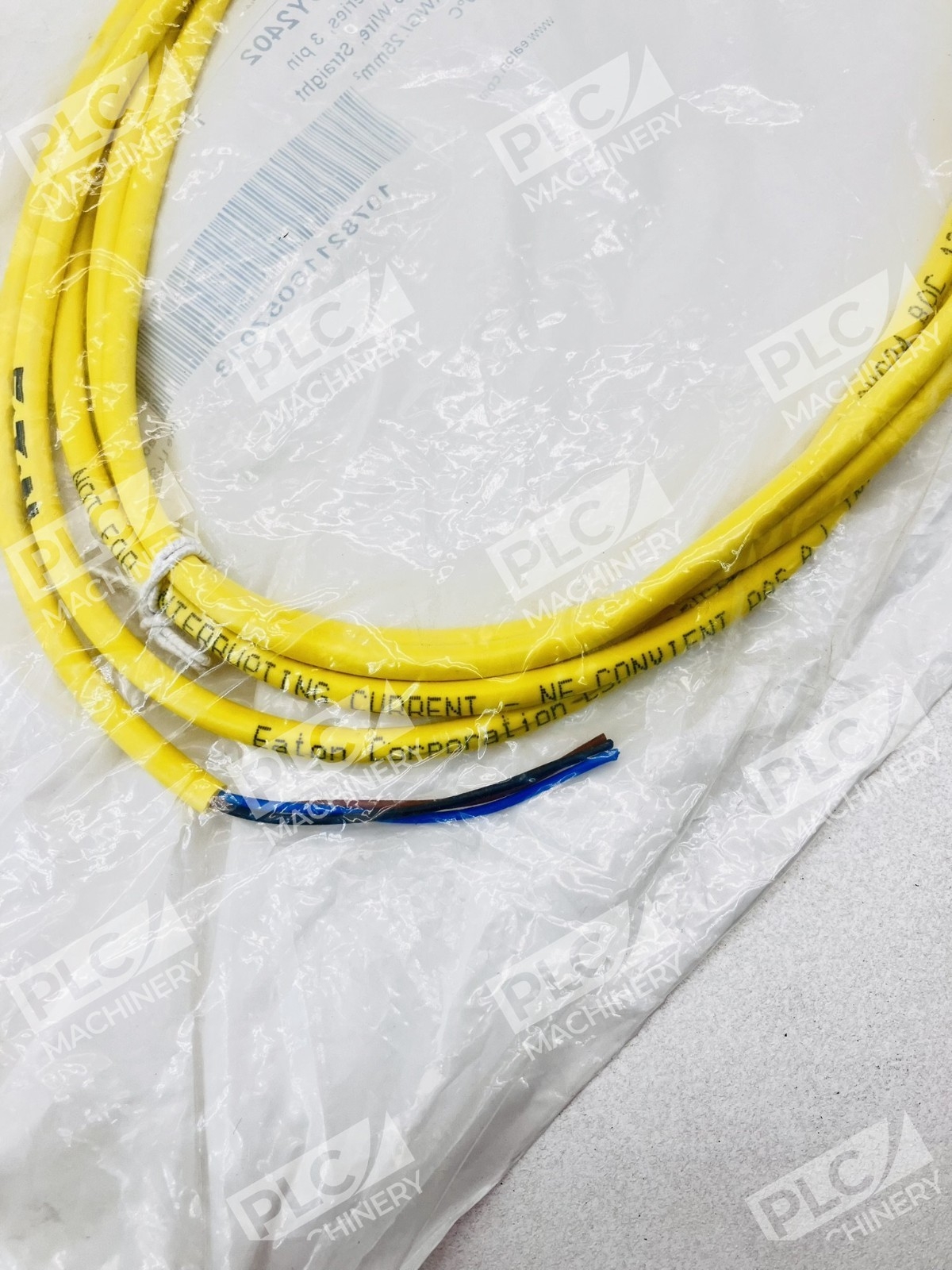

- Termination: Loose wires (brown, blue, black)
- Cable Length: 6.6 ft (2 m)
- Conductor Size: 24 AWG

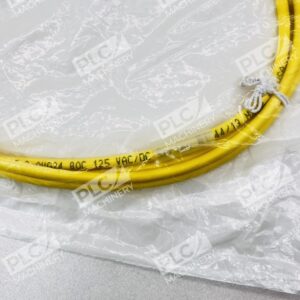

- Cable Jacket: PVC
- Voltage Rating: 100 Vdc
- Connector Style: Straight
- Configuration: 3-wire
Typical Applications
- Photoelectric and inductive proximity sensor connections
- Limit switch and pushbutton sensor wiring
- AC/DC control system sensor inputs
- Machine-mounted sensor I/O connectivity
- Factory automation and manufacturing assembly lines
- Robotic equipment sensor integration
Compatibility & Replacements
Compatible With
- Eaton Global Plus photoelectric sensors with M8 connectors
- Eaton proximity sensors (inductive and capacitive)
- Standard M8 three-pin sensor receptacles and mating connectors
- DC voltage sensor systems rated 24–100 Vdc
- Industrial control systems and PLC input modules with M8 connectivity
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Eaton M8 three-pin cordsets with identical connector style and cable length are generally interchangeable; consult your sensor or control system documentation for exact cross-reference.
Works With
- Eaton sensing solutions and product line (Global Plus, iProx, E57 series)
- Standard M8 industrial connector ecosystems
- 24 and 100 Vdc control circuits and sensor power supplies
- Industrial automation and machine control panels
