Overview

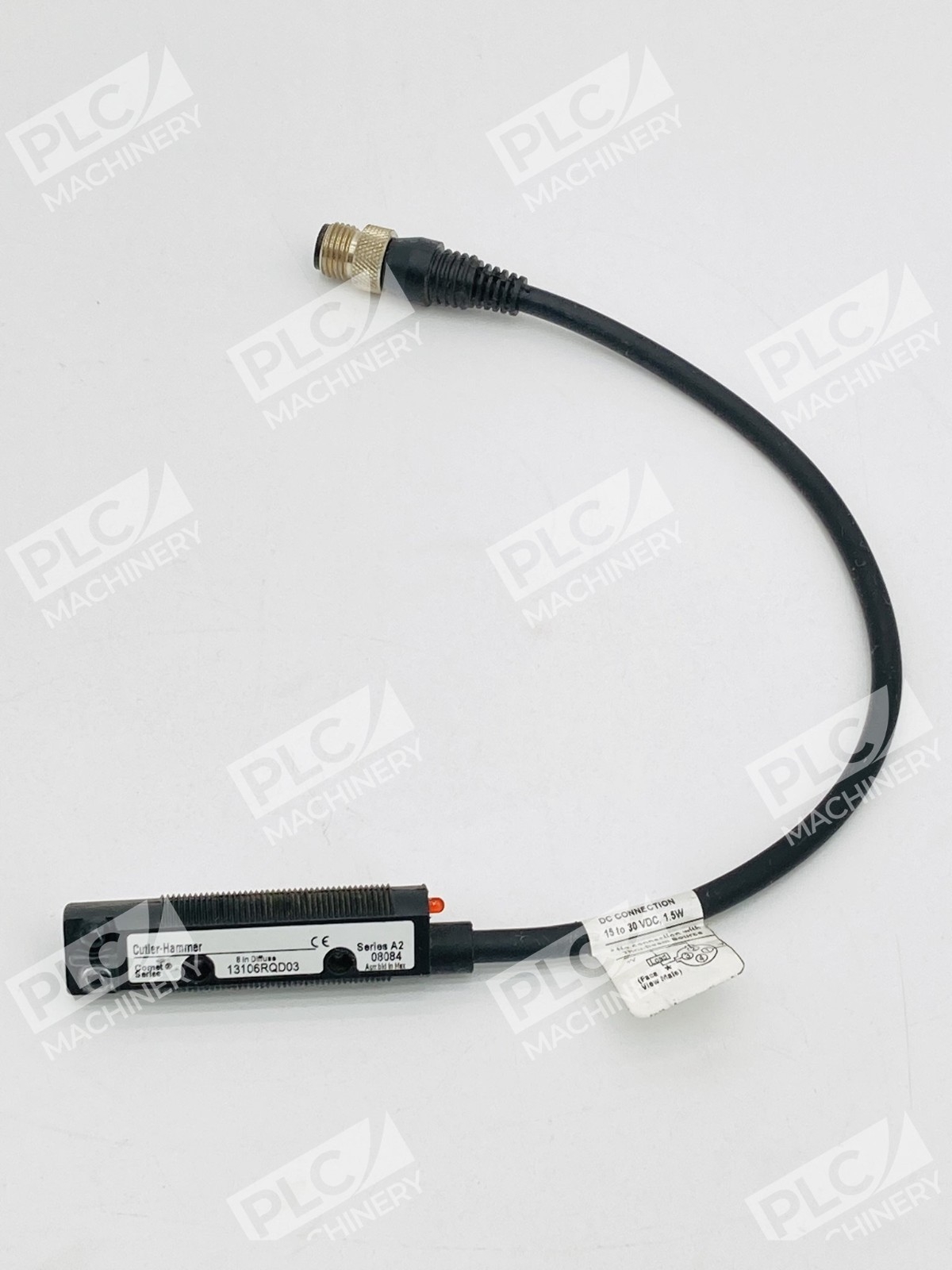

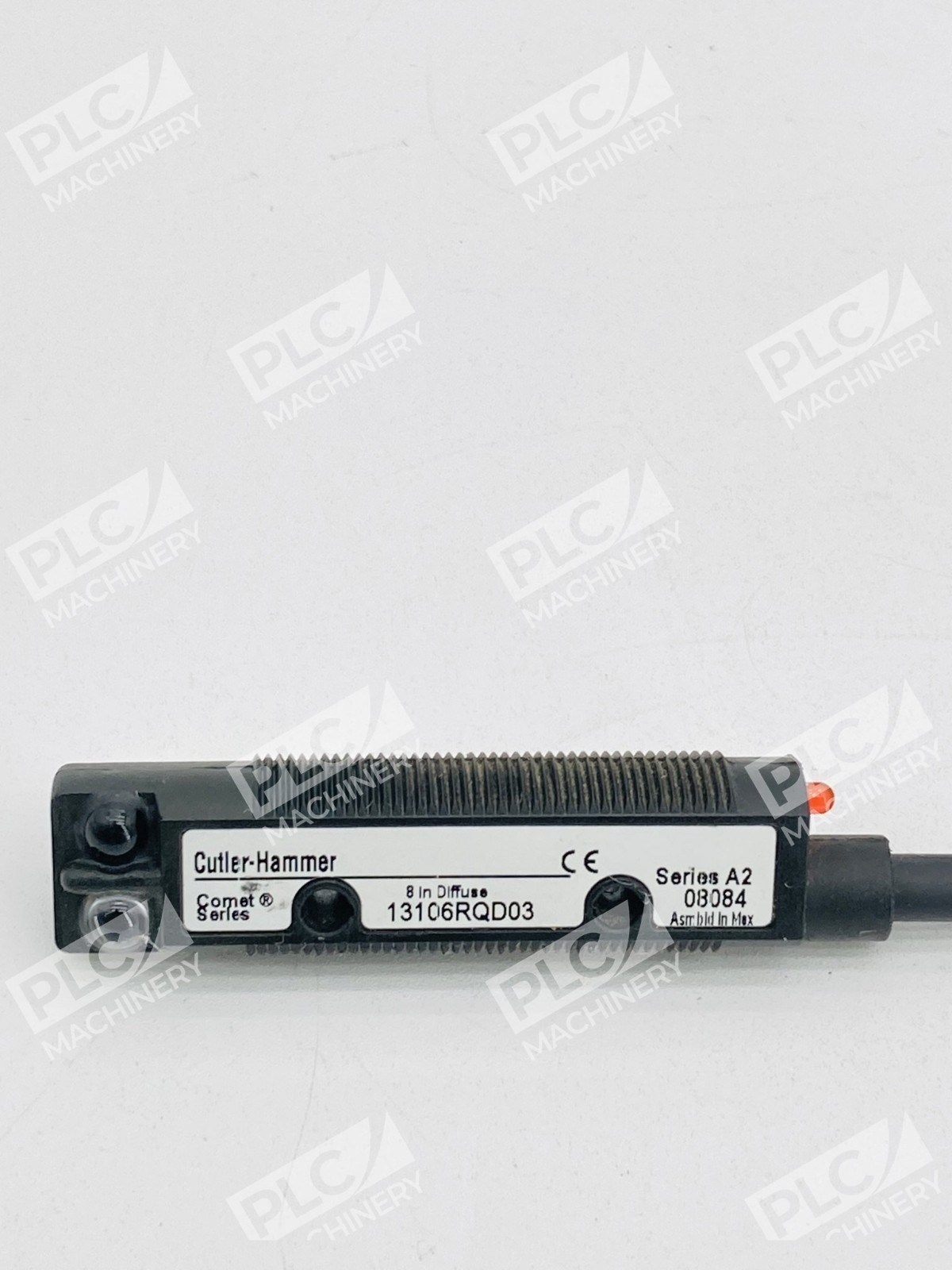

The Eaton 13106RQD03 is a Comet series diffuse reflective photoelectric sensor featuring right-angle viewing geometry. Right-angle viewing models mount in a depth of only 6/10th of an inch, allowing installation in confined spaces where traditional inline sensors cannot fit. The industry standard 18 mm diameter threaded body has flat sides allowing it to be mounted like a tubular sensor or against any flat surface. This sensor is built for noncontact object detection across manufacturing, packaging, and material handling equipment.
Key Features
- Right-Angle Configuration: Compact 0.6-inch depth mount for space-constrained applications
- Diffuse Reflective Sensing: Detects objects based on light reflection without retroreflectors
- 18 mm Tubular Housing: Industry standard body design with flat sides for versatile mounting
- Polycarbonate Lens: Durable optical element rated for harsh industrial environments
- Polyurethane Encapsulation: Internal components are rigidly sealed in a solid encapsulated package for excellent performance in high-vibration and high-shock applications

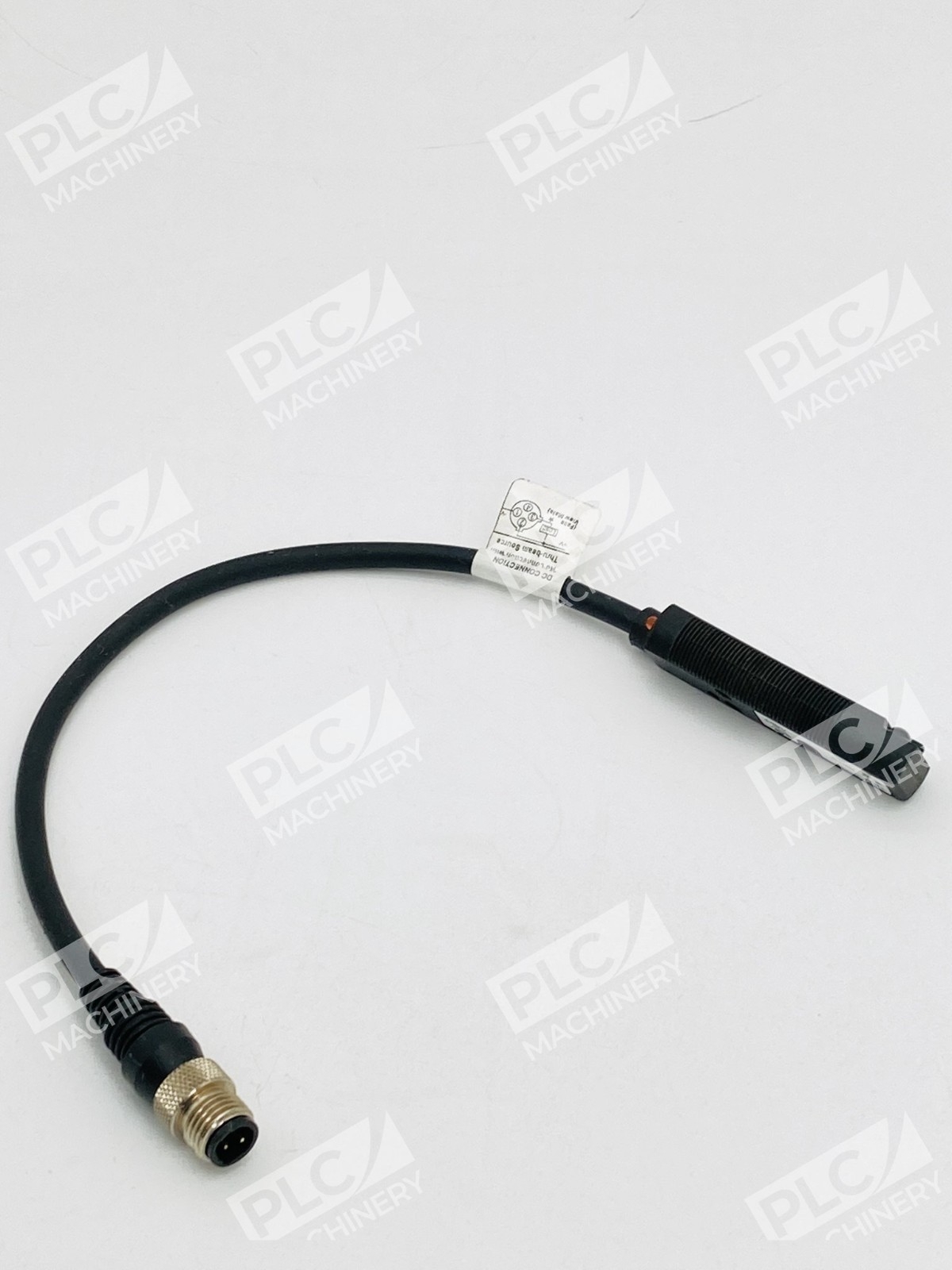

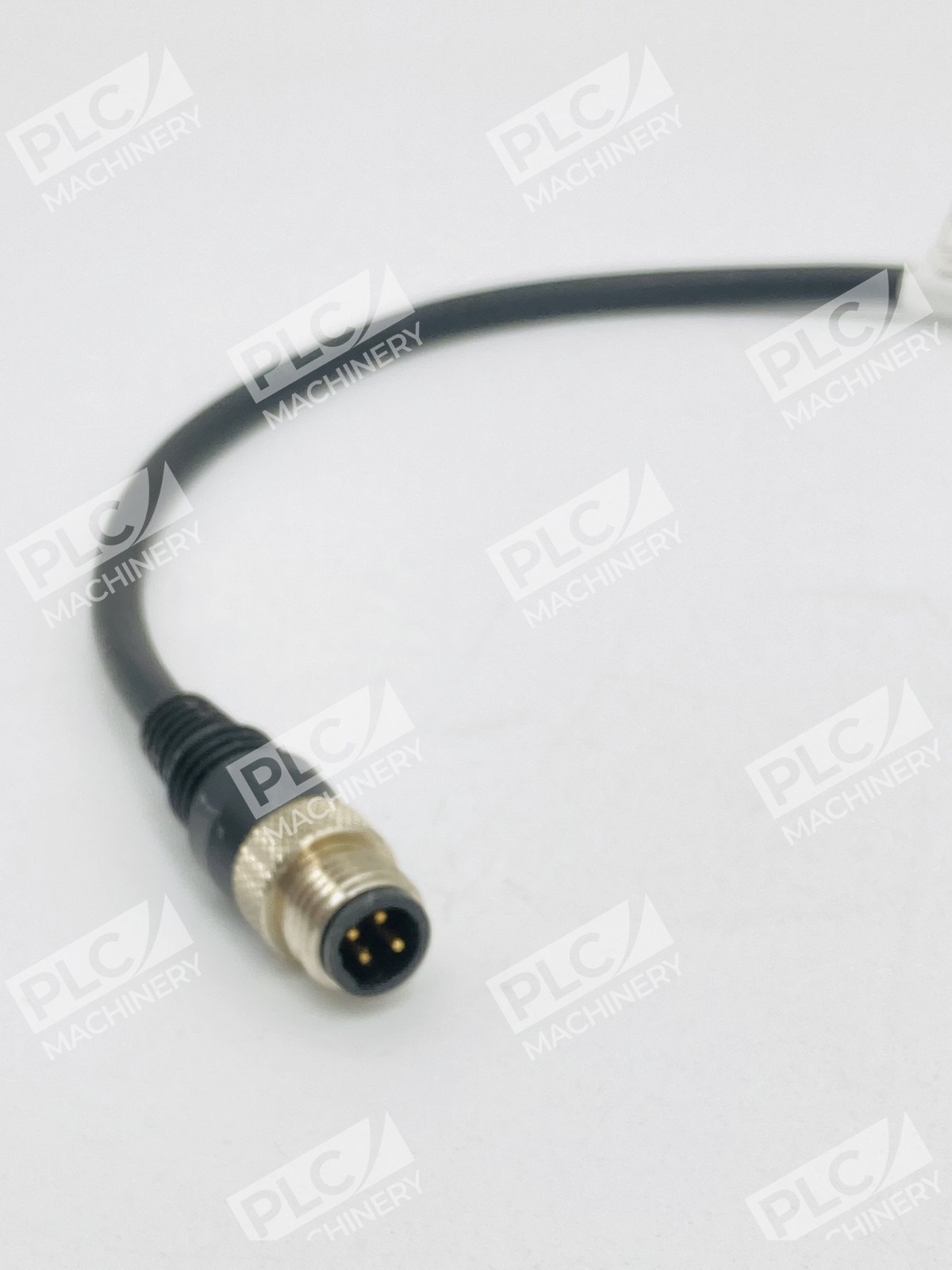

- Multiple Connector Options: Available with cable or micro-connector
Technical Specifications
- Sensor Type: Diffuse Reflective Photoelectric

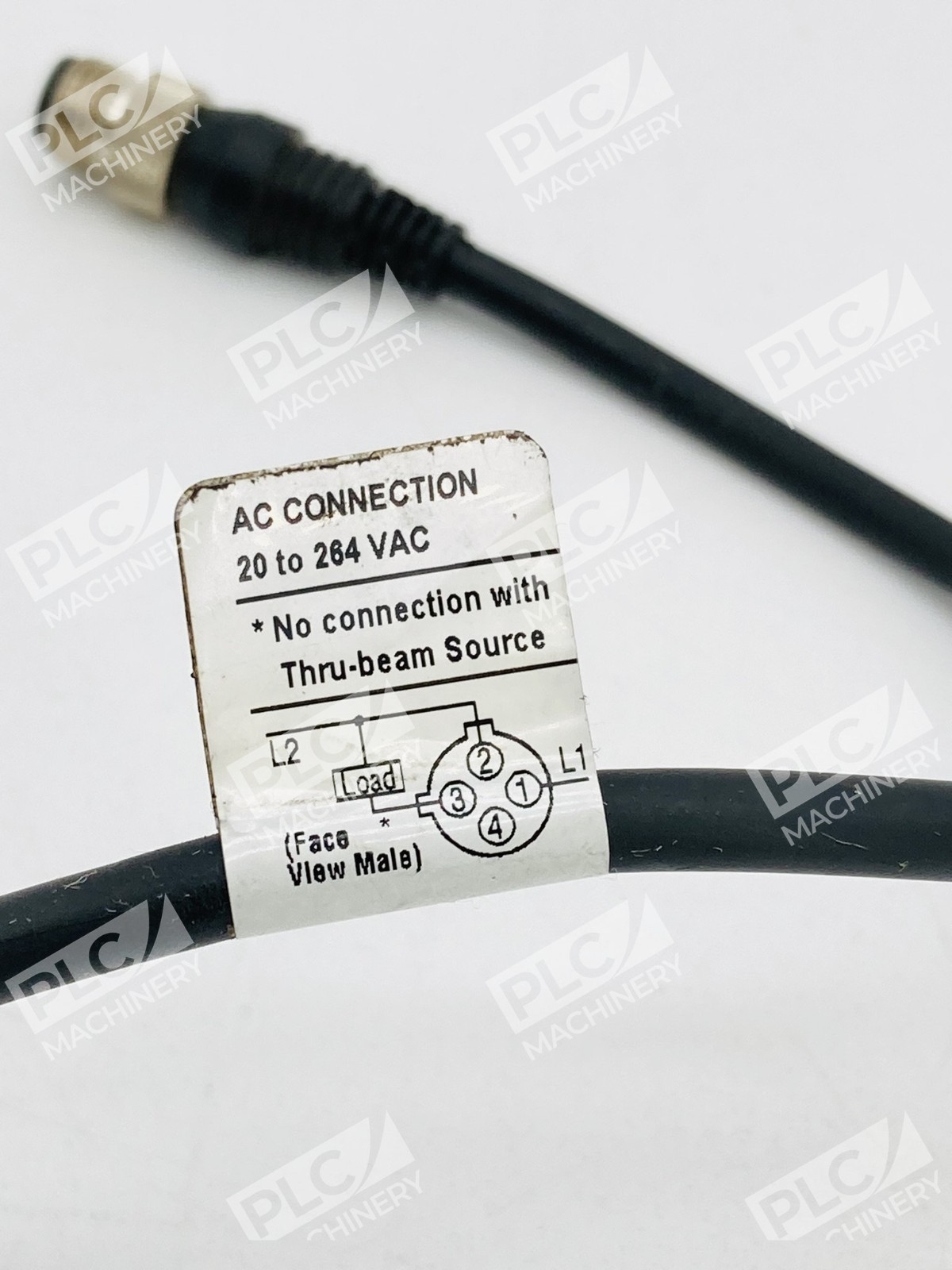

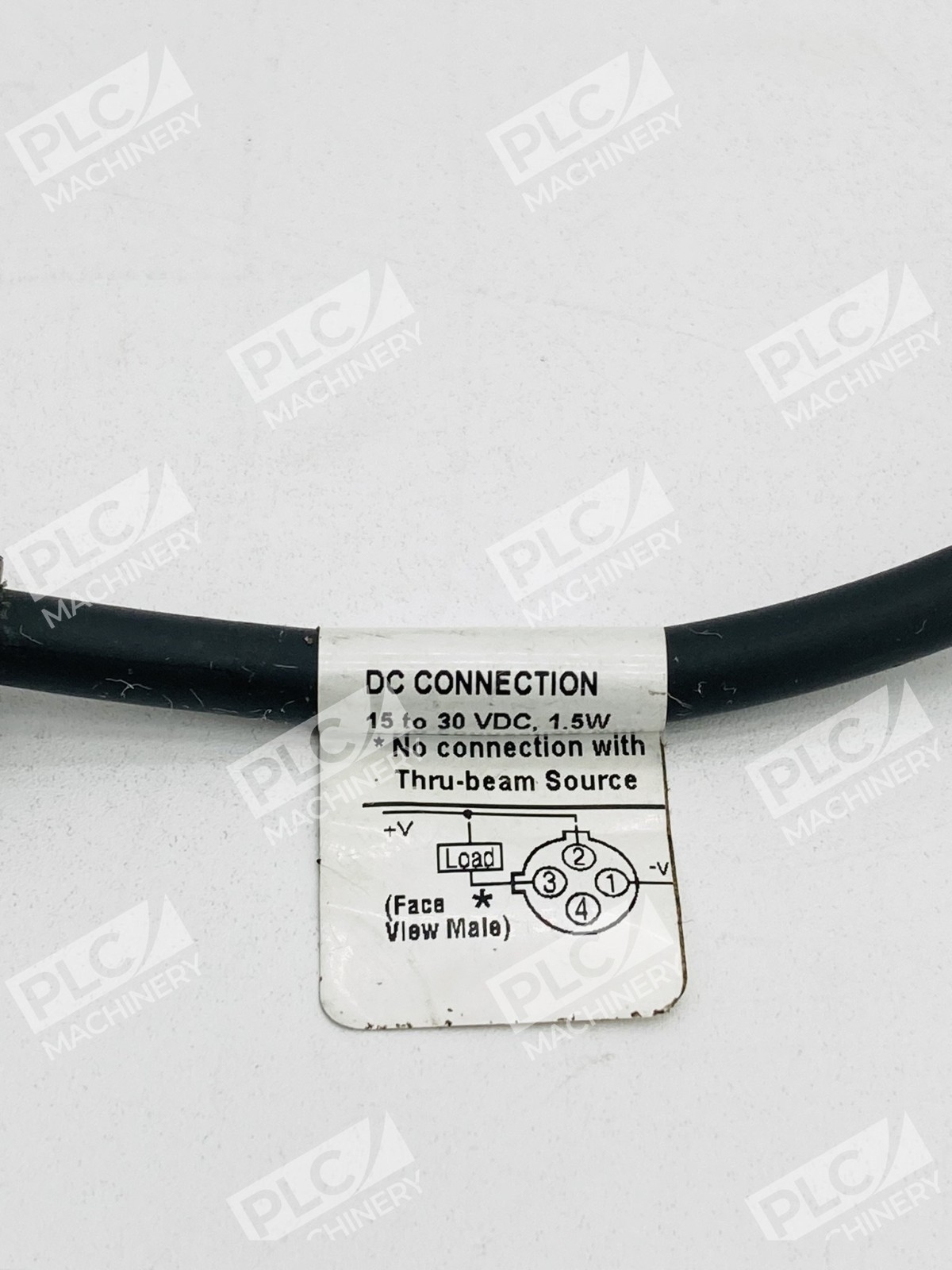

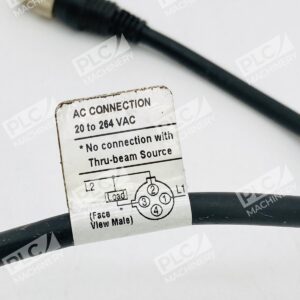

- Operating Voltage: 15–30 VDC / 20–264 VAC
- Output Type: NPN open collector
- Maximum Output Current: 300 mA
- Housing: 18 mm diameter, M18 threaded
- Sensing Mode: Right-angle diffuse reflective
- Material: Polyurethane body, polycarbonate lens
- NEMA Rating: NEMA 1, 2, 3, 4, 4X, 6, 12 and 13
- Cable Type: PVC jacket with 8 inch nominal pigtail
- Product Series: Comet 13100/13106 family
Typical Applications
The Eaton 13106RQD03 is commonly used in:
- Packaging machinery for product detection and sorting
- Conveyor systems requiring right-angle object sensing
- Labeling and printing equipment where space is limited
- Material handling equipment with confined sensor mounting areas
- Light-duty automation where diffuse detection suffices
- Retrofit installations replacing inline diffuse sensors
Compatibility & Replacements
Compatible With
- Industrial automation systems supporting 15–30 VDC or 20–264 VAC input
- PLC and controller inputs accepting NPN open-collector output
- Standard 24 VDC industrial control panels
- Eaton Cutler-Hammer control solutions and relay logic systems
- OEM equipment using M18 threaded sensor mounting
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The 13106RQD03 replaces earlier Comet diffuse right-angle models within the 13100/13106 families. Confirm the exact predecessor part number with technical support to ensure wiring and sensing range match your application.
Works With
- EtherNet/IP and industrial networks via gateway modules
- PLC platforms: Allen-Bradley CompactLogix, ControlLogix, Siemens S7, Mitsubishi FX/Q series
- Standard 24 VDC relay and contactor circuits
- Compact industrial control enclosures and terminal blocks
