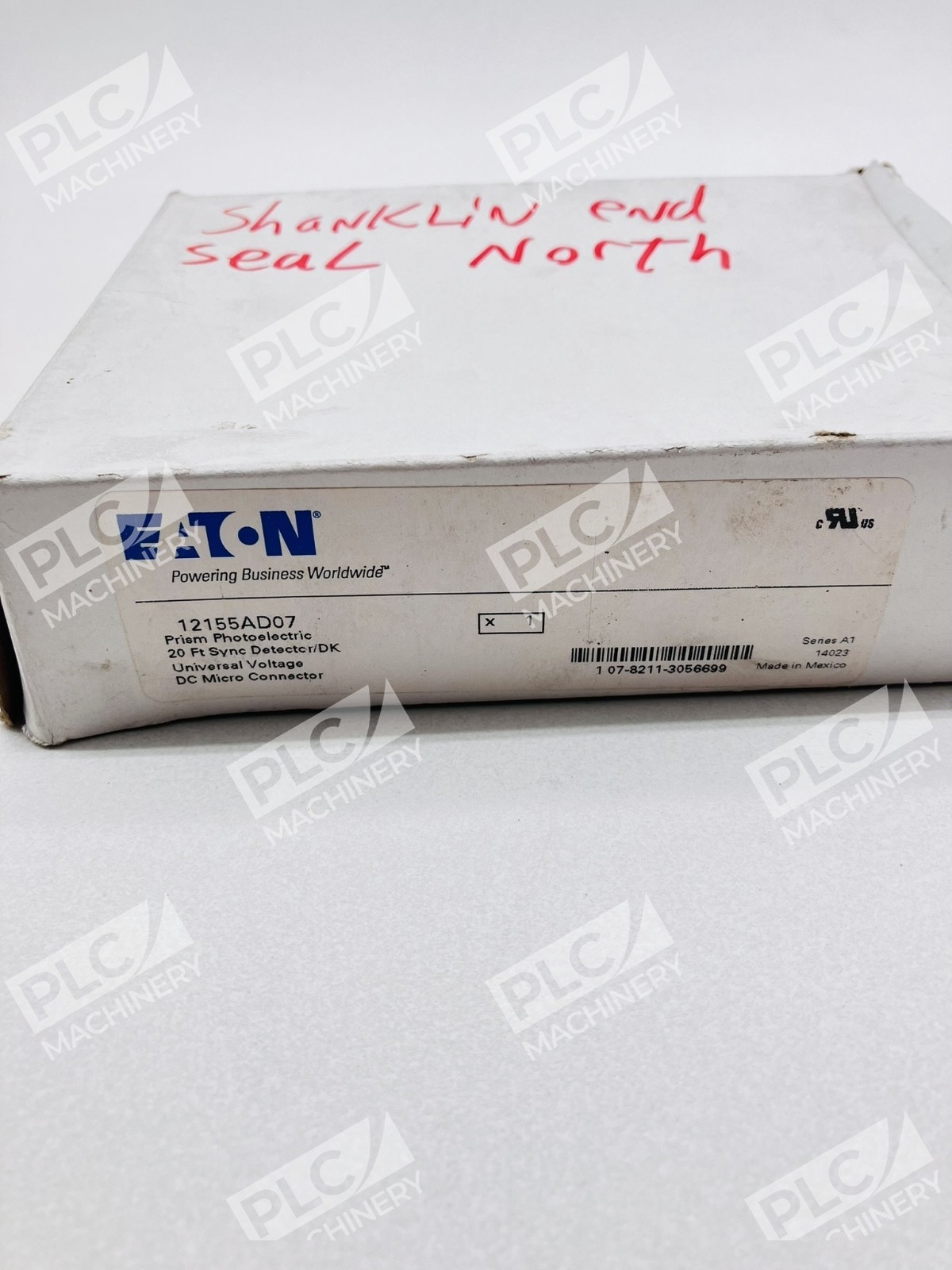

Overview

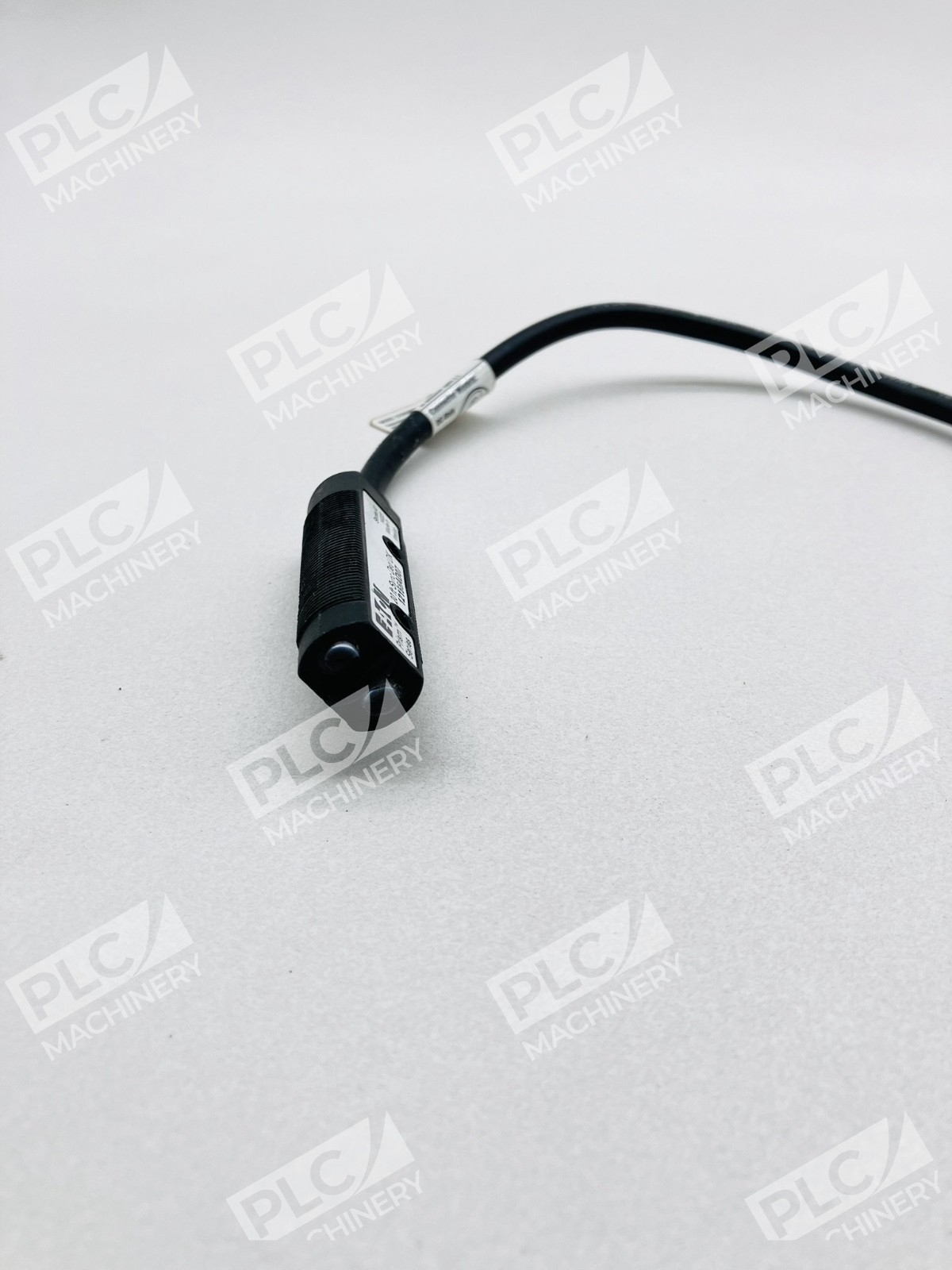

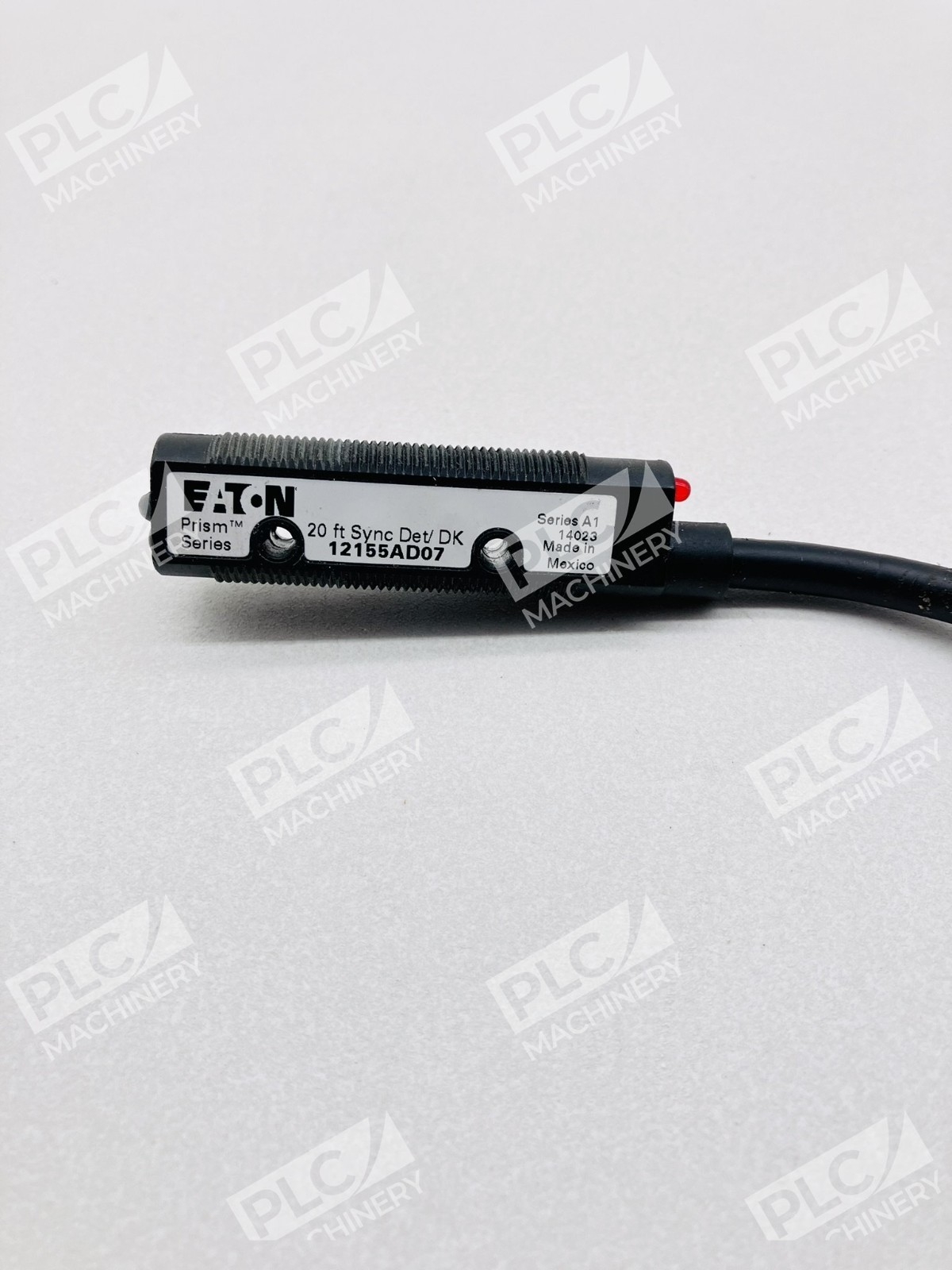

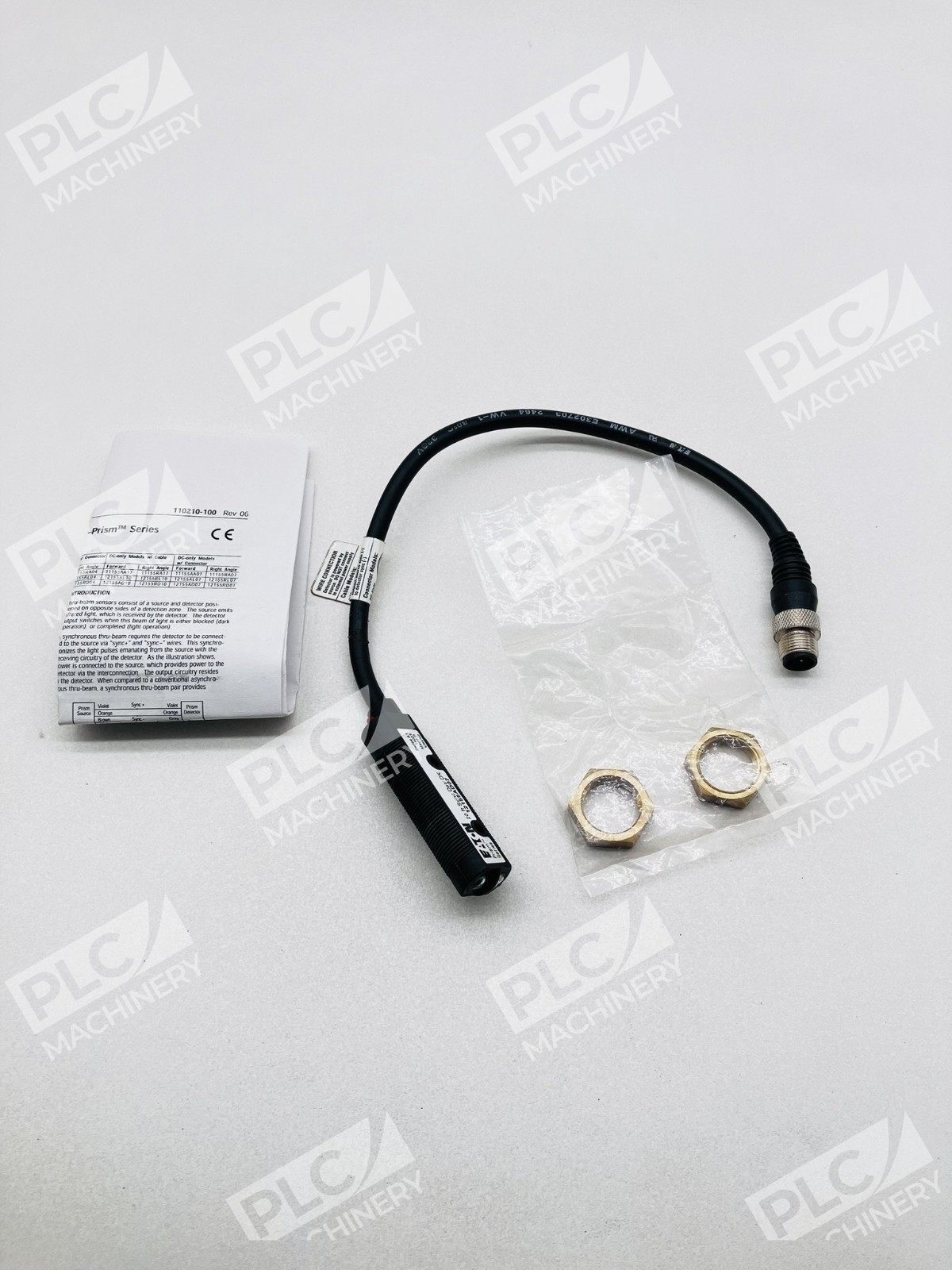

The Eaton 12155AD07 is a precision photoelectric sensor receiver from the Prism Series, designed for thru-beam sensing applications requiring extended range and high noise immunity. This tubular receiver features a 20 ft sensing distance with a visible red beam, making alignment and setup straightforward for maintenance and installation crews. As the receiver component of a thru-beam pair, the 12155AD07 operates in dark-activate mode with isolated solid-state relay output, providing reliable non-contact detection for packaging, material handling, and industrial automation systems.
Key Features
- 20 ft thru-beam sensing range with high optical gain for dust and dirt resistance
- Visible red sensing beam for easy visual alignment and troubleshooting
- Dark operate / isolated solid-state relay output configuration

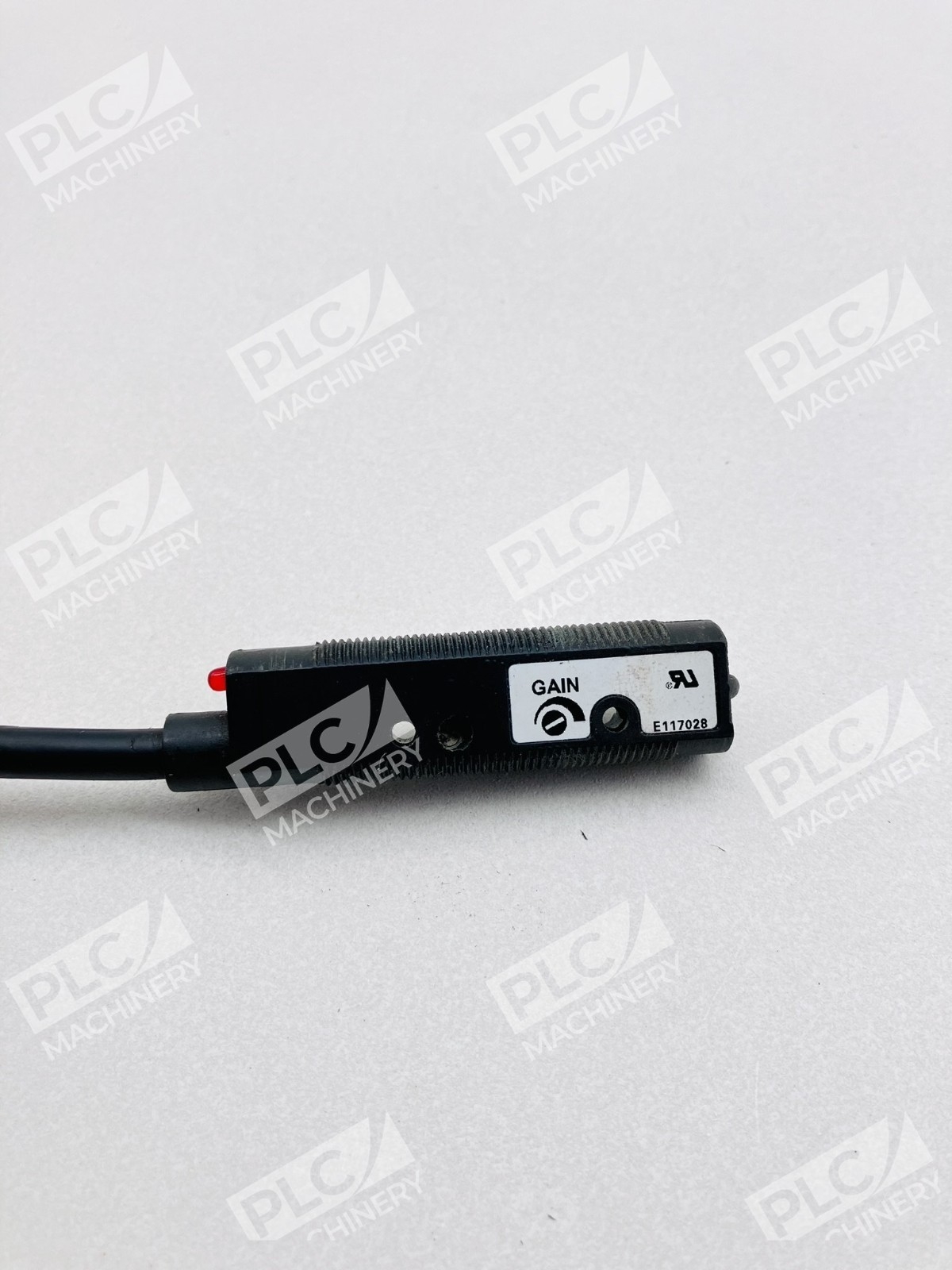

- Adjustable gain control for peak optical performance across varied applications
- 3 ms response time for fast detection and equipment response
- Compact 18 mm (0.71 in diameter) tubular shape for space-constrained mounting
- High noise immunity to reduce electrical noise interference
- LED light source for long-term reliability
Technical Specifications
- Sensing Mode: Thru-Beam (requires separate transmitter unit)
- Sensing Distance: 20 ft (6.1 m)
- Sensing Beam: Visible Red LED
- Output Type: Isolated Solid-State Relay (Dark Operate)
- Input Voltage: 10–30 VDC
- Output Current: 80 mA at 132 VAC / 110 mA at 132 VDC
- Power Consumption: 1.5 W
- Response Time: 3 ms

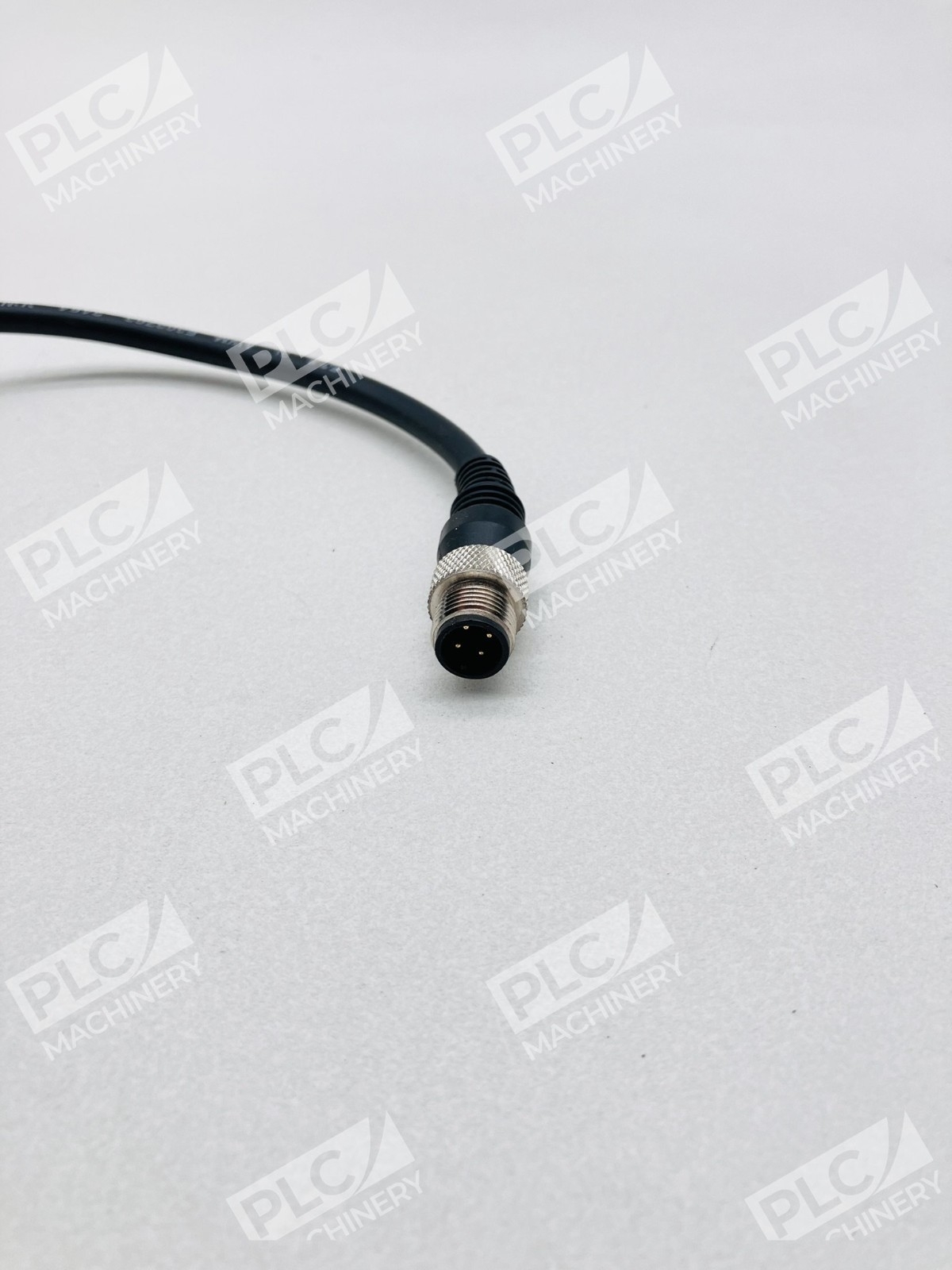

- Connection: 4-Pin M12 Connector
- Housing Diameter: 0.71 in (18 mm)
- Housing Length: 0.47 in
- Operating Temperature: −13 to +131 °F (−10 to +55 °C)
- Vibration Rating: 30 g (10 Hz to 2 kHz)
- Enclosure Rating: NEMA 1/3/4/4X/6/6P/12/13
- Frequency: 50/60 Hz
- Mount Style: Surface Mount
Typical Applications
- Conveyor systems and packaging lines with object detection
- Box and carton counting and positioning
- Edge and corner detection in material handling
- Assembly line part presence verification
- Gate and door safety monitoring
- Palletizer and sorting system triggers
- Production machinery with longer detection ranges
Compatibility & Replacements
Compatible With
- Eaton Prism Series transmitter units (thru-beam pair systems)
- Industrial control systems operating 10–30 VDC
- Machinery and equipment requiring isolated solid-state relay outputs
- M12 4-pin connector wiring harnesses and cables
- NEMA-rated industrial enclosures and control panels
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or Eaton technical support before ordering as a replacement unit. Thru-beam sensor pairs must match in sensing mode and range specifications.
Works With
- Eaton photoelectric sensor product ecosystem
- Standard M12 industrial connector systems
- DC and AC-compatible control circuits (model-dependent)
- Gain-control adjustment for application-specific tuning
