Overview

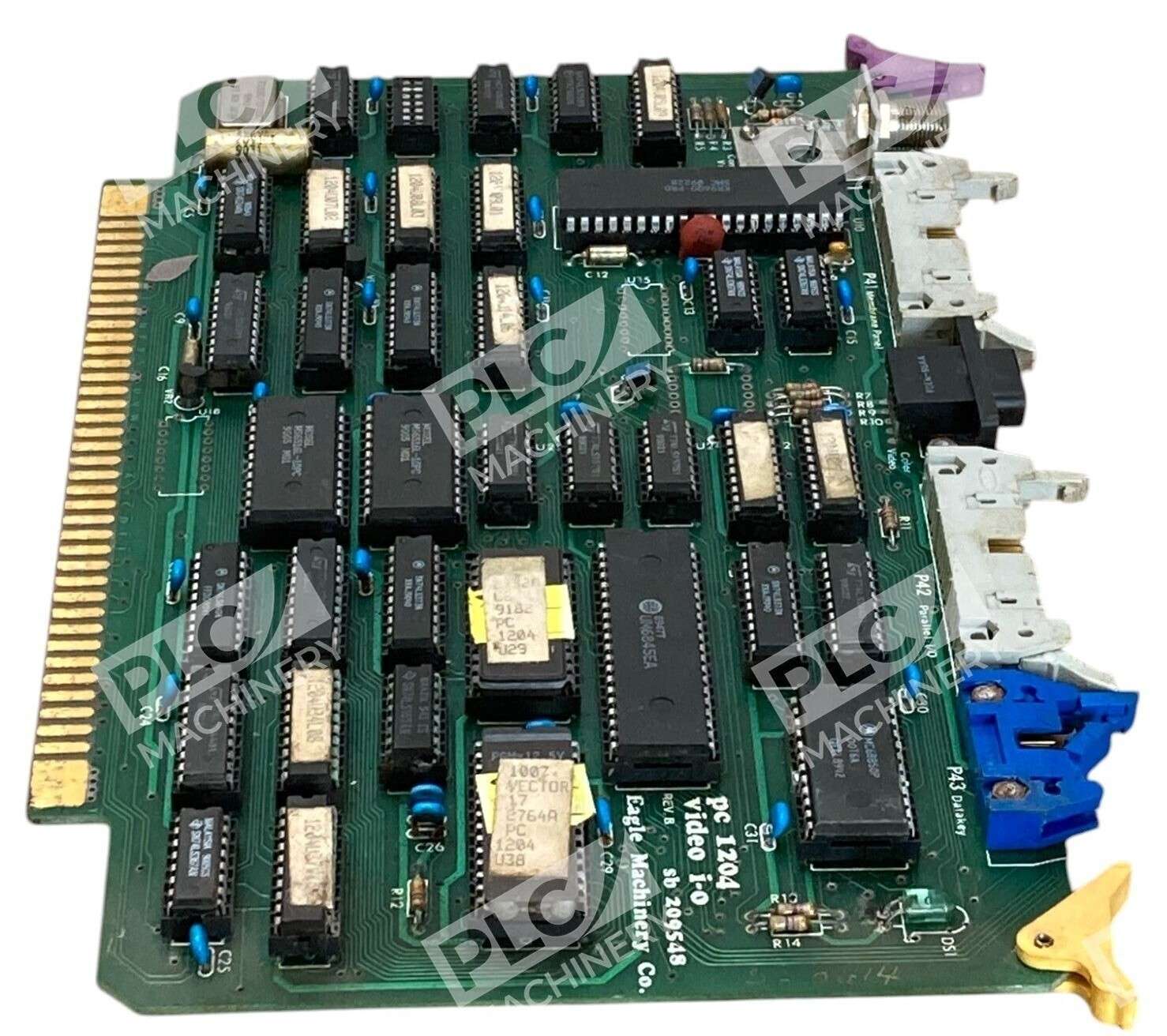

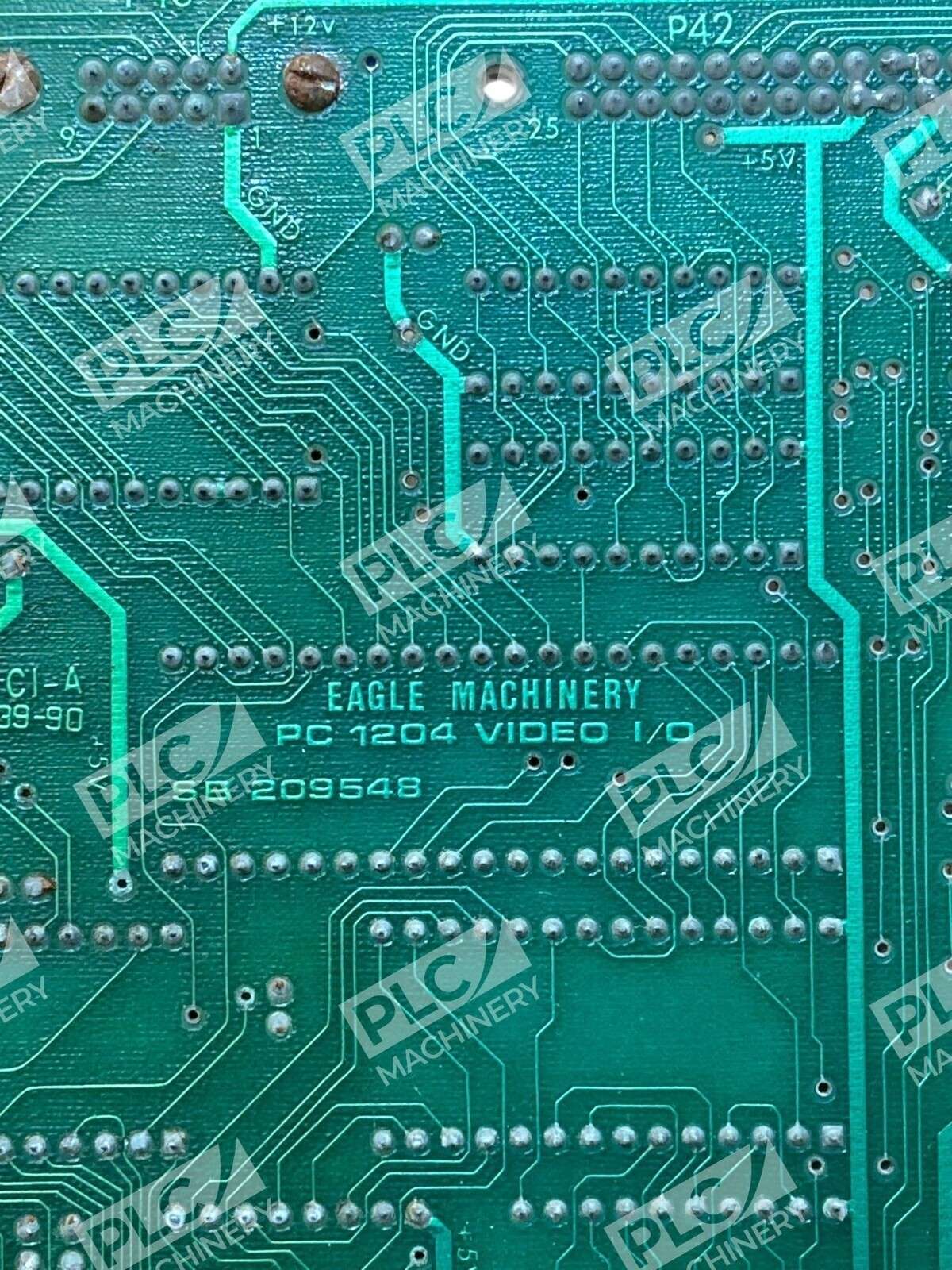

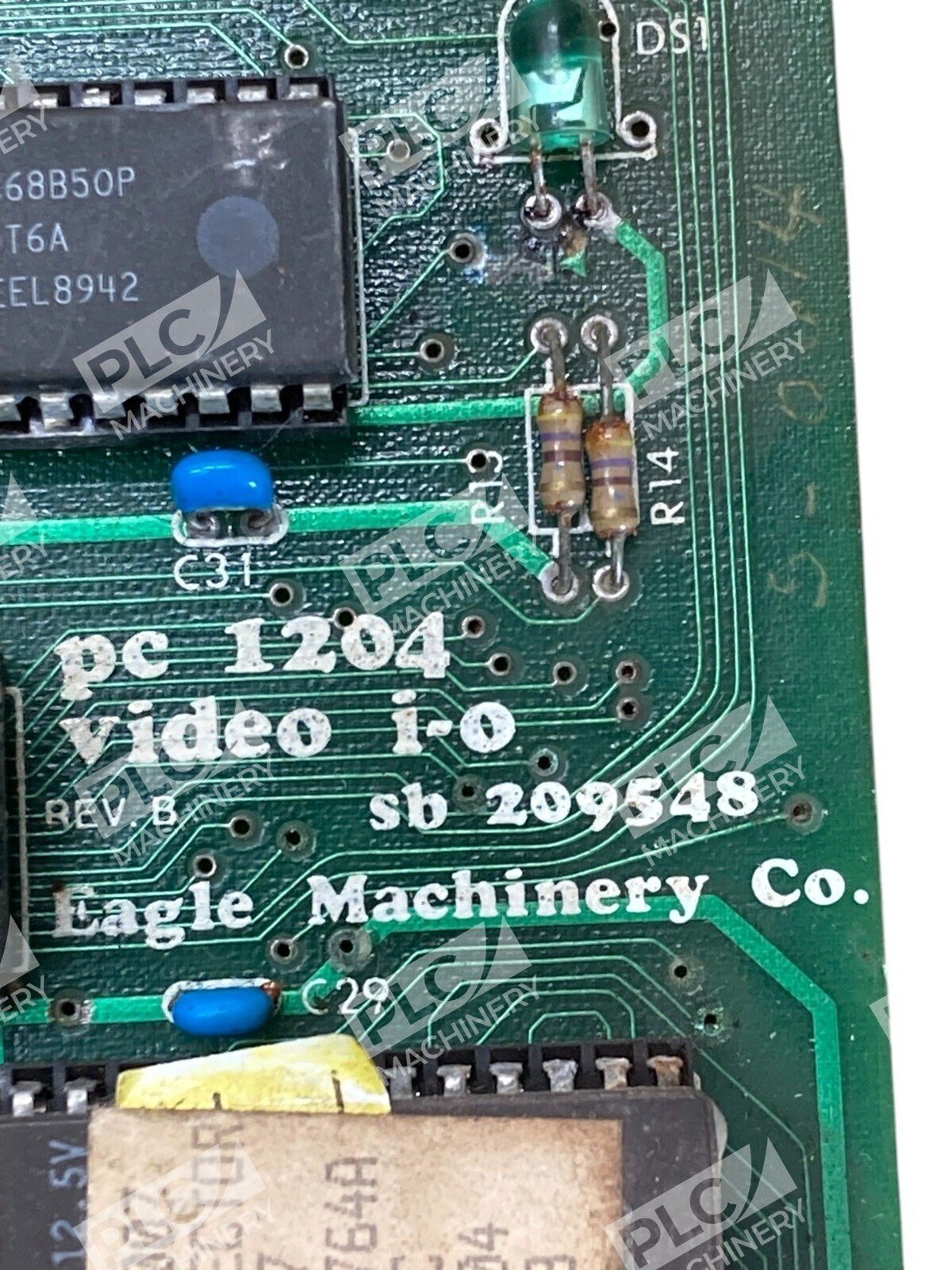

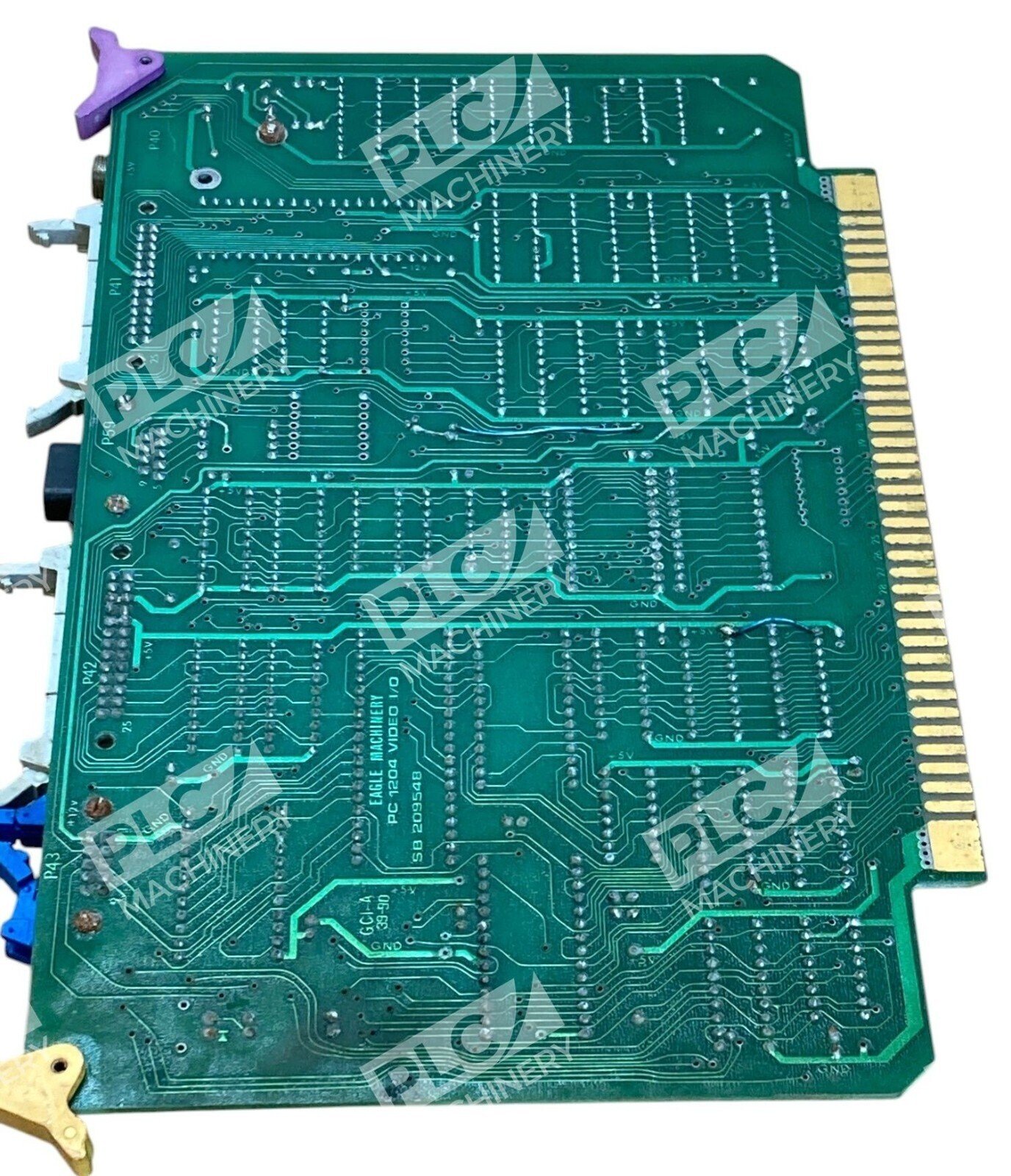

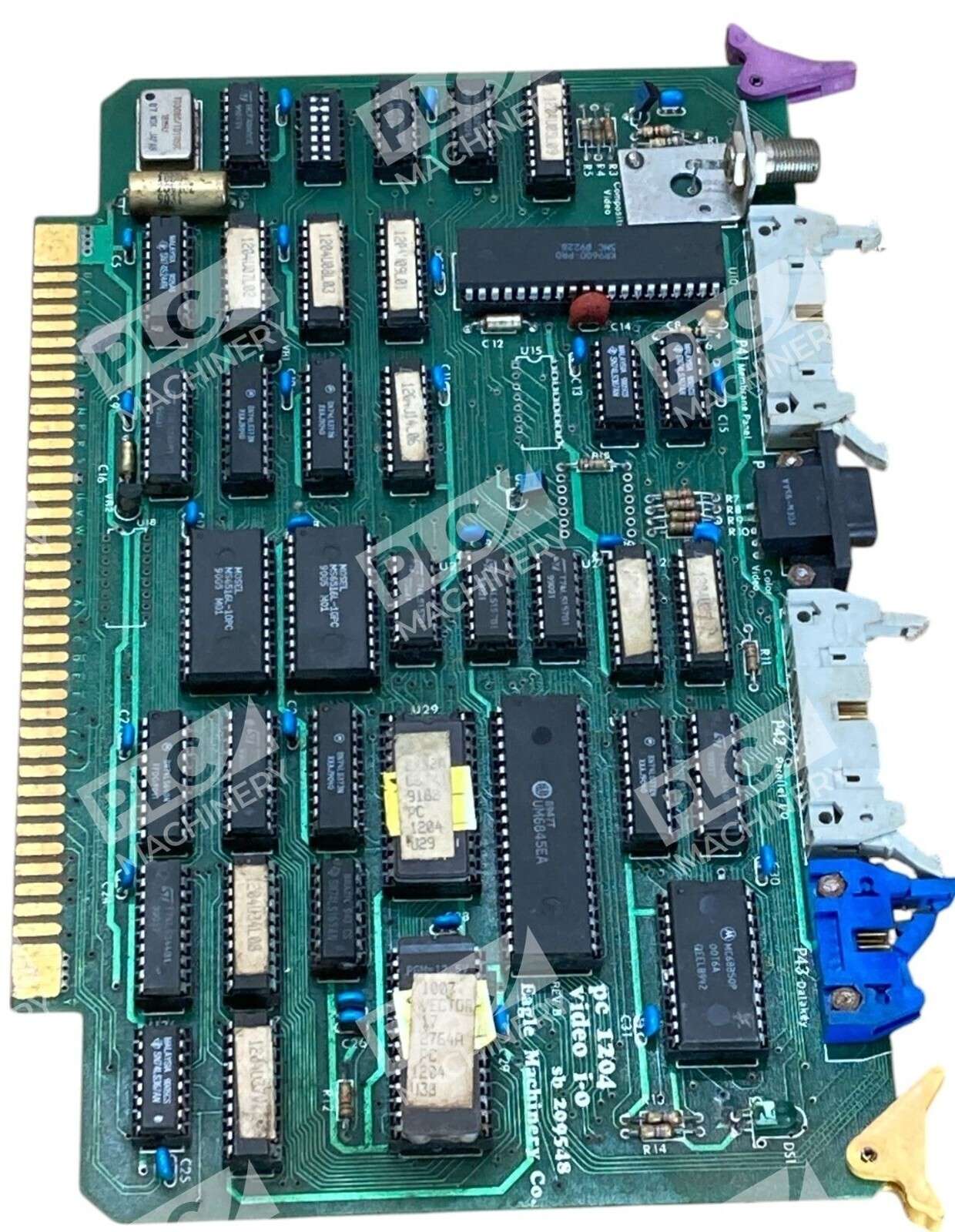

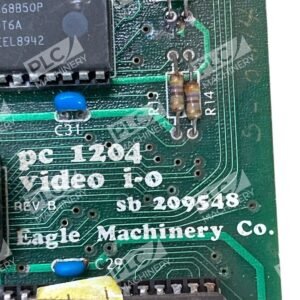

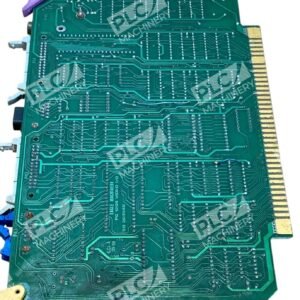

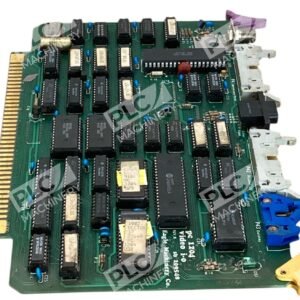

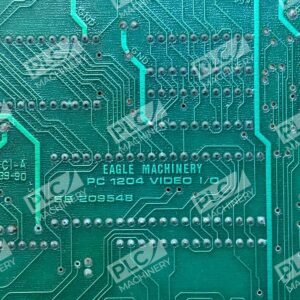

The Eagle Machinery SB 209548 Video I/O Circuit Board is a specialized input/output module engineered for the PC 1204 Rev B control platform. This circuit board manages video and digital I/O signal processing in industrial production and packaging machinery, delivering dependable performance in OEM automation systems.
Key Features
- Video I/O signal processing and conditioning
- Modular design for seamless integration with PC 1204 controllers
- Industrial-grade PCB construction
- Proven reliability in manufacturing and packaging applications
- Rev B design incorporates proven refinements and field-validated updates
Technical Specifications
Detailed specifications for this module are based on Eagle Machinery’s industrial I/O board standards. The SB 209548 operates within standard industrial voltage and environmental parameters typical of legacy automation control systems. Component-level schematics and pinout diagrams are available through Eagle Machinery technical documentation or authorized distributors.
Typical Applications
- Packaging machinery vision and position sensing
- Production line automation controllers
- OEM industrial equipment control systems
- Legacy system retrofit and component replacement
- Manufacturing process automation boards
Compatibility & Replacements
Compatible With
- Eagle Machinery PC 1204 control platform
- Package Controls and Parsons Eagle branded systems
- Industrial automation and manufacturing machinery
Replaces / Drop-In Replacement For
The SB 209548 board is the designated I/O module for PC 1204 Rev B systems. Verify compatibility with your original equipment or system integrator before ordering to ensure proper form factor, connector type, and firmware revision compatibility.
Works With
- Eagle Machinery PC 1204 platform and controllers
- Legacy industrial control networks
- Proprietary Eagle Machinery software and programming environments
