Overview
The Eagle Eye EFW-C0-5095 is a differential pressure (DP) flow meter manufactured by DIETERICH STANDARD. This analog gauge instrument provides direct, real-time measurement of fluid and gas flow rates with a 2.47″H2O pressure scale and 0–50 SCFH flow range. The simple, durable design requires no external power, making it ideal for field installation in hydraulic lines, pneumatic systems, and water flow monitoring applications where reliable, continuous feedback is essential.
Key Features
- 2.47″H2O differential pressure scale for accurate, stable readings
- 0–50 SCFH (Standard Cubic Feet per Hour) flow range with ×1000 multiplier option
- Analog dial gauge—no electronics or power source required
- Robust construction suitable for industrial hydraulic and pneumatic systems
- Direct connection to differential pressure taps for quick commissioning
- Established reliability in original equipment and retrofit applications
Technical Specifications
- Model: EFW-C0-5095
- Manufacturer: DIETERICH STANDARD (Eagle Eye)
- Pressure Scale: 2.47″H2O (inches of water column)
- Flow Range: 0–50 SCFH (×1000 multiplier available)

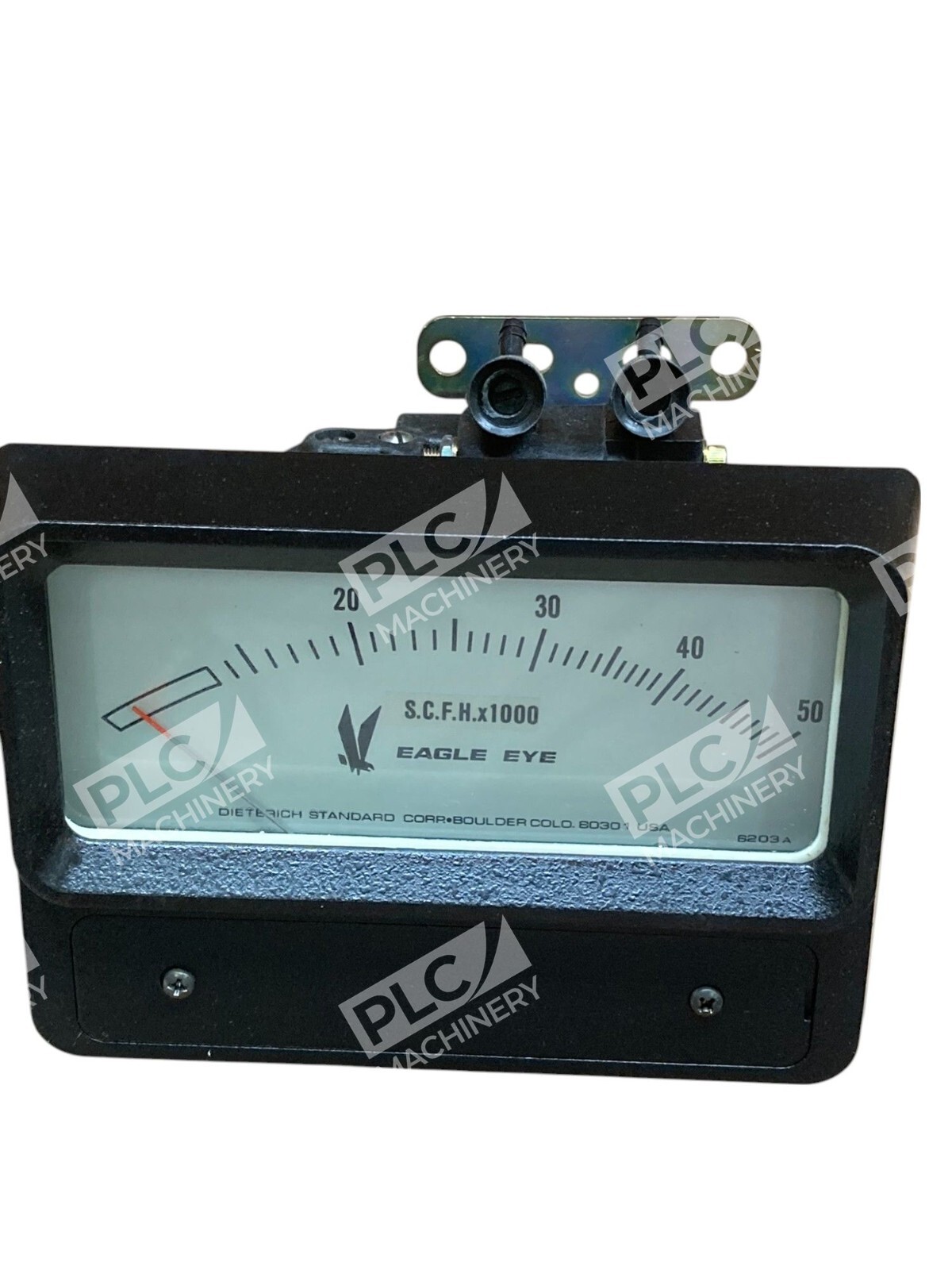

- Display Type: Analog dial gauge
- Connection Type: Differential pressure taps
- Power Required: None (mechanical/passive operation)
- Mounting: Panel or direct line mounting
- Operating Conditions: Industrial ambient temperature ranges
Typical Applications
- Hydraulic system flow monitoring and control
- Compressed air and pneumatic circuit measurement
- Water treatment and cooling water flow verification
- HVAC and industrial ventilation systems
- Process fluid flow indication and alarm setpoint reference
- OEM equipment retrofits and maintenance replacements
Compatibility & Replacements
Compatible With
- Differential pressure transmitters and transducers
- Hydraulic system manifolds and valve banks
- Pneumatic and compressed air systems
- Industrial process control systems requiring analog flow indication
- OEM equipment using standard DP sensor interfaces
Replaces / Drop-In Replacement For
The EFW-C0-5095 is compatible with other Eagle Eye differential pressure flow meters in the same range and scale class. Verify pressure scale and flow range match your application specifications before ordering.
Works With
- Direct differential pressure measurement systems
- Analog gauge-based process indication
- Manual control and monitoring of hydraulic and pneumatic lines
- Standard industrial instrumentation interfaces
