Overview

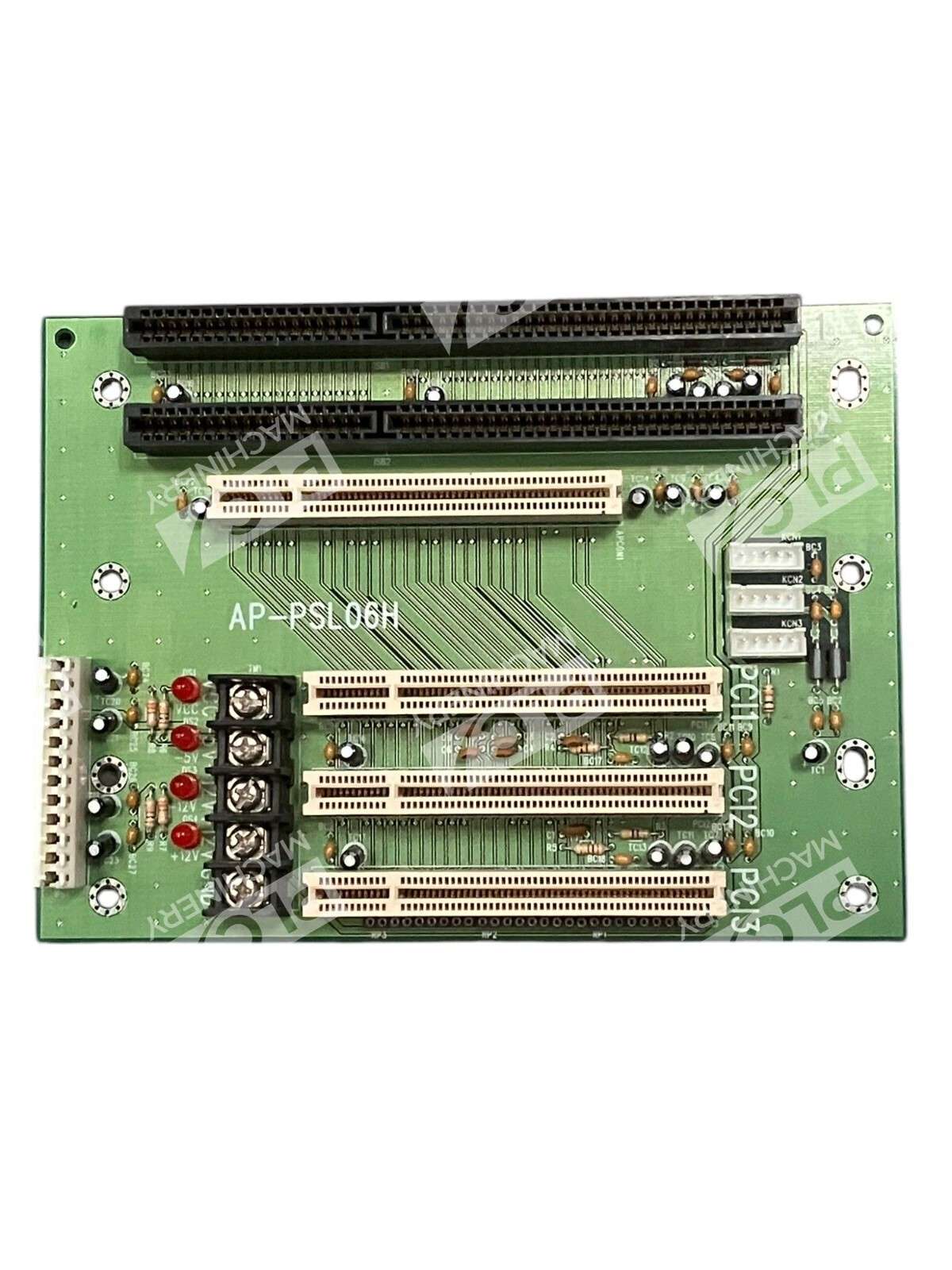

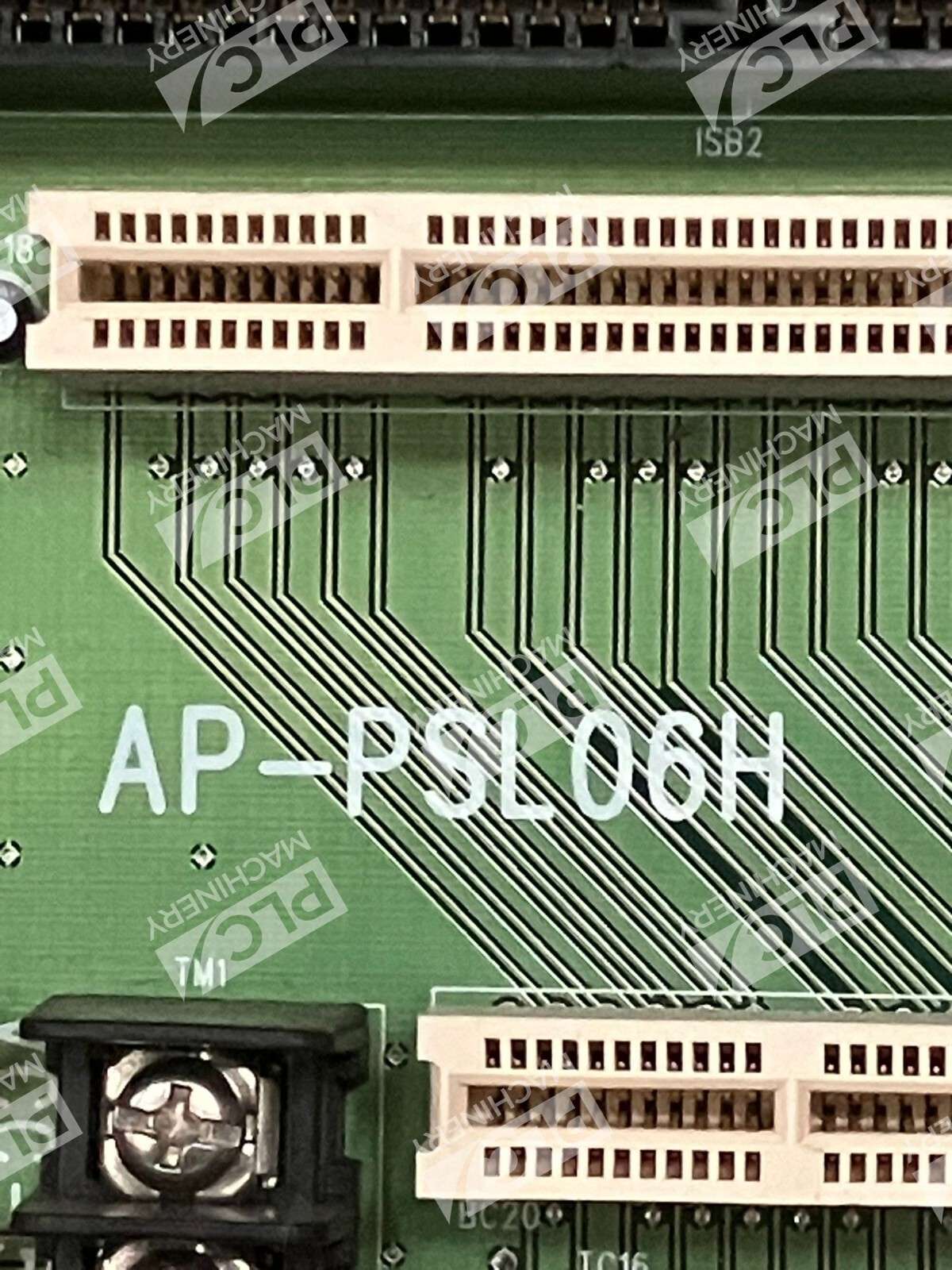

The AP-PSL06H is a specialized 4-layer printed circuit board backplane designed for industrial and legacy computing applications requiring ISA (Industry Standard Architecture) slot support. Manufactured by Micro-Link Technologies, this backplane serves as the central interconnect hub for distributed I/O modules, daughterboards, and peripheral cards in compact embedded systems. The E117895 084003 designation identifies this specific revision for OEM and replacement applications.
Key Features
- 4-layer printed circuit board (PCB) construction for reliable signal integrity
- 2 ISA slots for direct legacy expansion card support
- Multiple high-quality Molex connectors for secure card-to-backplane connections
- ATX, PS/2, and 3.3V power connectors with terminal block options
- Multiple PCB mounting holes for precise chassis alignment and vibration resistance
- PICMG standard compliance for modular system designs
- Power LED indicators on system voltage buses for quick diagnostics
Technical Specifications
- PCB Layers: 4-layer construction
- ISA Slots: 2 ISA expansion slots
- Power Connectors: ATX, PS/2, 3.3V terminal block, CPU fan connector
- Additional Connectors: 5-pin keyboard connector(s), Molex interconnects
- Board Dimensions: 133 × 263 mm (5.25″ × 10.35″)
- Mounting: Multiple mounting holes for chassis integration
- Compliance: PICMG standard compliant

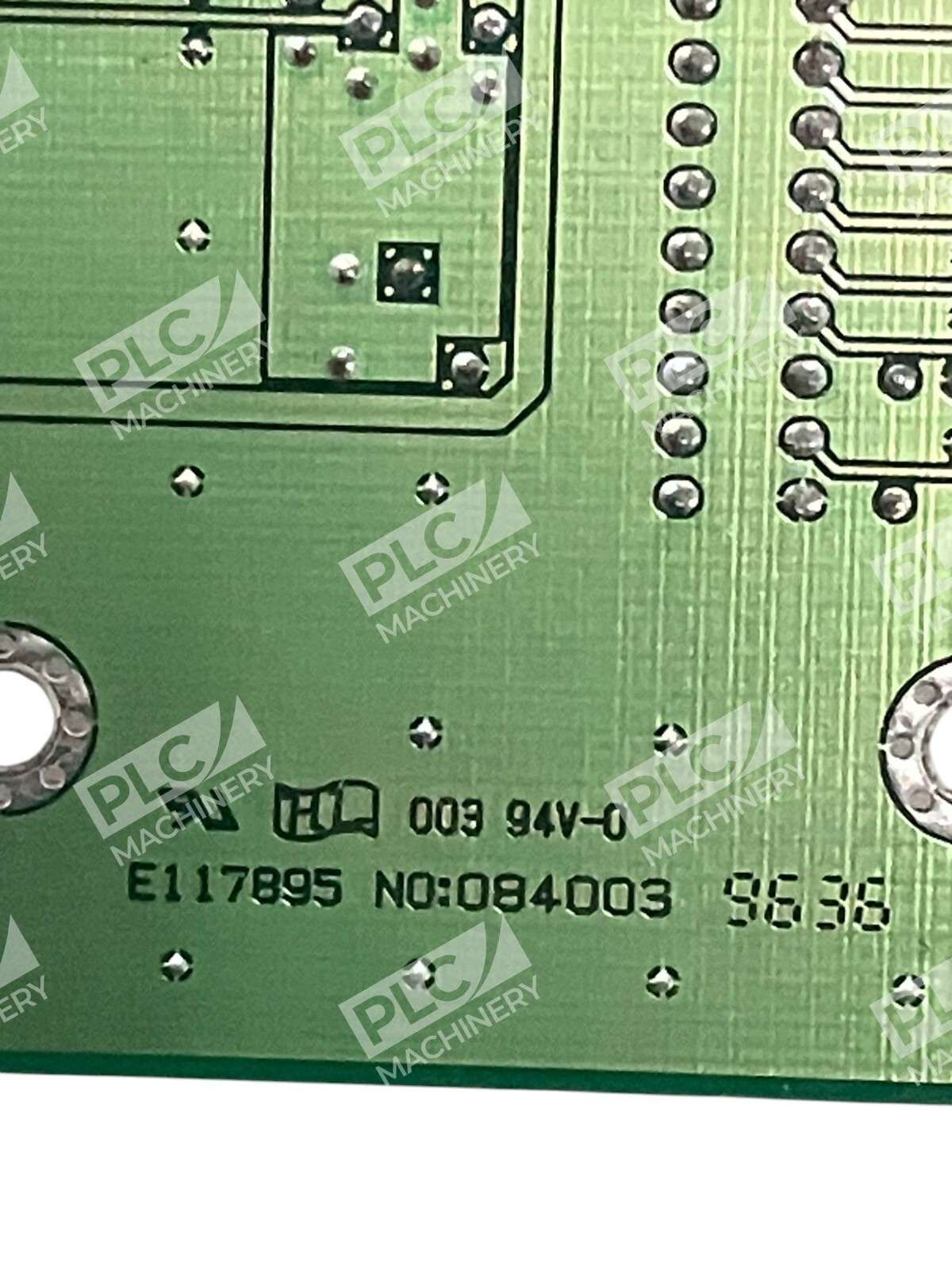

- Revision: E117895 084003
Typical Applications
- Industrial control systems requiring ISA-based I/O modules
- Legacy embedded computing platforms with modular expansion requirements
- Distributed I/O rack systems in factory automation
- Telecommunications and medical equipment backplane support
- Board-to-board interconnect in multi-card industrial assemblies
- OEM replacement and field upgrades for established systems
Compatibility & Replacements
Compatible With
- ISA (Industry Standard Architecture) expansion cards and modules
- Standard ATX power supplies
- PS/2 peripheral connectors and keyboards
- PICMG-compliant modules and assemblies
- Molex connector-based daughterboards and I/O cards
Replaces / Drop-In Replacement For
- Original equipment AP-PSL06H units (same revision E117895 084003)
- Verify specific system compatibility with your original documentation before ordering
Works With
- Legacy ISA bus systems and industrial controllers
- PICMG-standard modular computing platforms
- Standard PC/AT compatible power and peripheral standards
- Multi-board embedded systems requiring central backplane interconnect
