Overview

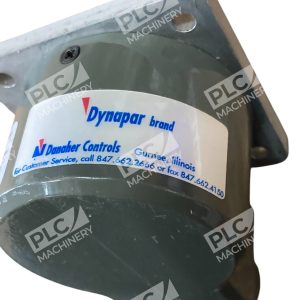

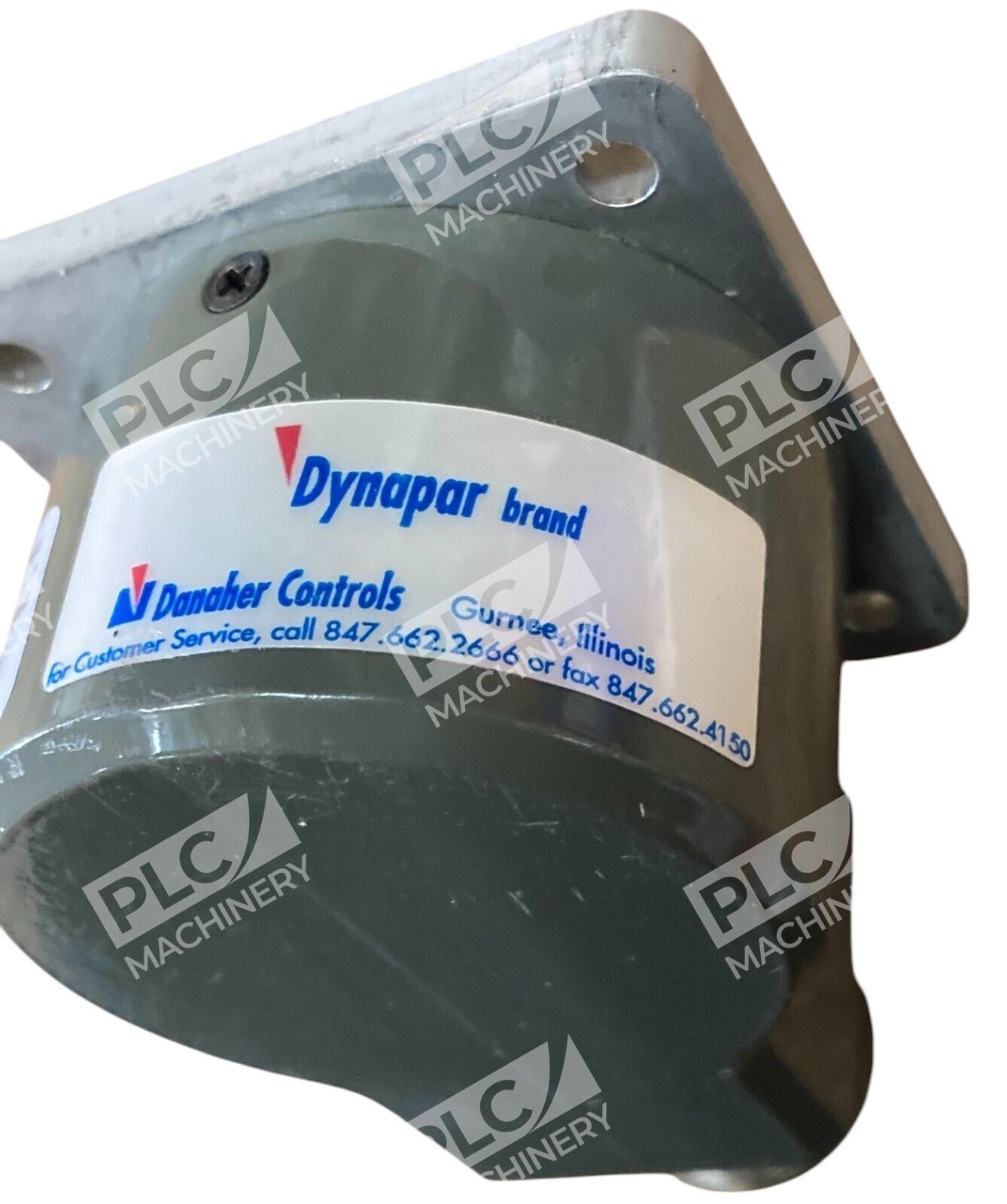

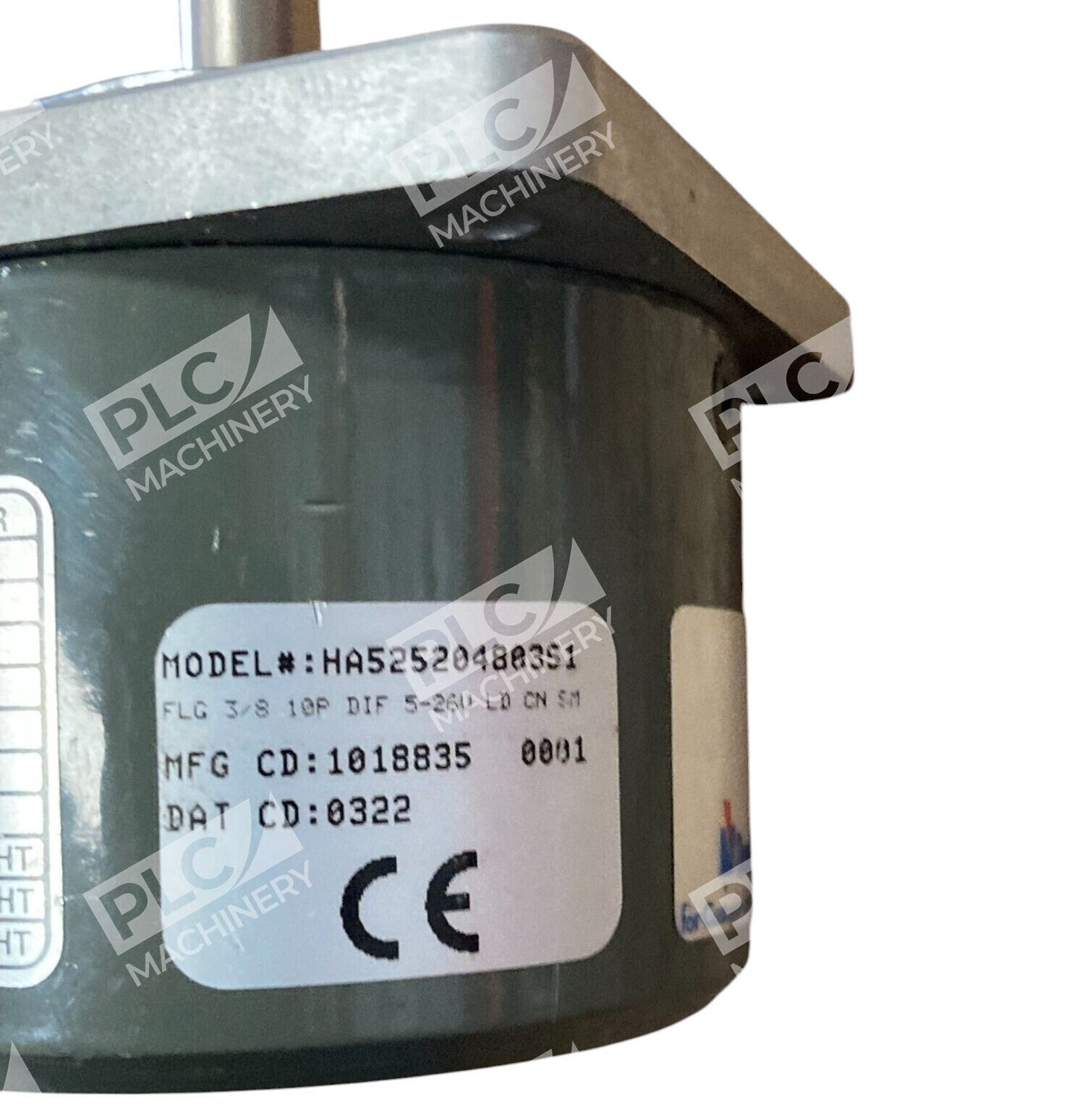

The Dynapar HA525204B03S1 is a compact, reliable incremental encoder from the Series HA25 product line. The Dynapar brand Series H25 is a rugged, reliable and economical encoder for industrial motion applications. Packaged in an industry standard 2.5″ enclosure, the Series H25 offers a variety of mechanical options: servo or face mounting, and 1/4″ or 3/8″ shafts. This model is engineered for precise velocity and positioning measurement across automation, packaging, and motion control systems.
Key Features
- Unbreakable Metal Code Disk: Models with resolutions of 1024 or less are available with an unbreakable metal code disk that meets the demands of the most severe shock and vibration generating processes; and a long life 80 pound (352 N.) bearing that keeps tough loads from disrupting internal alignment, avoiding failure due to the disk “crashes” so typical in competitive encoders.
- Electrical Noise Protection: Protection against installation problems such as wiring errors prevents the encoder from damage, while immunity to electrical noise keeps the encoder signals intact.
- Optional NEMA 4/IP66 Sealing: A NEMA4 / IP66 sealing option protects against damage from contamination.
- Bidirectional operation with optional index pulse
- Multiple output configurations: Open Collector, Push-Pull, and Differential Line Driver
Technical Specifications
- Power Supply: 5 to 26 VDC (differential and push-pull at 80mA max.; open collector at 135mA max.)
- Output Current (Sink): 40mA sink at 0.5 VDC max.
- Bearing Load (radial/axial): 80 lbs for resolutions ≤1024 PPR; 40 lbs for resolutions >1024 PPR
- Speed Capability: 10,000 RPM max for resolutions ≤1024 PPR; 5,000 RPM max for resolutions >1024 PPR
- Weight: 10 oz max.

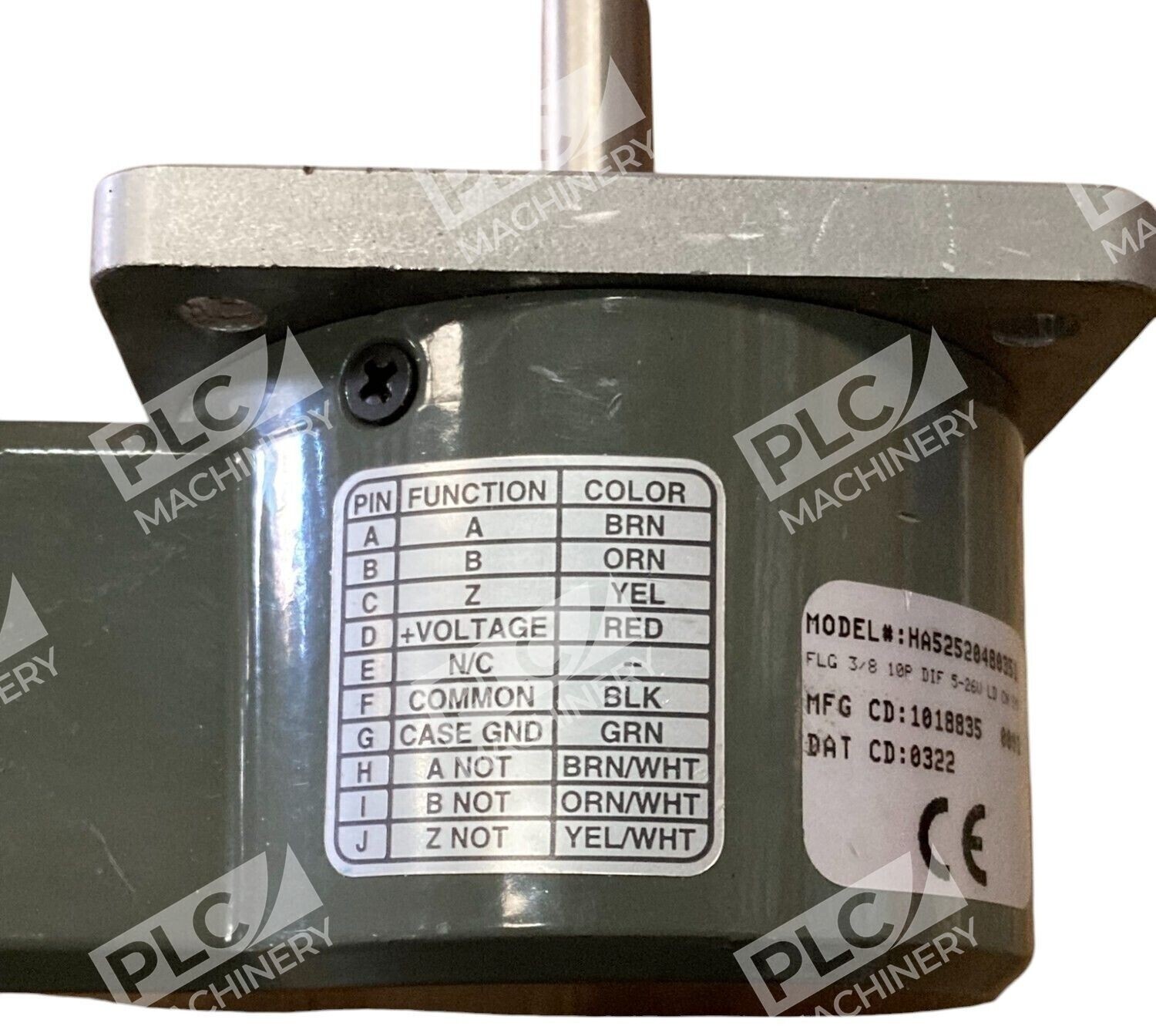

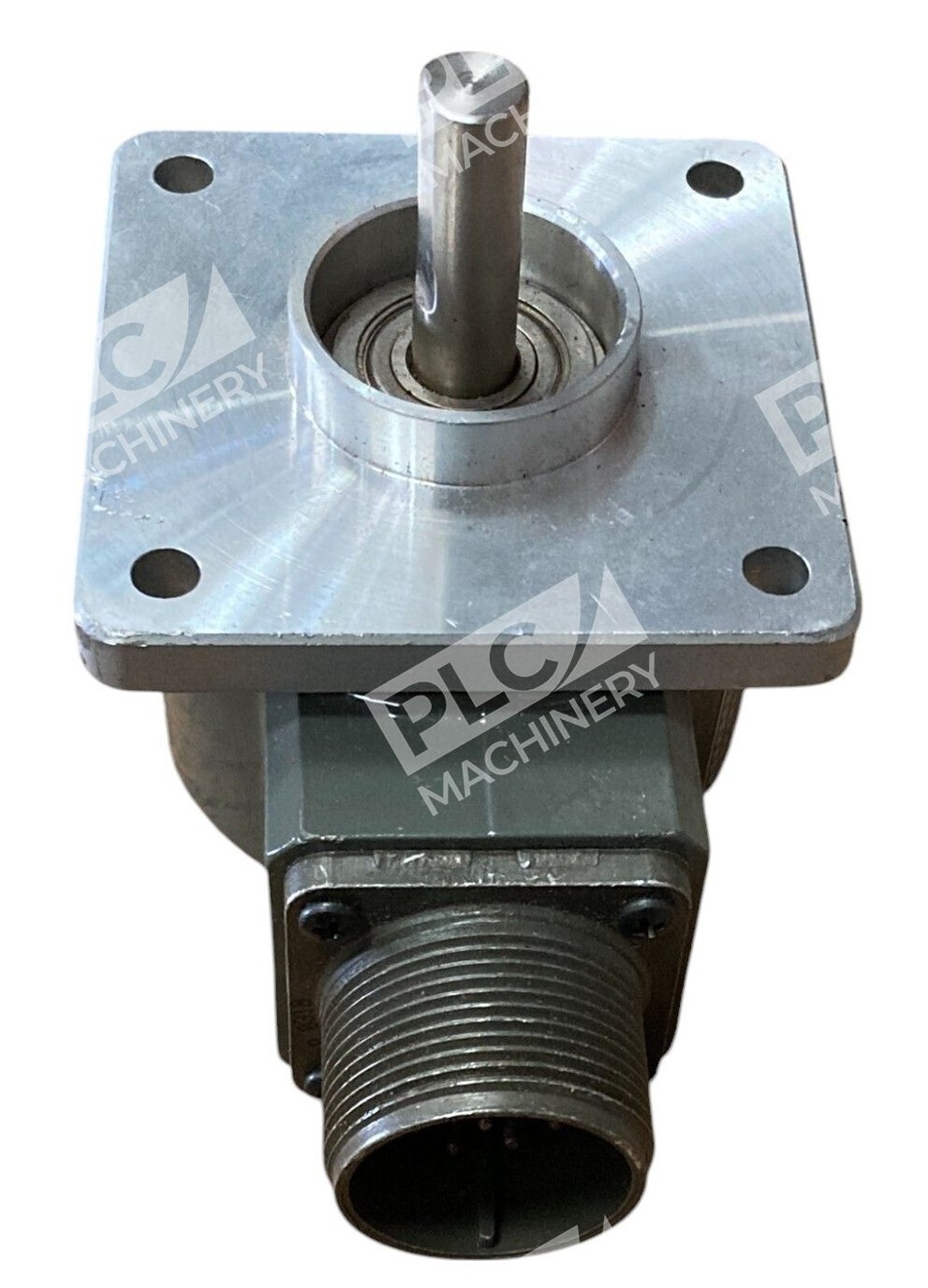

- Connector: 7 pin or 10 pin MS-style connectors available
- Cable: PVC jacket, 105°C rated, overall foil shield; 3 twisted pairs 26 AWG plus 2 twisted pairs 24 AWG
- Noise Immunity: Tested to IEC801 level 3
- Enclosure Size: 2.5″ industry standard
Typical Applications
- Packaging machinery and conveyor positioning
- Servo motor feedback and speed measurement
- Industrial automation and motion control systems
- Precision material handling and transfer equipment
- Motion verification and coupling slip detection
- Custom automation control loops
Compatibility & Replacements
Compatible With
- PLC analog and digital input modules (5–26 VDC))
- Motion control cards and servo drives
- PAC systems with quadrature input firmware
- Industrial controllers and embedded systems supporting incremental encoders
- Discrete I/O wiring for counter/frequency modules
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering for application-specific drop-in replacement confirmation. The HA525204B03S1 is designed as a direct replacement within the Dynapar HA25 series family with matching 2.5″ enclosure and shaft options.
Works With
- Allen-Bradley ControlLogix/CompactLogix high-speed counter inputs
- Siemens S7 and S7-1200 pulse/frequency counting modules
- Mitsubishi FX and Q series PLC counter functions
- Omron CP1E/CP2E high-speed input terminals
- Beckhoff TwinCAT quadrature decoders
- Industrial Ethernet gateways with encoder modules
- Resolver and encoder signal conditioning cards
