Overview

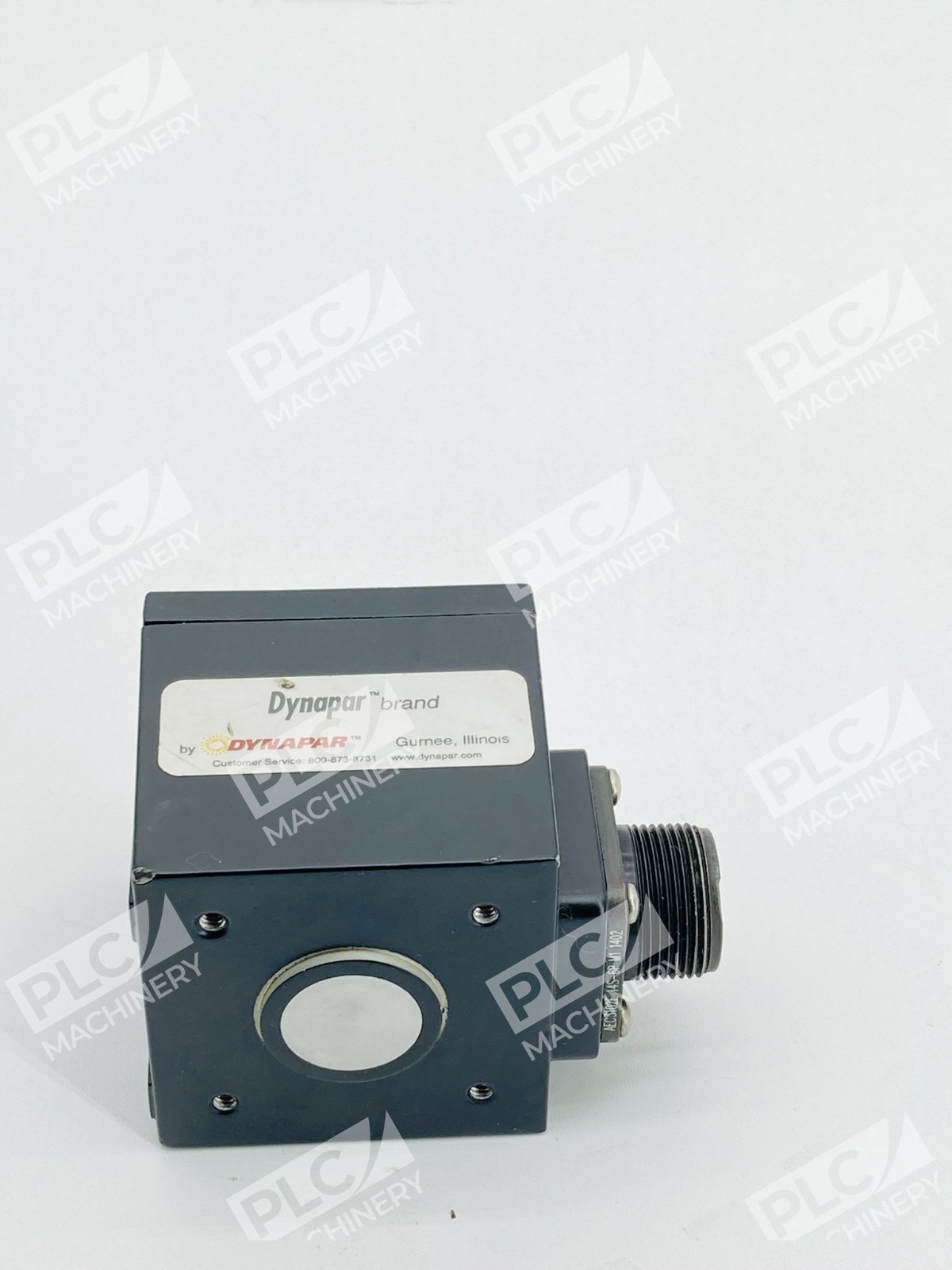

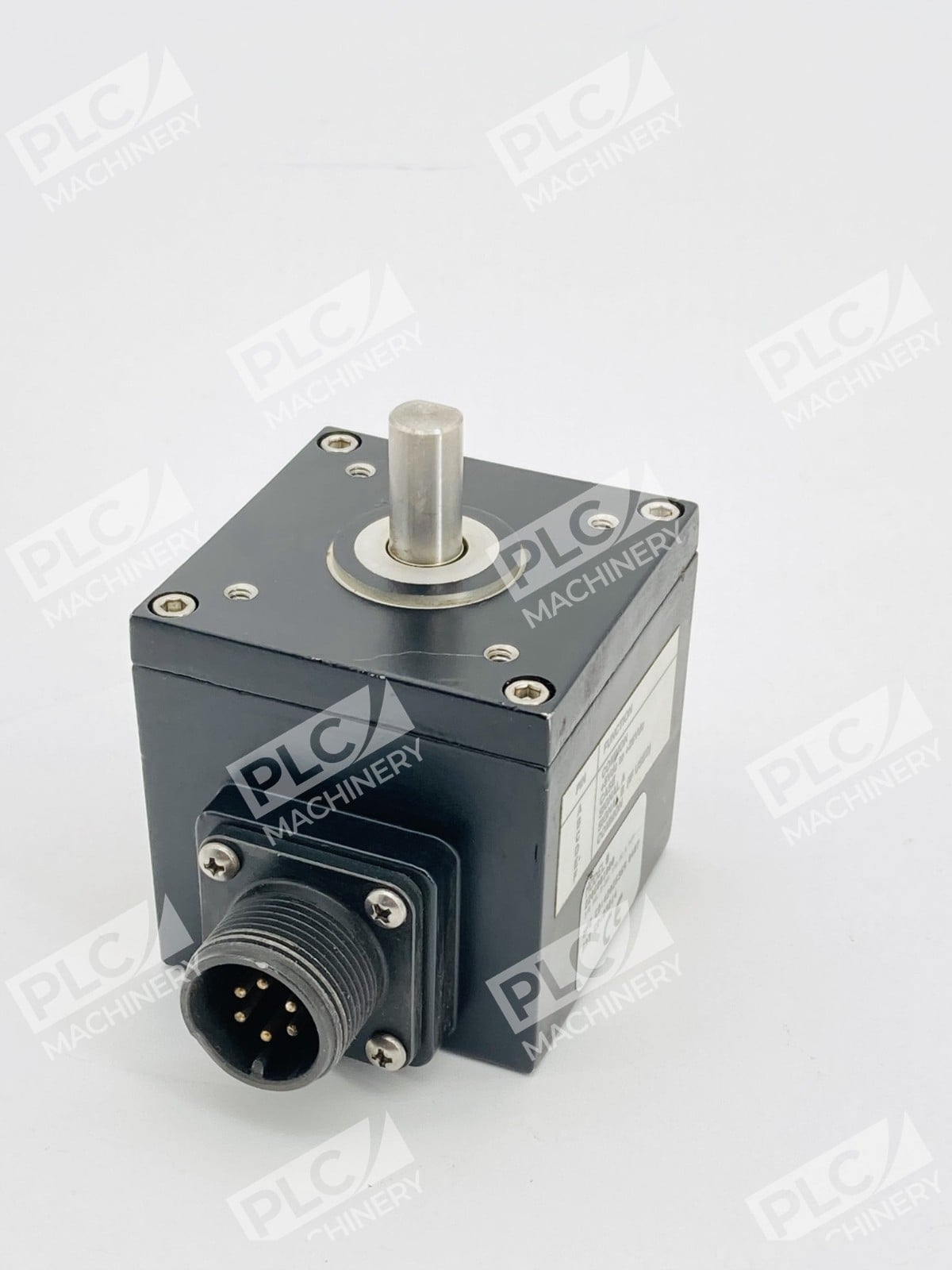

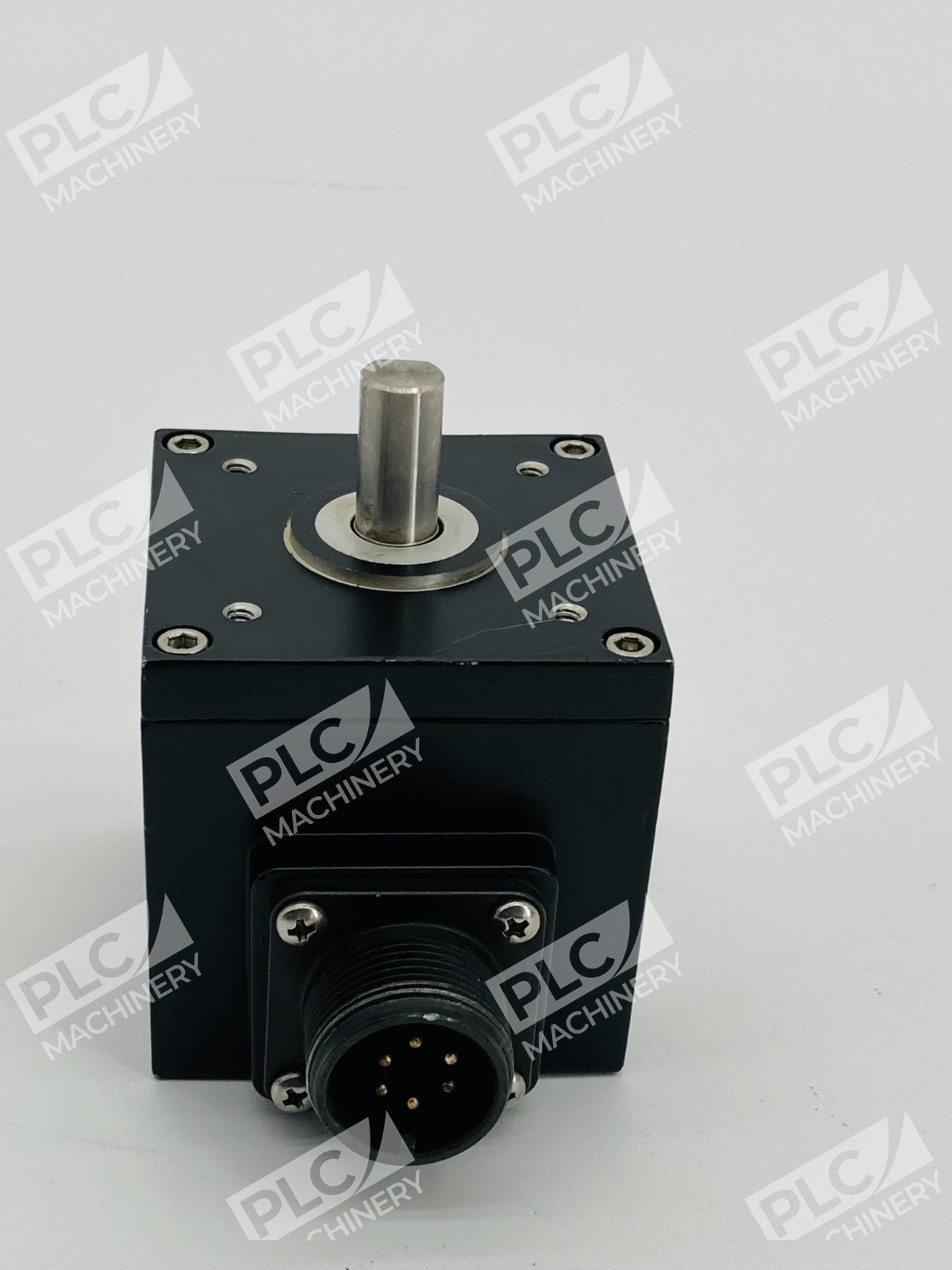

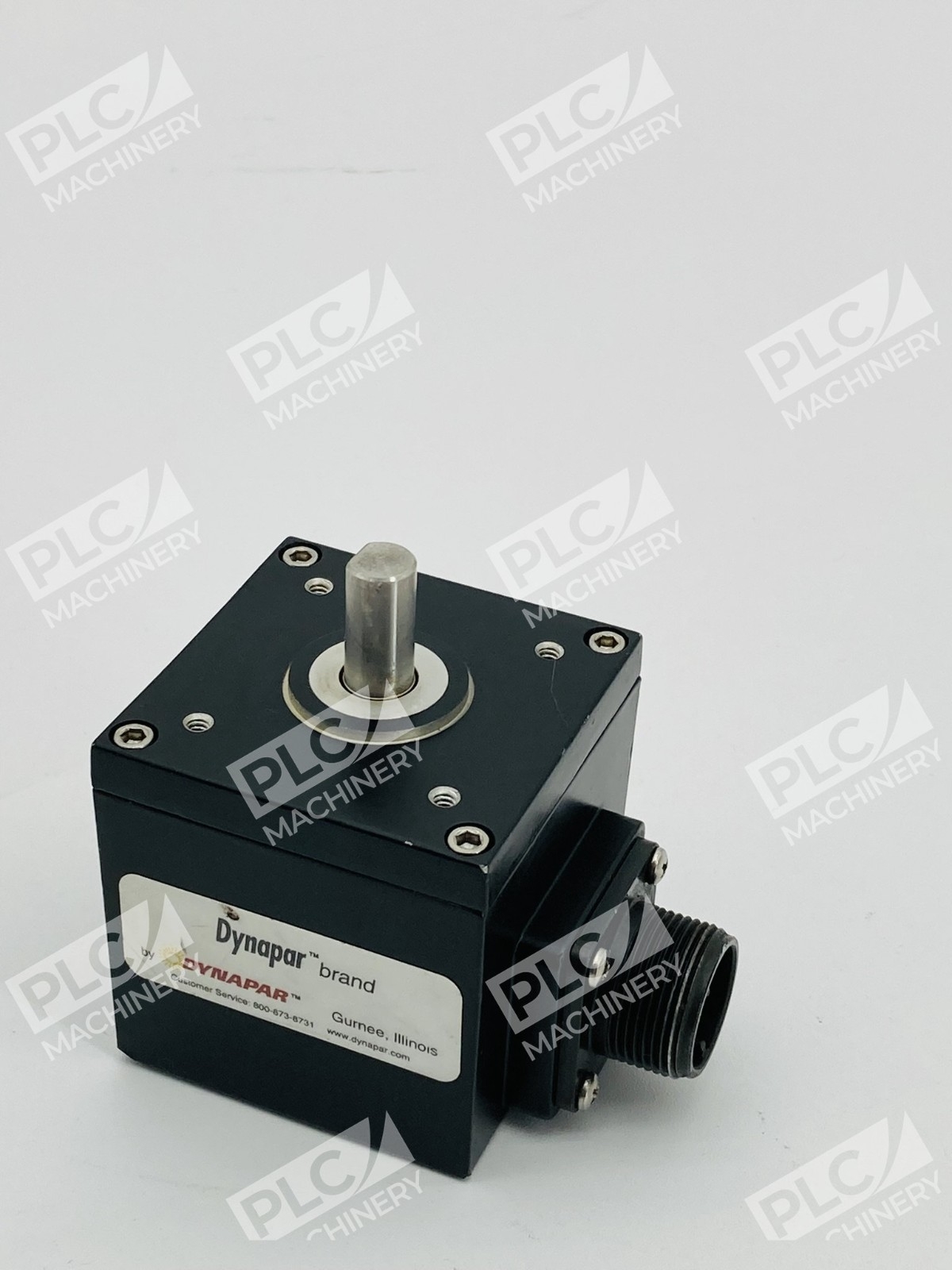

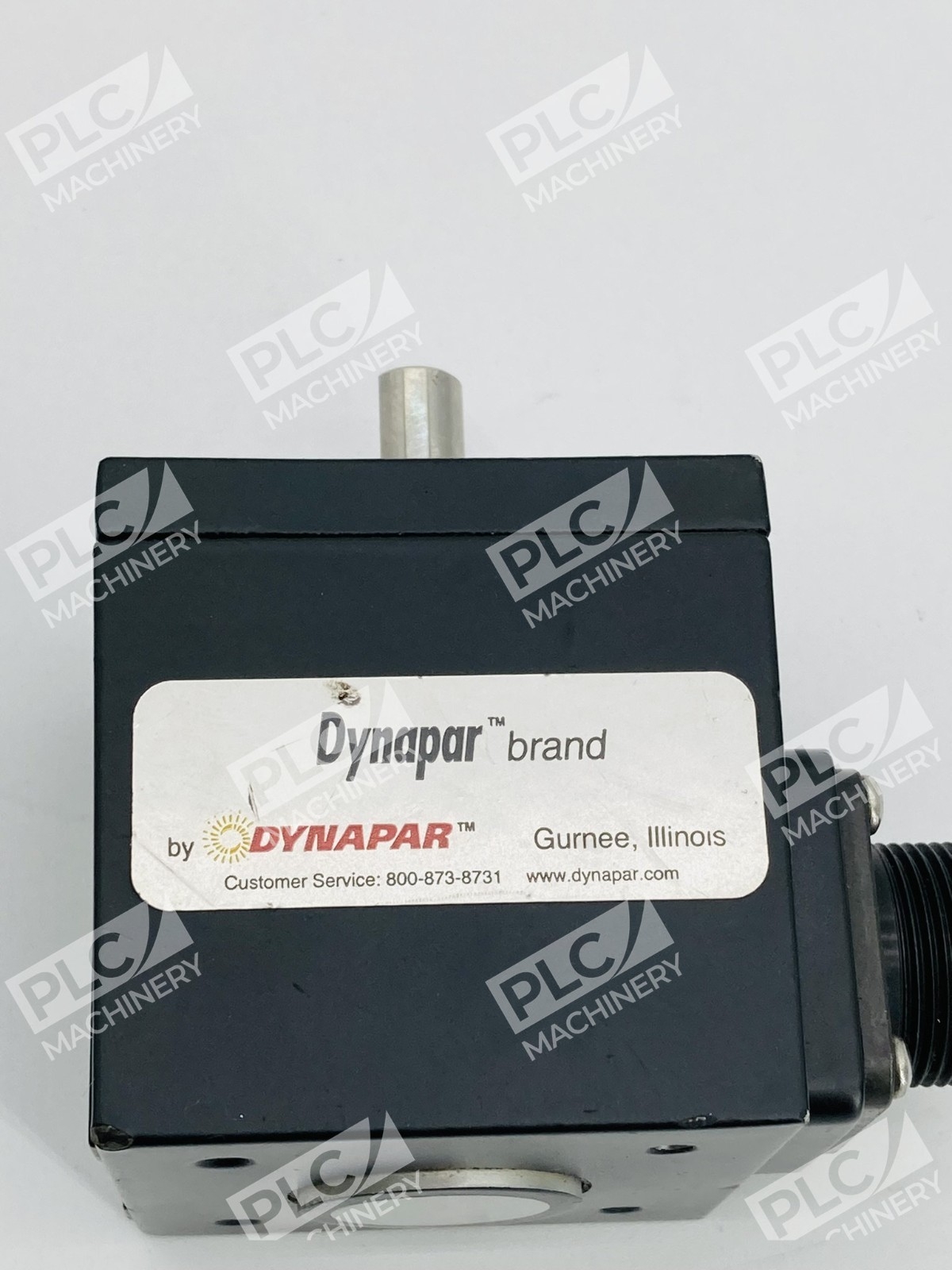

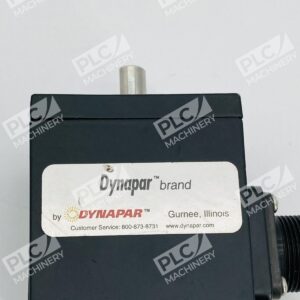

The Dynapar 2206001000 is a NexGen Qube series incremental rotary encoder designed for demanding industrial automation and motion control applications. This model is built tough for industrial applications like measuring cut-to-length or size for the Textile, Metal, Lumber and Rubber Industries. The upgraded features include increased shaft loading, expanded resolution up to 3600 PPR, and phased array ASIC sensor technology which significantly reduces the number of board level components in the encoder and provides an improved shock and vibration specification.
Key Features
- Optical Incremental Sensing: Accurate rotational position measurement with phase-encoded output channels
- 600 PPR Standard Resolution: Provides precise position feedback for motion control and speed measurement
- 3/8″ Single Shaft: Industry-standard shaft size for direct coupling to motor shafts and mechanical systems
- Open Collector Output: Voltage-independent output stage compatible with 5V–26V control systems and PLC inputs
- Phased-Array ASIC Sensor: Advanced sensor technology reduces component count and improves reliability
- Compact Qube Design: Space-efficient enclosure suitable for retrofit and new installations

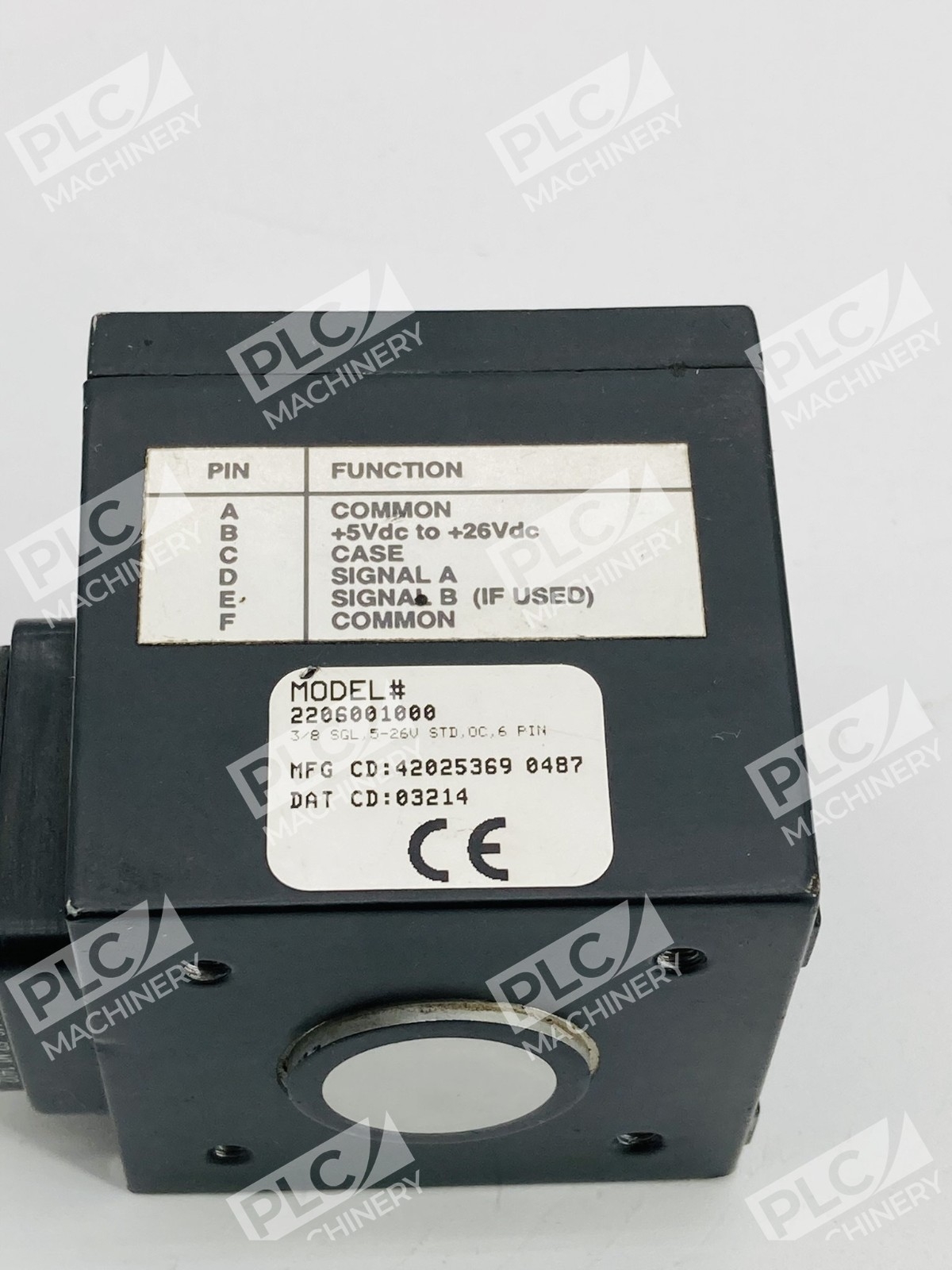

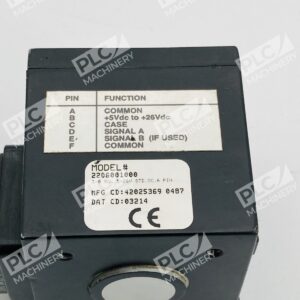

- 6-Pin Connector: Standard industrial connector for simplified wiring and quick disconnect
- Enhanced Durability: Improved shock spec and vibration spec provides a more robust encoder that allows for increased product lifetime in industrial applications.
Technical Specifications
- Encoding Type: Optical Incremental
- Part Number: 2206001000
- Series: NexGen Qube22
- Pulses Per Revolution (PPR): 600
- Output Type: Open Collector
- Supply Voltage: 5V–26V DC
- Shaft Diameter: 3/8″ (single shaft)
- Maximum Operating Speed: 6,000 RPM
- Connector Type: 6-Pin Industrial Connector
- Manufacturer: Dynapar (USA-made)
Typical Applications
Tracking, storage and retrieval, pick and place, conveying and elevating for material handling applications. Additional uses include:
- Cut-to-length measurement in textiles and lumber processing
- Speed and position feedback in conveyor systems
- Motion control in packaging and labeling machines
- Size measurement in metal and rubber extrusion
- Rotational speed monitoring in drive systems
Compatibility & Replacements
Compatible With
- PLC digital input modules accepting 5V–26V open-collector signals
- Industrial motor drives and servo controllers with incremental encoder inputs
- Control systems using TTL/CMOS or open-drain pulse counting
- Textile, metal processing, lumber, and rubber industry machinery
- Motion control software supporting standard quadrature or pulse-counting protocols
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Other Dynapar Qube22 models with different resolutions (e.g., 2202001000, 2200601000, 2212001000) may share mechanical mounting but feature different electrical specifications.
Works With
- Quadrature pulse input modules in Allen-Bradley, Siemens, and Mitsubishi PLCs
- EtherNet/IP and PROFINET motion control networks (via appropriate pulse-counting gateway)
- Industrial PC–based motion control software with parallel or USB counter cards
- Direct wiring to analog or digital inputs on motion drives and controllers
