Overview

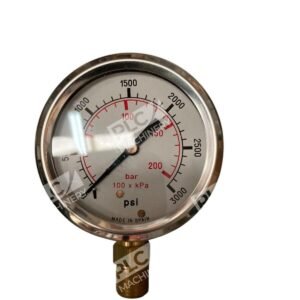

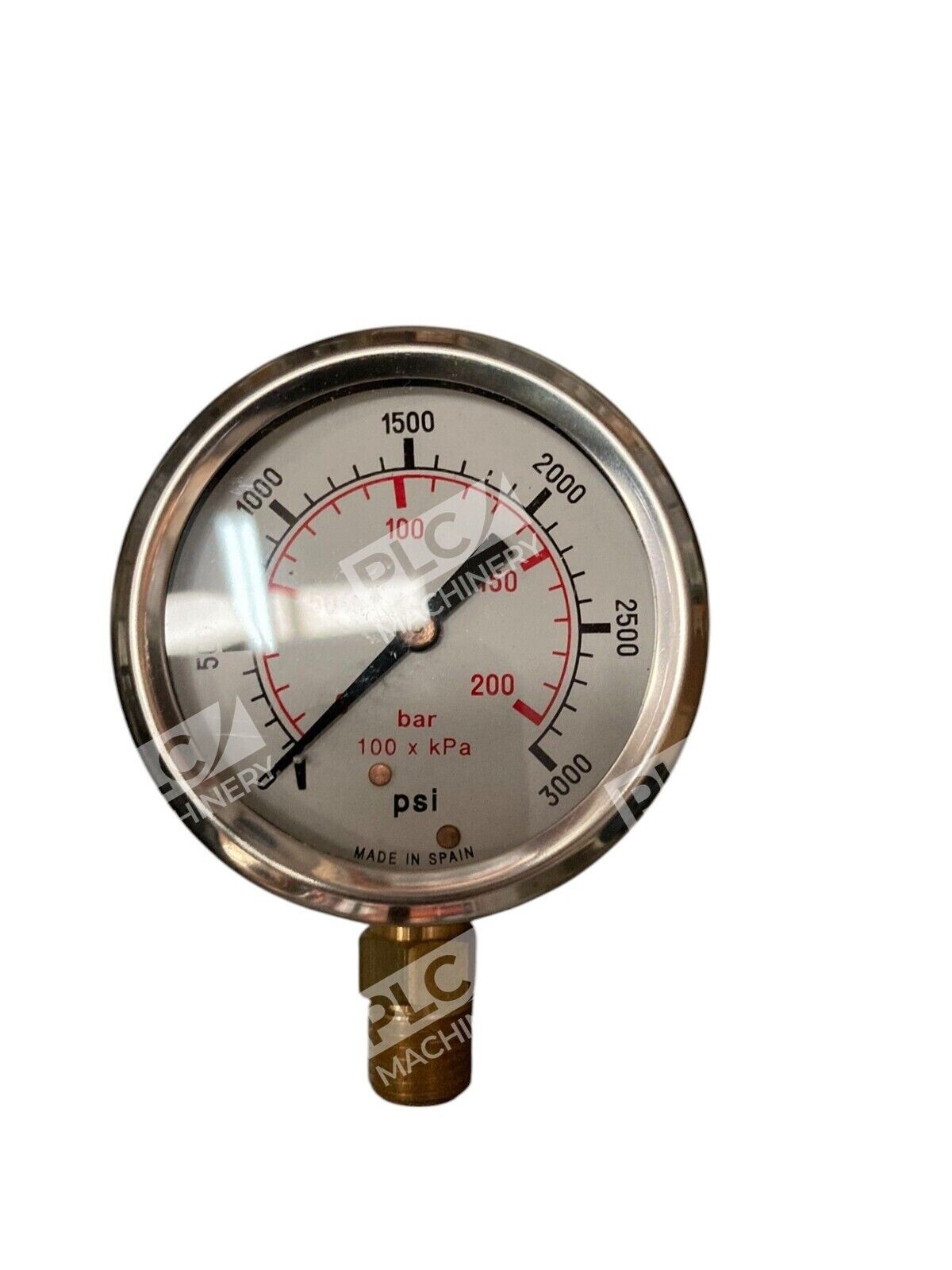

The Dynamic Fluid Components CF1P-210A is a compact 2.5″ pressure gauge engineered for industrial hydraulic and fluid power applications. This gauge delivers accurate, reliable pressure readings in the 0–3000psi range with a glycerine-filled damping system that reduces needle vibration and extends service life.
Key Features
- Glycerine-filled design — dampens pressure spikes and vibration for stable needle response
- Dual scale face — psi and bar scales for flexible measurement standards
- Built-in snubber — protects internal mechanism from pressure surges
- Stainless steel case — corrosion resistant for wet or chemically harsh environments
- Bronze bourdon tube and connection — precision sensing element for accuracy
- Polycarbonate lens — impact resistant and clear visibility
Technical Specifications

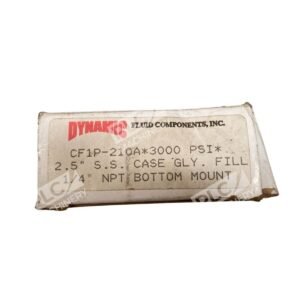

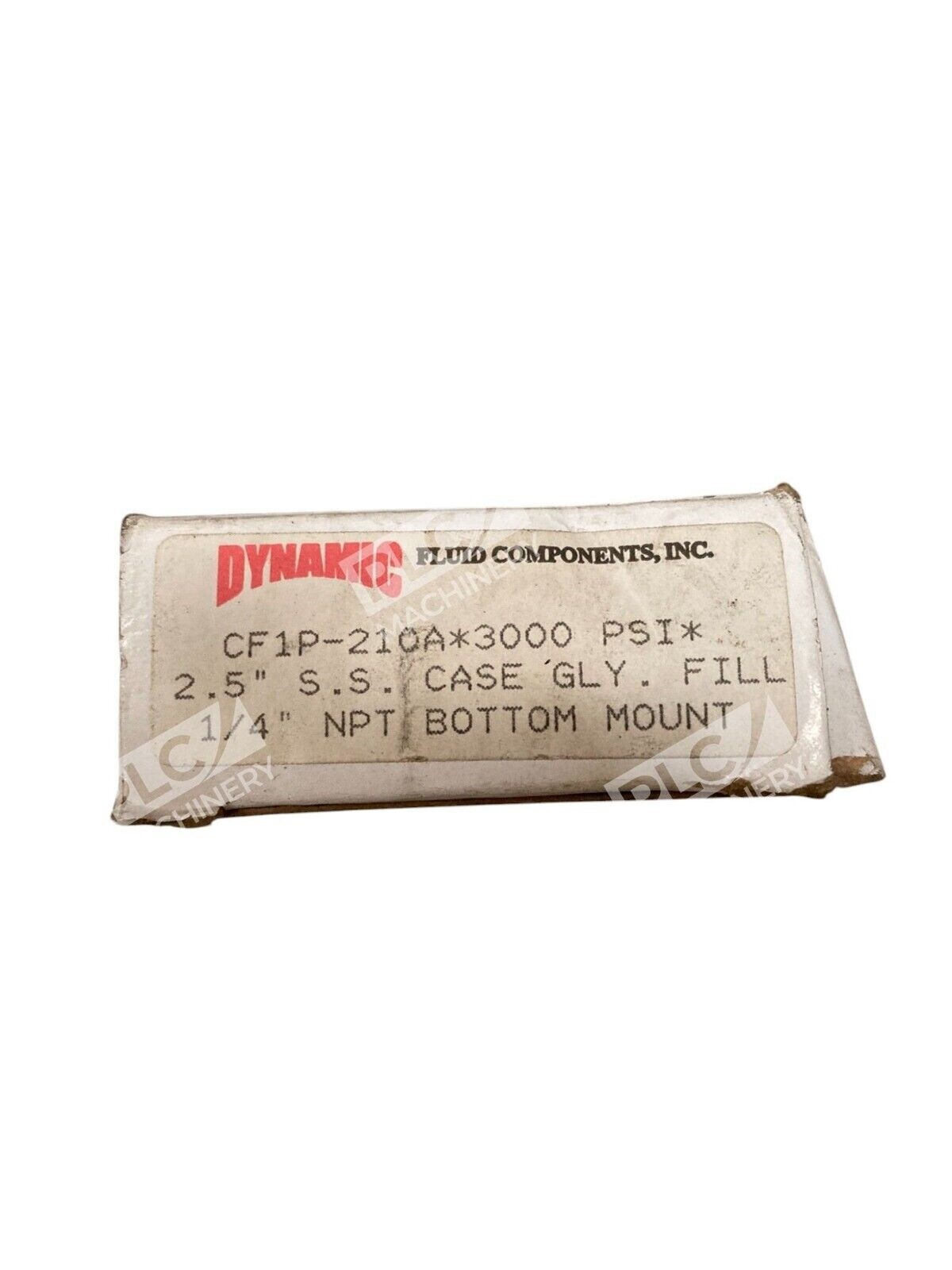

- Model: CF1P-210A
- Pressure Range: 0–3000psi (0–207 bar)
- Dial Face Size: 2.5″ diameter
- Connection: 1/4″ NPT (bottom/stem mount)
- Case Material: Stainless steel
- Sensing Element: Bronze bourdon tube
- Lens Material: Polycarbonate
- Fill Medium: Glycerine
- Snubber: Built-in (standard)
- Scale: Dual psi/bar
Typical Applications
The CF1P-210A is commonly used in:
- Hydraulic system pressure monitoring
- Machine tool lubrication circuits
- Pump discharge and load-line sensing
- Pilot and control pressure indication
- Industrial fluid power test and commissioning
Compatibility & Replacements
Compatible With
- ISO 1219 hydraulic circuit layouts
- Sandwich-mounted cavity systems with 1/4″ NPT ports
- Industrial hydraulic power units rated to 3000psi
- Machine tool and CNC coolant pressure monitoring
- Pneumatic/hydraulic hybrid systems up to 3000psi
Replaces / Drop-In Replacement For
The CF1P-210A can replace earlier-generation 2.5″ glycerine-filled pressure gauges from Dynamic and other manufacturers with matching 1/4″ NPT thread and 0–3000psi range. Verify exact mounting orientation and cavity dimensions before ordering as a direct replacement.
Works With
- Dynamic Fluid Components gauge series (CF line)
- Standard 1/4″ NPT hydraulic ports
- Glycerine-filled gauge monitoring systems
- Pressure transducers and electronic monitoring (as visual backup)
