Overview

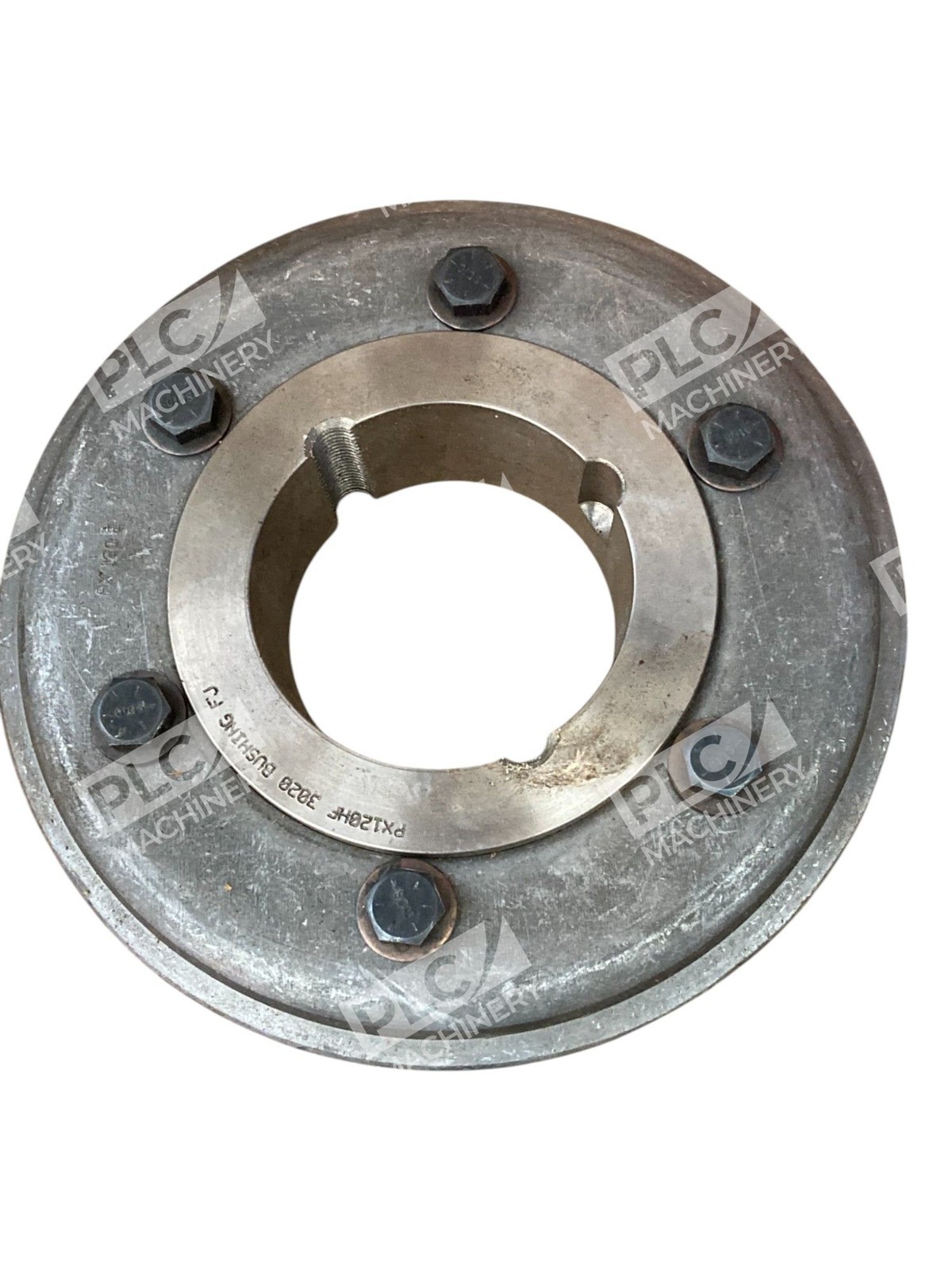

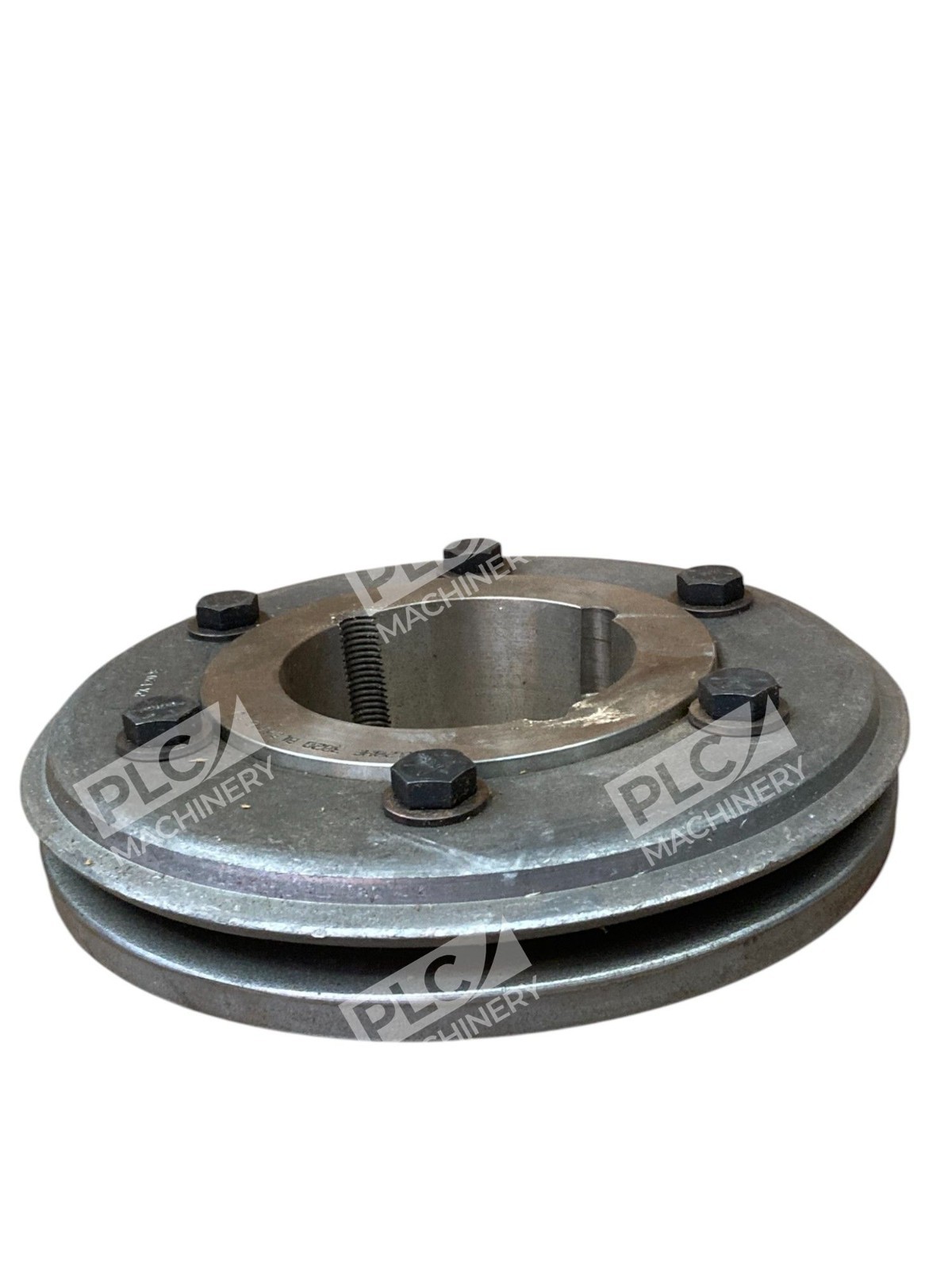

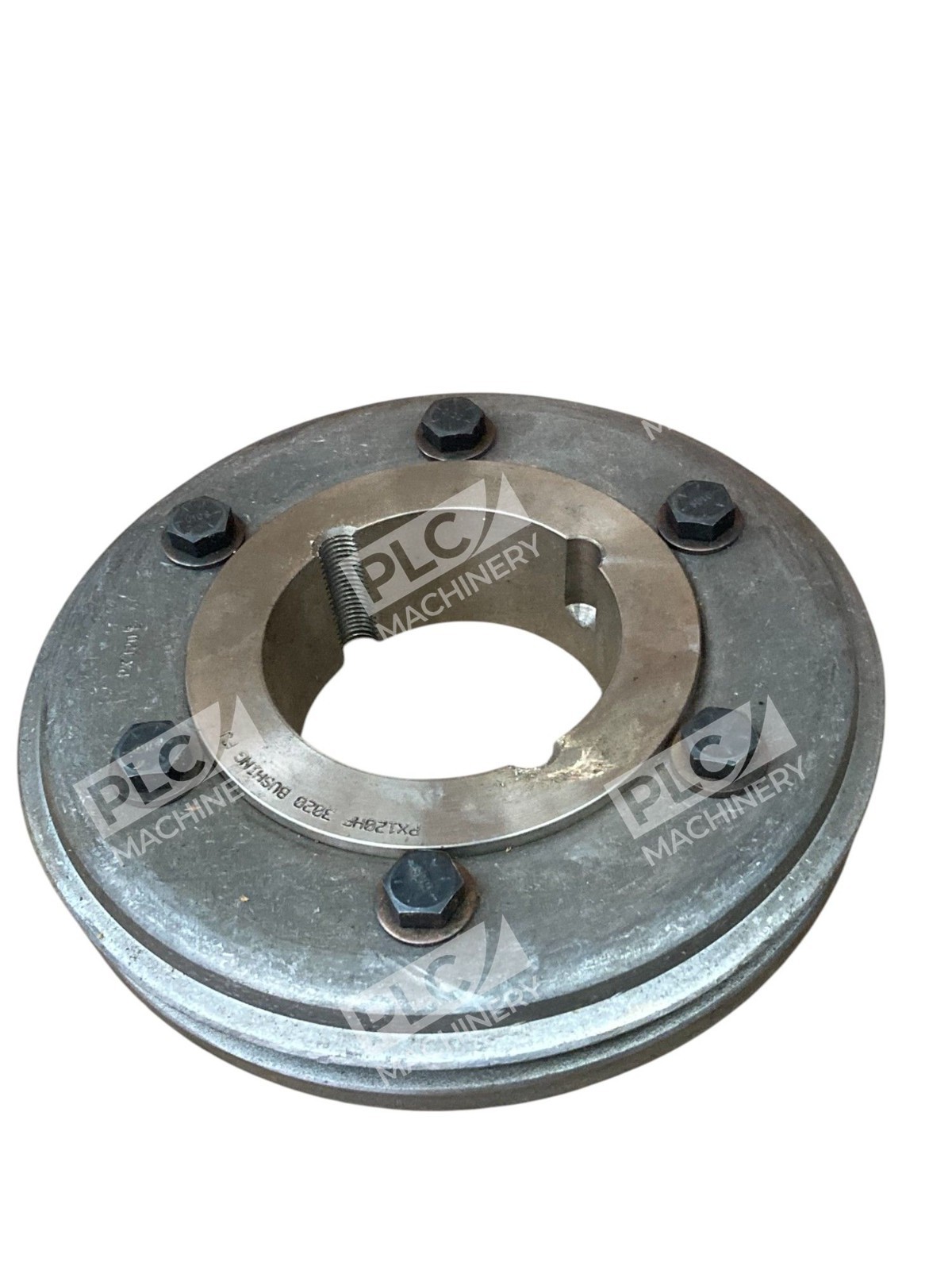

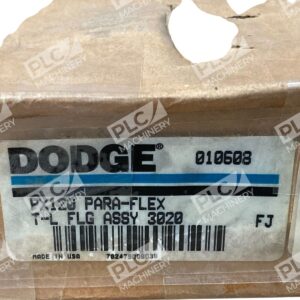

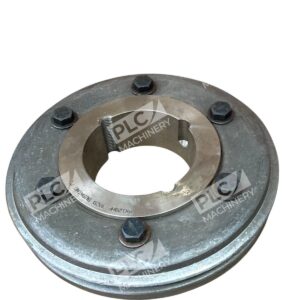

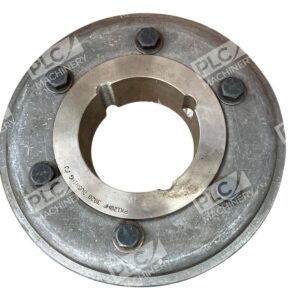

The Dodge 010608 PX120 Para-Flex Taper-Lock flange assembly is a precision-engineered elastomeric coupling component designed for industrial power transmission and motion control. Part of Dodge’s proven Para-Flex family, this PX120-size flange combines cast-iron construction with a Taper-Lock bushing system for secure, easy installation on motor and driven equipment shafts. The 3020 bushing size provides optimal shaft accommodation and damping for smooth operation across demanding industrial applications.
Key Features
- Taper-Lock bushing design — standard bushings enable quick installation and removal without special tools
- Elastomeric coupling element — absorbs shock, vibration, and misalignment while protecting bearings
- Cast-iron flange construction — durable material rated to 180 °F maximum operating temperature
- Reversible H and F style mounting — flexible flange orientation for diverse equipment configurations
- Pre-assembled configuration — reduces installation time and labor costs on the job site
- Close-coupled shaft spacing — compact footprint ideal for space-constrained installations
Technical Specifications
The Dodge 010608 flange assembly meets ATEX certification standards and delivers consistent performance across a wide operating range. Its elastomeric tire element accommodates parallel, angular, and axial misalignment while transmitting rated torque reliably.
Typical Applications
- Motor-pump couplings in centrifugal pump systems
- Fan and blower drive trains requiring vibration damping
- Compressor coupling assemblies in industrial plants
- Conveyor drive systems with frequent start-stop cycles
- General industrial machinery requiring reliable elastomeric power transmission
Compatibility & Replacements
Compatible With
- Dodge PX120 coupling family and assemblies

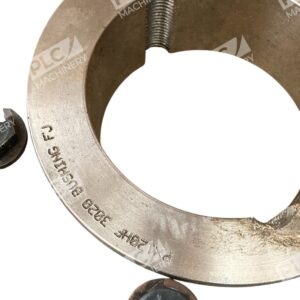

- 3020 Taper-Lock bushings and shaft collars
- Standard industrial motor shafts (verify shaft diameter and keyway)
- H-style and F-style flange mounting systems
- Elastomeric coupling-compatible gearboxes and pump inlets
Replaces / Drop-In Replacement For
Verify exact cross-references with your system integrator. The Dodge 010608 is a specific PX120-class flange assembly; similar-duty couplings may exist from other manufacturers but should be confirmed for bore diameter, torque rating, and mounting compatibility before installation.
Works With
- Standard industrial motors (AC/DC) with appropriate shaft diameters
- Gearboxes and speed reducers using Taper-Lock hubs
- Pumps, fans, compressors with flange-mounted inlets
- Variable frequency drives (VFD) — no special control required; purely mechanical component
- Shaft-mounted bearing supports and pedestal assemblies
