Overview

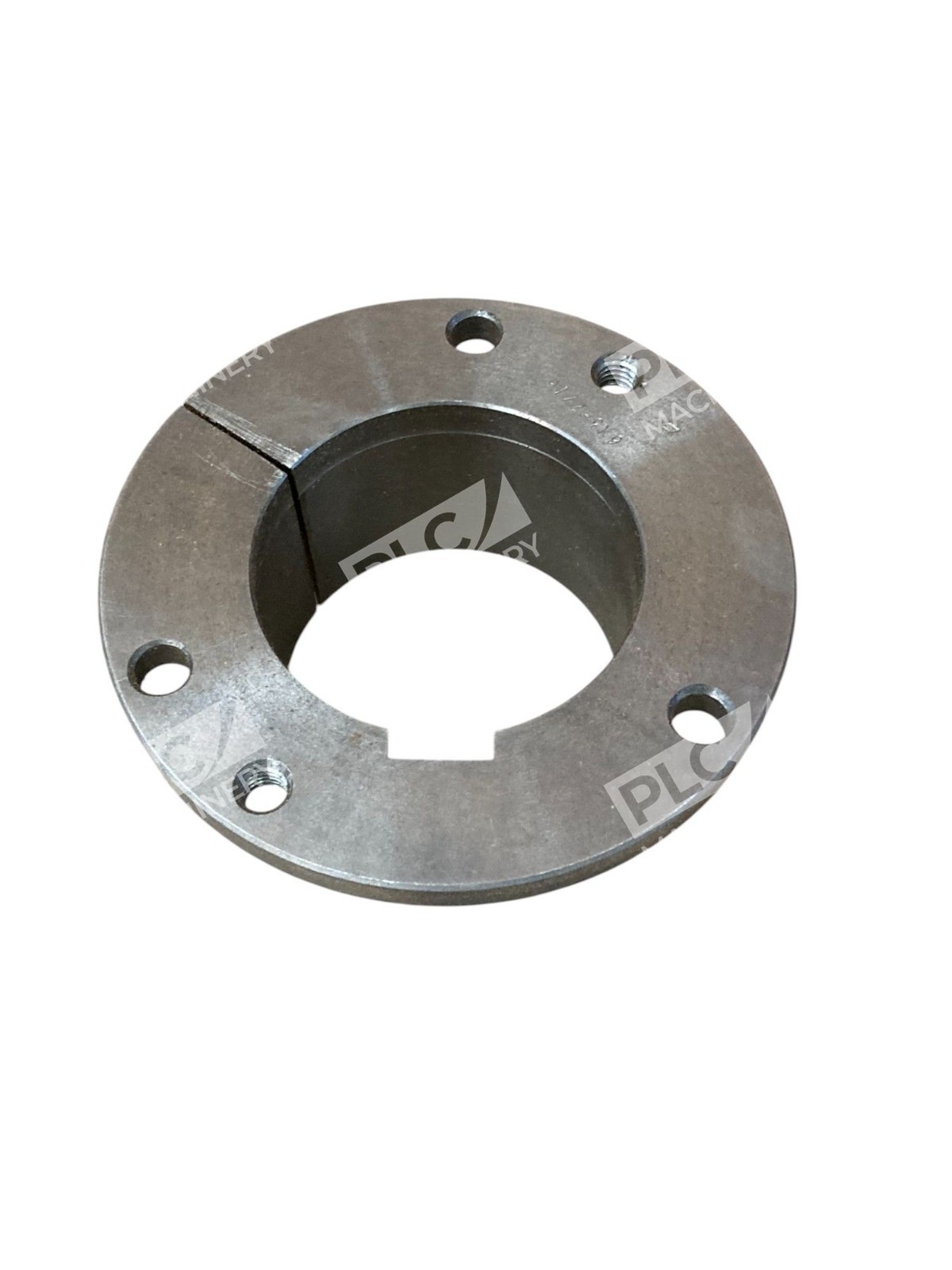

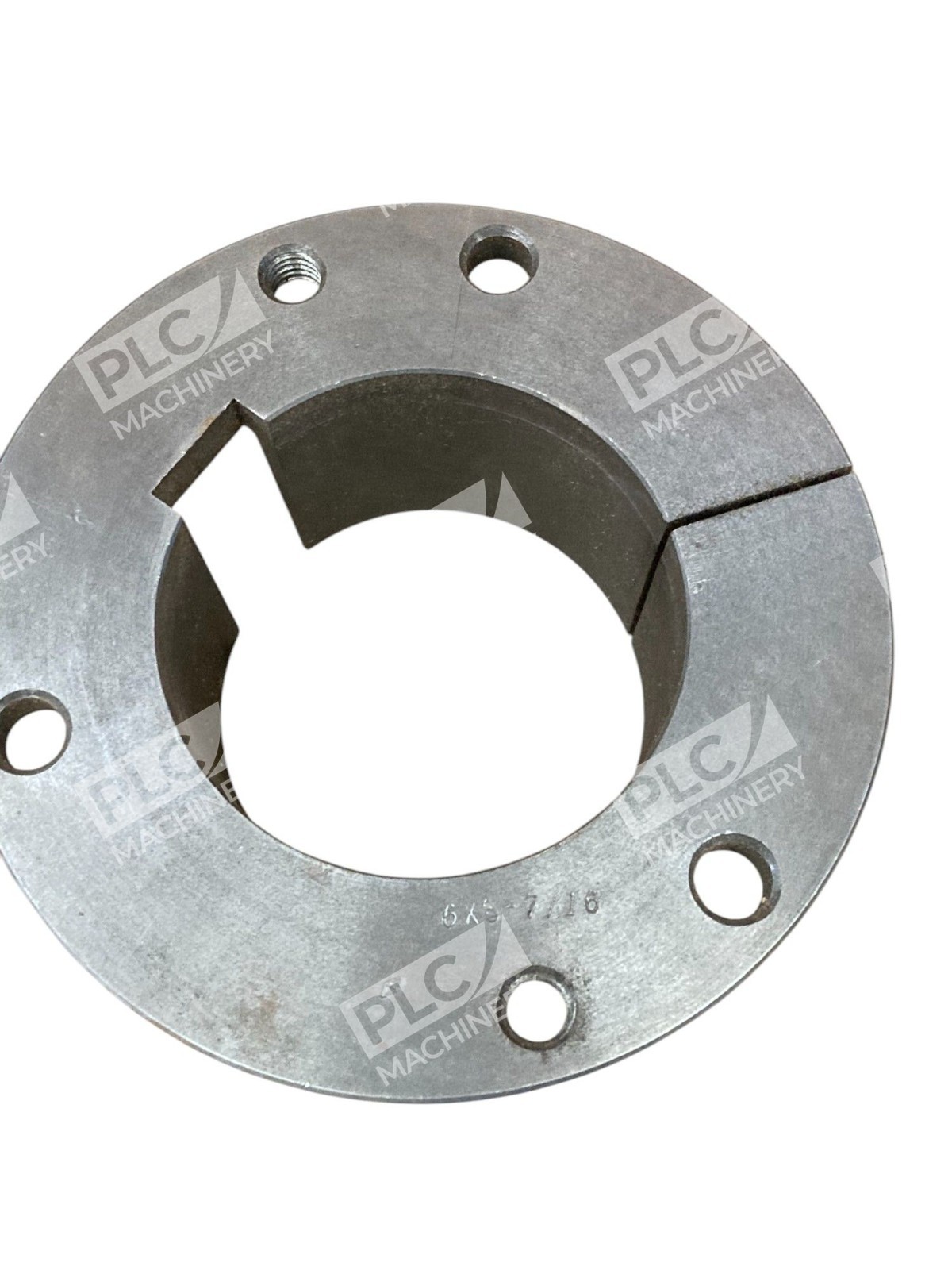

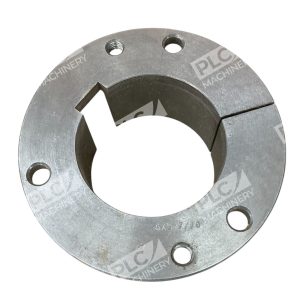

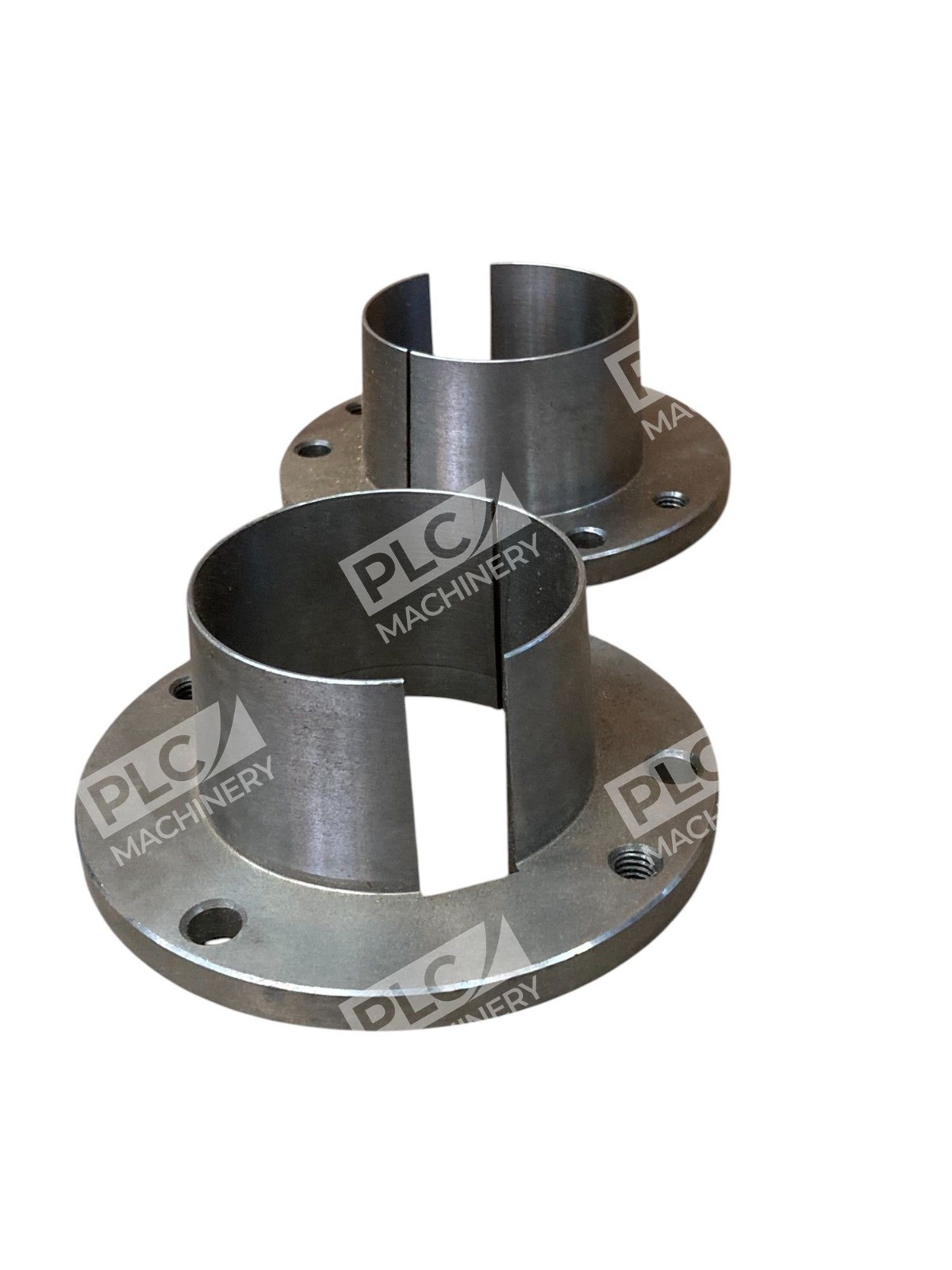

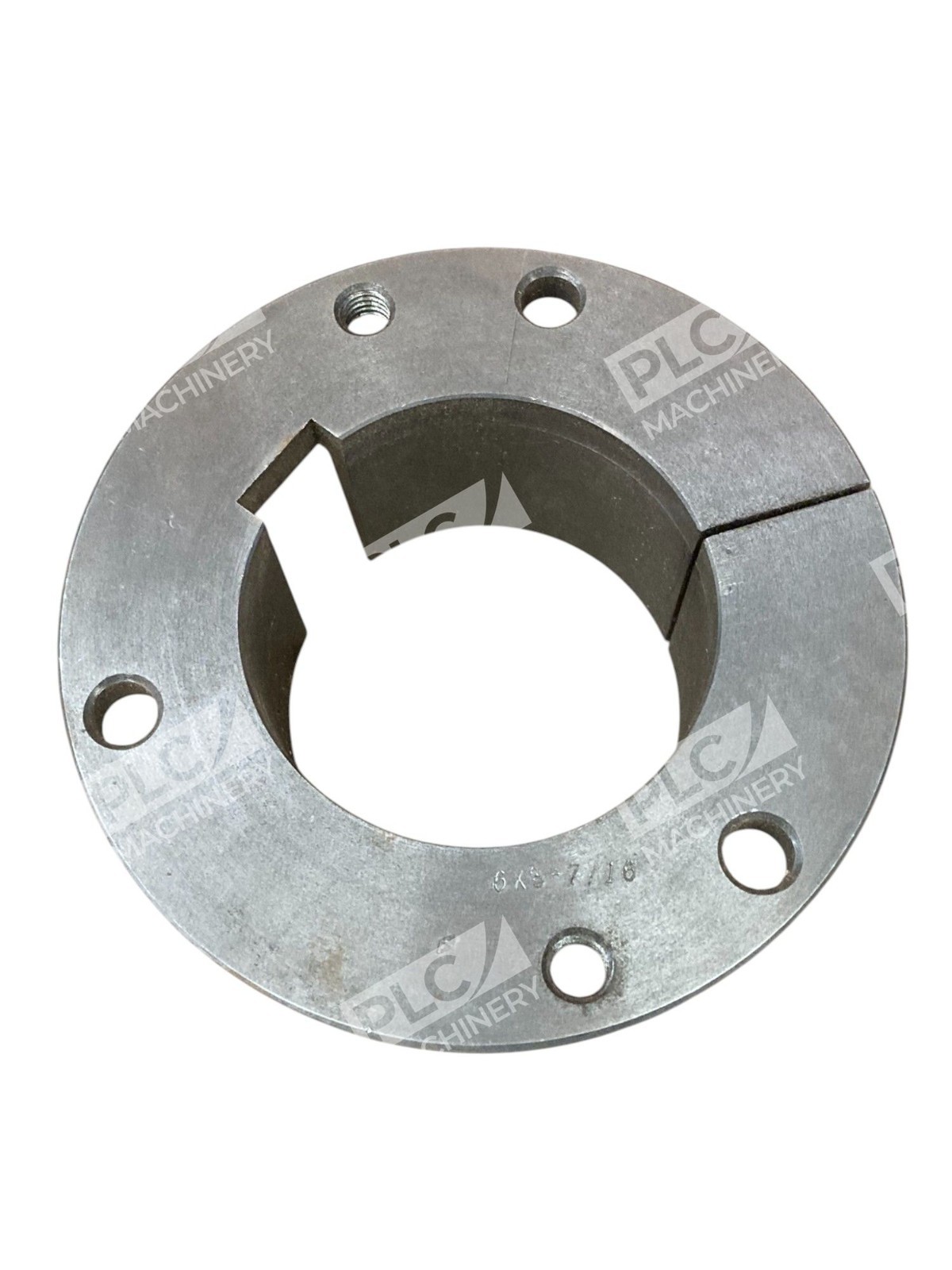

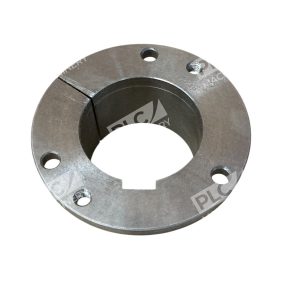

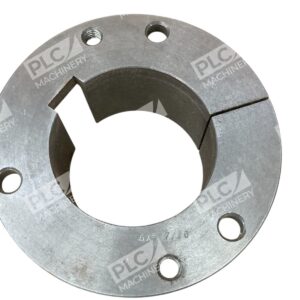

The Dodge 246268 TDT6-3-7/16 taper bushing assembly is a professional-grade component for Torque-Arm TXT6 and related speed reducers. This twin-tapered bushing provides keyless shaft mounting with an 8-degree taper design and is manufactured from cast ductile iron for heavy-duty industrial applications. The unit features a 3-7/16 inch bore diameter and is engineered to support both compression and tension loads reliably.
Key Features
- Twin-tapered bushing system with 8-degree taper for secure keyless locking

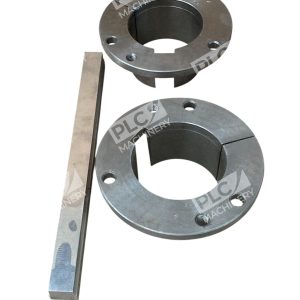

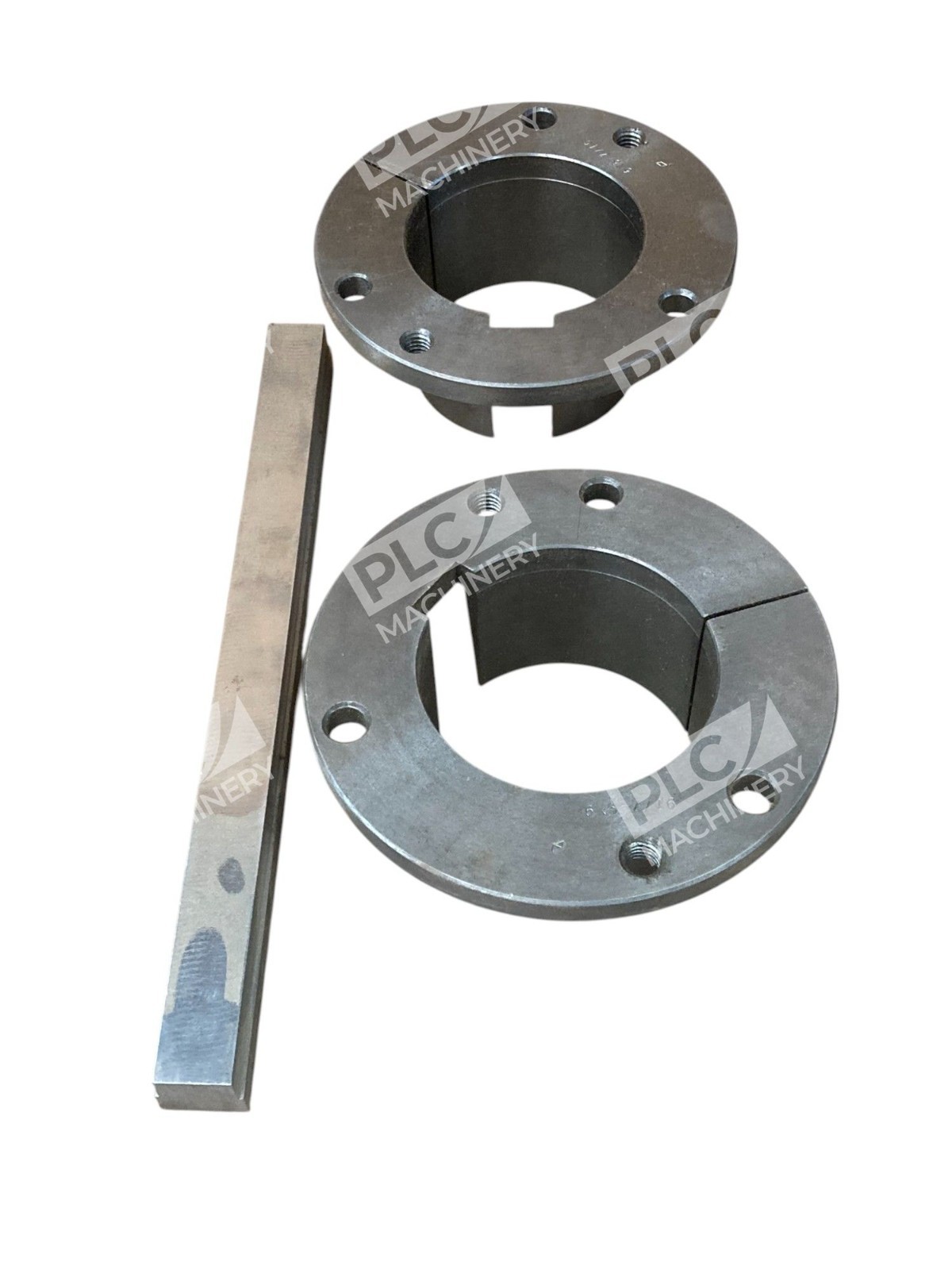

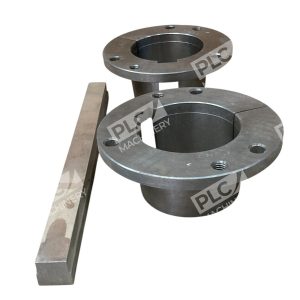

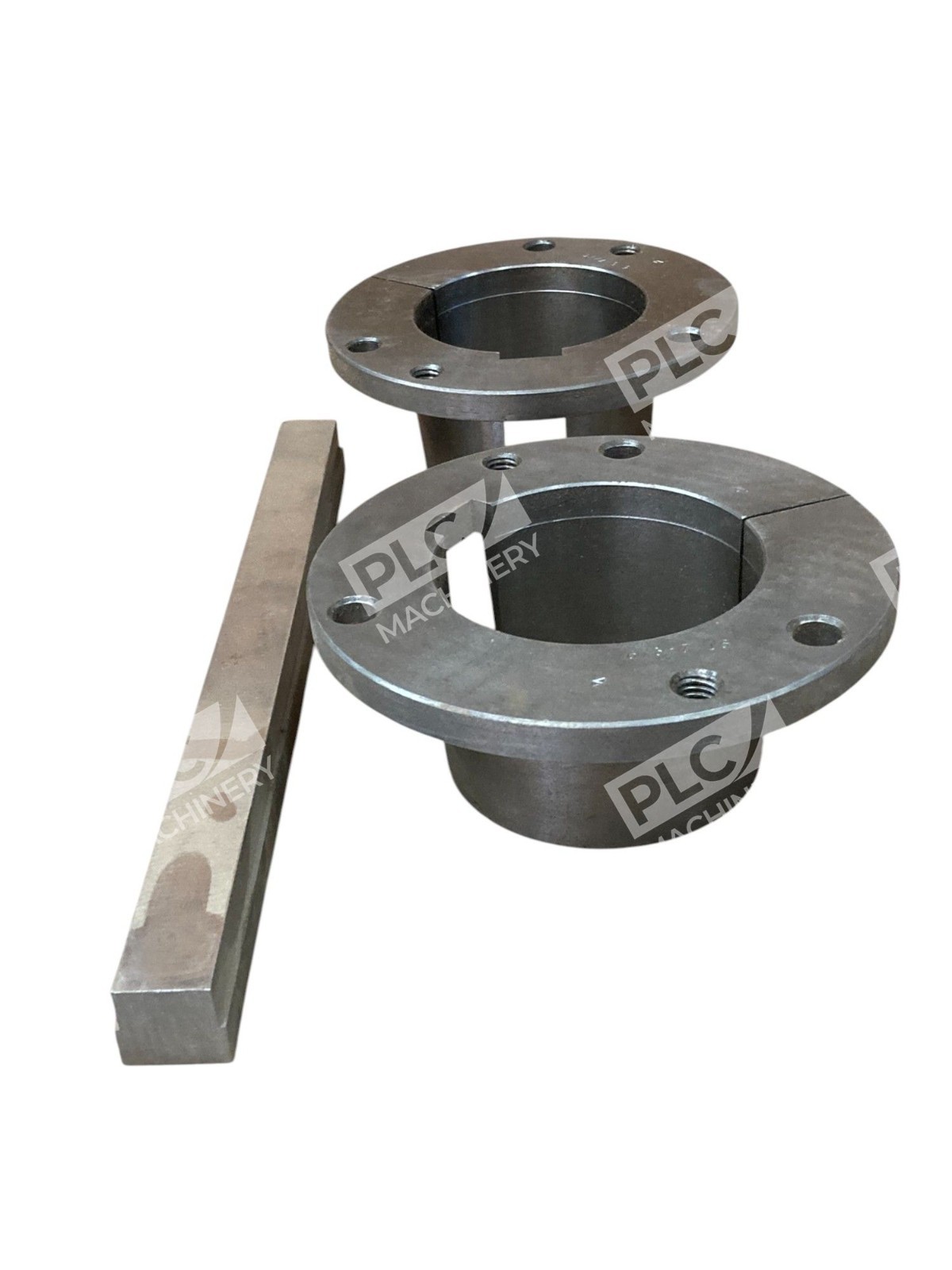

- Full-length shaft key and flanged bushing mount for easy installation
- Fully split bushing construction enables fast demount without reducer damage
- Ductile iron casting withstands maximum torque and shock load
- Clamp-fit design eliminates fretting and seizing problems
- Removal screws simplify maintenance and field replacement
Technical Specifications
- Bore Diameter: 3-7/16 inches (3.4375″)
- Bushing Type: Twin-Tapered
- Taper Angle: 8 degrees
- Material: Cast Ductile Iron
- Weight: 8.29 lbs
- Configuration: Fully Split with Clamp Fit
- Mounting Style: Flanged
Typical Applications
- Torque-Arm TXT6 speed reducer assemblies
- Double-reduction helical drive systems
- Industrial shaft-mount gearbox installations
- Heavy-duty power transmission systems requiring reliable torque coupling
- Equipment maintenance and retrofit applications
Compatibility & Replacements
Compatible With
- Dodge Torque-Arm TXT6 speed reducers
- Dodge TDT6 series shaft-mount gearboxes
- Double-reduction helical drive systems
- Industrial applications using TDT6 speed reducers
Replaces / Drop-In Replacement For
- OEM Dodge 246268 bushing assemblies
- Equivalent twin-tapered bushings for TDT6 speed reducer platforms
Works With
- Dodge Torque-Arm power transmission platforms
- Standard industrial shaft-mount gearbox systems
- Heavy-duty industrial machinery and conveyor applications
