Overview
The Dodge F2B-SC-014 is a two-bolt flange mount set screw ball bearing rated for standard duty applications. With a 7/8″ (0.875″) shaft bore and 205 series bearing designation, this unit delivers dependable performance in power transmission, conveyor systems, and general industrial machinery. The set screw locking mechanism ensures secure shaft attachment without requiring tooling, making installation and maintenance straightforward for maintenance technicians.
Key Features
- Engineered Set Screw Design — Dodge employs a 65-degree set screw angle that maximizes grip on the shaft while minimizing stress concentration on the bearing’s inner ring.
- Reinforced Ball Cage — The cage is constructed from heat-stabilized nylon with fiberglass reinforcement, providing superior strength and flexibility compared to steel or standard nylon designs, and allowing higher operating temperatures.
- Patented DualGuard Seal — Features a land-riding nitrile rubber lip seal combined with a rubberized flinger that deflects contaminants and liquid splash away from the bearing, extending service life in wet and dusty environments.
- 2-Bolt Flange Mounting — Standard M10 bolt pattern for universal compatibility with common industrial equipment footprints.
- Cast Iron Housing — Durable, corrosion-resistant housing suitable for food and beverage, chemical, pharmaceutical, and outdoor applications.
Technical Specifications
- Shaft Bore Size: 7/8″ (0.875″)
- Bearing Series: 205 (Standard Duty)
- Mounting Type: 2-Bolt Flange
- Locking Method: Set Screw (SC)
- Housing Material: Cast Iron
- Bearing Type: Ball Bearing (Single Row, Deep Groove)
- Lubrication Fitting: 1/8″-27 NPT (standard for 205 series)
- Recommended Lubricant: No. 2 Lithium Complex Base Grease or equivalent
- Load Capacity: Primarily designed for radial loading; capable of combined radial/thrust loads (consult engineering for duty cycle details)
Typical Applications
The Dodge F2B-SC-014 is widely used across industrial sectors:
- Conveyor Systems — Reliable performance in horizontal and inclined belt conveyor drives.
- Food & Beverage Processing — Cast iron housing resists moisture and cleaning agents common in food production.
- Chemical & Pharmaceutical Manufacturing — Sealed design protects against airborne contaminants and splashing.
- HVAC & Air Handling Units — Standard bearing choice for fan and motor support applications.
- General Industrial Drive Shafts — Mechanical power transmission in motors, gearboxes, and pump assemblies.
Compatibility & Replacements
Compatible With
- Standard 7/8″ diameter shafts (0.875″ nominal)
- Equipment mounting footprints accepting 2-bolt flange configuration
- Any motor or shaft system designed for F2B series flange mounts
- Standard industrial pillow block bearing applications
Replaces / Drop-In Replacement For

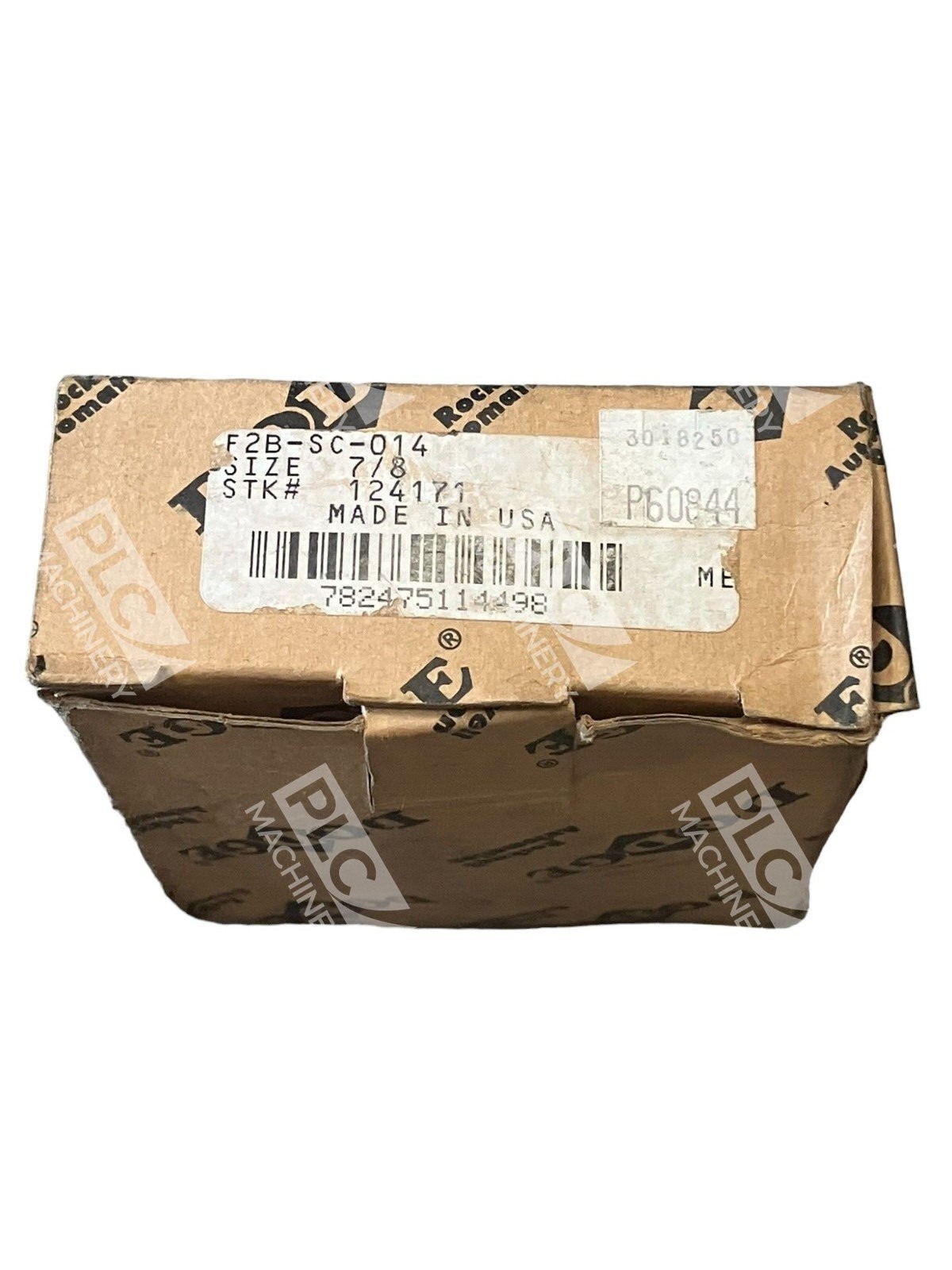

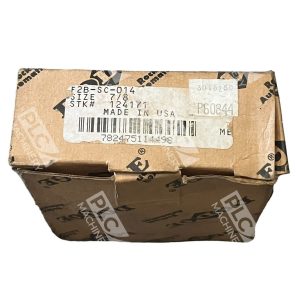

- Dodge F2B-SC-014 legacy inventory (MFG Part Number 124171)
- Equivalent OEM bearing units from comparable manufacturers in the 205 series, 7/8″ bore category (verify bolt pattern and mounting dimensions before ordering)
Works With
- Standard industrial greasing systems (manual or automatic lubrication)
- No special tooling required — hand-tightened set screws with standard hex wrench
- Compatible with all 7/8″ diameter shaft materials (steel, stainless steel, chrome-plated)
- Works in environments using No. 2 Lithium complex or NLGI Grade 2 equivalent lubricants
